LWPA27-40-UD

For competitive quote, log in to the portal and request a Special Project Quote
Wattage
CCT
Built-In Photocell*

Accessory

The One to Replace All

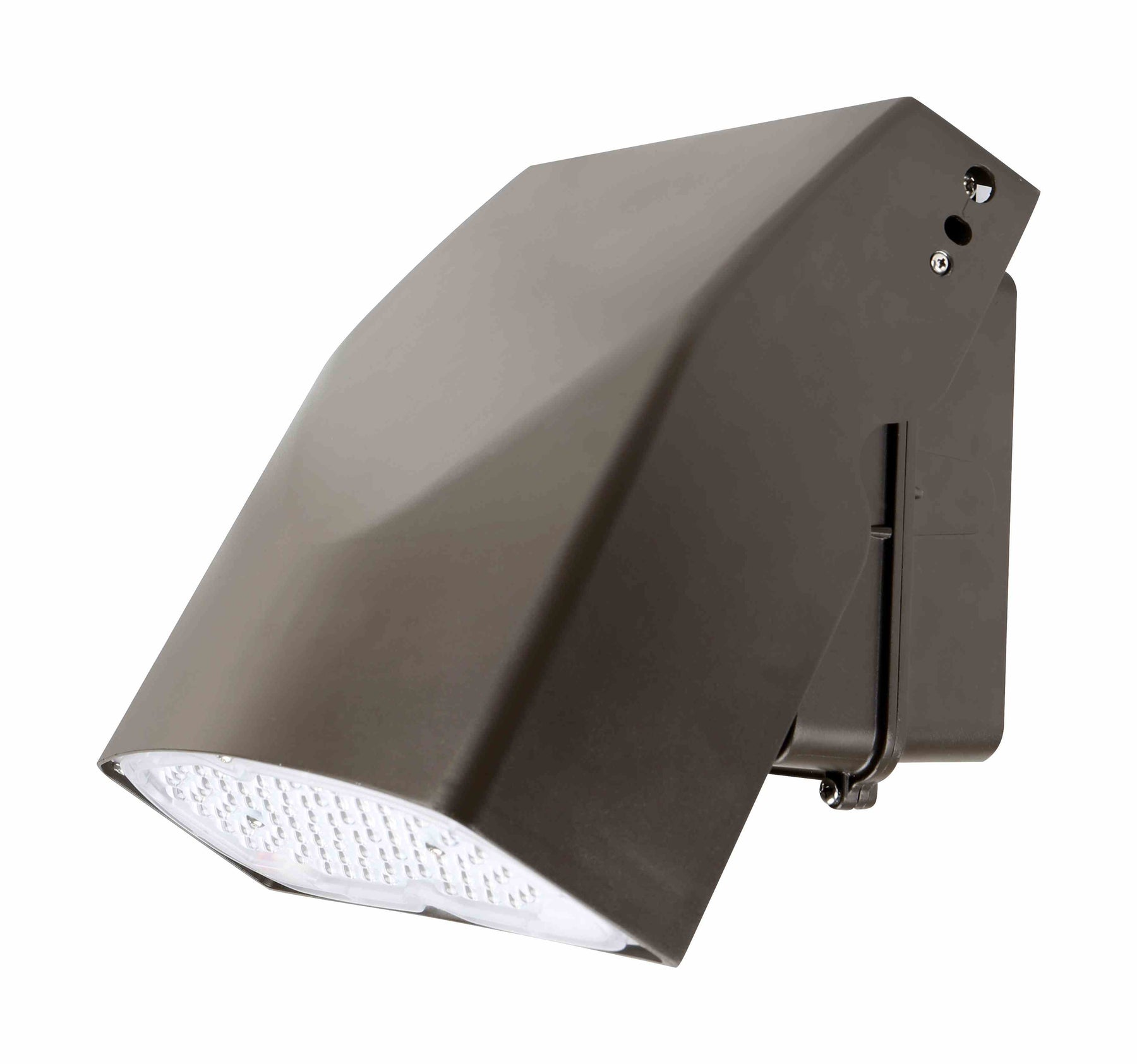

The luxoⒶRCH LED adjustable slim wall pack is designed with modern & futuristic architectural look. It provides a low-profile style with the power equal to traditional wall-mount luminaries.

Loading store locator from Stockist store locator...

Documentation Downloads

IES Downloads

Description



KEY FEATURES

  • Weather Resistant, Sealed Die-cast Aluminum
  • Suitable for Extreme Applications Requiring 3g Testing Prescribed by Ansi C136.31
  • Optional Photocell Allows for Security and Optimized Efficiency
  • Traditional Metal Halide or High-pressure Sodium Design
  • Mounts Directly to Wall Surface or J-box
  • Thermally Isolated Driver Design
  • Replaces Up to 800w Mh

ORDERING GUIDE

Model Series

Watt (W)

CCT (K)

Voltage (V)

Finish (y)

Photocell (a)

LWPA | LED Adjustable Wall Pack

12 | 12W
27 | 27W

40 | 4000K
50 | 5000K

U | 120-277V

B | Black
D | Dark Bronze *
W | White

Blank | None *
PA | 120-277V

40 | 40W
67 | 67W
80 | 80W

U | 120-277V
H | 347-480V
  • Default option

Choose Your Model Specifications Above:

LWPA

12

40

U

D

—

Example Ordering Number: LWPA12-40-UD
Specifications

KEY SPECIFICATIONS

  • Housing: Durable die-cast aluminum
  • Input Voltage: 120-277Vac or 347-480Vac
  • Operating Temp: -40°F—130°F
  • IP: UL Wet Location Listed
  • PF: >0.9 Non-Flicker
  • Efficacy: >130LM/W
  • Dimming: 1-10V
  • THD: <20%
  • CRI: >70

Certifications

Certifications

MODEL SPECIFICATIONS

Model

Watt

Lumens

Voltage

CCT

LPW

Replaces

LWPA12

12W

1,560LM

120-277V

4000K

5000K

130LM/W

100W MH

LWPA27

27W

3,600LM

120-277V

4000K

5000K

133LM/W

100W MH

LWPA40

40W

5,200LM

120-277V

347-480V

4000K

5000K

130LM/W

175W MH

LWPA67

67W

8,800LM

120-277V

347-480V

4000K

5000K

131LM/W

250W MH

LWPA80

80W

10,500LM

120-277V

347-480V

4000K

5000K

131LM/W

320W MH

SIZING & MEASUREMENTS

Accessories
Optional Exterior Finishes

Special color, can be quoted. Fee is depending on the availability.
Lead time, normally 2-3 weeks, may experience delay.
No warranty on the coat's quality. We are not responsible for discoloration or chip over time.
Photocells

* Make your sensor & controller selection by selecting ALL the variations under:

  • Application
  • Series
  • Motion Detection & Controller

Review the compatibility chart.
