LSBX · Liberty PRO
Field-Tunable Everything.
PRO tier of the luxoⒶRCH LSBX shoebox family. Engineered for parking lots, façades, roadways, campuses, and public areas where on-site flexibility decides the spec.

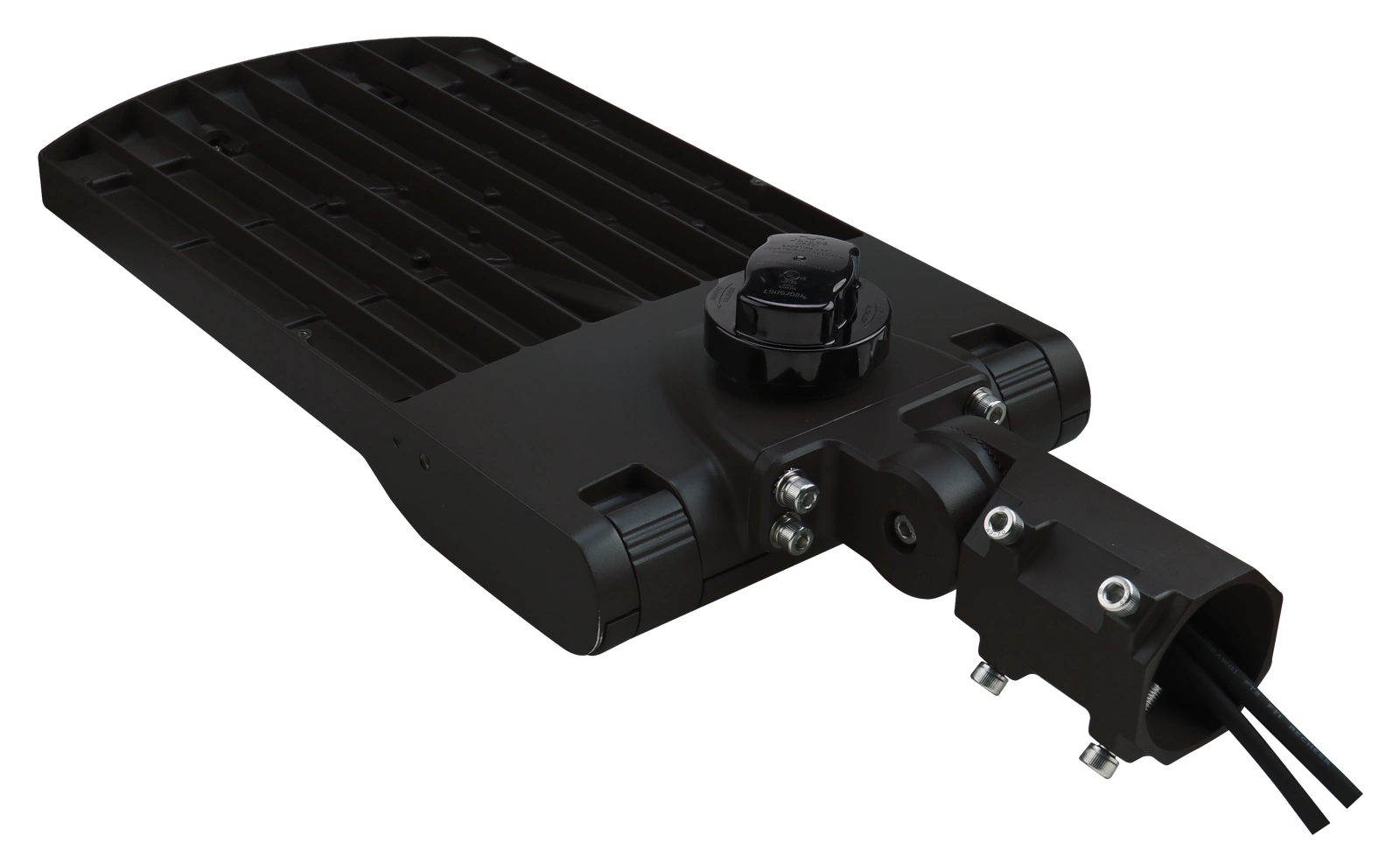

Five housings cover 50–450W (replaces 250W–2000W MH). Field-set wattage, CCT, AND magnetic tool-less optic swap at install — pop the lid, lift the optic, drop in a new distribution. No tools. No truck roll-back.

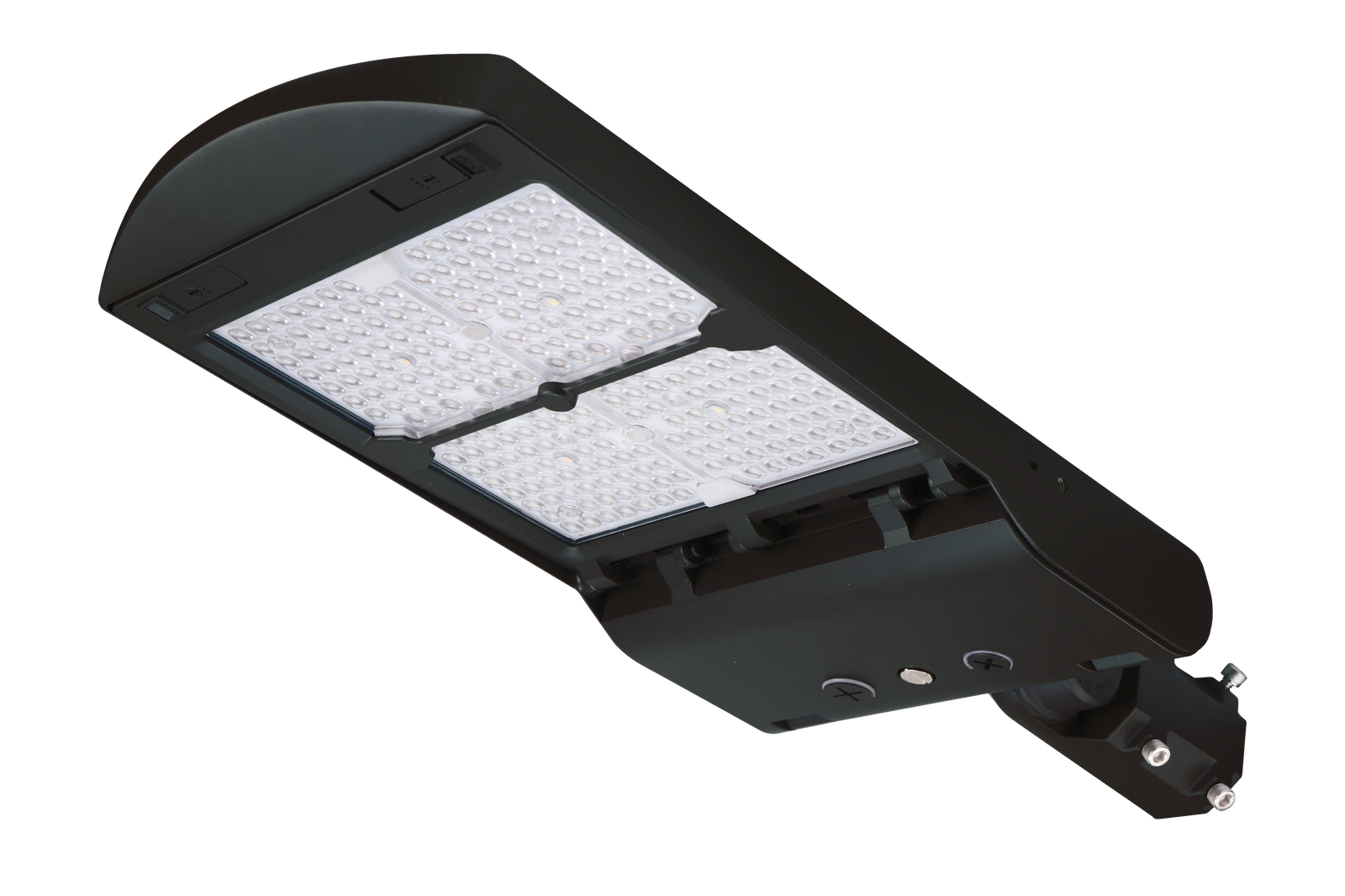

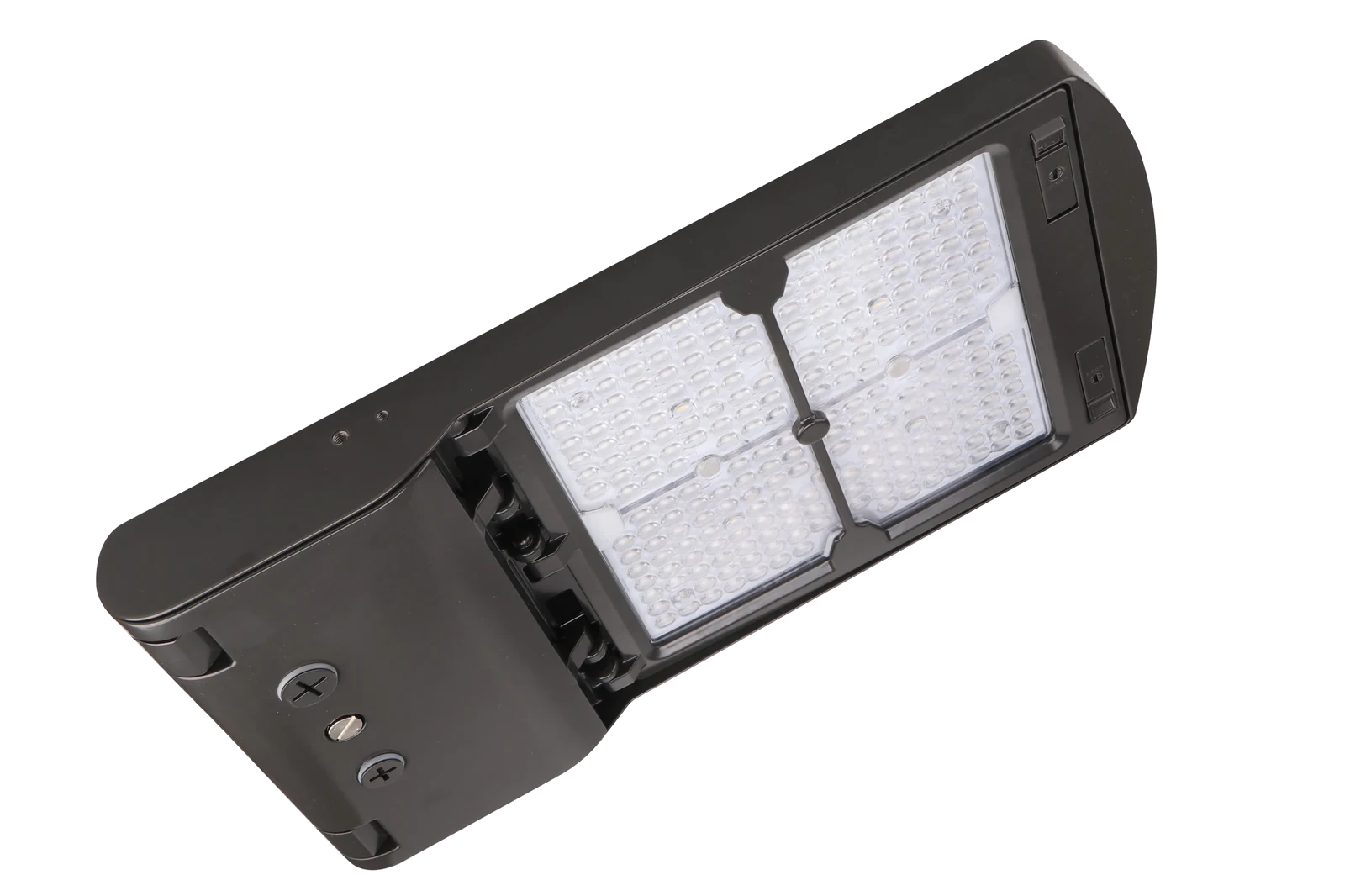

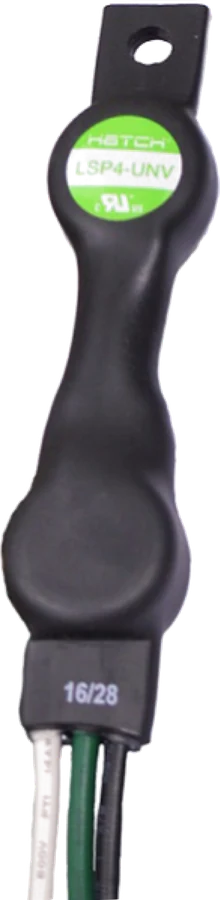

Die-cast aluminum, IP65, −40°F to 122°F, 6kV surge built-in (10/20kV inline optional). contrⒶLS-Ready · Bi-Level / /ACS Bluetooth Mesh / SILVAIR SIG Mesh on the same physical sensor — vendor neutrality without a hardware swap.
Change the optic. Not the fixture. In sixty seconds.
Liberty's optic is held by magnets — not fasteners. Pop the lid, lift the lens, drop in a different distribution. Type-II, Type-III, Type-IV, Type-V all interchangeable in the field. No tools. No truck roll-back. No re-spec when the as-built lighting layout shifts.

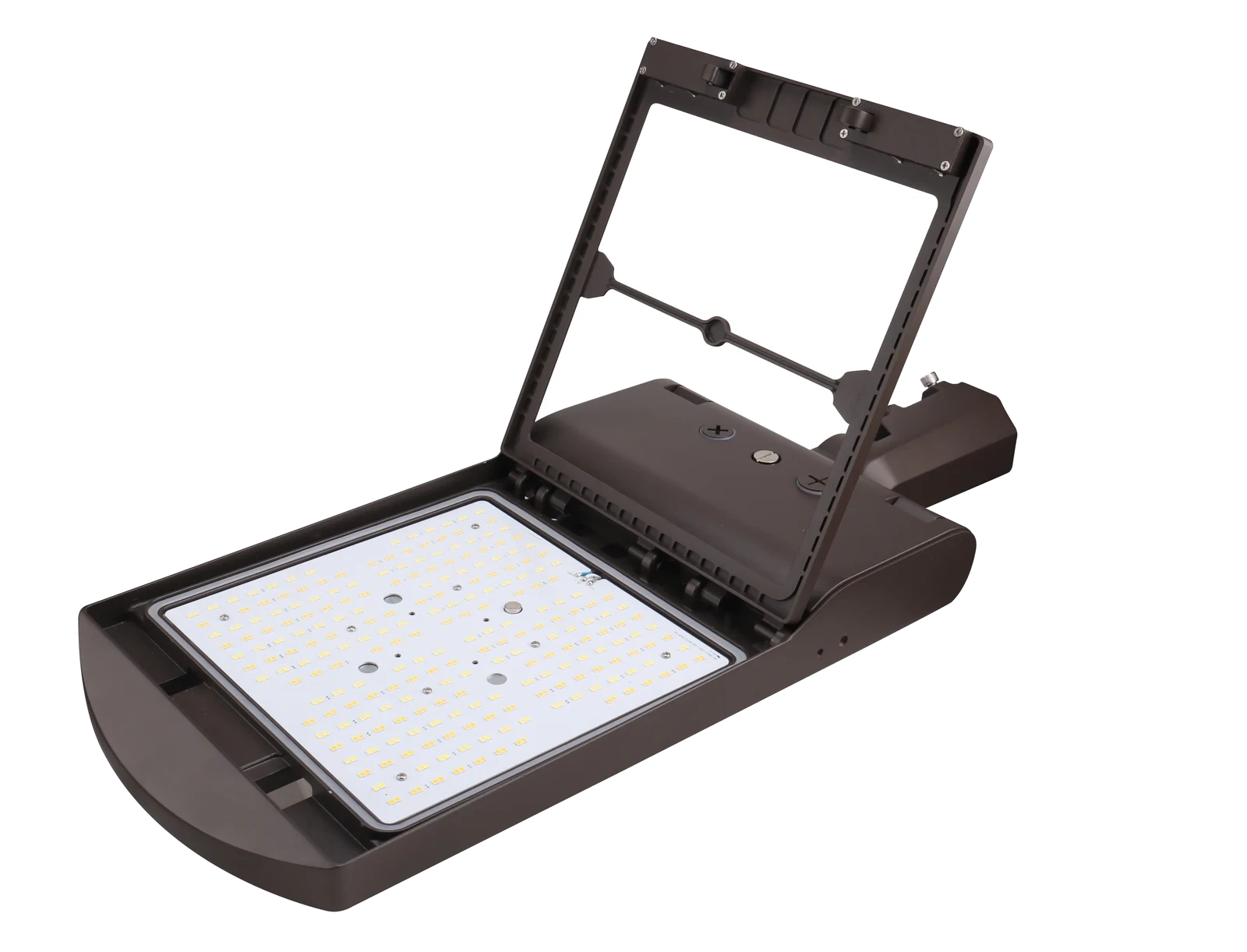

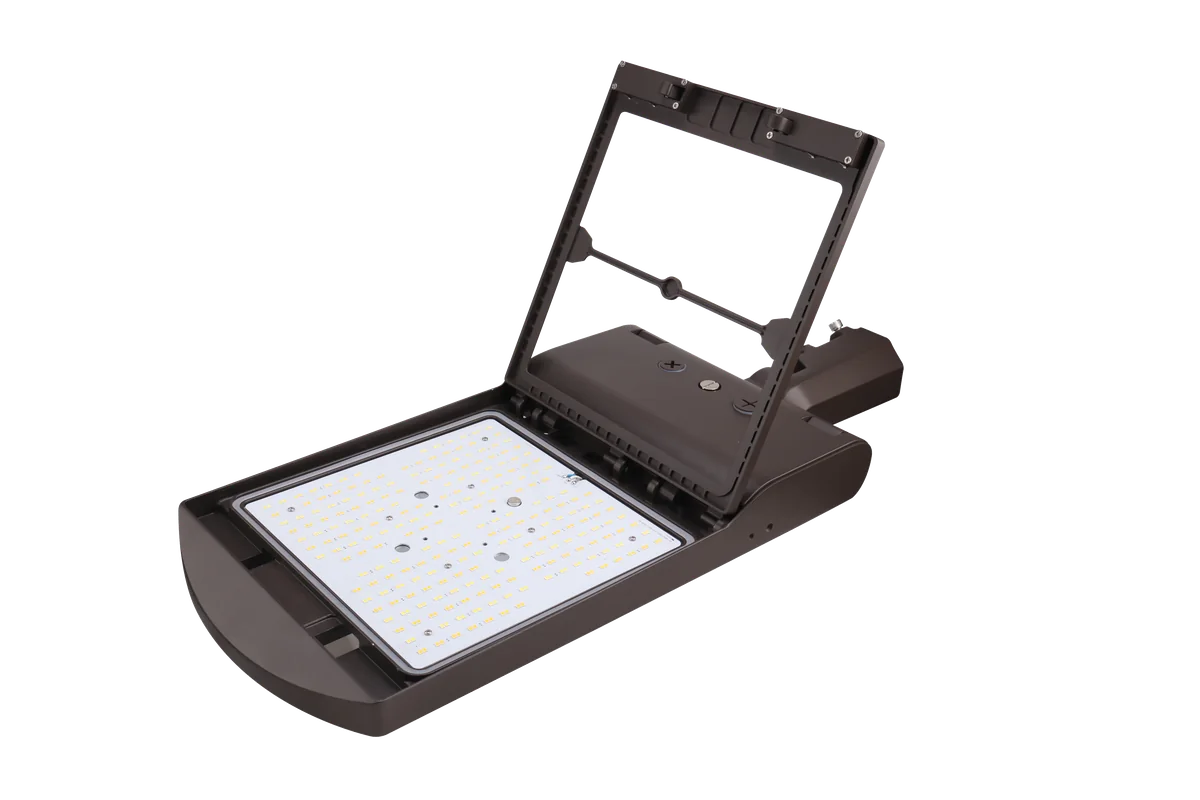

Magnetic-tab lid pops open by hand.
No tools required. The lid releases from the housing on a captive hinge so it can’t fall to the ground — helpful at 30 ft on a man-lift.

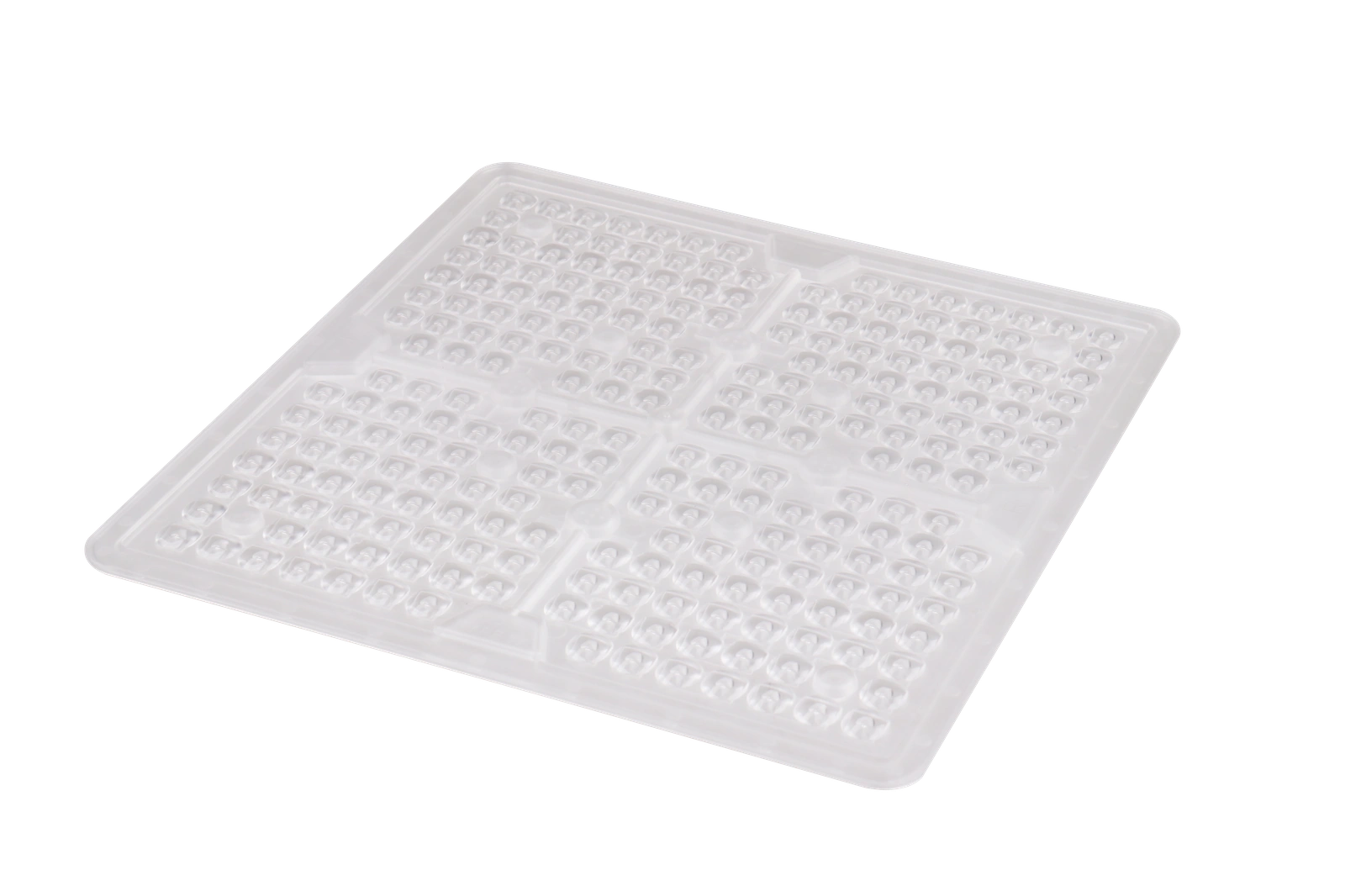

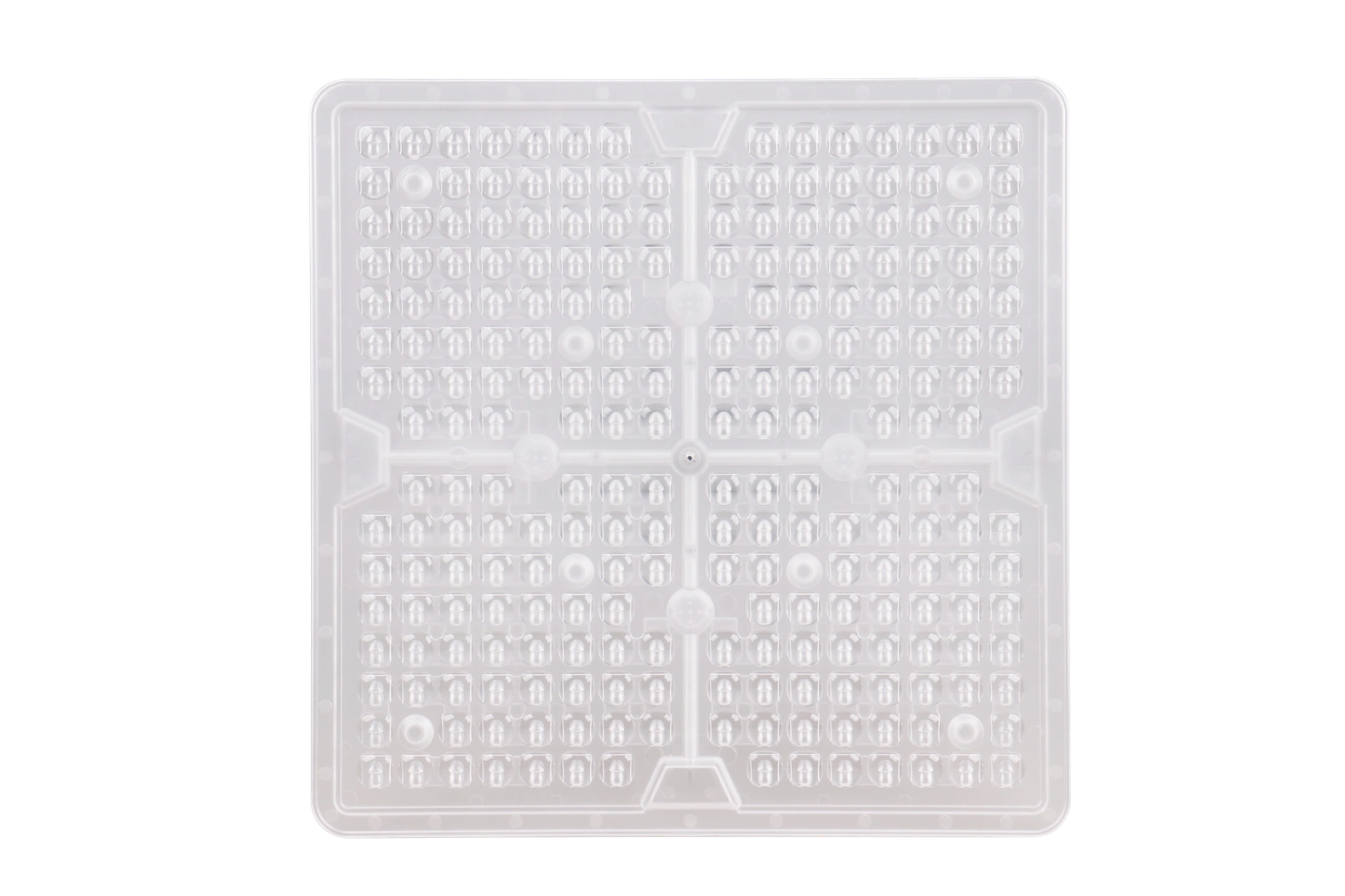

UV-stabilized polycarbonate refractor.
Standard ships with Type-III. Replacement OT3 / OT4 / OT5 modules sized per wattage class (100W / 200W / 300W / 450W) are QuickShip accessories — see Section 8b.
Magnets register · housing self-aligns.
The replacement lens snaps into the same registration points. Power-up, verify aim with the IES distribution change, close the lid. Total swap time: under 60 seconds per fixture.
Model Specifications
Download Data Sheet| Watt | Lumens | lm/W | CCT | Voltage |
|---|
Dimensions · LSBX150
(For the selected housing · L × W × D in inches · varies by mount)
Engineering In Motion
See the Liberty in action.
Five short clips covering the features that matter on a parking-lot install — wetGUARD weatherproofing, magnetic optic swap, four mount families, controls-ready port, and an IP65 red-dye spray test.
HIGHLIGHTS & FEATURES
Five reasons Liberty owns the PRO area-light tier.
Liberty is the PRO tier of the LSBX shoebox family — the spec-grade play that earns the line on bid sheets against the premium-tier shoebox and area-light competitive set. Five design choices that no competitor under $500 productizes the same way.
contrⒶLS
Three controls platforms. ECO-grade ticket.
One housing, three controls platforms — pick what the project needs.
contrⒶLS Bi-Level for occupancy bi-level without networking.

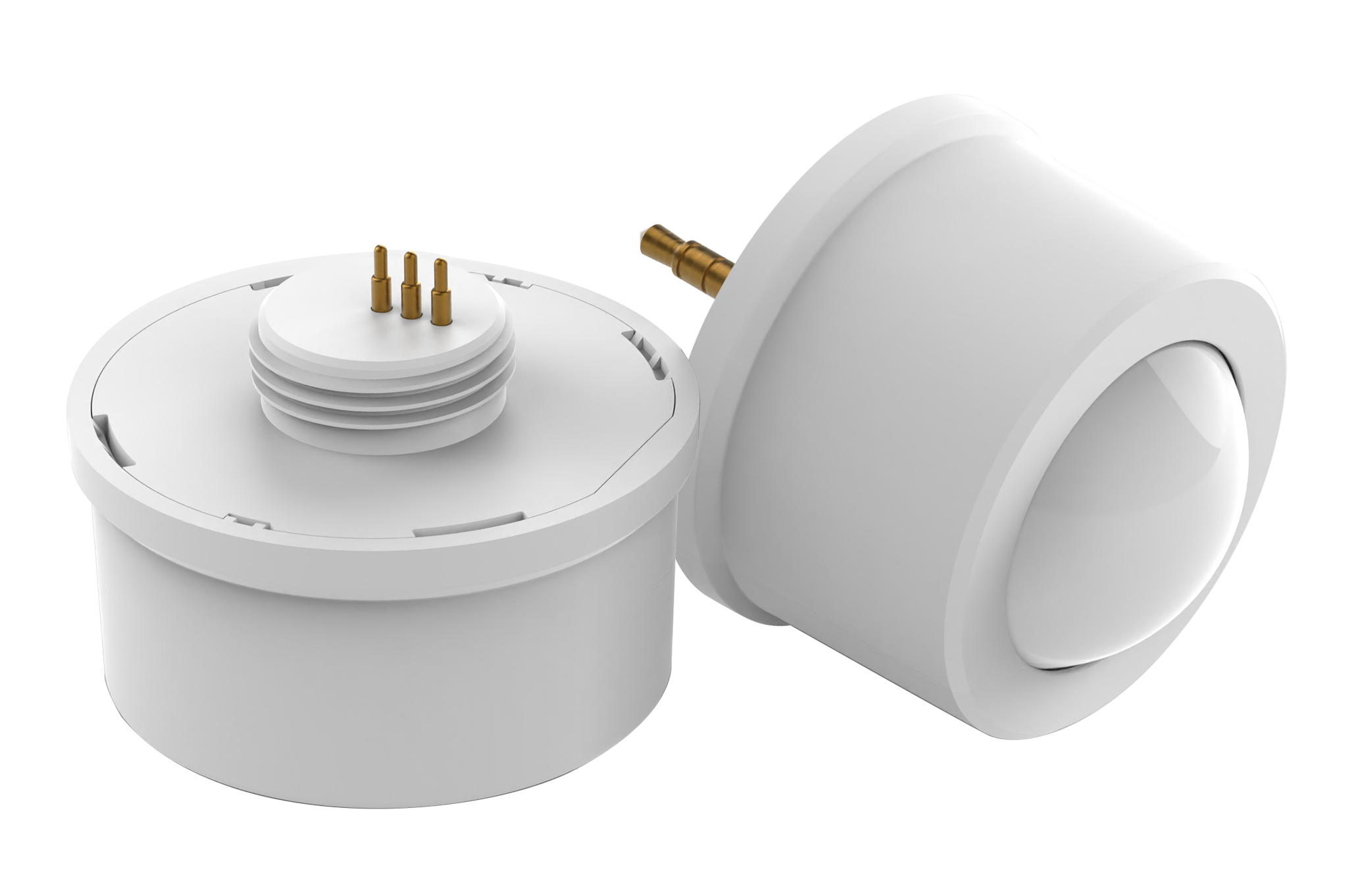

contrⒶLS by ⒶCS for Bluetooth Mesh + cloud SaaS (DLC NLC pending).
contrⒶLS by SILVAIR for SIG-qualified, vendor-neutral, gateway-free enterprise mesh.
All three drop in via /MSP-XXX ordering codes on the same Heritage housing — no install changes. ECO competitors (volume-tier shoebox, value-tier shoebox, private-label) ship dim-driver only. Carrying ⒶCS + SILVAIR side-by-side at ECO pricing is the protocol-flexibility lever Heritage shares with the PRO siblings on the LSBX family.

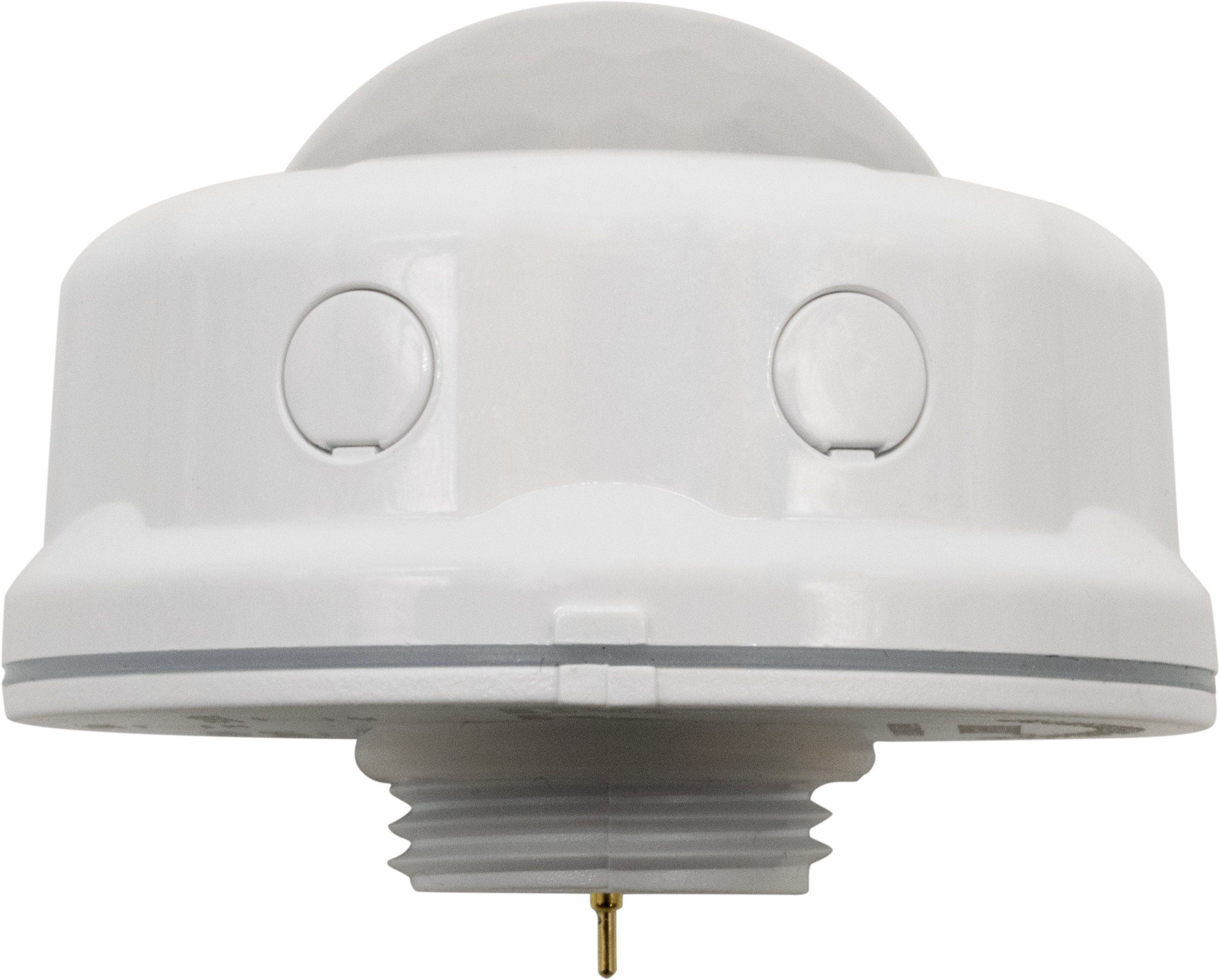

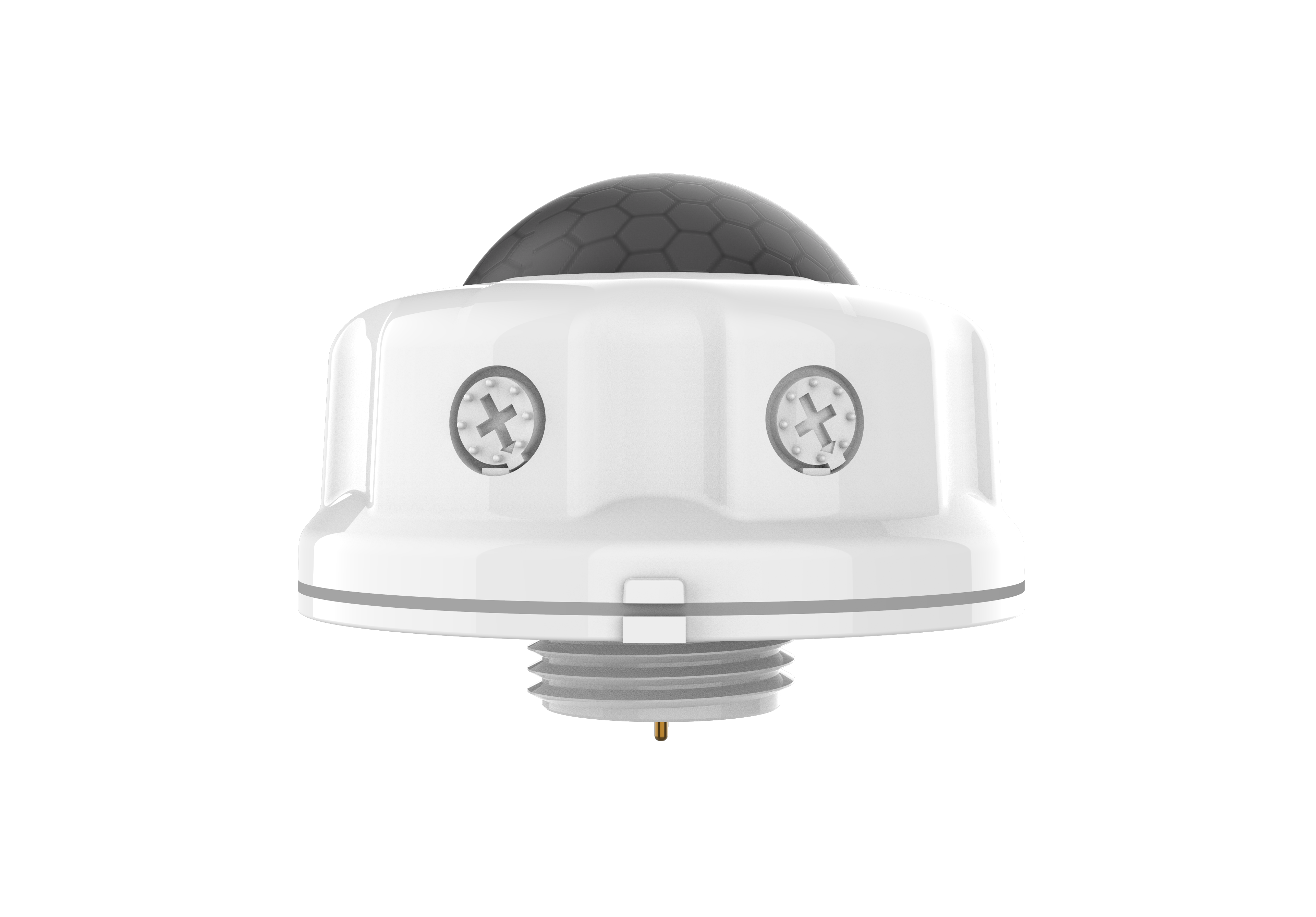

Two PIR bi-level variants — IR-remote commissioned, no gateway, no IT. /BLS standard auto high/low switching · /BLS-5D adds 5 manual dials for site-tuned thresholds. Both: PIR · 49-ft mount · 10-15Vdc · IP65 · UL. Commissioning via optional RM-06S IR remote (45-ft range · 2× AAA · IP20). Drives Title 24 §140.7 / IECC §C405.2 / ASHRAE 90.1 bi-level credits — no third-party sensor BOM line, no networking. Daylight-harvest capable: adjust lux threshold (>50 lux), preset standby, 3× press to enable. The spec when occupancy bi-level is enough.
Photometric Distribution
Beam shape, generated from the IES file.
Real luminous distribution at the selected housing class and optic. Each curve is rendered directly from the certified LM-79 IES test report — peak candela, total lumens, and beam profile reflect the actual measured output, not stated specs.
Accessories
Engineered Accessories

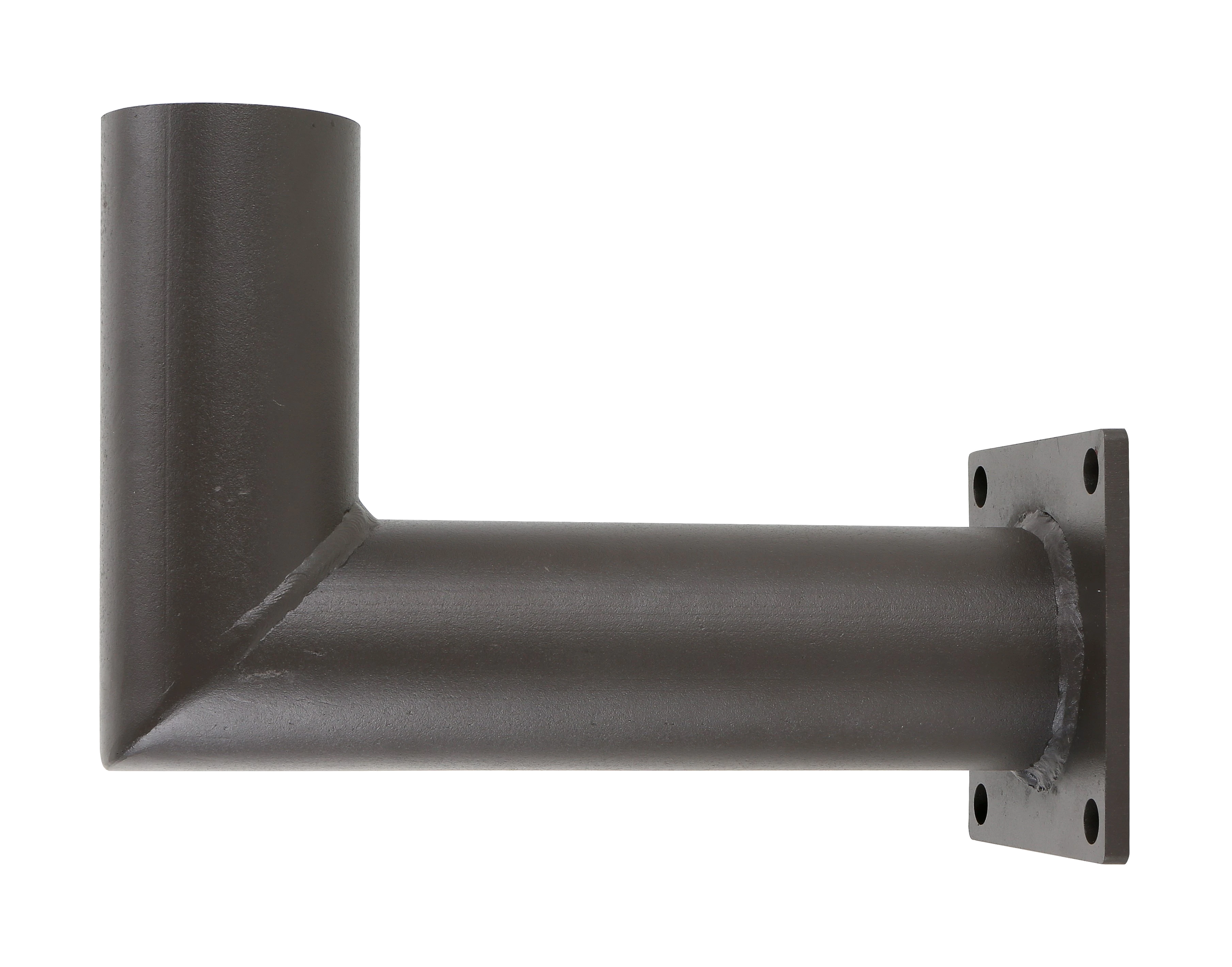

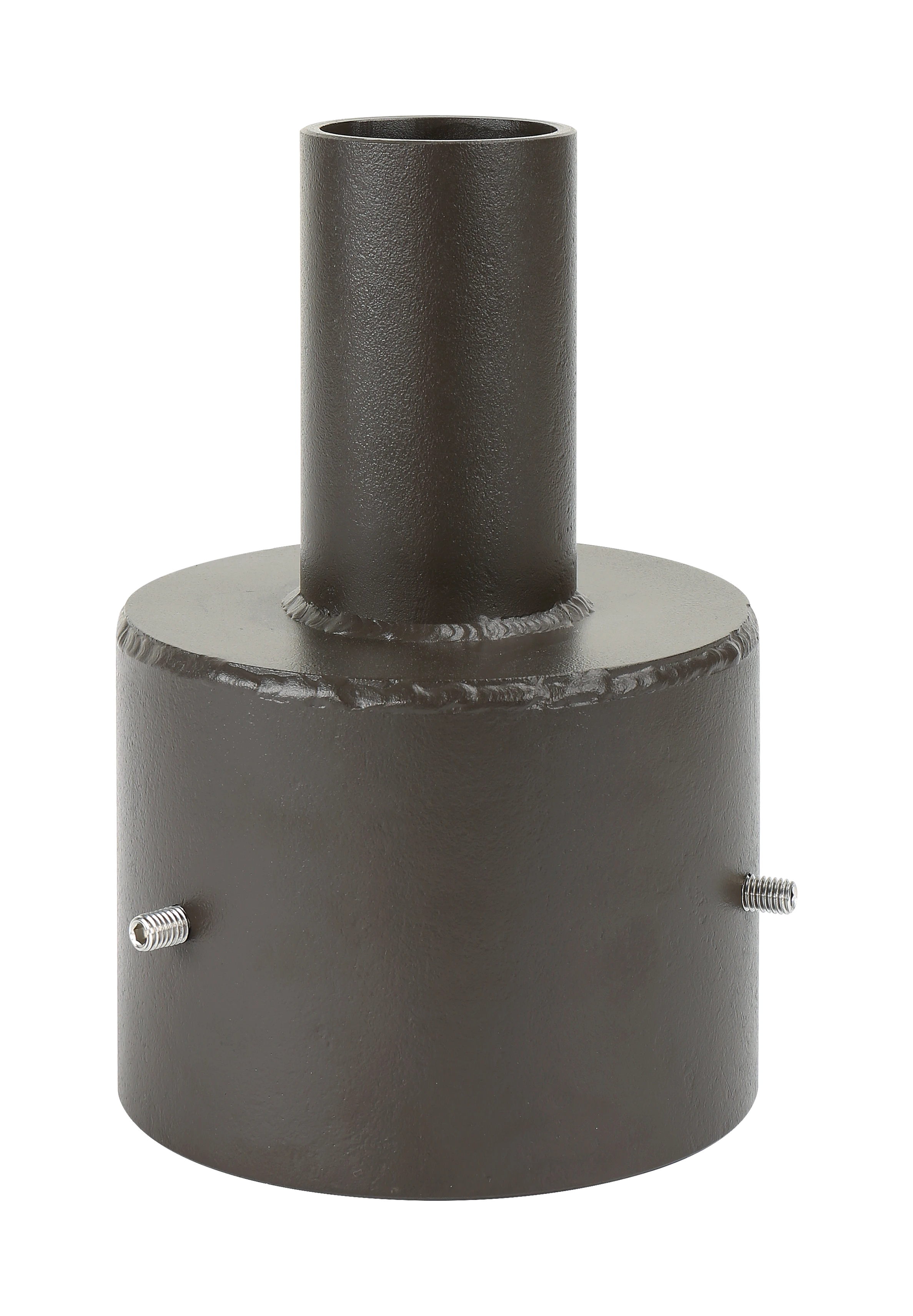

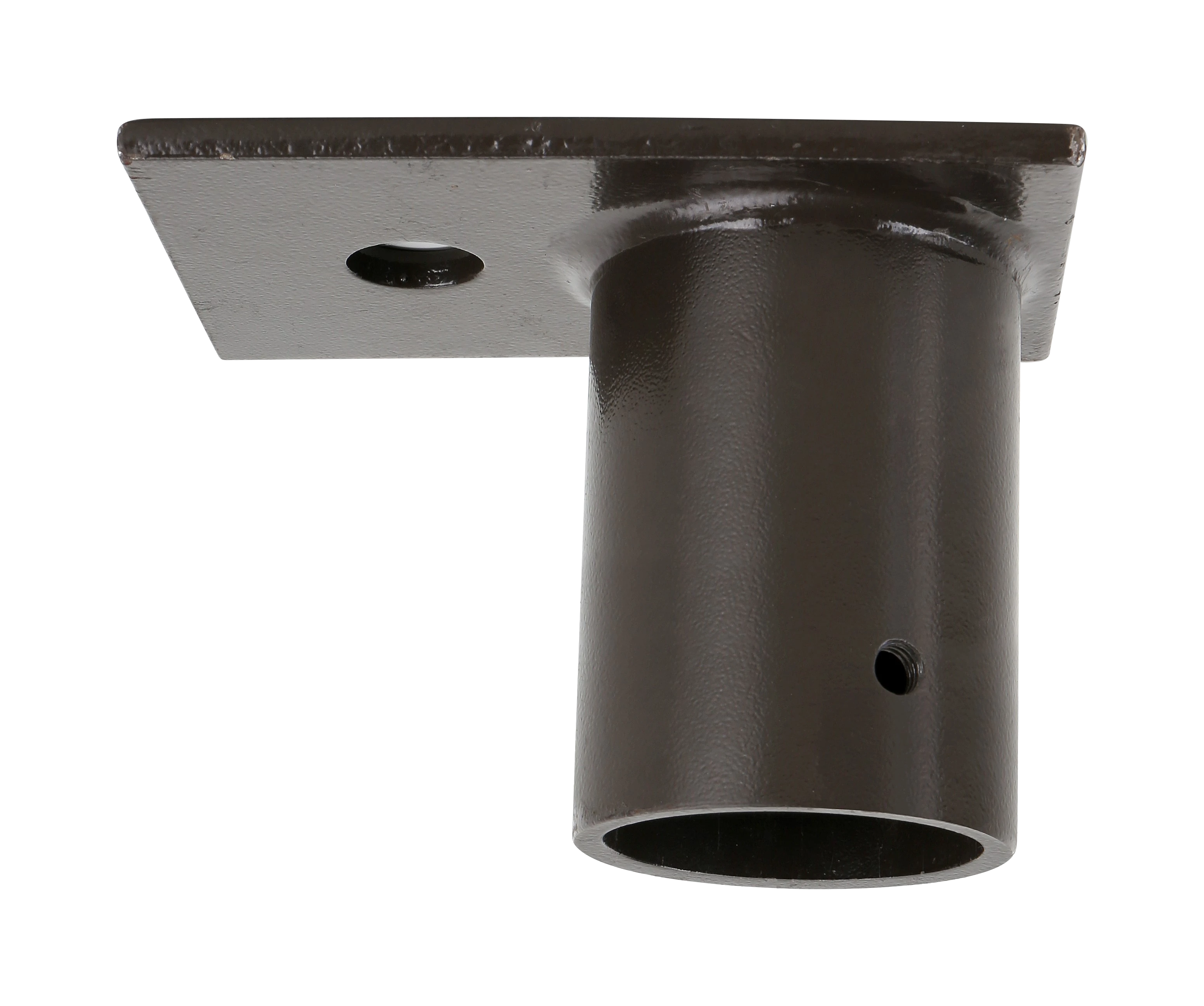

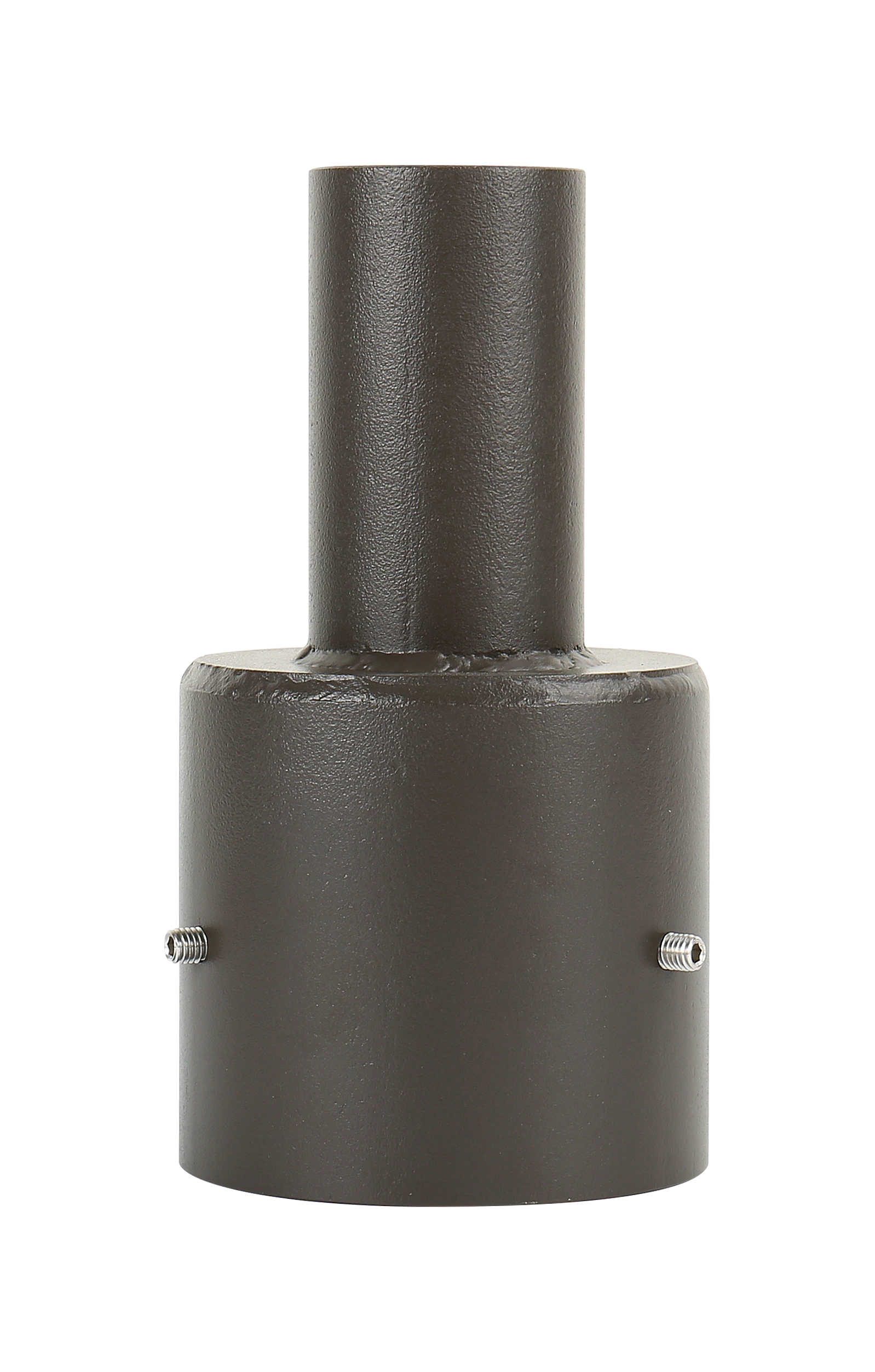

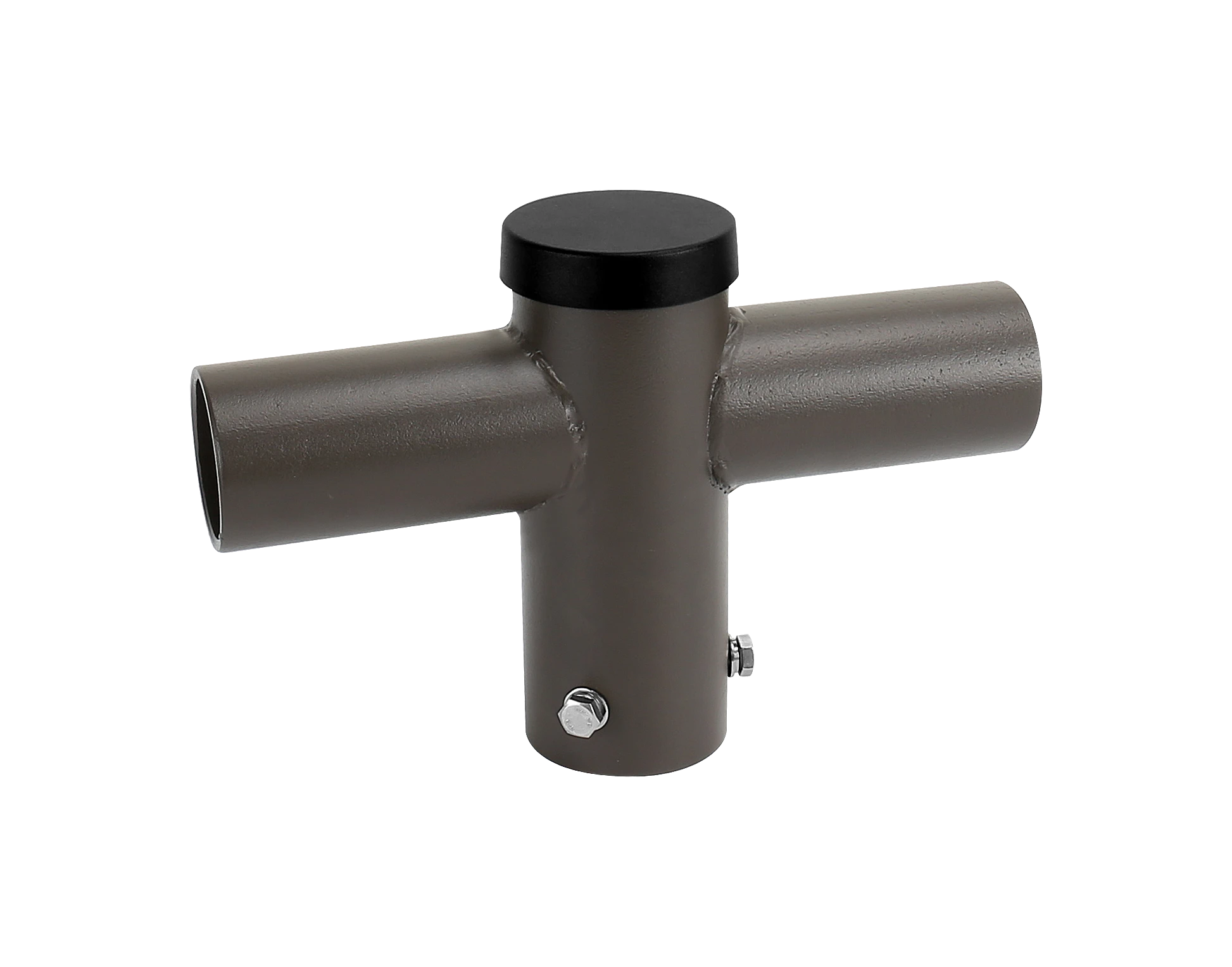

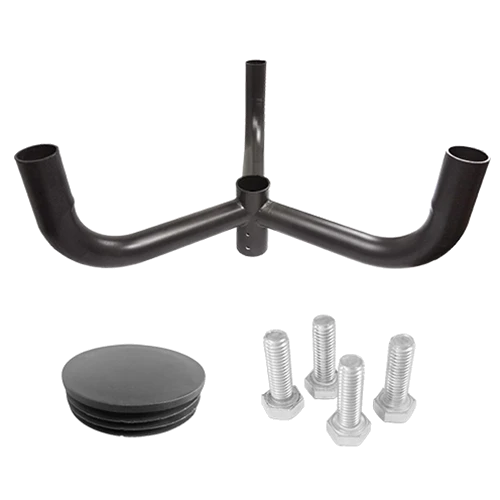

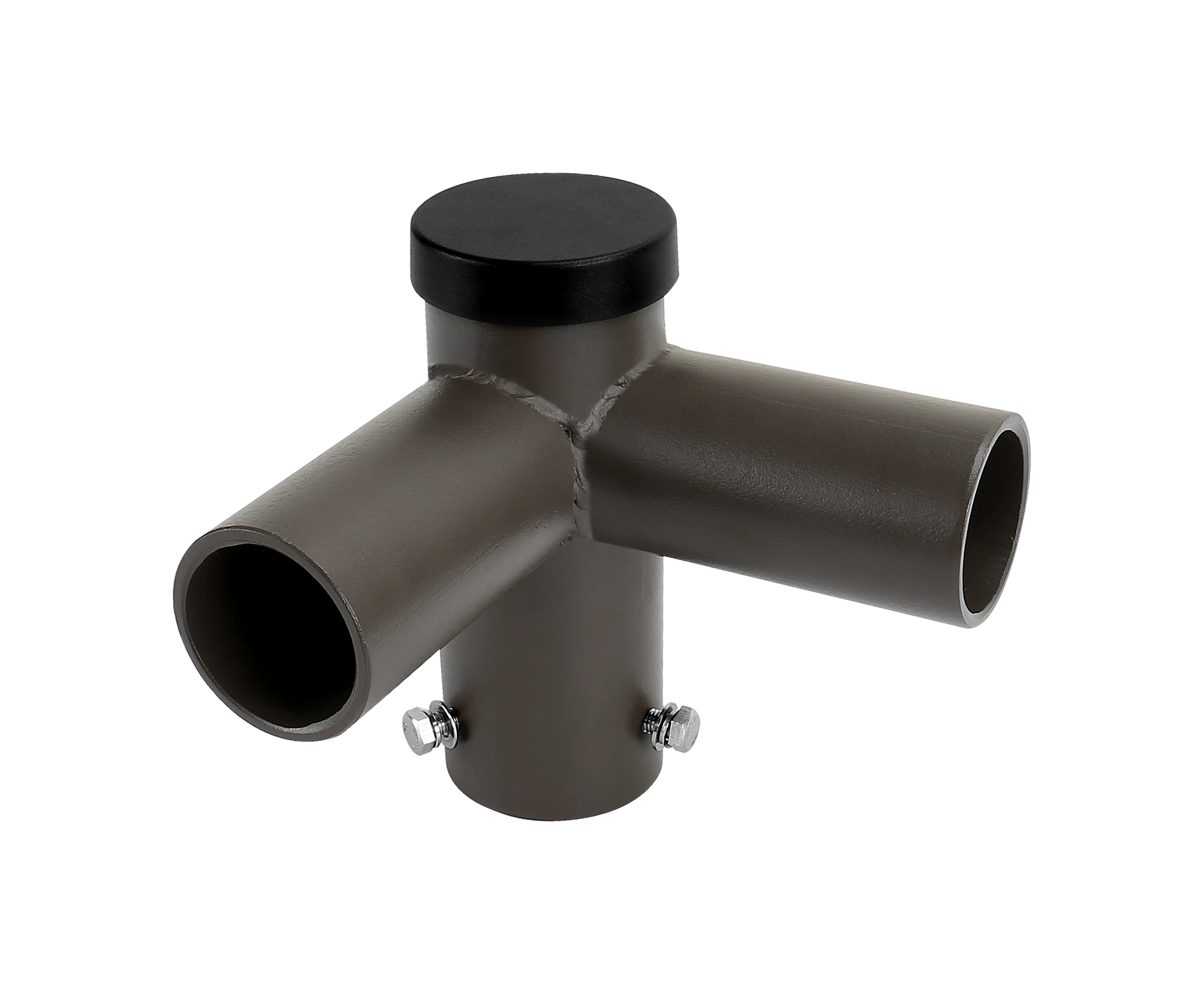

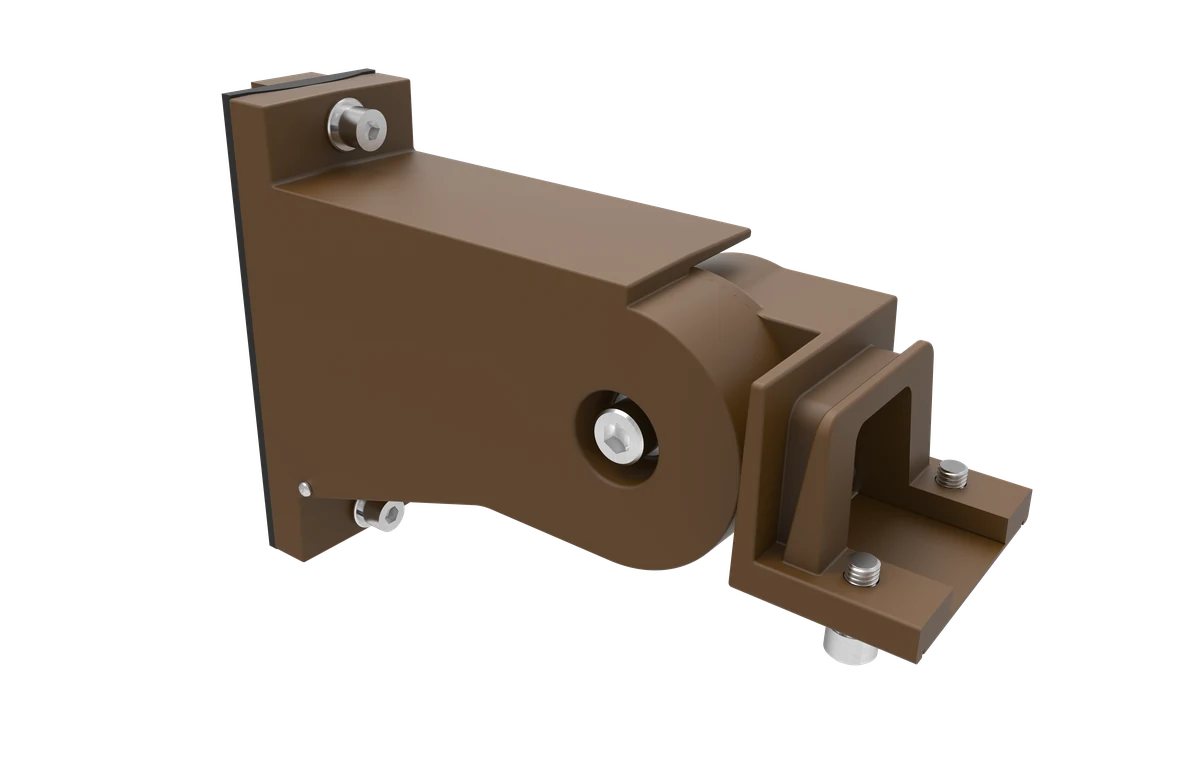

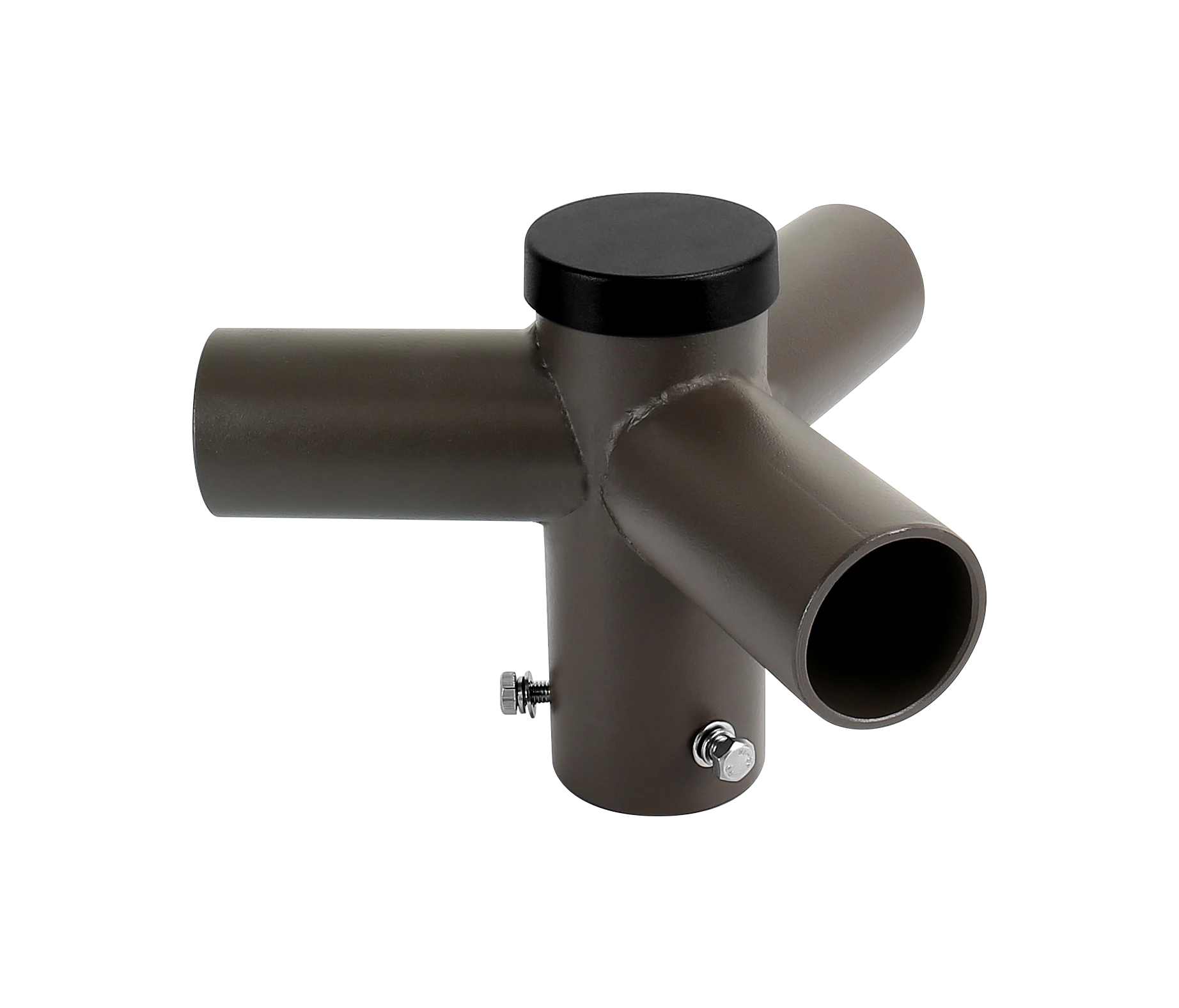

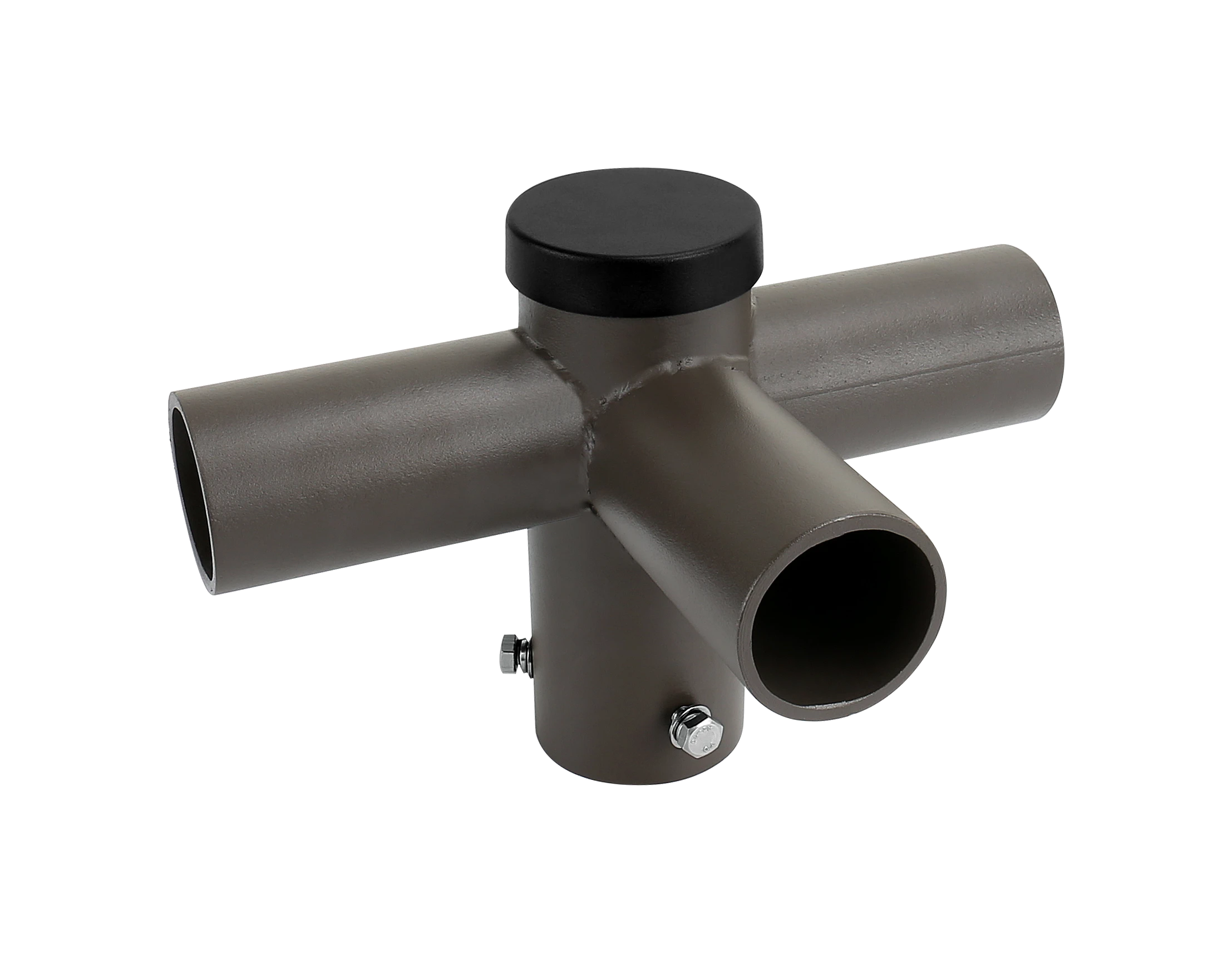

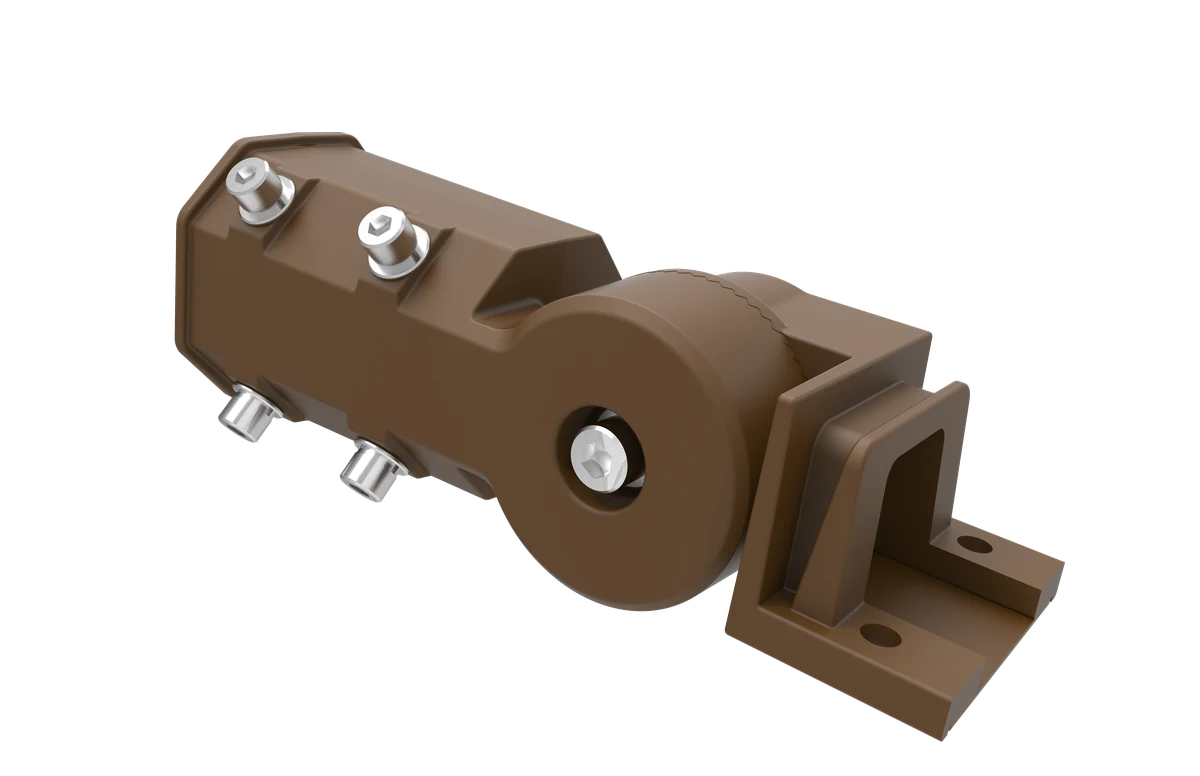

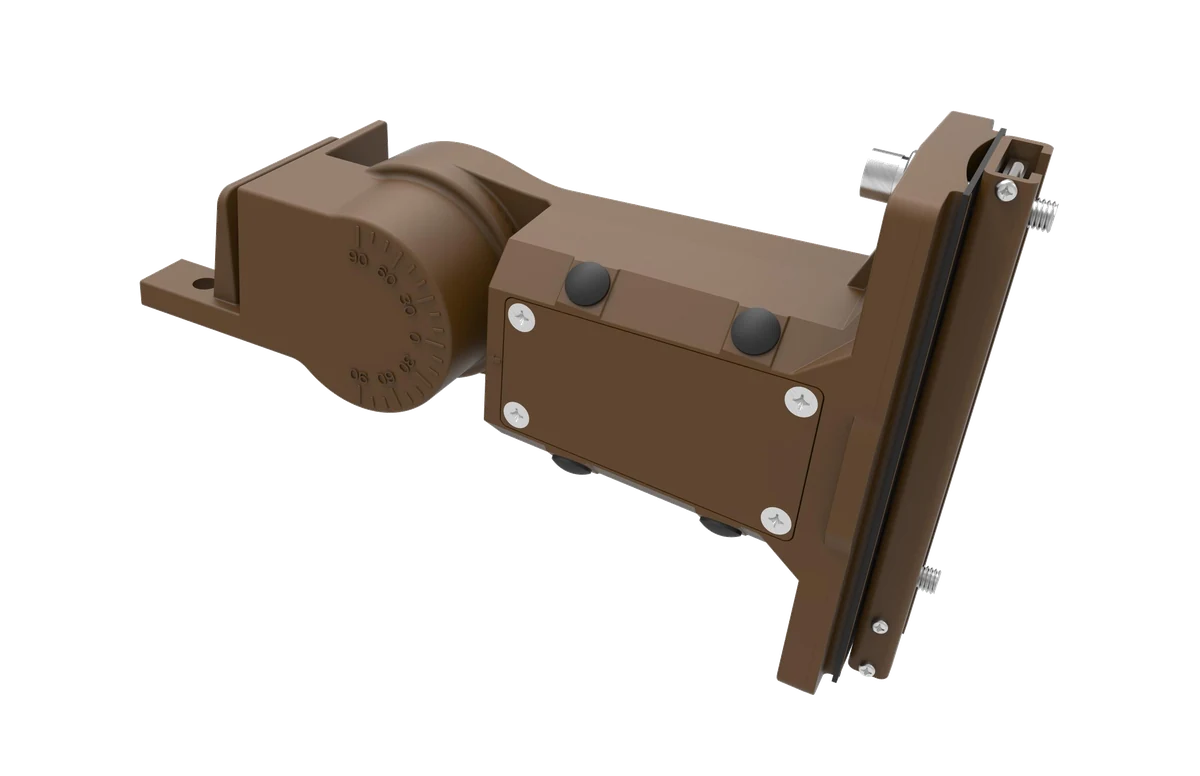

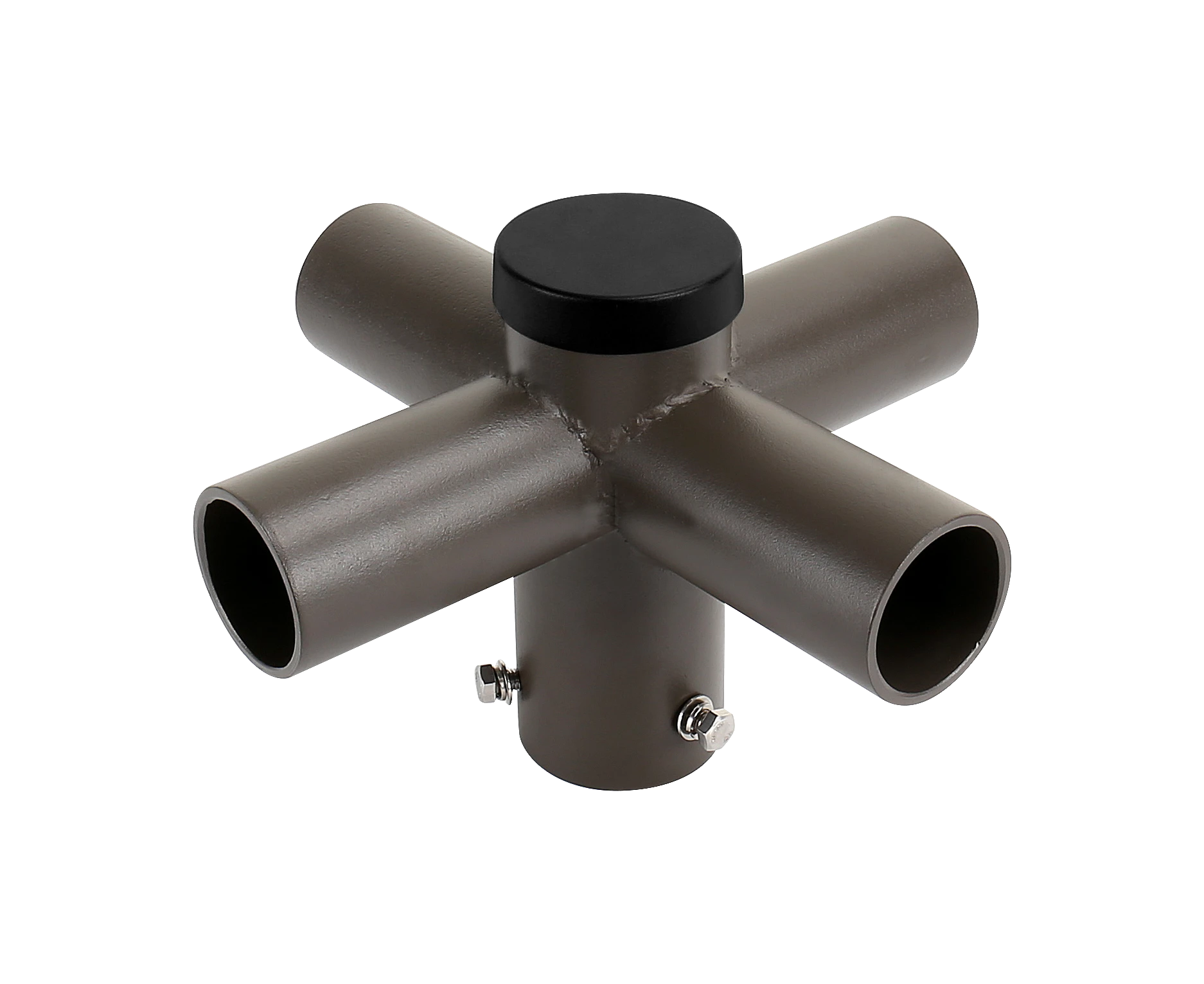

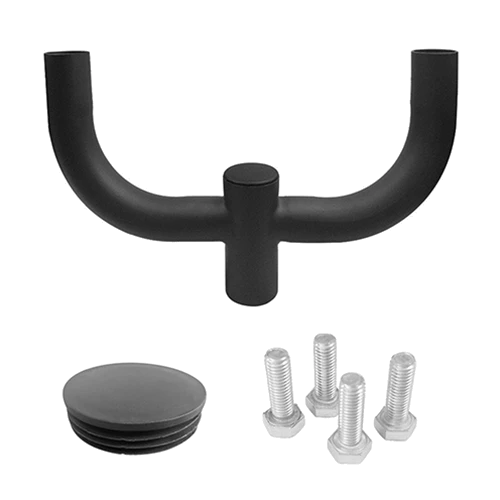

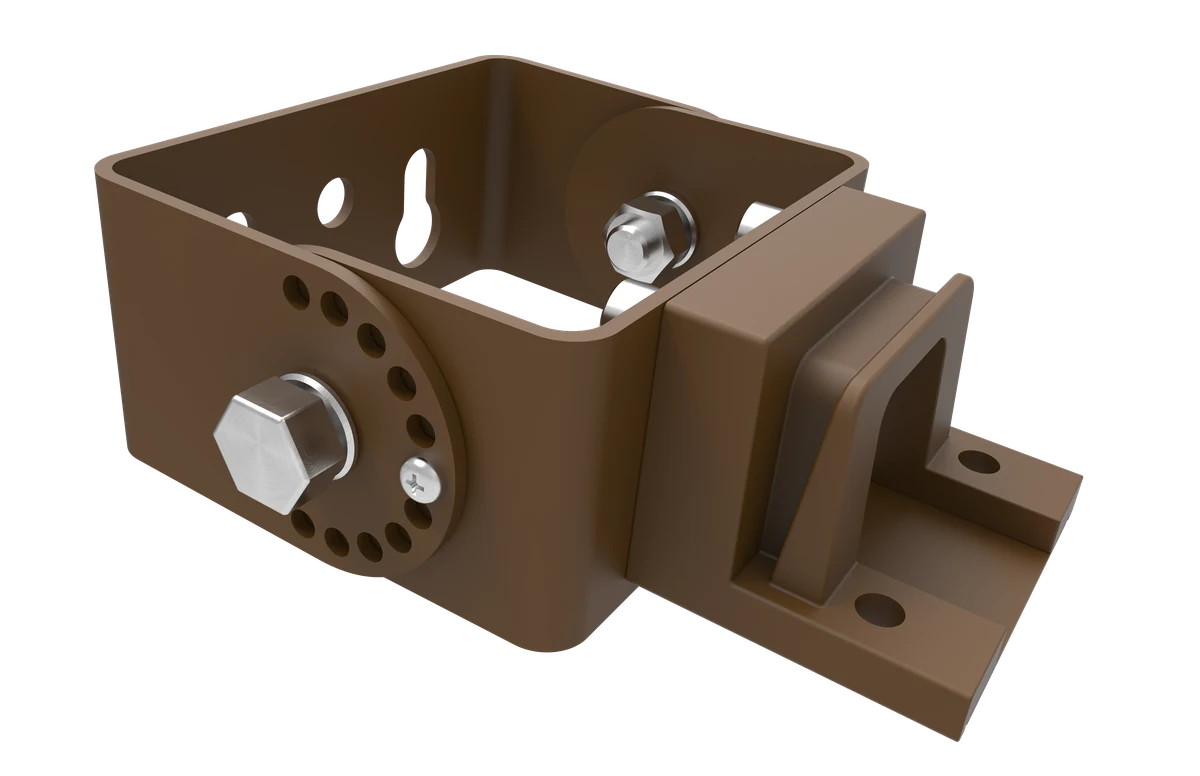

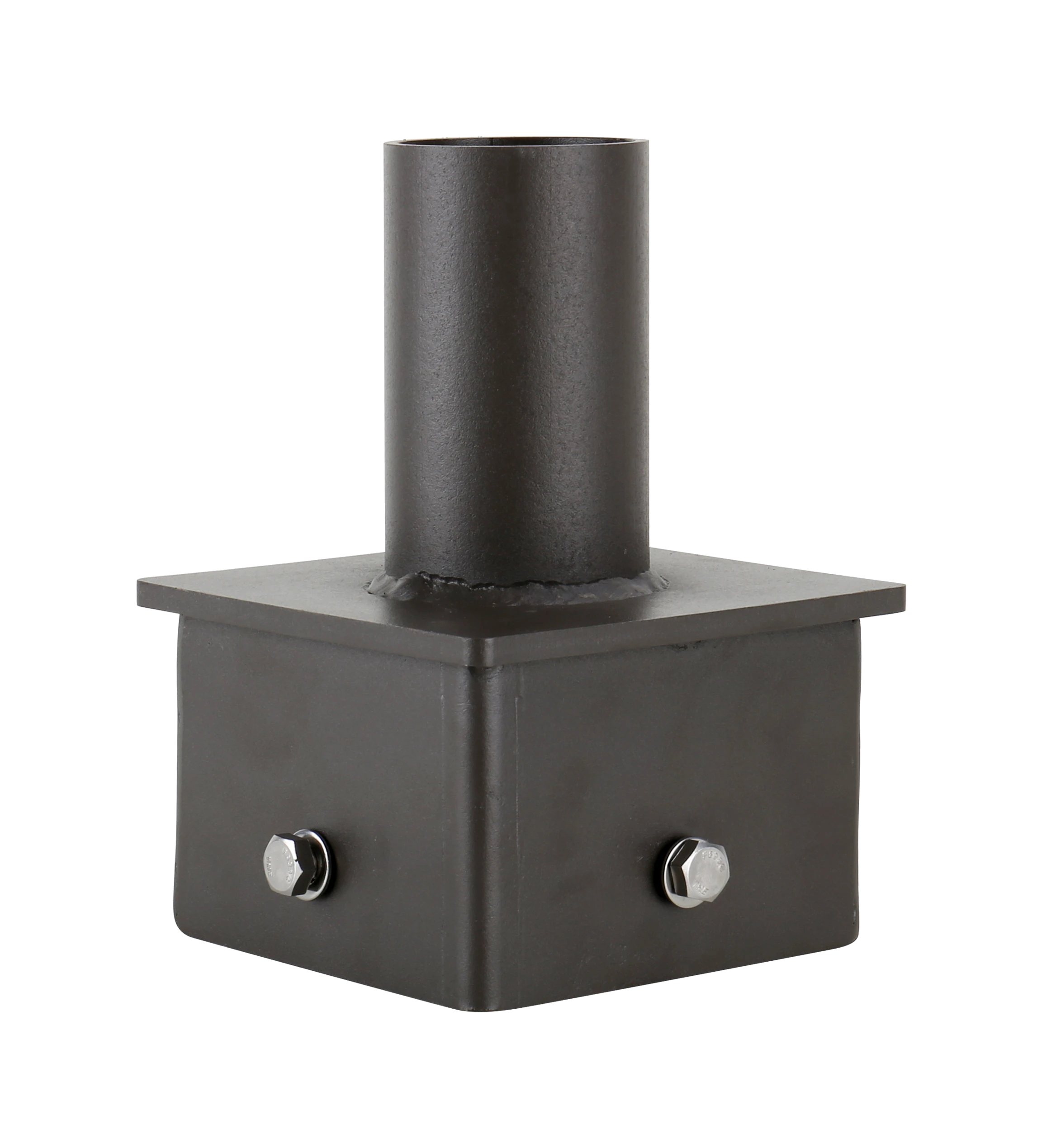

contrLS sensors, photocell, mounts, in-line surge, replacement optics, glare shields, multi-fixture tenon adapters — factory-matched to the LSBX housing, Quick-Ship unless noted. Polished drill patterns live inside each Mount card’s modal · built from the SNC OEM source CAD (DM / A&D / AM / FM brackets).
Drill Pattern

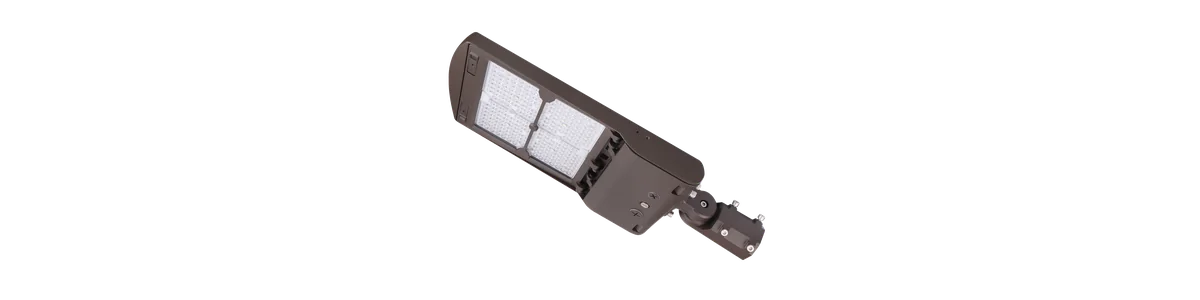

Configure Your Liberty
Every option below maps to the LSBX Liberty order code. Selections build the SKU live — no checkout, no surprises. Required fields marked with *. Greyed-out options are not selectable with your current configuration. See the legend in the Optional column for ★ / QS / MTO meanings.
Documentation & Resources
Everything specifiers, contractors, and project managers need to spec, install, and certify the Liberty — from the data sheet on day one to the IES files on the bid sheet.

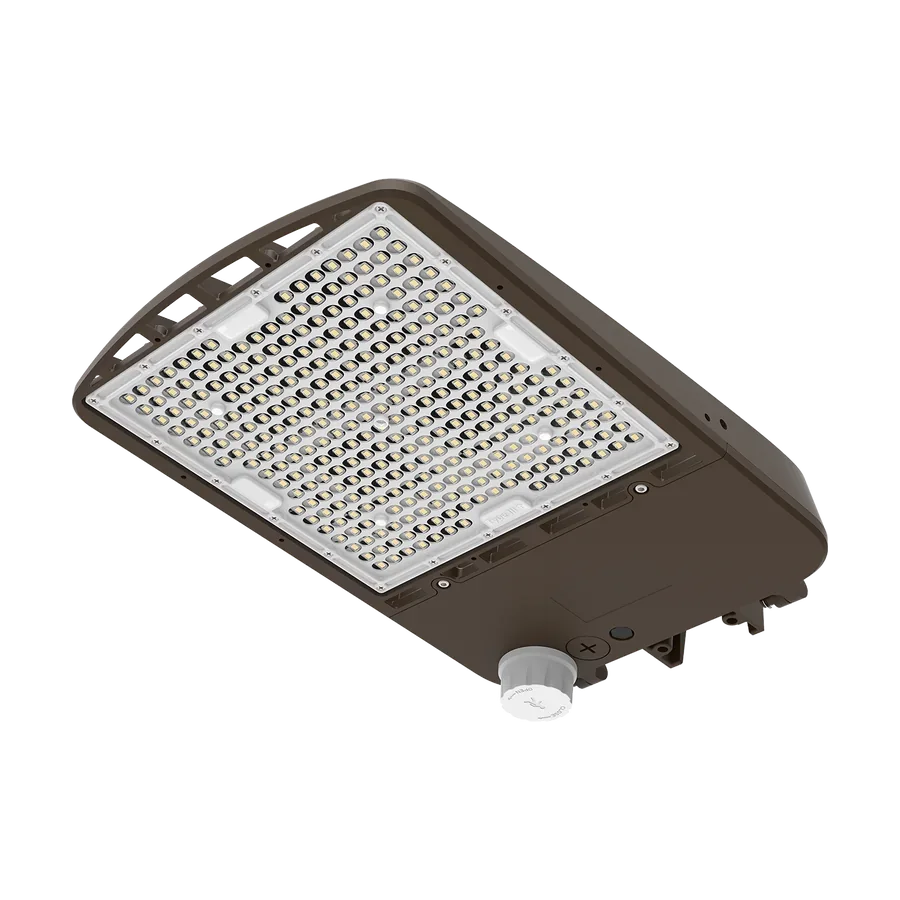

Meet the LSBX Family.
The Liberty is one of three area-light shoeboxes in the LSBX line. Same chassis, same controls platform, same factory — different echelon tiers for different budget & spec lanes. If the Liberty isn't quite the right fit, one of these likely is.
For the complete site.

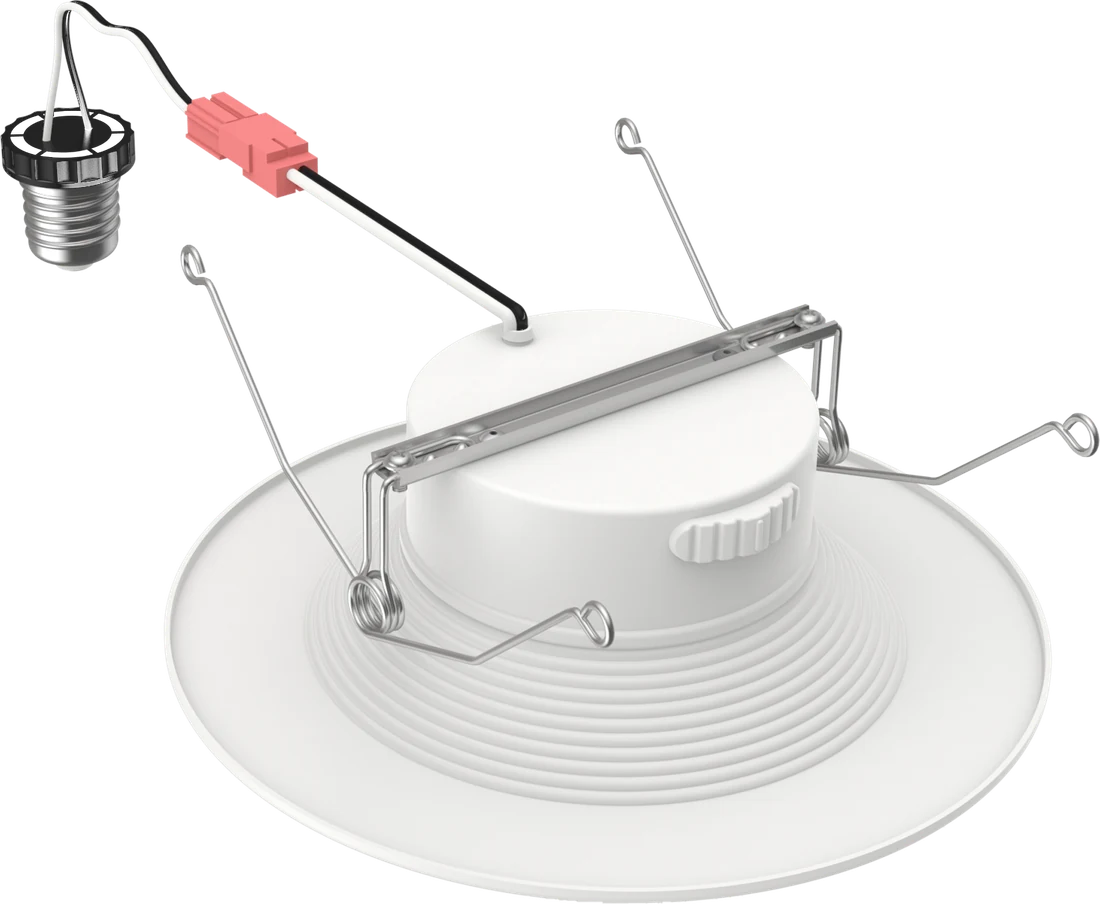

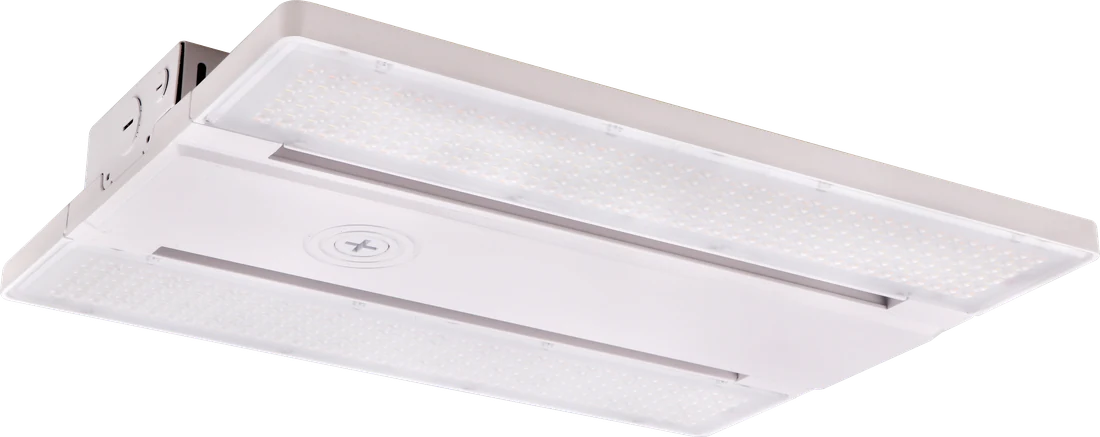

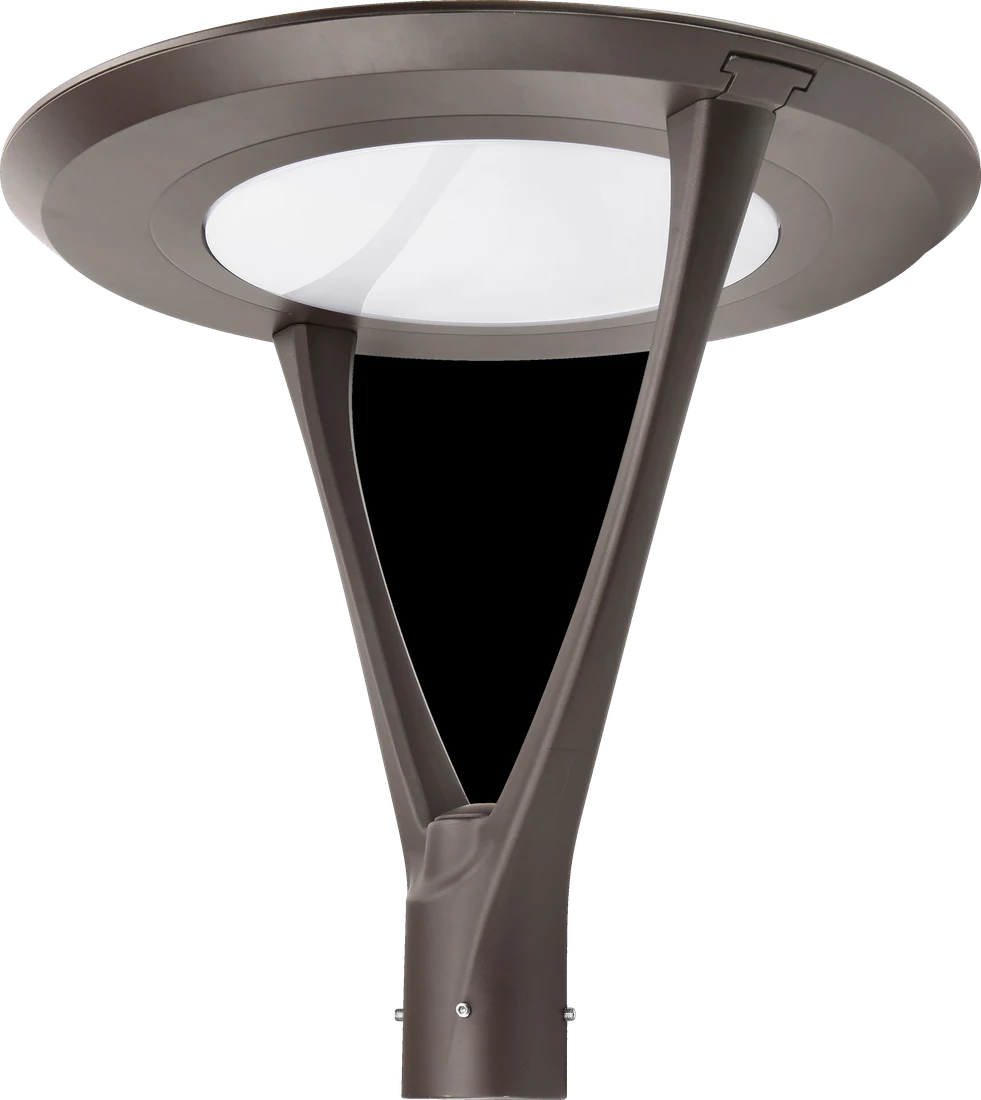

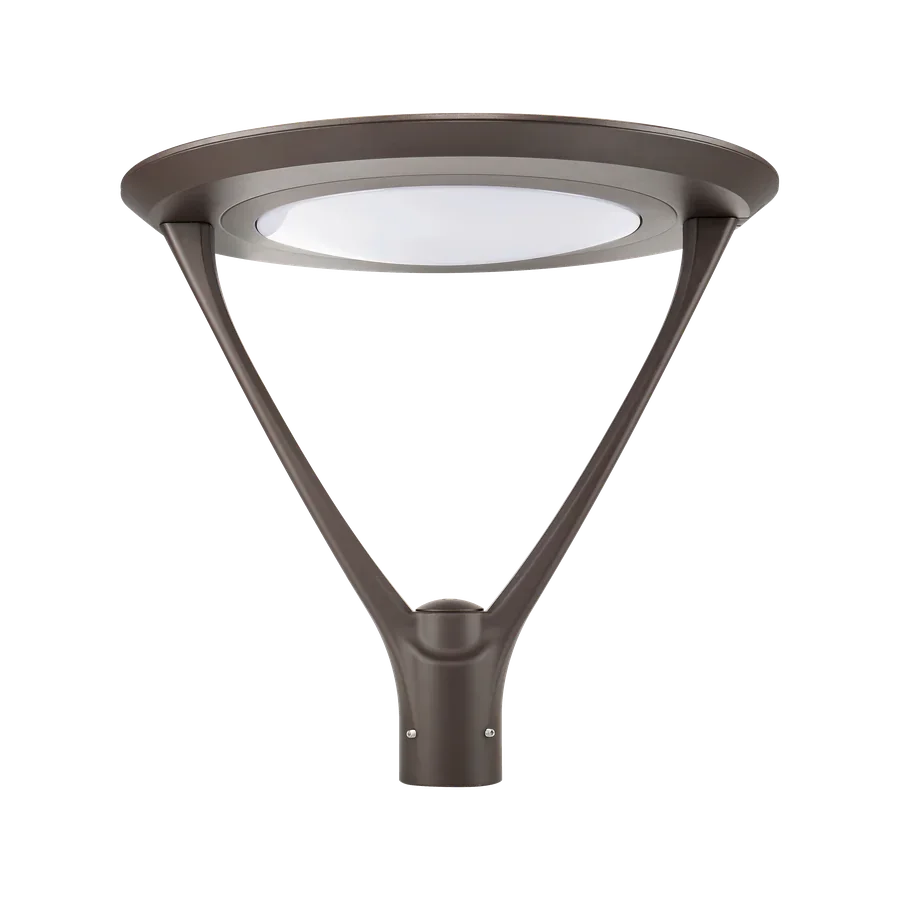

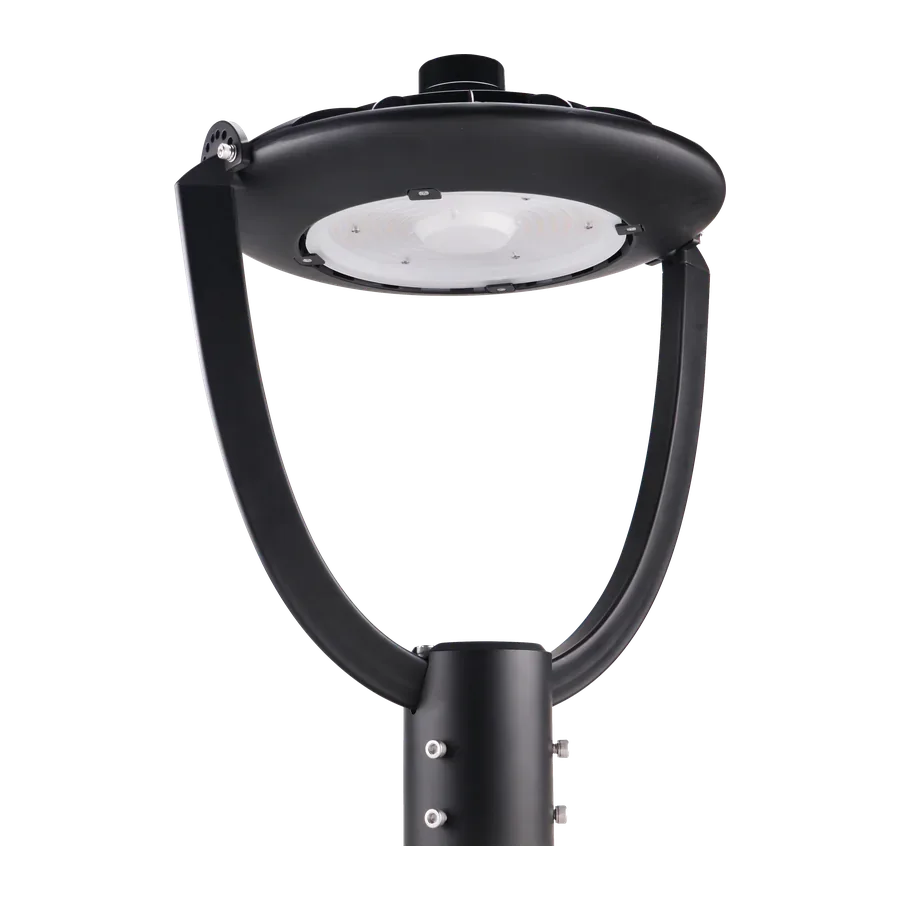

The Liberty handles the parking lot. These cross-line fixtures handle everything else — same controls platform, same warranty, same factory. Specify them together for a coherent lighting package across the whole site.
Direct line to your regional rep.
Twelve US warehouses ship in 3-5 days. Layout requests come back inside 48 hours. Quotes, sample requests, and rebate matches reply same business day. No portal-as-the-only-channel: you get a person.
Stack the rebates.
The Liberty is DLC Premium-listed — qualifying for utility rebate programs that typically offset 15-40% of project cost. We'll match your project to active programs in your ZIP and pull the paperwork.
