Bypass the ballast. Keep the housing.

An LED corn lamp for the shoebox, wall pack, post-top and high-bay housings already on the property. Bypass the ballast and keep the fixture. Seven catalog numbers, each with three switchable wattages and three switchable color temperatures, replace 100 W to 700 W metal halide and high-pressure sodium.

Specification Sheet Installation Guide Configure For Lead Time

Input Watts12–300 W

Lumensup to 46,200

Efficacyup to 156 lm/W

Ideal applications

Parking & Area

Wall Packs

Post Top & Bollard

3‑WATTselect

3‑CCTselect

Ballast Bypass

Mogul E39

347–480 V

Sensor‑Ready

Damp · IP64

Damp Location

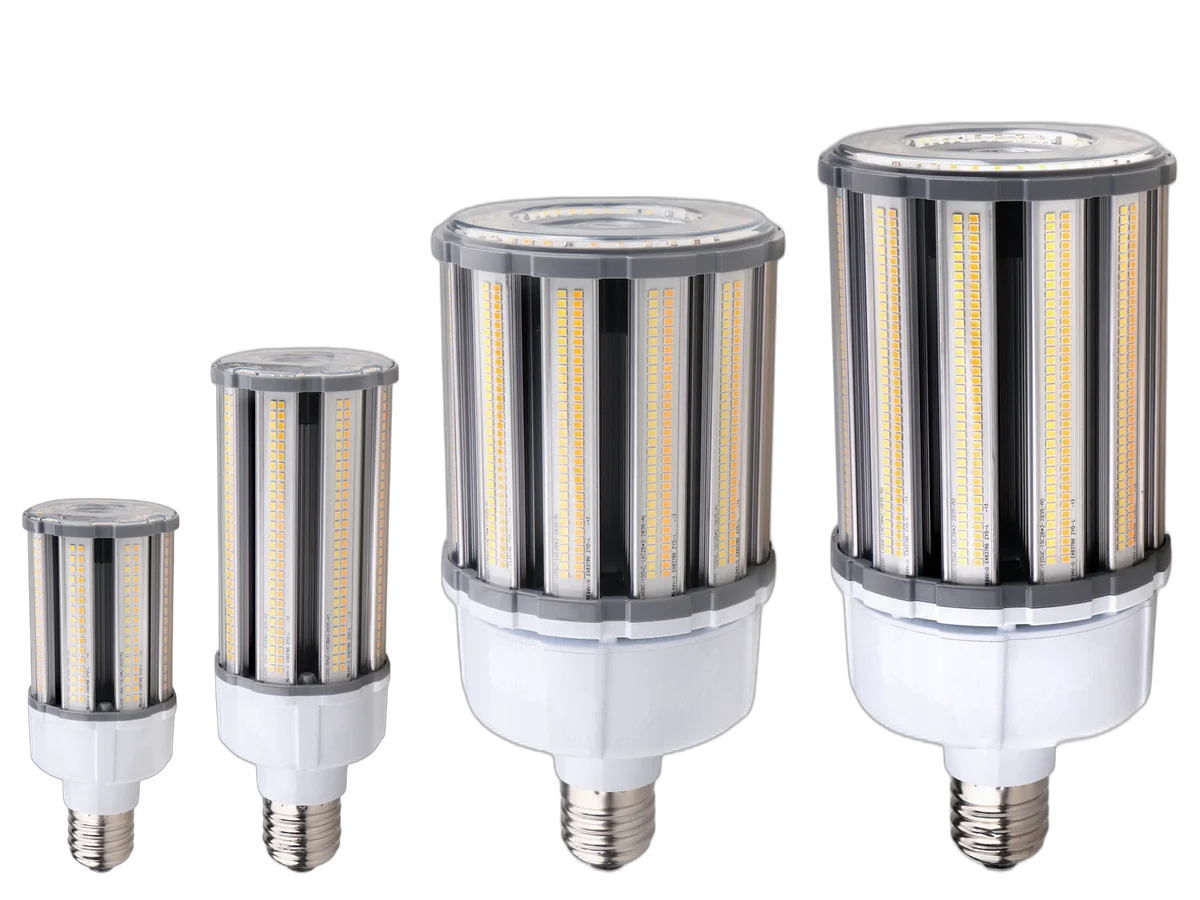

Husk LED HID replacement lamps in four sizes, from 27 W to 300 W

Documentation & Resources

Documents

Data SheetPDF Installation GuidePDF Quick SheetPDF Sell SheetPDF IES Photometric FilesIES Submittal PackageBuild

Tools & Support

Rebate CenterActive utility programs and the forms, by ZIP.Open

Warranty Statement Ask for Something Else Find a Rep

Model Specifications

WATTselect	3000K	4000K	5000K ★	Replaces

Lumens in the luminaire, ±10 %. Replaces = metal halide or high-pressure sodium lamp wattage, one for one. ★ Factory default.

Catalog number—

ApplicationHID relamp in an existing housingShoebox · wall pack · post top · bollard · high and low bay

BaseMogul E39Medium E26 (12–63 W) and extended mogul EX39 are factory-built variants. Ask your rep.

Dimensions—

Cooling · enclosure—

OpticsClear cover · 280° beam3000K · 4000K · 5000K on a switch · CRI >80

Electrical—

Operating temp−40 °F to 122 °FDamp location · IP64 · not wet rated

Listings—

Warranty5 yr · 50,000 hr

Full Data Sheet

Engineering

What you set before it goes in, what comes out of the fixture, and where it can go.

Configurator

Build Your Husk.

Required *

Maximum wattsthree WATTselect steps on eachLCRN3663

Voltage-CSMG

CCTselect · basethe same on every numberCS · E39

CS 3000 / 4000 / 5000KMogul E39

Set on the lamp

WATTselectswitch under the top cap · not in the part number63 W

CCTselectsame switch plate5000K

Your catalog number

Your Catalog Number

Catalog number

Output—

Replaces—

Cooling—

BaseMogul E39E26 · EX39: ask your rep

Dimensions—

Listings—

Generate Submittal

Get your pricing, check stock and more:

Distributors · Facility Teams I Buy From ALG Your account pricing and ordering, with your rep credited automatically. Sign In To ALG Shop Sales Representatives I’m an ALG Sales Rep Check stock and pricing for your accounts in AURA. Sign In To AURA Find A Rep

signⒶTURE Lamps

Husk is the HID replacement. The A, BR and PAR lamps are the screw-in utility line.

You are here Husk LED HID replacement lamps in four sizes

LCRN · PRO Husk HID replacement. 12–300 W in seven catalog numbers, mogul E39, three wattages and three CCTs per lamp. Up to 46,200 lm · 5 yr / 50,000 hr Product Details · this page

A-Lamp · UtilityA19 · A21 Screw-in utility lamp for the 60–100 W incandescent socket. 120 V, E26, dimmable, frosted. 9.5–11.5 W · 6 catalog numbers

BR-Lamp · UtilityBR30 · BR40 Reflector lamp for recessed cans. 120 V, E26, dimmable, frosted. 9.5–12 W · 5 catalog numbers

PAR-Lamp · UtilityPAR38 Flood lamp for track and outdoor cans. 120 V, E26, dimmable. 12 W · 2 catalog numbers

Relamp

Keep the housing. Lose the ballast.

One lamp per housing. No new fixture, no pole work, no remounting. Set the wattage and the color on the lamp before it goes in.

7Catalog numbers

21Wattage settings

100–700 WHID replaced

Find A Rep Ask For Something Else

Rebates

Rebates go by catalog number.

Utility programs pay against the DLC listing for the exact catalog number. Send us the ZIP and we pull the active program and the forms.Check Rebate Center for DLC QPL ID — confirm the listing for your catalog number before specifying.

156lm/W peak step

7Catalog numbers

5 yr50,000 hr warranty

Open Rebate Center
