LT8F T8 LED Tubes

Six ways to relamp a T8.

LED tubes for the 2 ft and 4 ft T8 fixtures already on the ceiling. Keep the ballast with Type A, take it out with Type B, or put in Type A+B and decide on site. Set wattage and color on a switch, add a battery for egress light, or run UV-A black light. Pick a type to see its catalog numbers and documents.

Data Sheet Installation Guide Configure For Lead Time

Lamp watts8–18 W

Lumens1,040–2,340

Efficacy130 lm/W

Ideal applications

Offices

Schools

Healthcare

120–277 V

G13 Bi‑Pin

5‑WATTselect

5‑CCTselect

Battery Backup

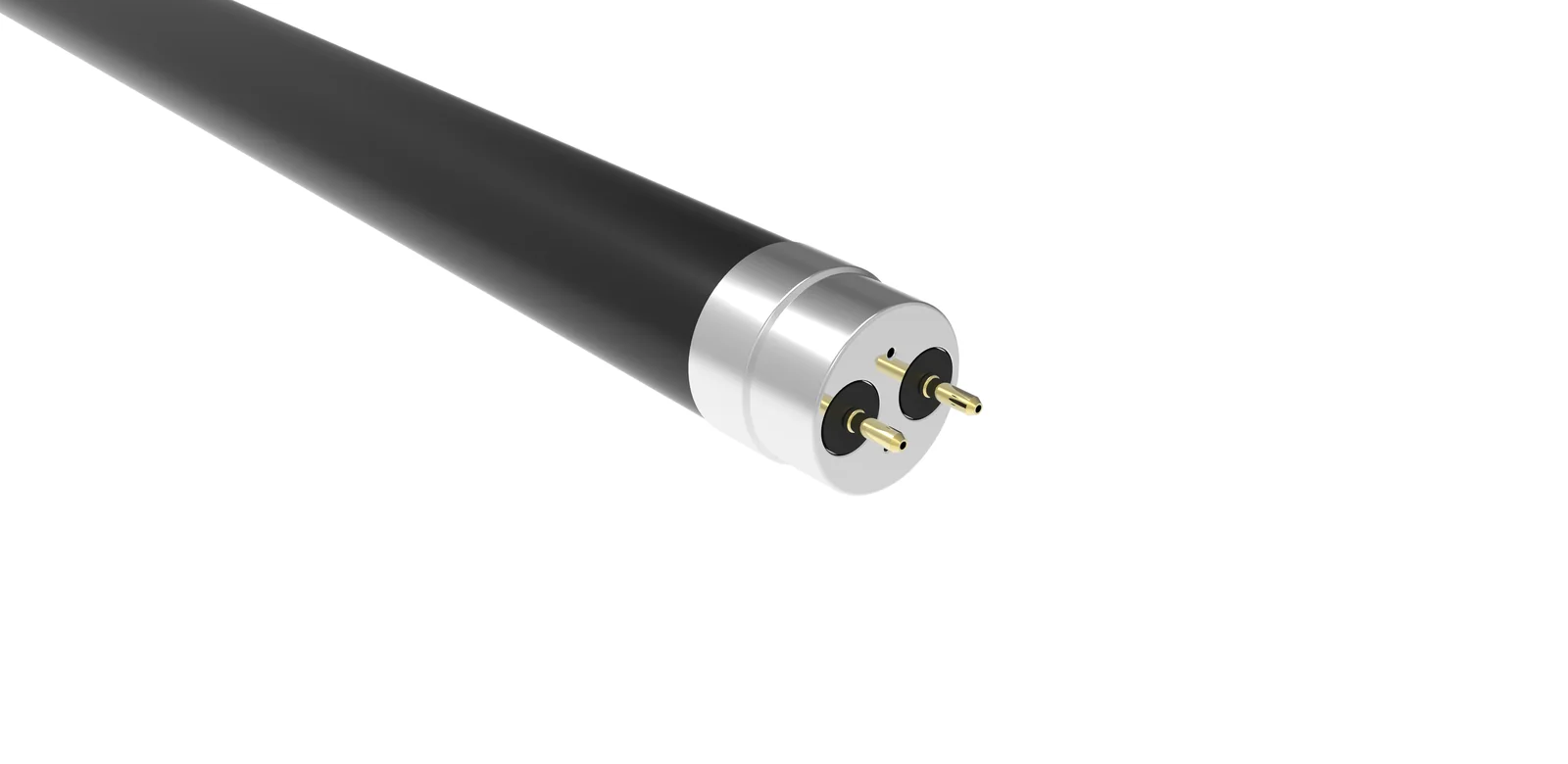

UV‑A

LT8F CW5-U5 T8 LED tube end cap with the WATTselect and CCTselect switches

LT8F CW5-DE5 T8 LED tube with its switch end caps

LT8F DE5 T8 LED tube with an aluminum end cap

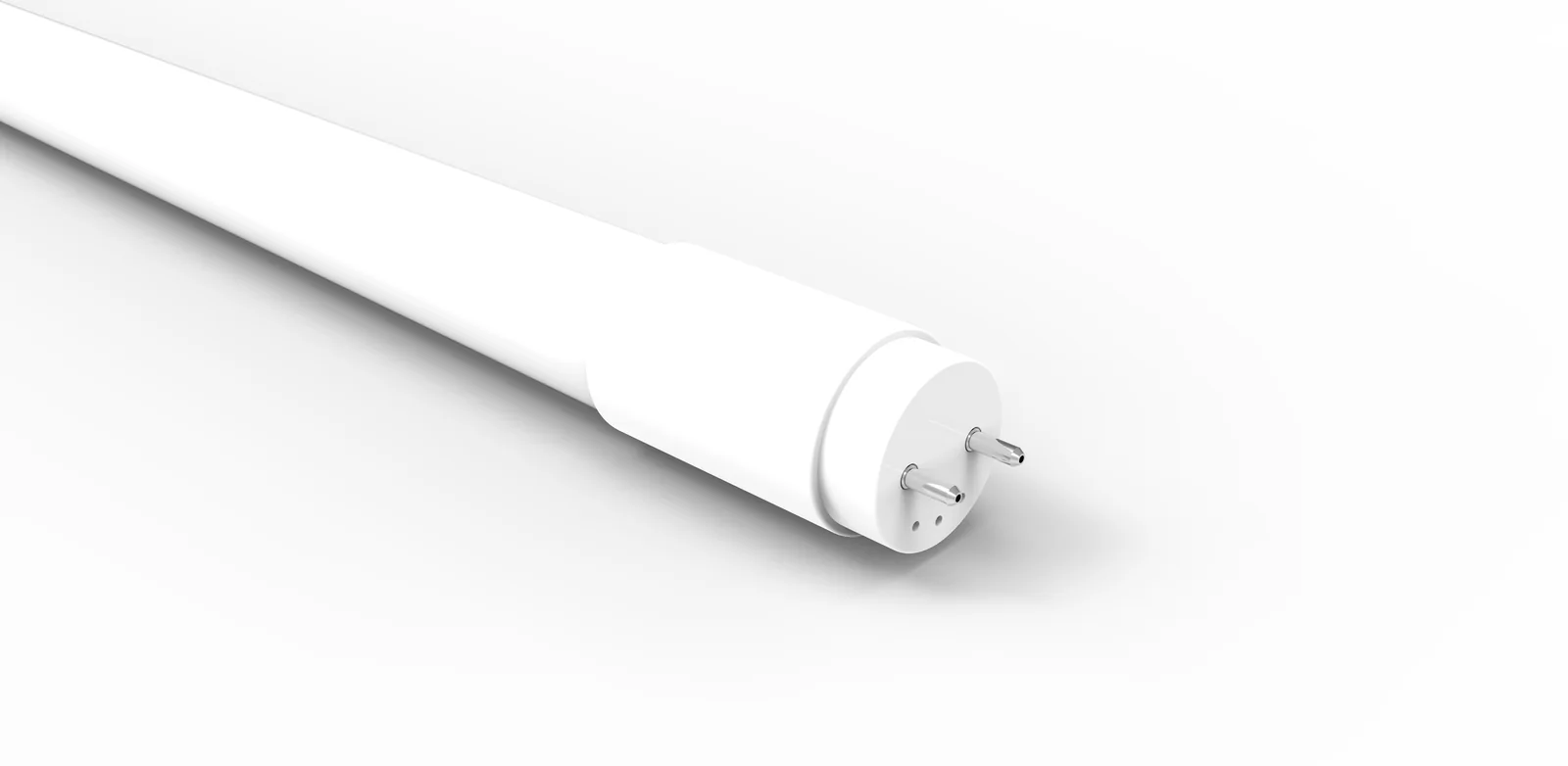

LT8F K5 T8 LED tube with a white end cap

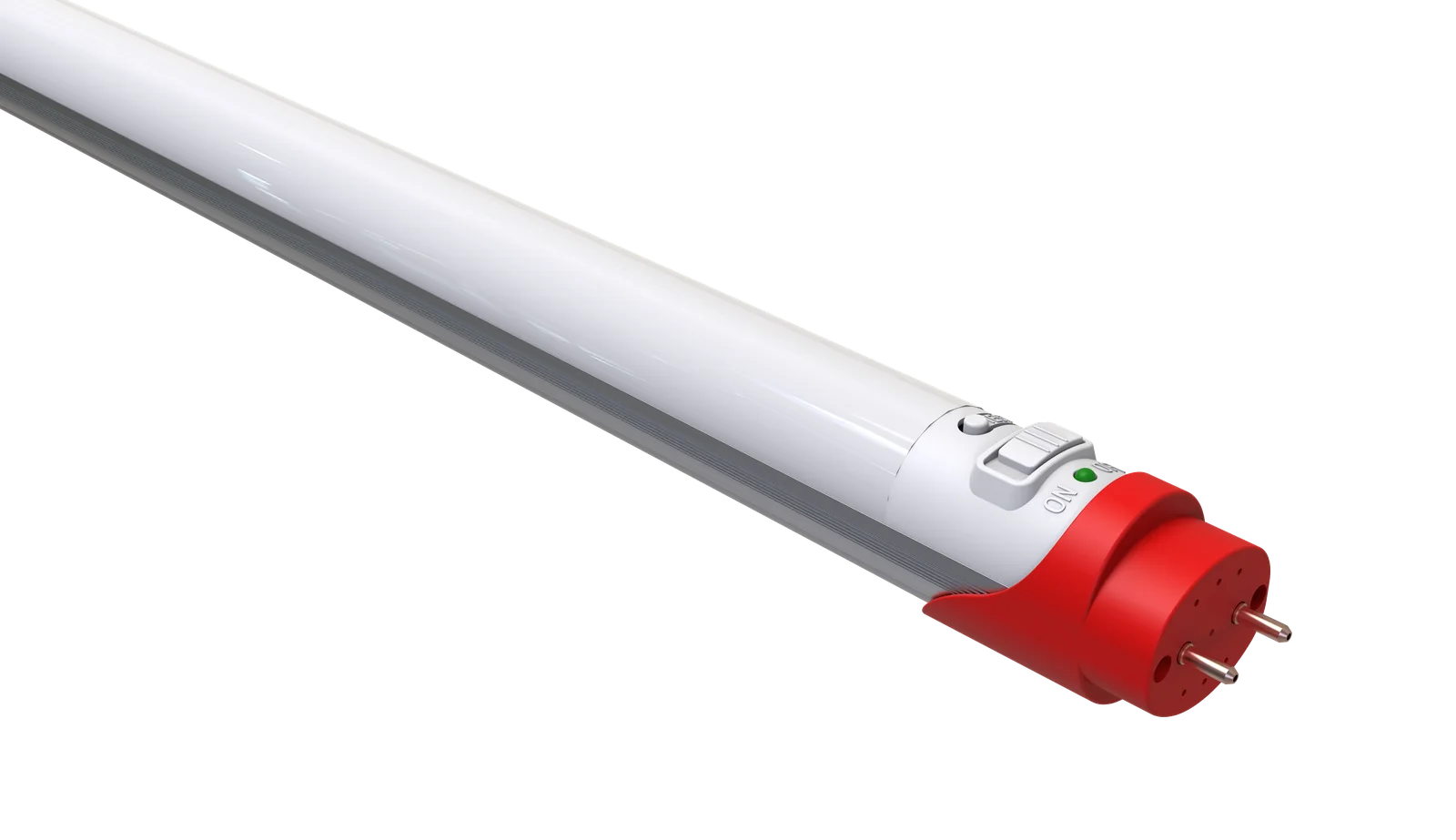

LT8F EM5 emergency T8 LED tube with its red emergency end cap

T8 type

LT8F CW5-U5 · UL Type A+B. Wattage and color on two switches. Runs on the ballast, or bypasses it.

Documentation & Resources

Tools & Support

Rebate CenterActive utility programs and the forms, by ZIP.Open Compare T8 TypesAll six types side by side: output, color and voltage.Open

Warranty Statement Ask For Something Else Find A Rep

Model Specifications

WATTselect	Lumens	Efficacy	CCTselect
8 W	1,040	130 lm/W	2700–5000K
10 W	1,300	130 lm/W	2700–5000K
12 W	1,560	130 lm/W	2700–5000K
15 W	1,950	130 lm/W	2700–5000K
18 W	2,340	130 lm/W	2700–5000K

One catalog number, LT8F4CW5/U5. Lumens are the same at every CCTselect setting: 2700K, 3000K, 3500K, 4000K and 5000K. Nominal values.

Catalog numbersLT8F4CW5/U5One number: wattage and color are set on the lamp, 25 settings

UL typeUL Type A+BOn a compatible electronic ballast (Type A), or on line voltage with the ballast removed, single- or double-ended (Type B)

Input120–277 V, 50/60 Hz (Type B)≤0.18 A · PF ≥0.9 · iTHD ≤25 %

DimmingType A: on a compatible dimming electronic ballastType B: 1–10 V through an in-line LED dimming controller and a 1–10 V dimmer

OpticsFrosted glass · 207° beam130 lm/W at every setting · CRI ≥80

Environment−4 °F to 122 °F (−20 °C to 50 °C)Dry and damp locations · not wet · not for enclosed fixtures

ListingsETL Listed · US and Canada

Warranty7 yr · 50,000 hr

ReplacesF32T8 · 32 W · 48 in fluorescentOne for one, G13 medium bi-pin

DimensionsA 1199 mm · B 1206 mm · C 1213 mm47.20 / 47.48 / 47.76 in · Ø 1 in

Full Data Sheet

Engineering

On the ballast, around it, or either way; what you set on the lamp; and the two tubes that do a different job.

Configurator

Build Your LT8F.

Required *

Typehow the tube is wiredCW5-U5

Catalog numberone number covers every settingLT8F4CW5/U5

Voltage · basethe same on every numberG13

120–277 VG13 bi-pin

Set on the lamp

WATTselectswitch on the end cap · not in the number18 W

CCTselectsame end cap4000K

Set both switches with the power off, before the tube goes in. Use the same settings on every tube in a luminaire.

Your catalog number

Your Catalog Number

Catalog number

LT8F4CW5/U5

Output—

Watts—

Color—

UL type—

Length · base—

Listings—

Open The Data Sheet
