Vanguard
Three lengths, one feed, set in the field.

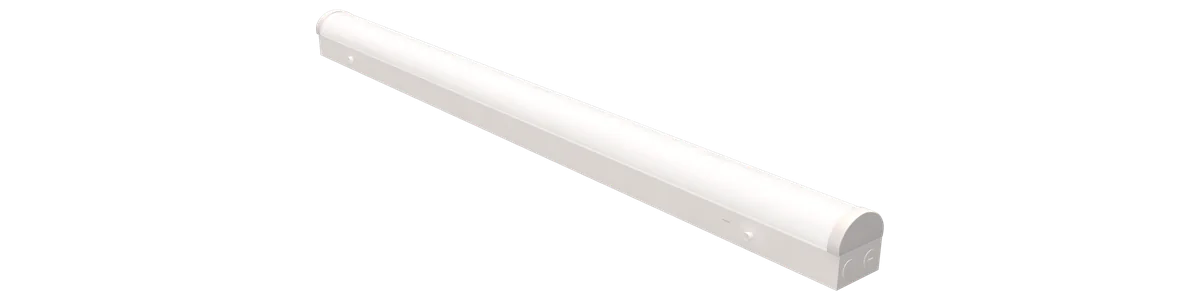

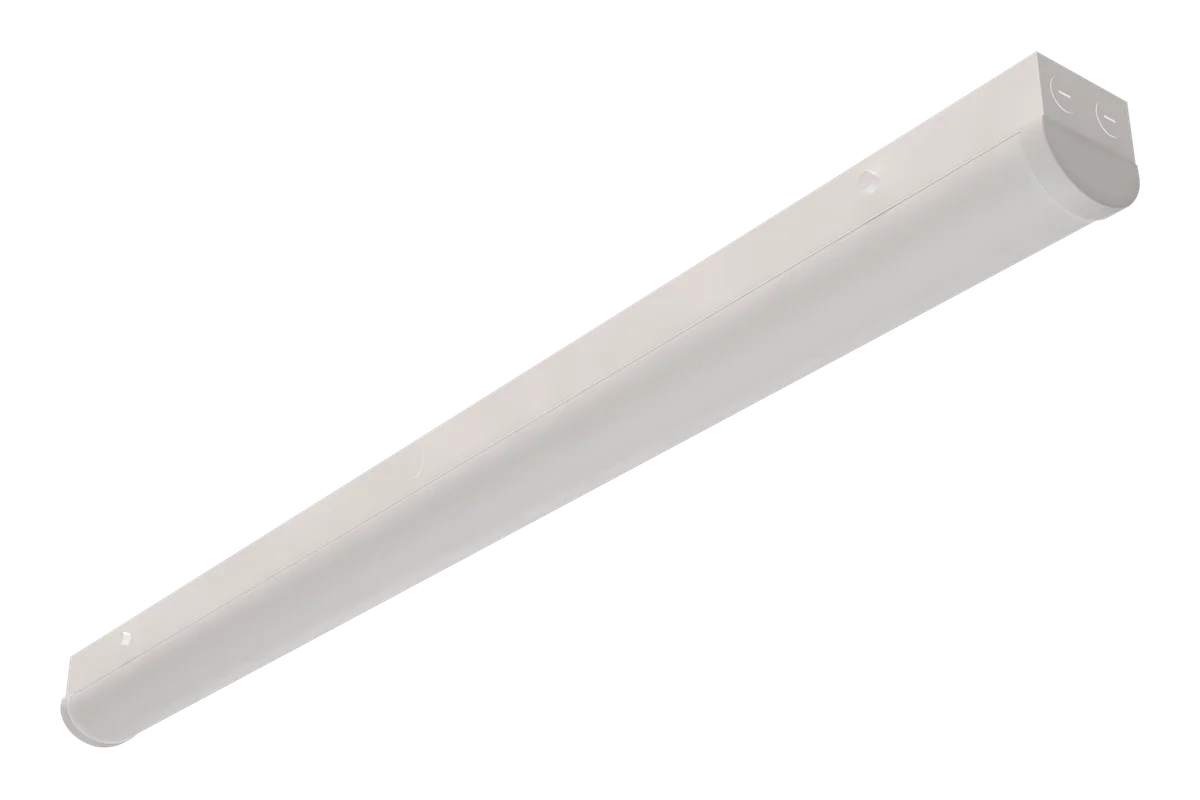

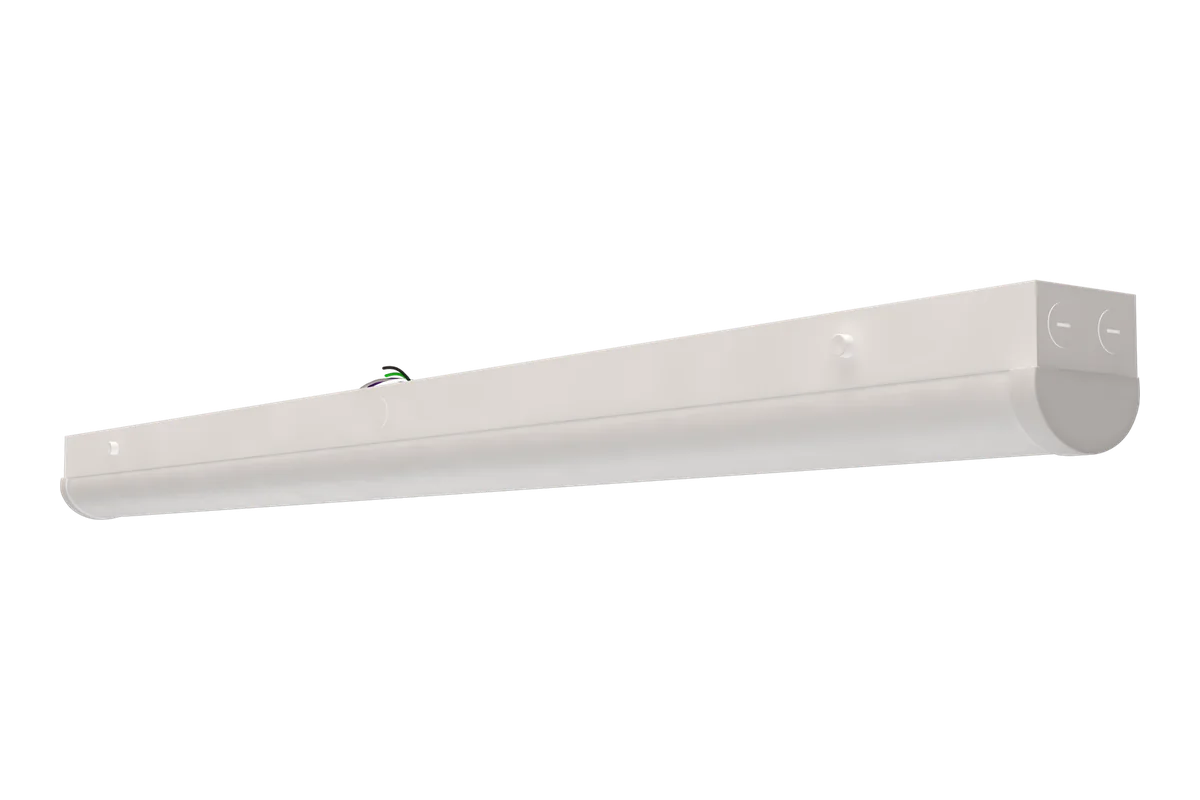

Vanguard-II is the ECO LED strip, in 2, 4 and 8 ft with a round frosted diffuser. Three wattages and three color temperatures are switches set at install, up to 11,600 lumens at up to 145 lm/W, and the 8 ft folds in half to ship. A sensor receptacle on every build, cULus listed for damp locations.
cULus Listed
Documentation & Resources
Model Specifications
| WATTselect | Watts | Lumens | CCTselect | lm/W |
|---|
★ Default settings. The datasheet prints lumens at the top step only — 2 ft 3,375 / 3,625 / 3,500 lm, 4 ft 5,400 / 5,800 / 5,600 lm, 8 ft 11,200 / 11,600 / 11,600 lm at 3000 / 4000 / 5000K — so the lower steps show a dash. Measured files are in Photometrics.
Engineering
What you set at install, how it goes up, and what is inside.
Photometric Distribution
Engineered Accessories
Build Your Vanguard.
Your Catalog Number
Strip Family

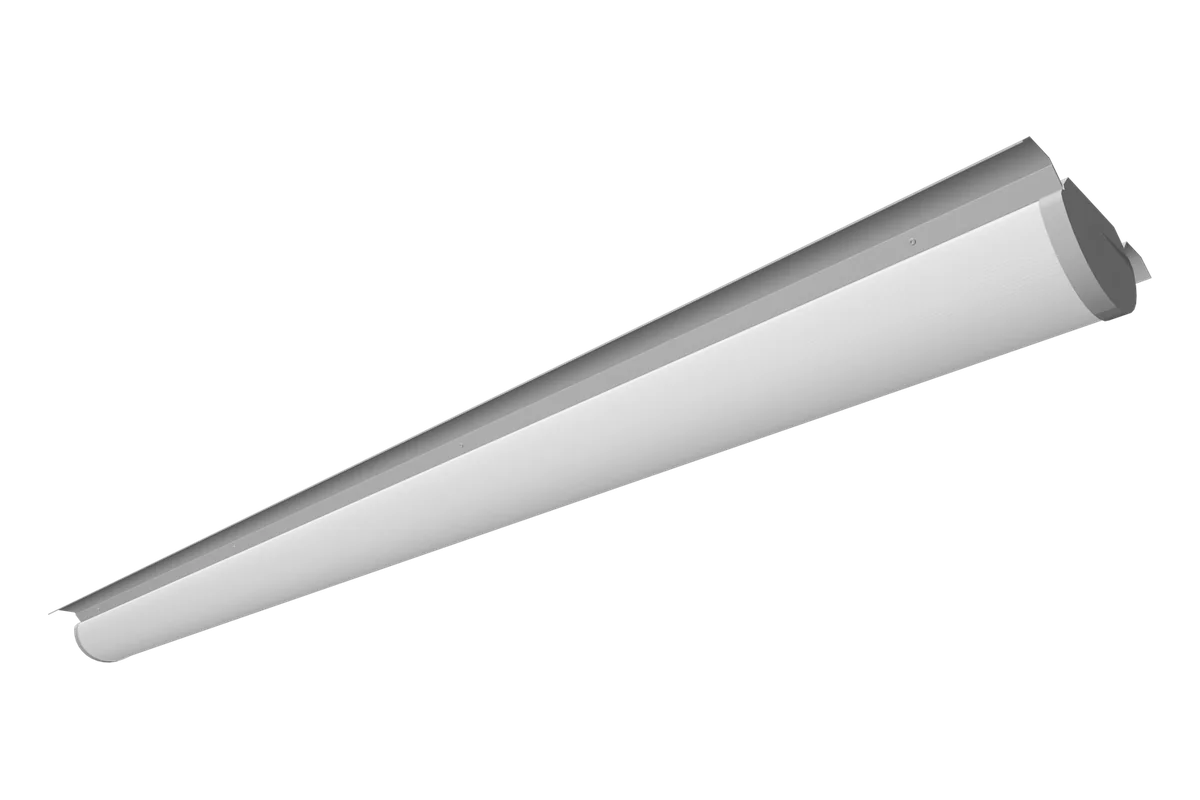

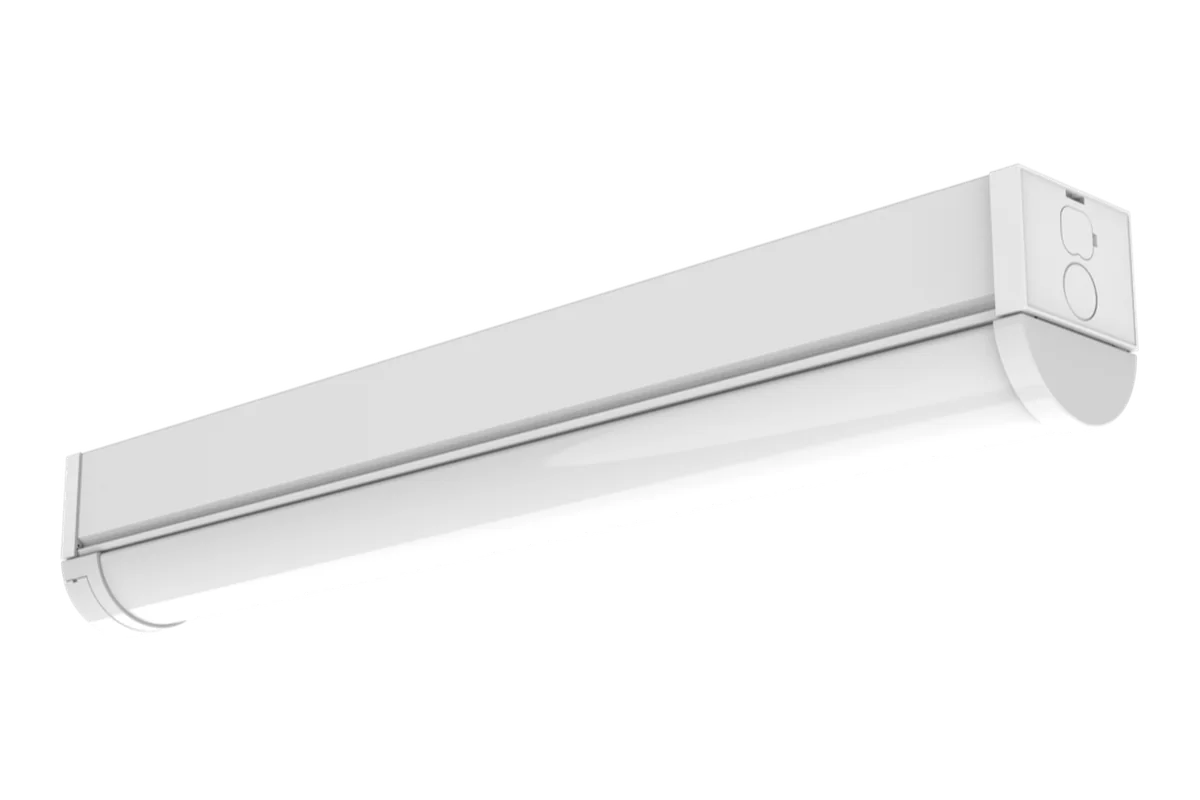

Vanguard is the ECO strip. Hallmark is the PRO+ strip. retroⒶRCH-L1 is the kit for a strip already on the ceiling.
Send us the floor plan.
We run the layout free and send it back in three business days — fixture count, spacing, foot-candles. Send the ZIP code too, and we match the rebate programs that apply.
Check the program first.
Vanguard-II is not on the DLC QPL, and most utility programs ask for a listing. Rebate Center shows what your utility pays and what it needs. Send us the ZIP and we check before you specify.
