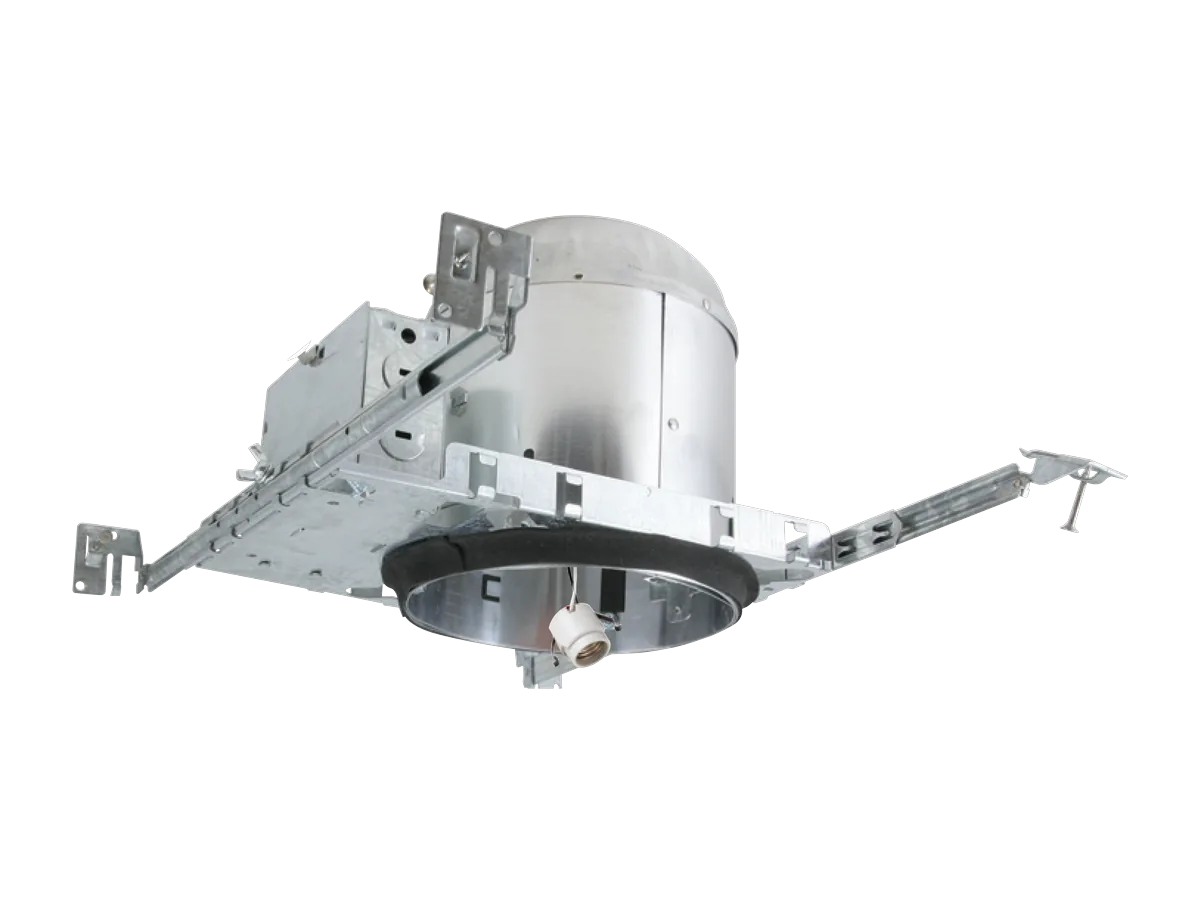

CRC · Gehry PRO
Universal Recessed Housing · T.24 Quick Connect Included

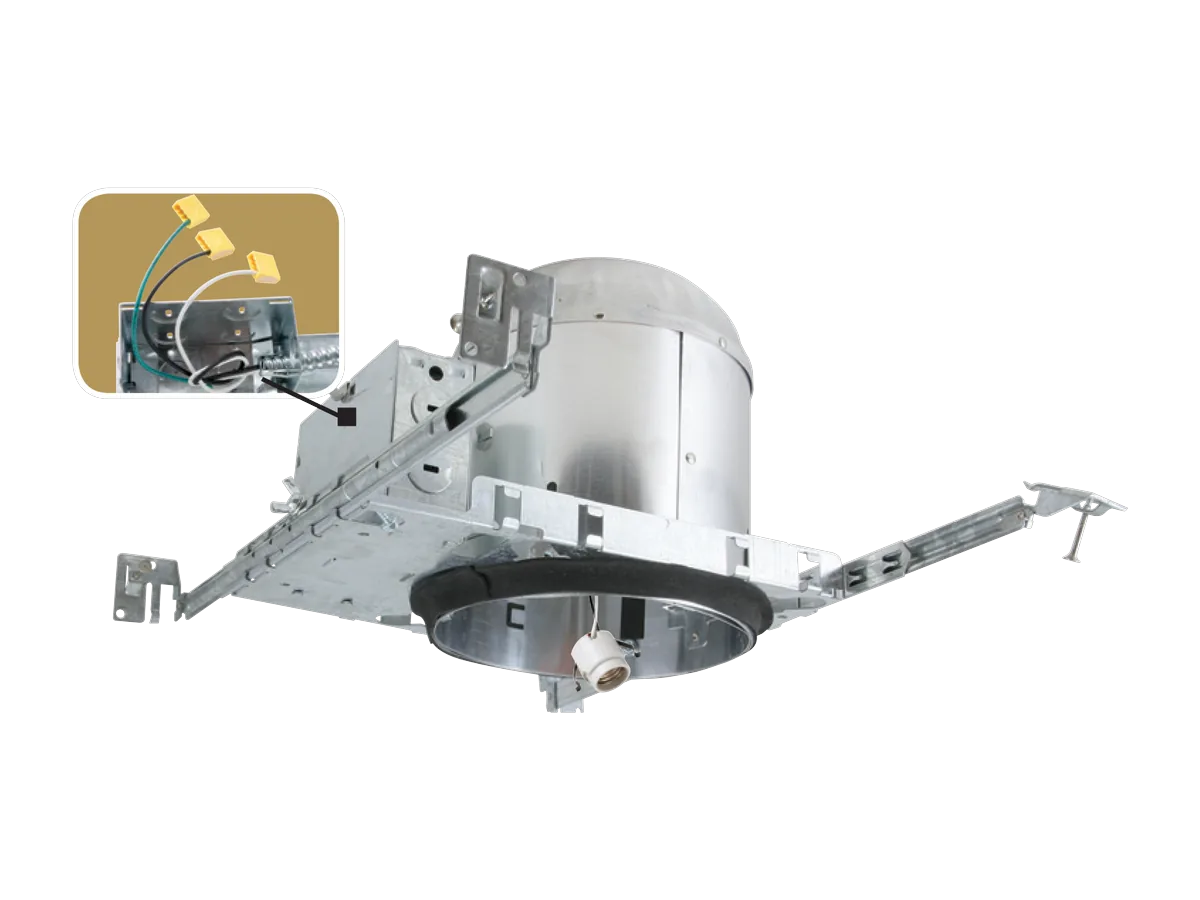

Two sizes · two install paths · T.24 Quick Connect included in the J-Box. /E26 takes PAR30/38, R30, A19, BR30/40 + LED retrofit modules. /T24 is JA8-2022-E LED-only for California. When the building converts to LED in year 5, the contractor unplugs the lamp socket and plugs in the module — no rewiring, no callback.
Model Specifications
Download Data Sheet| Light Source | Max Wattage | Base | Notes |
|---|
Dimensions
(For the selected size)Highlights & Features
>Seven upgrades the legacy can category never shipped.

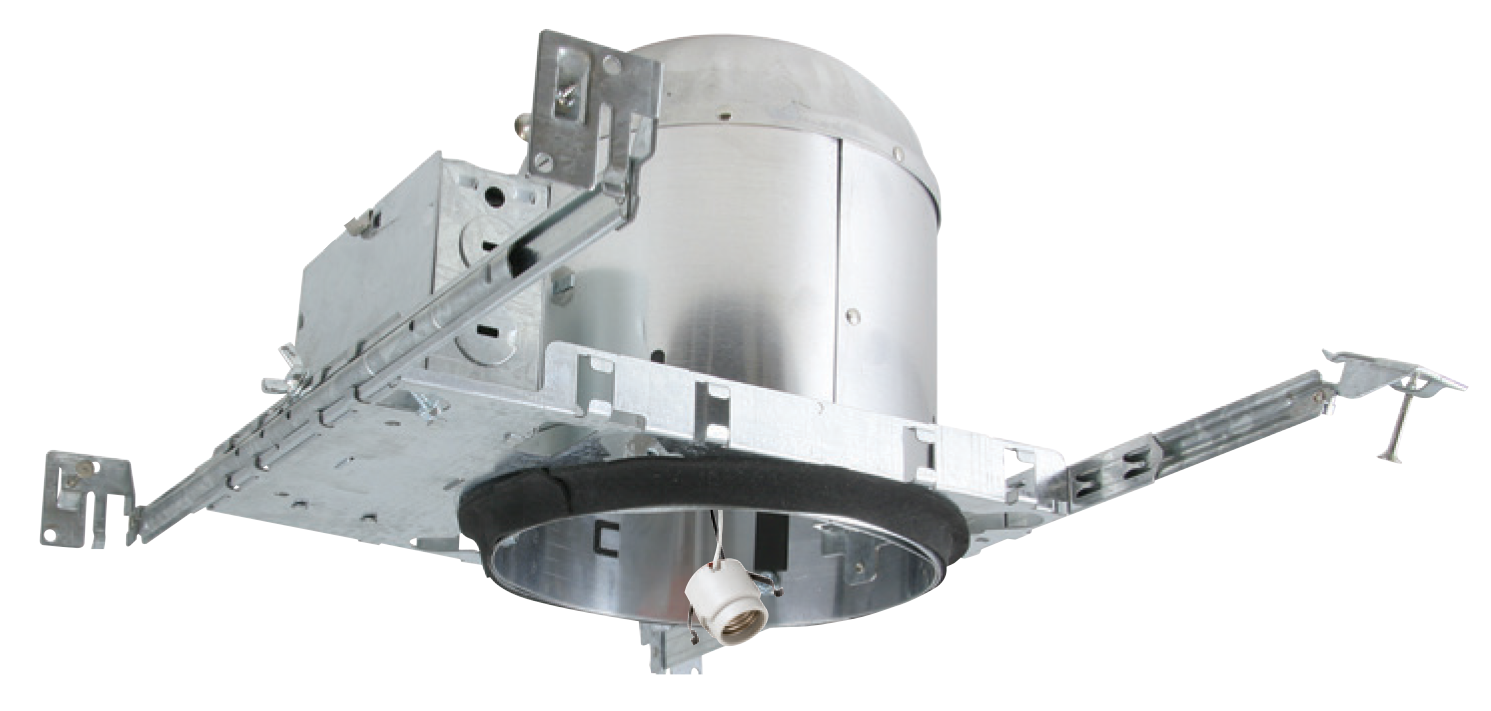

Two install paths · T.24 Quick Connect in the J-Box · AIR-TIGHT · IC Rated · Title 20/24-ready. One can, full upgrade path.

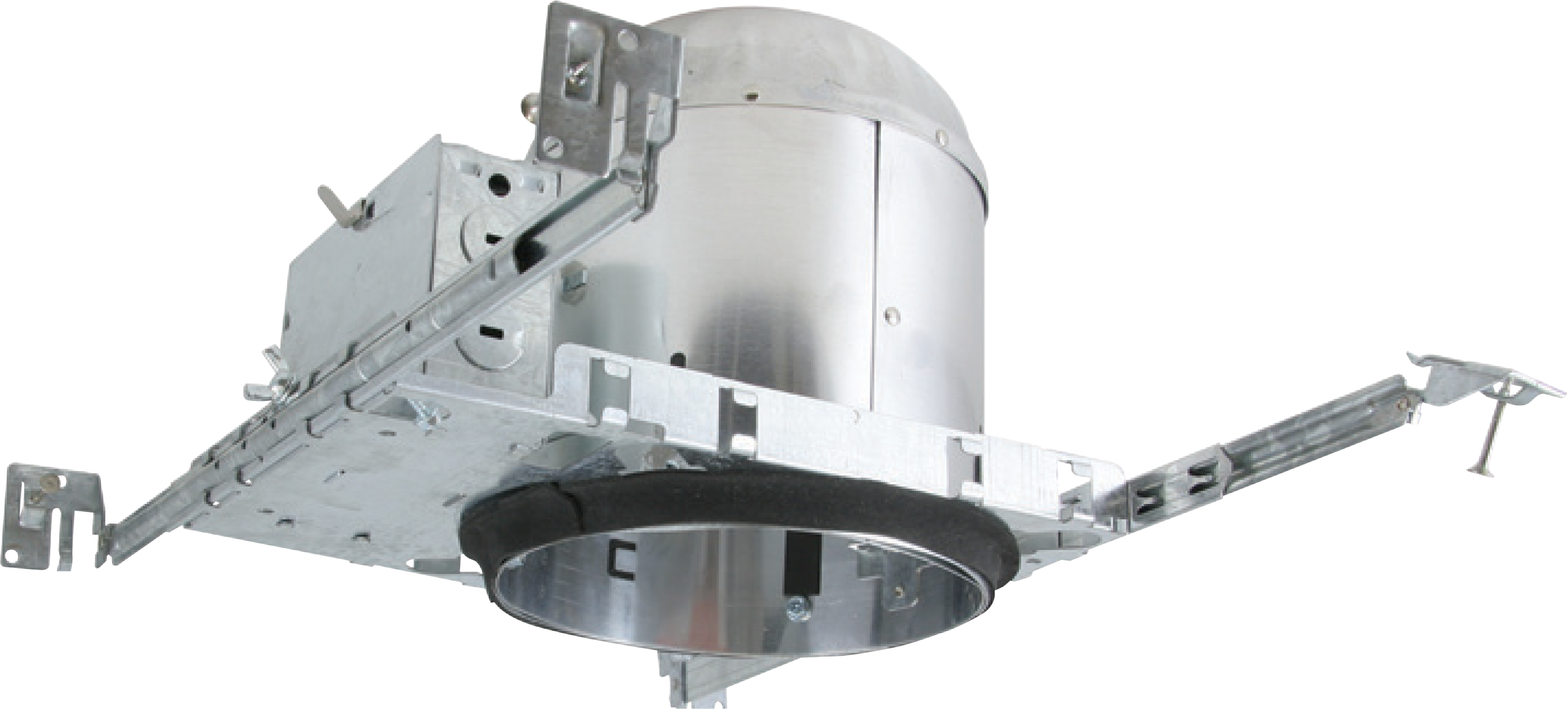

One Housing Family · Two Install Paths
>Spec the can today. Light it however the energy code wants.
Two base-type variants on the same can: /E26 for legacy lamps + LED retrofit modules · /T24 for California Title 24 / JA8-2022-E LED-only. Same bracket, J-Box, T.24 coupler · the fork is at the socket.
/E26 medium-base socket — the universal path everywhere outside California. Takes PAR30/38, R30, BR30/40, A19 (up to 75W) plus the multi-fⒶMILY RL Series LED Retrofit Module. T.24 Quick Connect lets you swap lamp or module without wire-nuts. Click T24 / JA8 next for the CA-spec path.
Recommended LED Retrofit

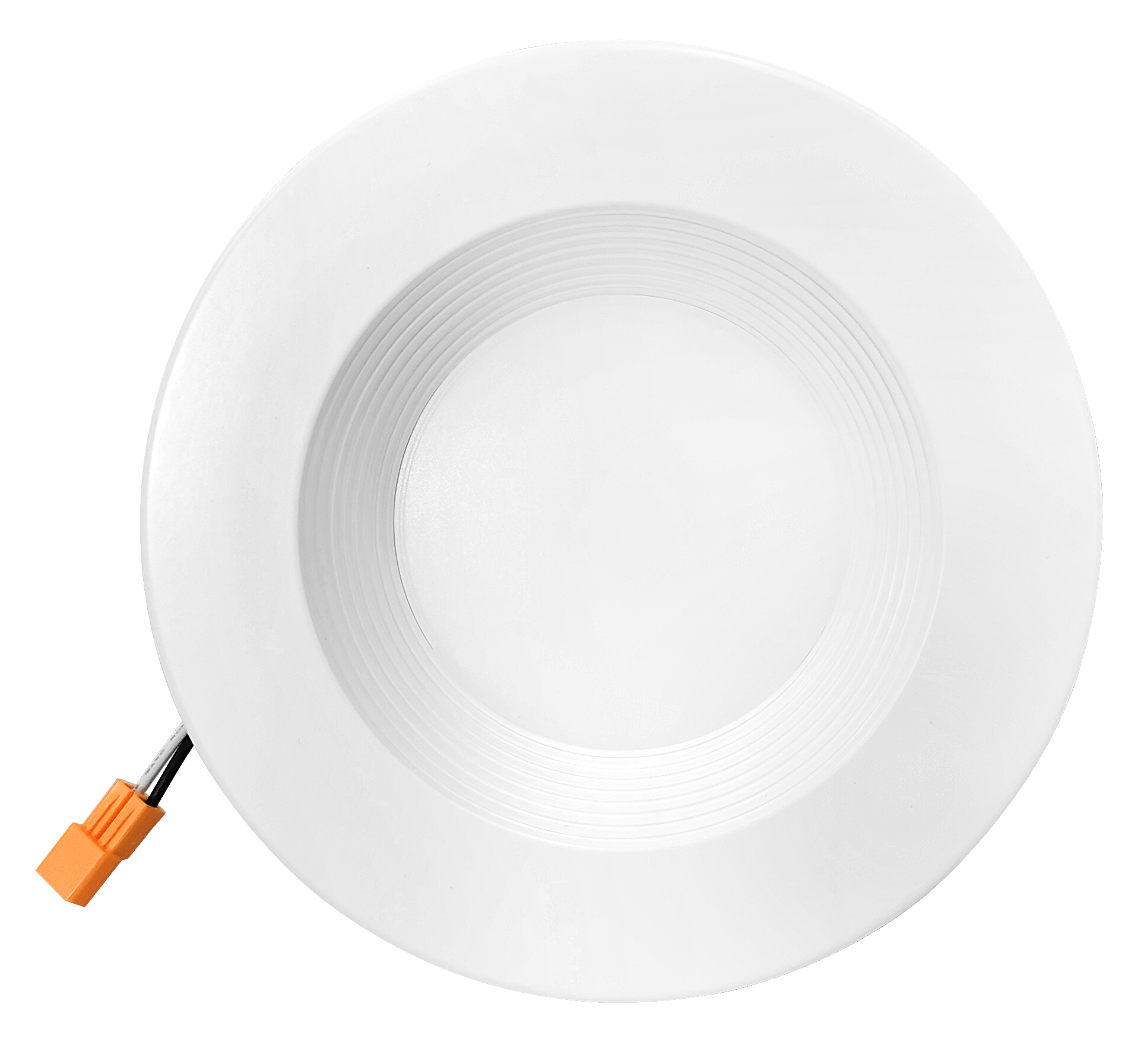

>Drop in the Nebula-II. Light the room.
Two recommended retrofit modules drop into the Gehry E26 socket: Nebula-II (LDRR · 100° wide-flood · ★) and Orbit-I (LDGR · 60° gimbal). Both ship full LM-79 / LM-80 IES bundles on WorkDrive. 75W PAR30 incandescent kept as the legacy Datasheet reference.
LDRR615-N2-4000K.IES
multi-fⒶMILY LED retrofit ladder — alternate modules
Each ships its own LM-79 / LM-80 IES bundle. Drop into the T.24 J-Box for tool-free service swap.
| Module | Watt | Lumens @ 4000K | Beam | IES Bundle | Datasheet |
|---|---|---|---|---|---|
| Nebula-II (LDRR410 / LDRR615) ★ | 10W / 15W | 856 / 1,150 lm | 100° wide-flood | IES Download | ↓ Datasheet |

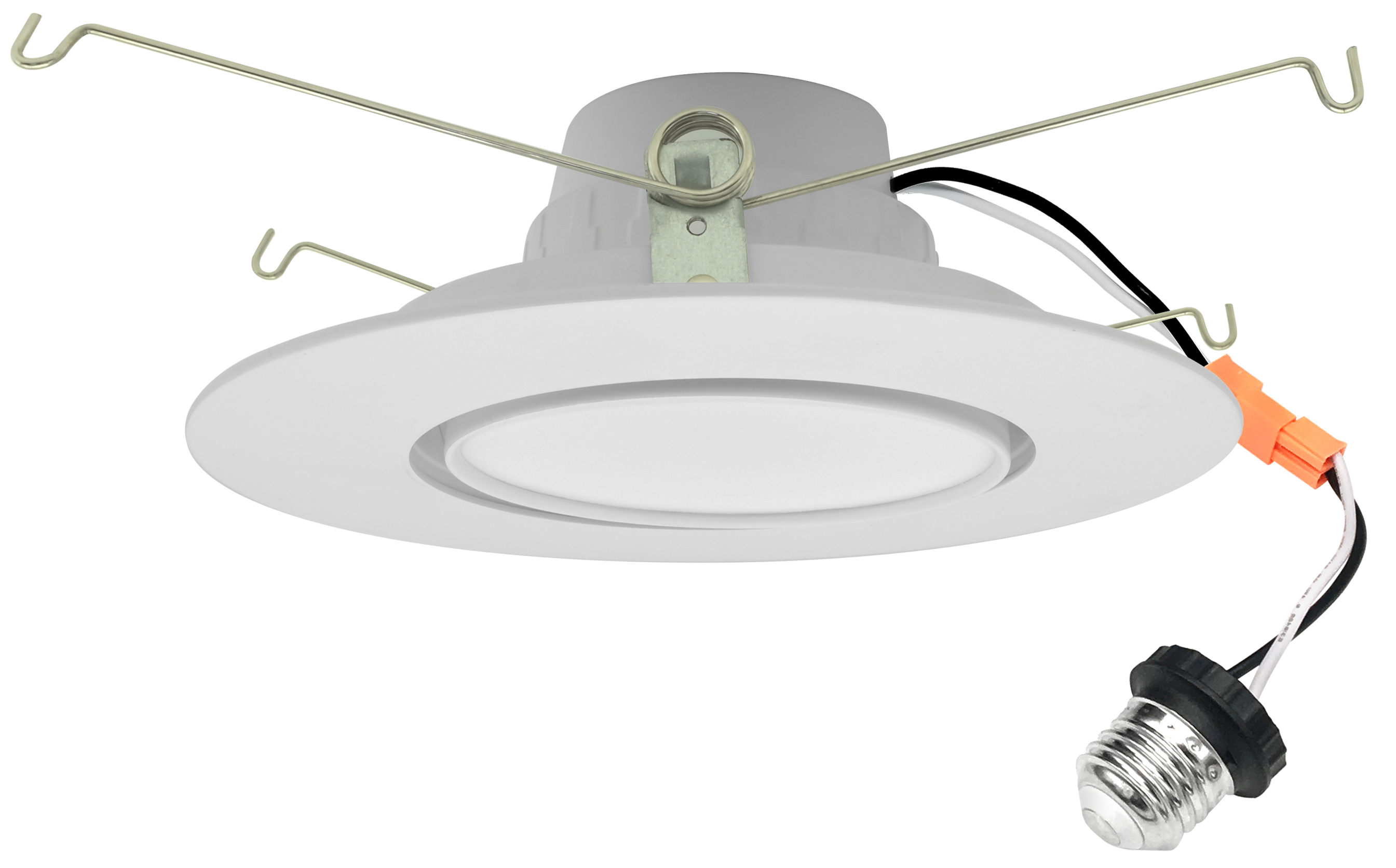

| Orbit-I (LDGR410 / LDGR615) | 10W / 15W | 720 / 1,193 lm | 60° gimbal · 60° tilt + 360° rot | Pending | ↓ Datasheet |

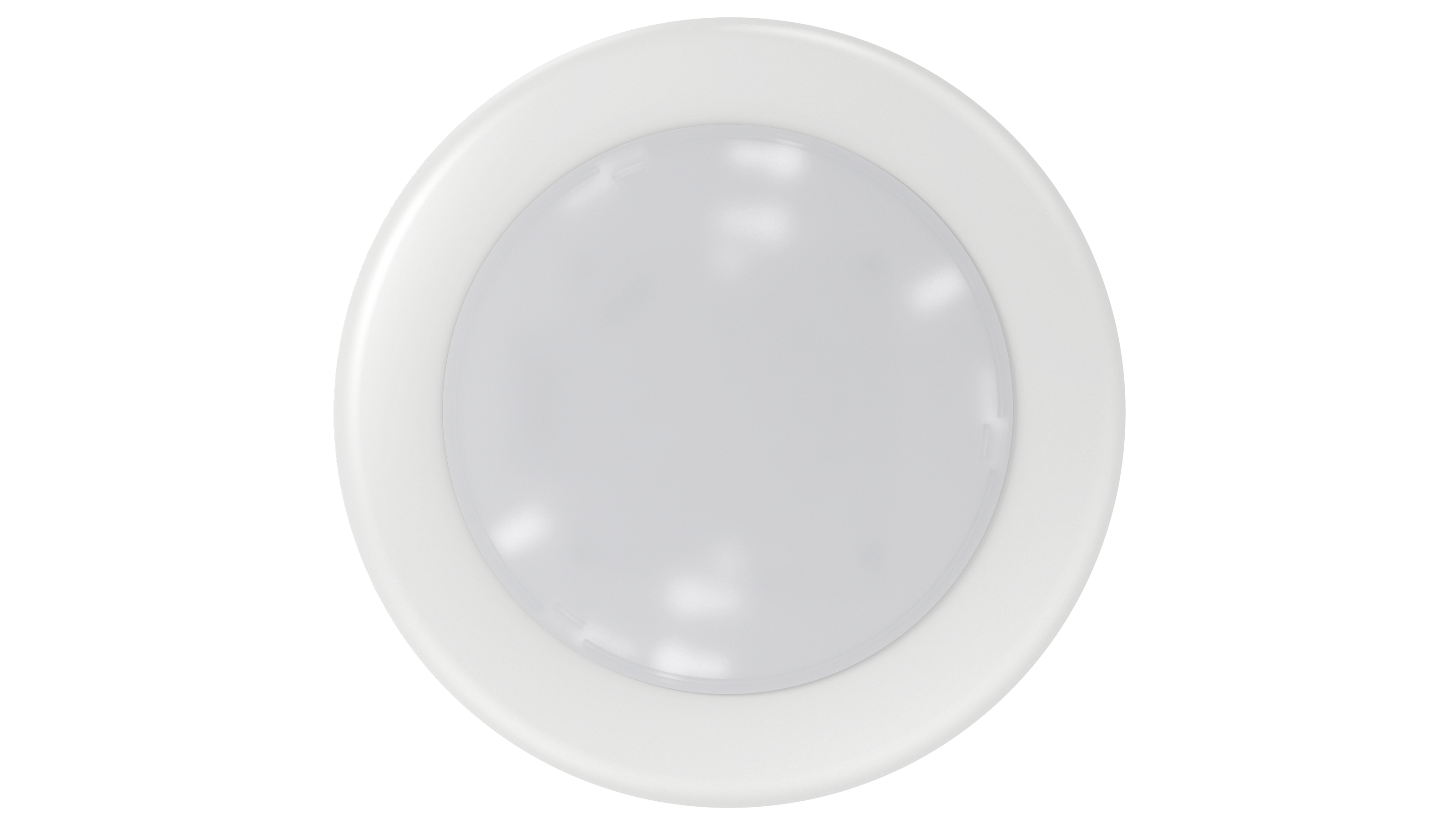

| eCrescent (LSMT410 / LSMT615) | 10W / 15W | 600 / 910 lm | 120° wide-flood (back-lit) | IES Download | ↓ Datasheet |

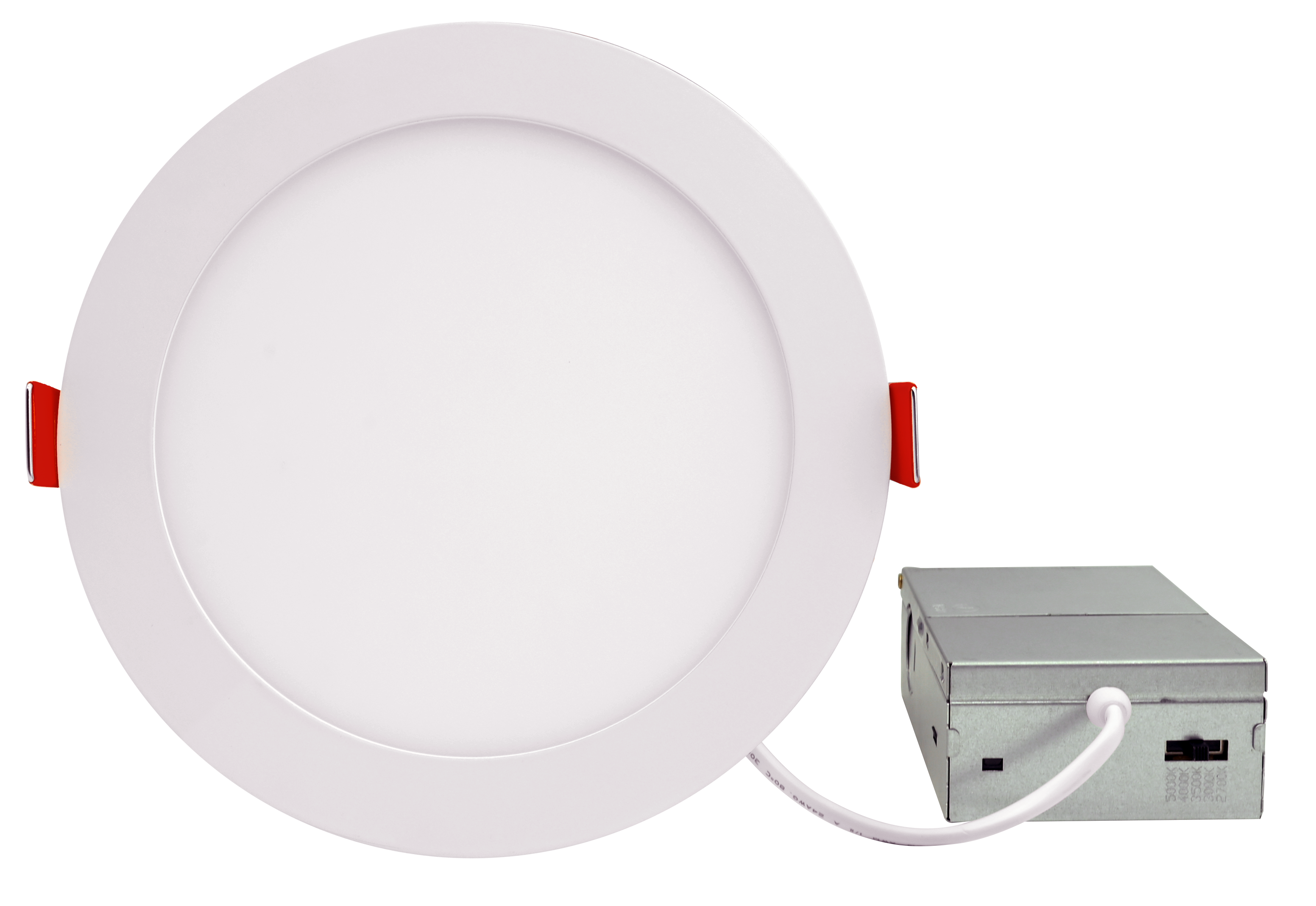

| Radius-II (LDRS409 / LDRS612 / LDRS818) | 9W / 12W / 18W | 644 / 1,041 / 1,474 lm | 115° edge-lit PMMA | WorkDrive (10 IES · 8″ pending) | ↓ Datasheet |

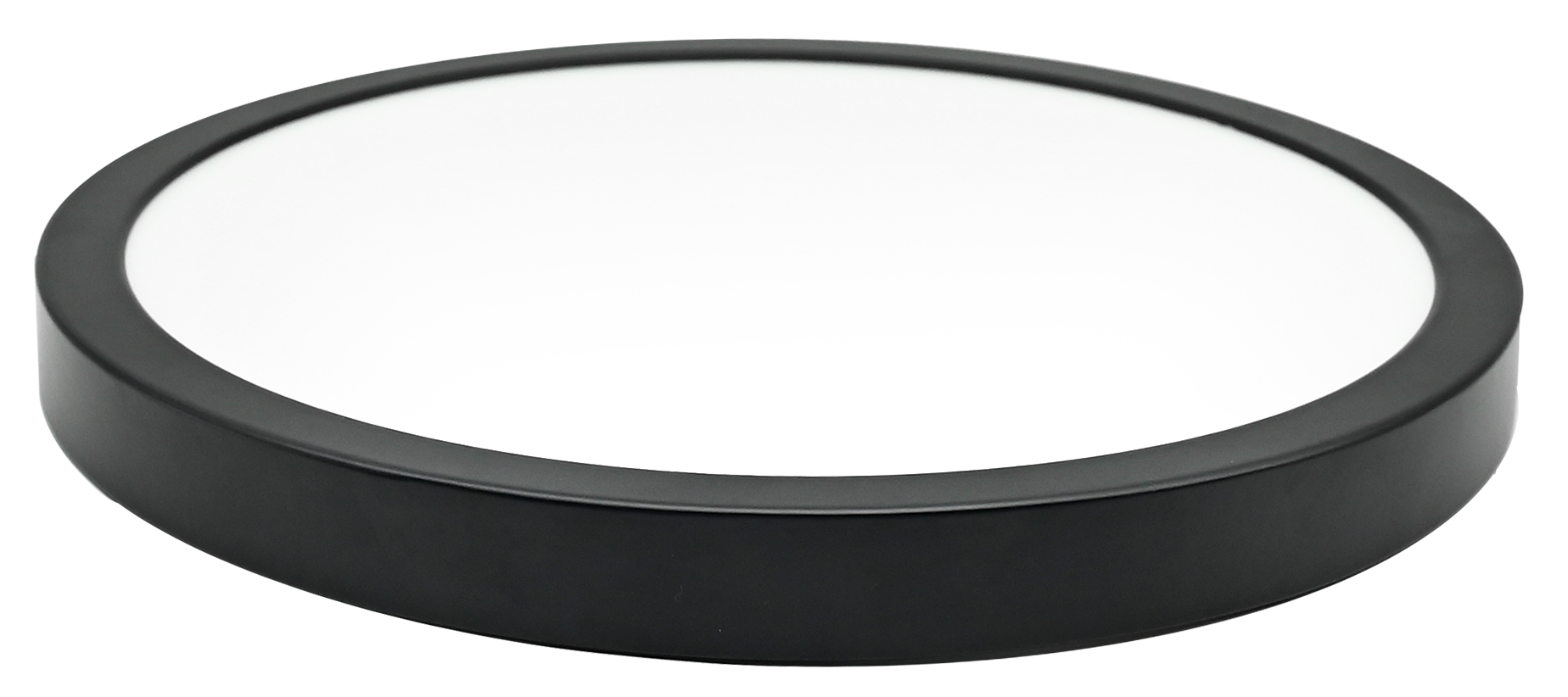

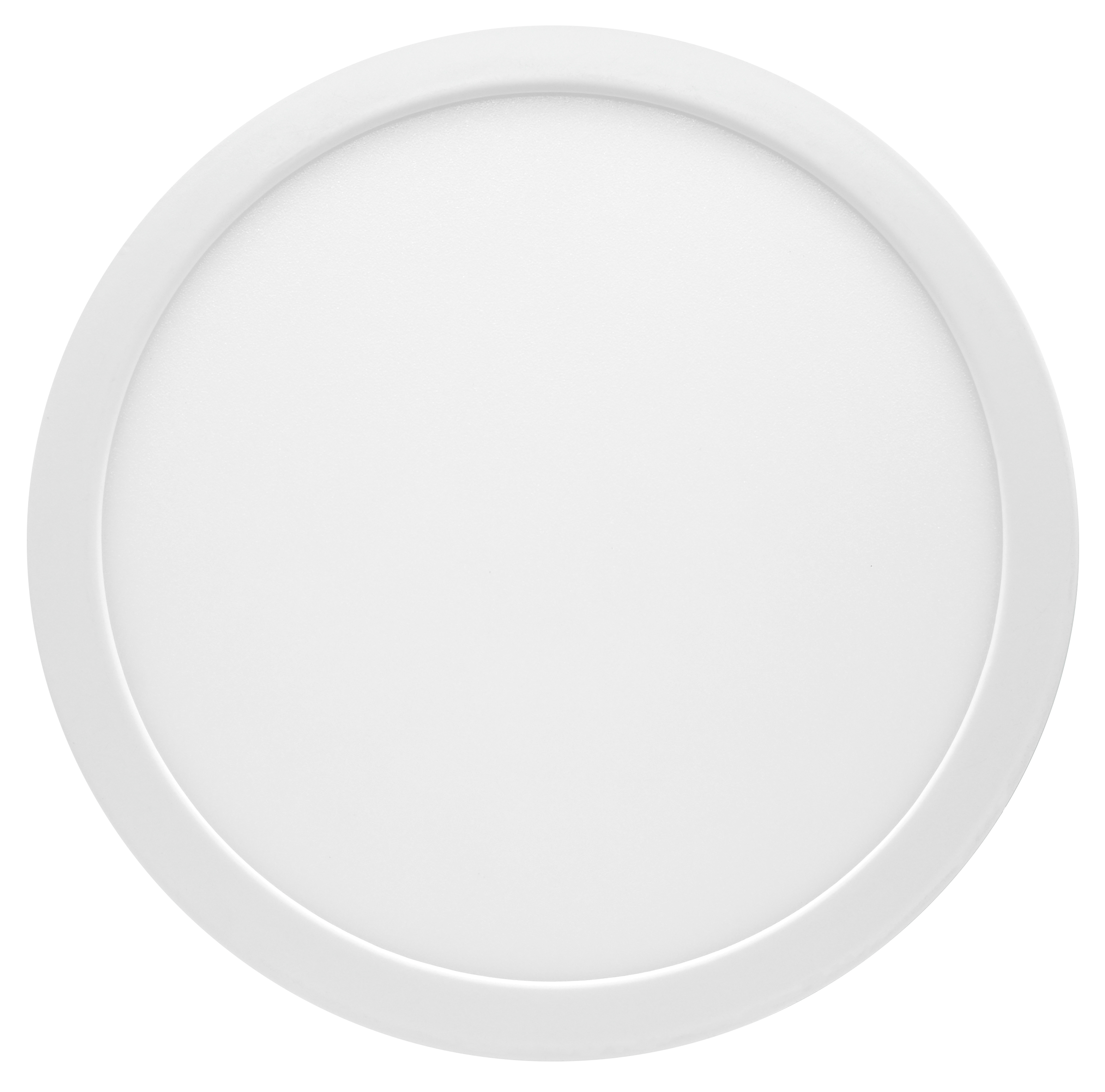

| Eclipse-II (LDLL0510 → LDLL1324) | 10W / 15W / 18W / 21W / 24W | 712 / 1,257 / 1,460 / 2,165 / 2,455 lm | 120° edge-lit puck (driverless · 0.79″) | WorkDrive (25 IES · 5×5) | ↓ Datasheet |

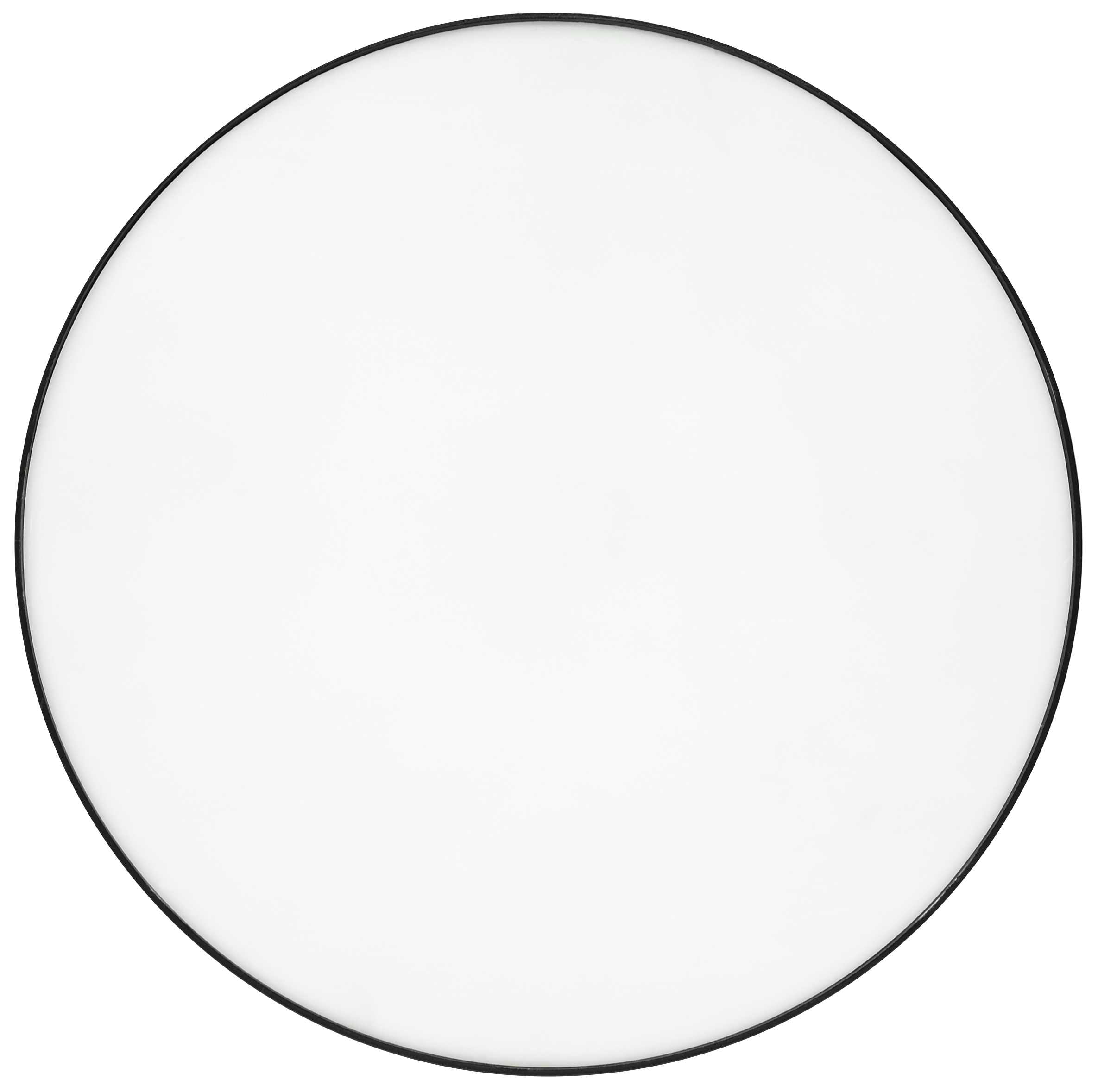

| Lunar Eclipse (LDLL0510 / LDLL0715 / LDLL0918) | 10W / 15W / 18W | 790 / 1,185 / 1,510 lm | 120° edge-lit puck (IP65 · black) | IES Download | ↓ Datasheet |
>The housing is the chapter. The lightsources are the rest of the book.
7 lightsource SKUs · 6 multi-fMILY LED modules (Nebula-II ★ / eCrescent / Radius-II / Eclipse-II / Lunar Eclipse / Orbit-I) · 1 compatible lamp (LTA19F800xxMB · 5-CCT). The whole module ladder ships from the same catalog as the housing.
>Configure Your CRC Gehry

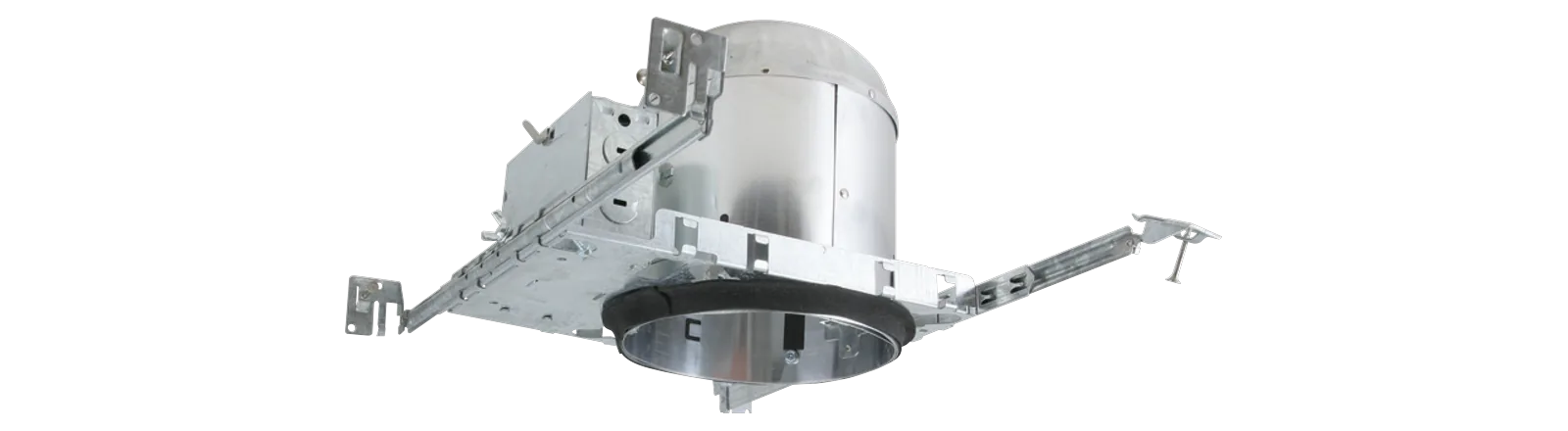

Size + Base Type → one of 4 SKUs. Companions: LED Module · A19 Lamp. ★ default · QS QuickShip · + companion (separate line item)
>Documentation & Resources
Everything specifiers, contractors, and property managers need to spec, install, and certify the CRC Gehry housing — data sheet, E26 and T24 install topology guides, and the live submittal generator. WorkDrive URLs for the install guides and QuickSheet are pending engineering registration.
>The housing today. The modules that drop in for the next 30 years.
Each multi-fMILY LED retrofit module drops into the T.24 J-Box for tool-free service swaps. Same factory · same warranty pedigree · same commercial-tier engineering.
>For the whole property.

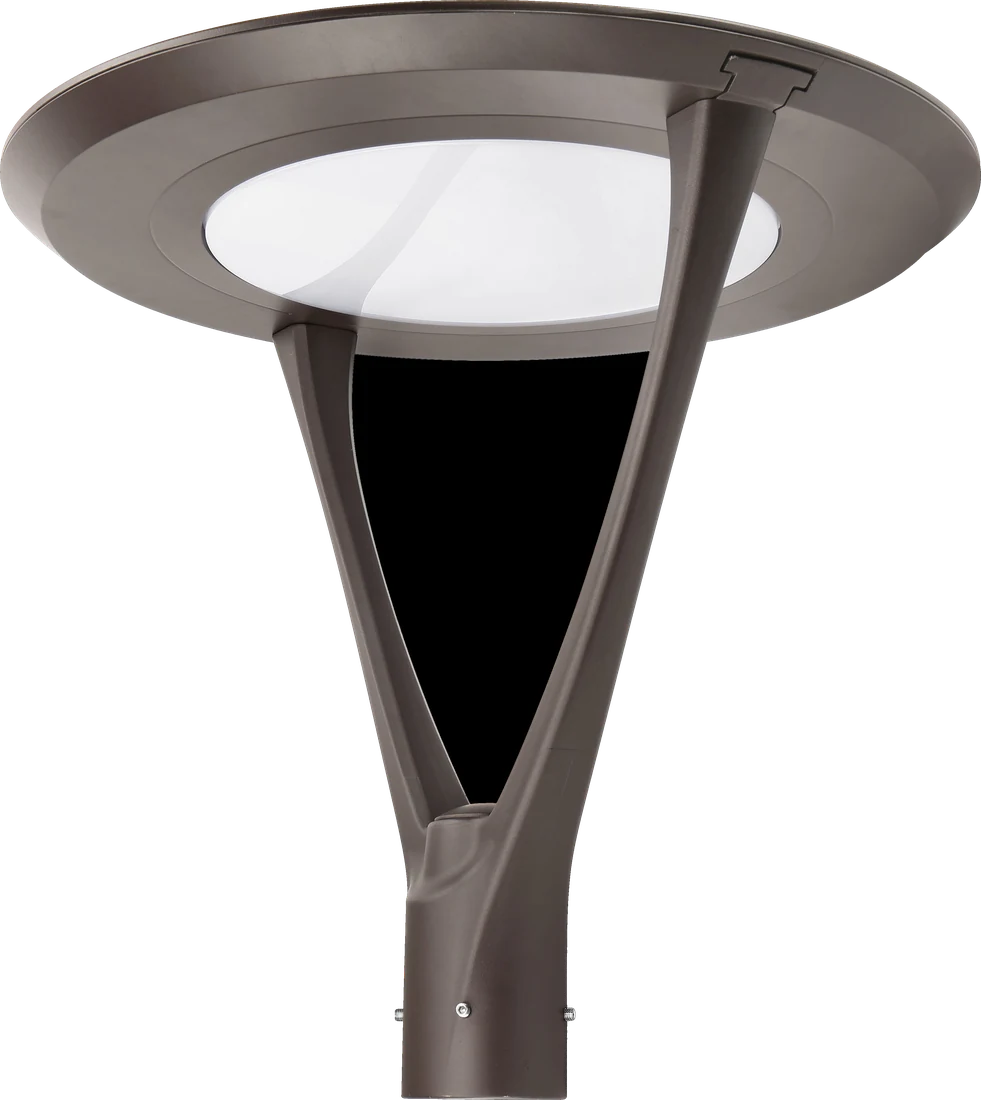

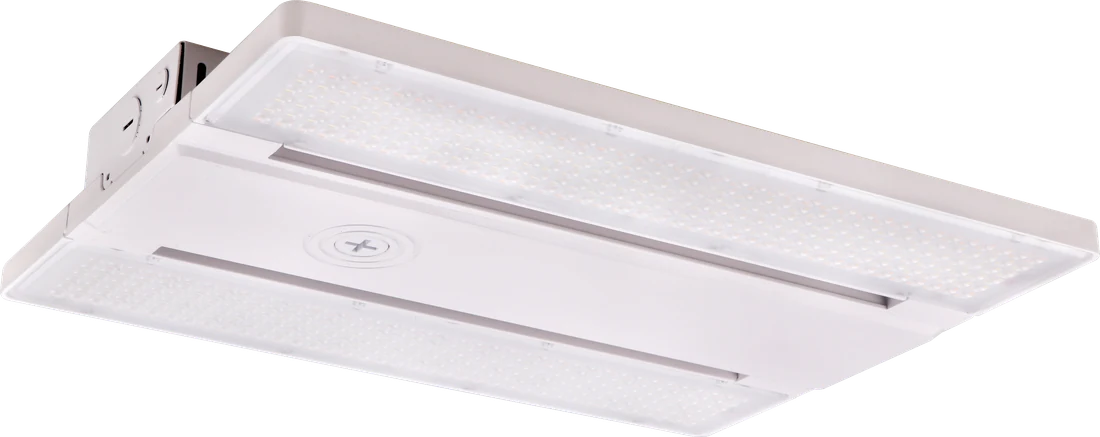

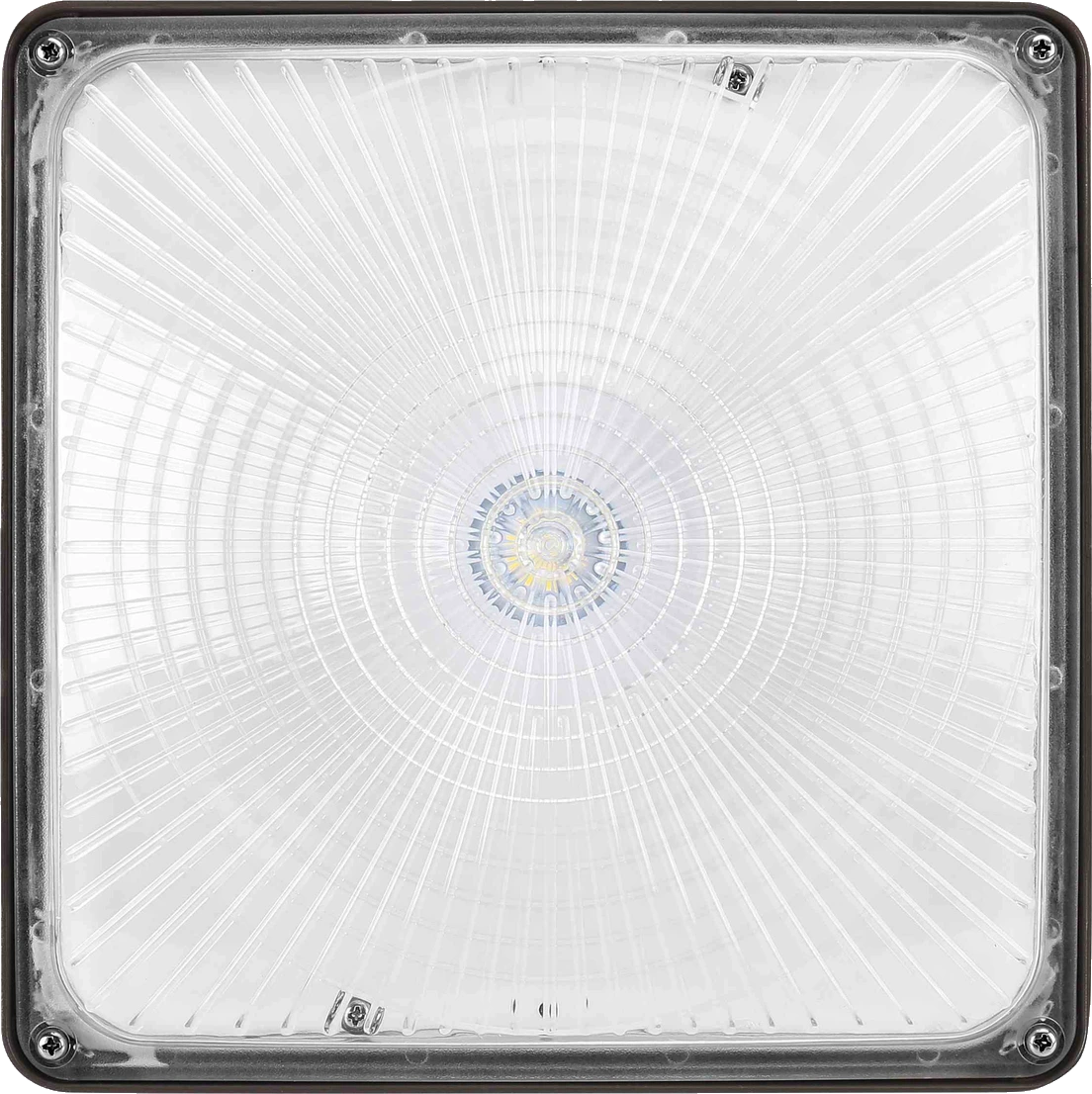

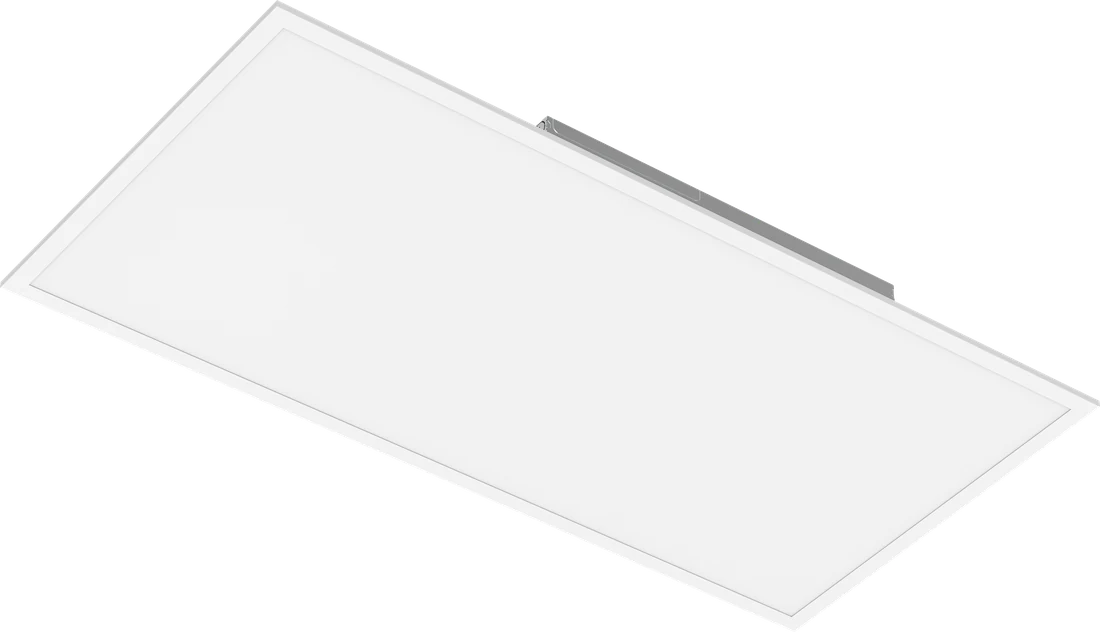

Gehry handles the recessed-can install infrastructure inside the dwelling unit — bedrooms, kitchens, living rooms, hallways, and any in-unit zone where the spec calls for a recessed lamp socket or LED retrofit module pairing. These cross-line fixtures handle everything else on the property — parking lot, walkways, parking garage, leasing office — same CS controls platform where applicable, same factory, same warranty pedigree. Specify them together for a single-source multi-family lighting package.
Built for turn-over speed.
Hundreds of thousands ship from five US warehouses — 2-3 day QS lead means a unit refurb between tenants doesn't wait on lighting. Layouts back in 48 hours, quotes and rebate matches reply same business day. 24-pack contractor cartons standard.
Stack the California rebates — through the LED module.
Honesty marker: housings don’t qualify for IOU lighting rebates directly — rebates flow through the LED module dropped into the T.24 J-Box. Spec /T24 + a JA8 module (eCrescent · Radius-II · Eclipse-II · Lunar Eclipse) and unlock CalEnergyWise, PG&E / SCE / SDG&E, HUD multi-family · DLC-listed pairings (Eclipse-II / Lunar Eclipse) add commercial rebate ladders. We match the APN and pull the paperwork.
