LPAR38 · cityⒶRCH PRO

LPAR Traffic PAR38

Relamp the beacon. Keep the assembly.

An LED PAR38 lamp for emergency-vehicle pre-emption (EVP) confirmation beacons and traffic-signal assemblies. It threads into the existing PAR38 lampholder with no change to the assembly: 390 lm at 7 W in 4800K, or 900 lm at 10 W and 1,500 lm at 19 W in 3000K. 120 V, Triac dimmable, CRI 93, UL wet location.

Specification Sheet Find A Rep Installation Guide Configure For Lead Time

Input Watts7–19 W

Lumensup to 1,500

ColorCRI 93

Ideal applications

Traffic Signals

Roadways

PAR38 lamp

EVP beacon

Wet location

UL Listed

Wet Location

FCC

RoHS

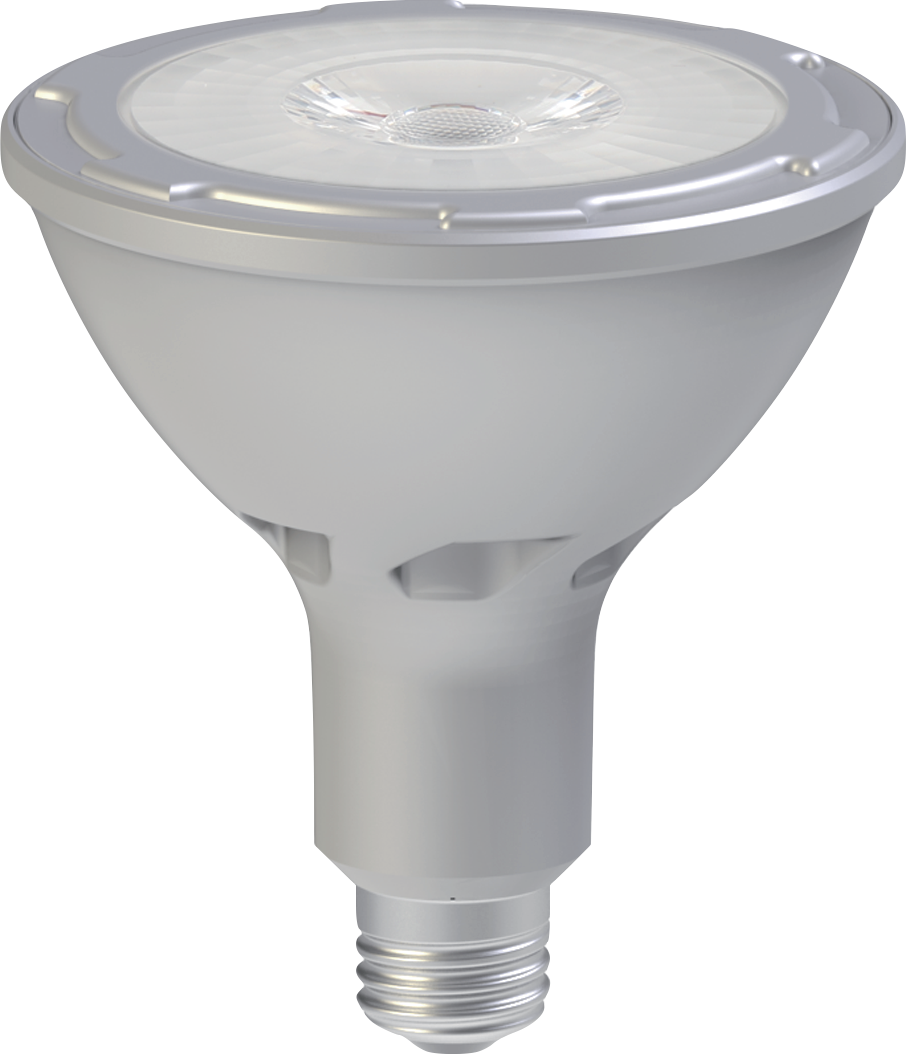

LPAR LED traffic PAR38 lamp, white body, from above

Documentation & Resources

Documents

Data SheetPDF Quick SheetPDF Sell SheetPDF Installation GuidePDF Submittal PackageBuild

Tools & Support

Free Photometric LayoutSend the site plan, get fixture count and foot-candles.3 days Rebate CenterActive utility programs and the forms, by ZIP.Open contrⒶLS CompatibilityWhich heads and platforms this fixture takes.View

Warranty Statement Ask for Something Else Find a Rep

Model Specifications

Output	Watts	Lumens	CCT	lm/W

One fixed output per lamp: lumens and watts from the ALG datasheets, lm/W is lumens over watts. Color temperature is in the catalog number. No IES file is published for these lamps.

ApplicationTraffic control · EVPConfirmation beacons and traffic-signal assemblies

ConstructionPAR38 LED lamp · clear opticWhite body (390 and 1,500 lm) · black body (900 lm) · RoHS, no lead or mercury

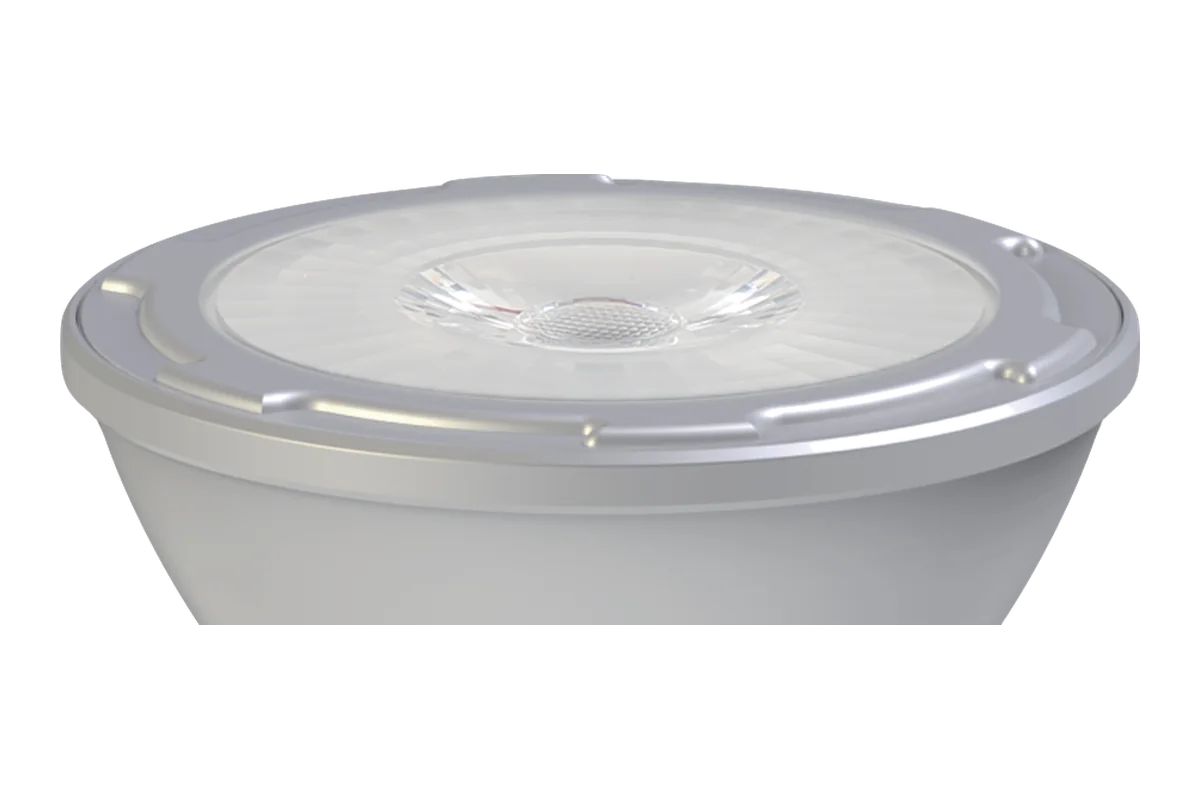

OpticsClear optic · 40° / 30° / 25° by lampCRI 93 · 4800K on the 390 lm lamp, 3000K on the others

Dimensions—

Operating temp−4 °F to 120 °F900 lm lamp: −40 °F to 165 °F · UL wet location · totally enclosed fixtures

Electrical120 V · Triac dimmable · PF >0.9 · non-flicker · FCC Part 15

Warranty3 yr · 25,000 hrExtended warranty available

Full Data Sheet Installation Guide

Engineering

Where the lamp goes, the three outputs, the beam, the ratings and the relamp.

Photometric Distribution

IES Files

Not published for these numbers

Beam by lamp: 40° (390 lm), 30° (900 lm), 25° (1,500 lm). On axis the 1,500 lm lamp peaks at 5,700 cd (ALG photometric table).

Find A Rep

Engineered Accessories

Configurator

Build Your LPAR Traffic PAR38.

Required *

Lamplumens · watts—

Color temperaturein the number—

Lamp bodyset by the lamp · not in the number—

Voltagenot in the number—

Optional

Your catalog number

Your Catalog Number

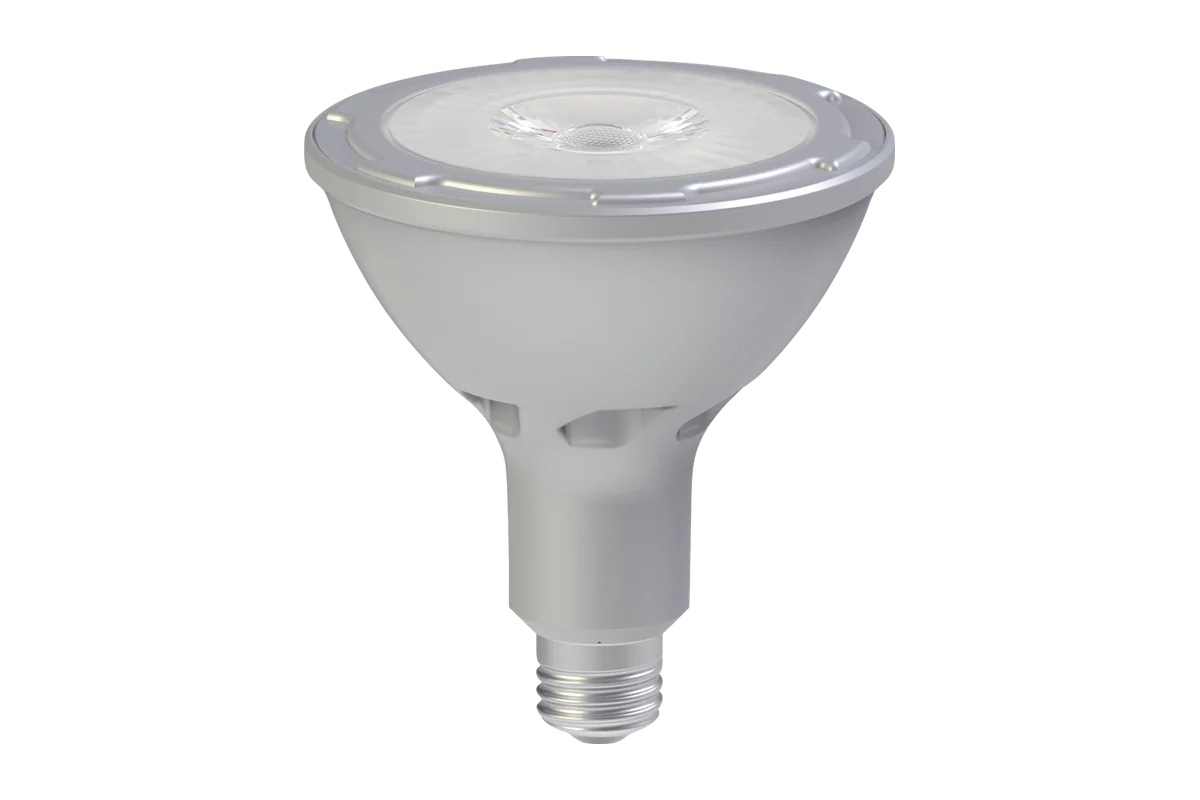

Catalog number

Output—

Efficacy—

Distribution—

Dimensions—

ListingsUL Listed · wet location · FCC Part 15 · RoHSNo DLC listing is claimed for these lamps, and no DOT approval is claimed here.

Generate Submittal Request A Layout

Get your pricing, check stock and more:

Distributors · Facility Teams I Buy From ALG Your account pricing and ordering, with your rep credited automatically. Sign In To ALG Shop Sales Representatives I’m an ALG Sales Rep Check stock and pricing for your accounts in AURA. Sign In To AURA Find A Rep

Traffic & Sign Lamps

LPAR and LY-T10 are the cityⒶRCH lamps: LPAR for the EVP confirmation beacon, LY-T10 for the street-name and advertising sign cabinet.

You are here LPAR LED traffic PAR38 lamp

LPAR · PRO LPAR The LED PAR38 lamp for EVP confirmation beacons: 390, 900 or 1,500 lm on 120 V. UL wet location · 3 yr / 25,000 hr Specification Sheet → Product Details · this page

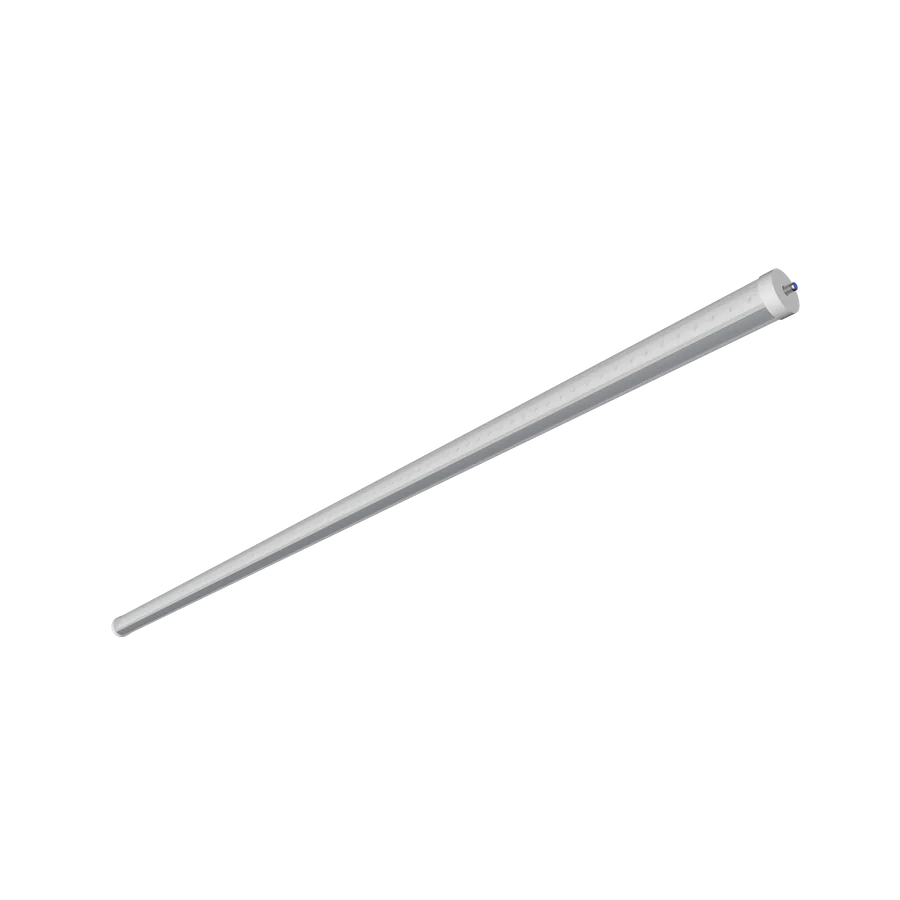

LY-T10 · ECO LY-T10 The LED slimline T10 sign lamp: 4, 6 or 8 ft, 100 lm/W, 360° output. Ballast bypass required. ETL Listed · 5 yr Specification Sheet → Product Details →
