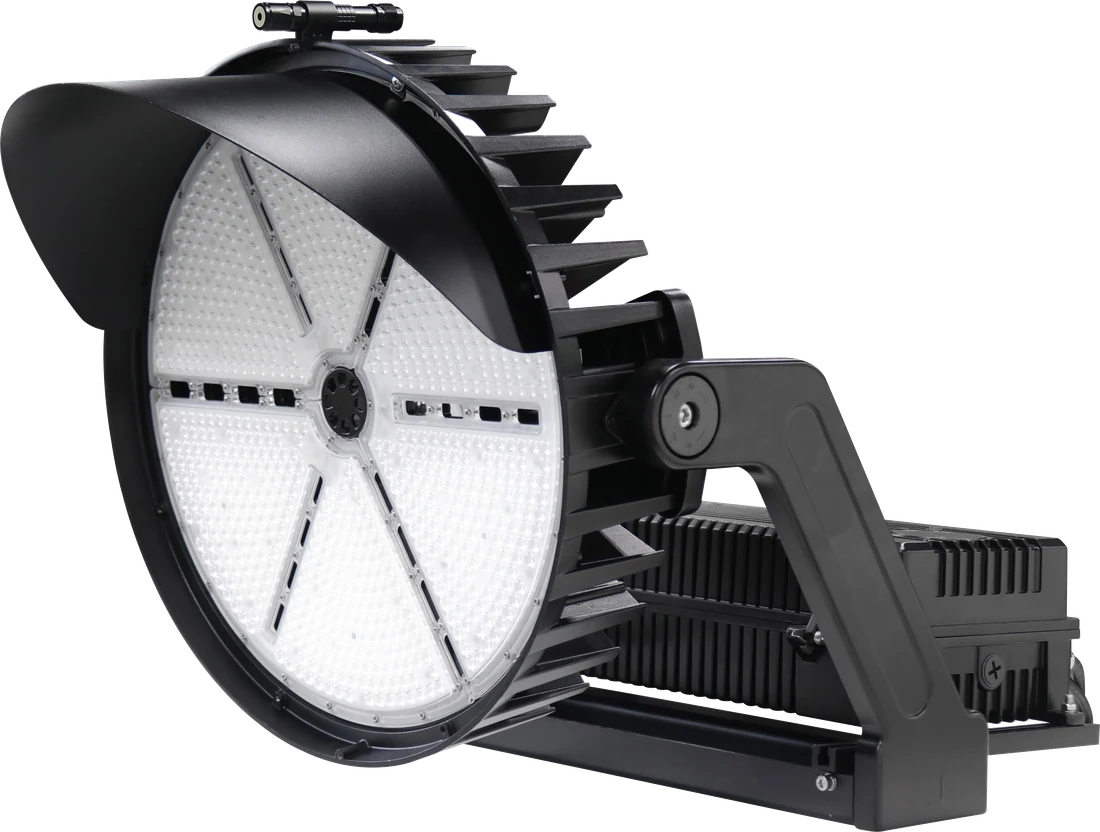

LSPL · Radiator PRO
Stadium-Grade Sports Lighter.

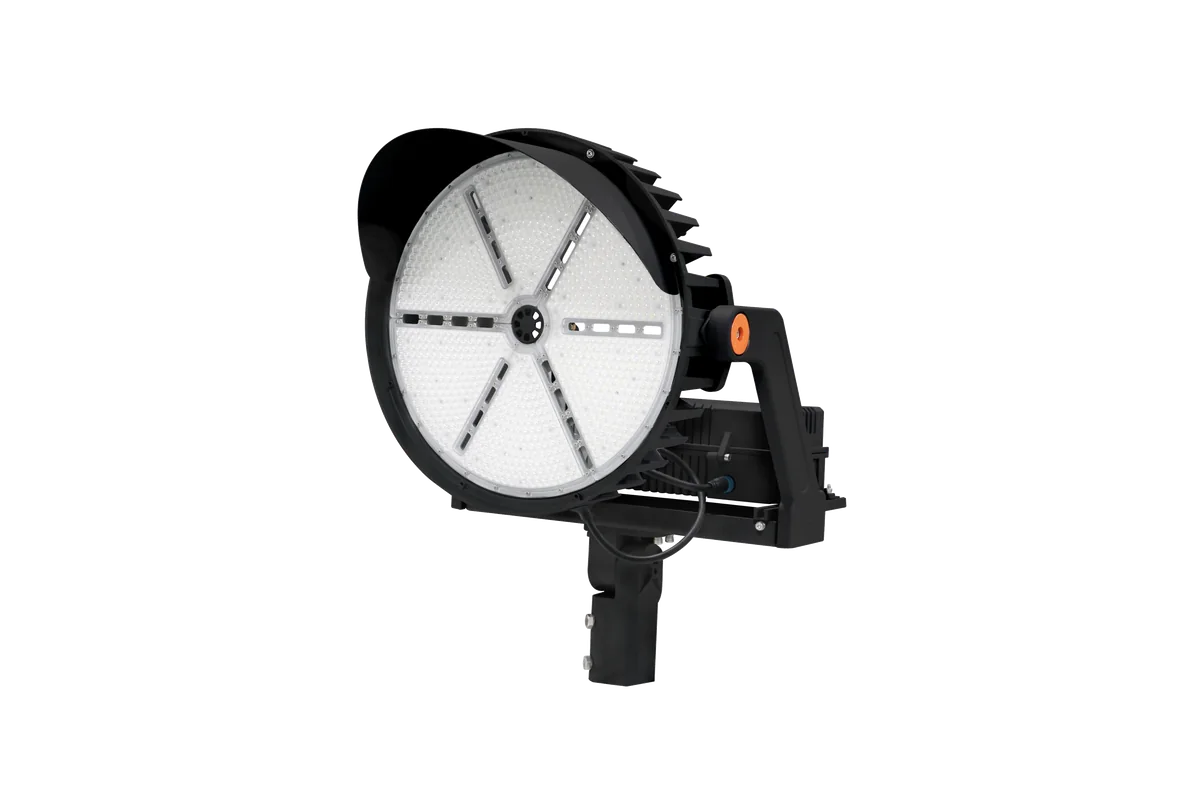

Spec-grade LED sports lighter on the luxoⒶRCH LSPL family — sister product to the Illuminator (broadcast 100 ft+) and Beacon (PRO+ mega-venue). Three sisters share one chassis: Radiator-I traditional 850W, Radiator-II high-power 600W / 1200W (142 lm/W · DLC Premium), and Radiator-III 480W RGB showⒶSYNC™ for halftime and venue branding. proⒶPTICS™ NEMA 3 broadcast distribution · B5-U0-G2 / G5 BUG · 10-yr / 100,000-hr warranty · −40°F to 130°F · up to 40kV @347-480V surge · TAA-Compliant Mexico variant available.
Model Specifications
Download Data Sheet| WATT | CCT | Lumens | Lm/W | Voltage | CRI |
|---|
Dimensions
(Radiator-I 850W · production drawing referenced from Shopify CDN)
HIGHLIGHTS & FEATURES
Stadium output. Open spec. Full bid sheet.
Five design choices that earn Radiator on stadium / school / perimeter bid sheets against premium-tier sports flood, premium-tier sports flood, premium-tier sports flood, volume sports flood, and volume sports flood. Each video shows the feature in action; the warranty + controls tiles disclose the bid-sheet framing where Radiator genuinely wins.
contrⒶLS
Stadium-grade controls. Open spec, no lock-in.
Radiator is contrⒶLS-Ready out of the box on two open-protocol paths.
contrⒶLS by Synapse for stadium-grade wireless mesh, scheduling, and cloud SaaS via the LSPL-I1/C/WIFI base station.
showⒶSYNC™ DMX for Radiator-III RGB scene programming via the LSPL-I1/C/DMX external controller — halftime, player intros, venue branding.
Both controllers ride the SAME LSPL-I1/* line shared with Illuminator — one ordering desk, one commissioning playbook. 0-10V analog dim is baseline on every driver. Spec writers mix Radiator into any pole + BMS infrastructure — no turnkey-vendor lock-in.
LSPL-I1/C/WIFI — Synapse SimplySNAP wireless base station. NEMA controller form factor · one-year basic cloud included · pairs with the SimplySNAP mesh network for centralized site management. Stadium-grade scheduling · energy analytics · remote commissioning via cloud dashboard. Each Radiator fixture joins as a node — spec writers manage hundreds of fixtures across multiple poles from one console. Open spec posture: Synapse rides the same SimplySNAP infrastructure used by other commercial-controls vendors — no proprietary lock-in like premium-tier turnkey control ecosystem. Companion LSPL-I1/C/DMX retrofit external controller (IP65 · 220-F) bridges to DMX consoles for Radiator-III show-light scenes on the same network.
PHOTOMETRICS
Beam shape, by the series.
Datasheet-rated photometrics across the 3-sister matrix — Radiator-I 850W, Radiator-II 600W and 1200W, Radiator-III 480W RGB. Toggle series · wattage · CCT below to see lumen output and efficacy per cell. All 3 sisters share the NEMA 3 distribution with B5-U0-G2 BUG (B5-U0-G5 on the 1200W flagship) — broadcast-grade glare control with 20° / 30° field-swappable optics. Radiator-II 600W / 1200W carries 142 lm/W — clears DLC Premium 130 lm/W floor with 12 lm/W headroom. IES BUNDLE PENDING RADIATOR IES FILES.zip is staged · external WorkDrive URL coming with the next dashboard export. Per-cell LM-79 polar plots will replace the placeholder once the bundle is parsed.
LSPL-1200-50/R2/U/B/TR/O30 · IES file pending bundle parse In the Box
Four components, factory-installed.

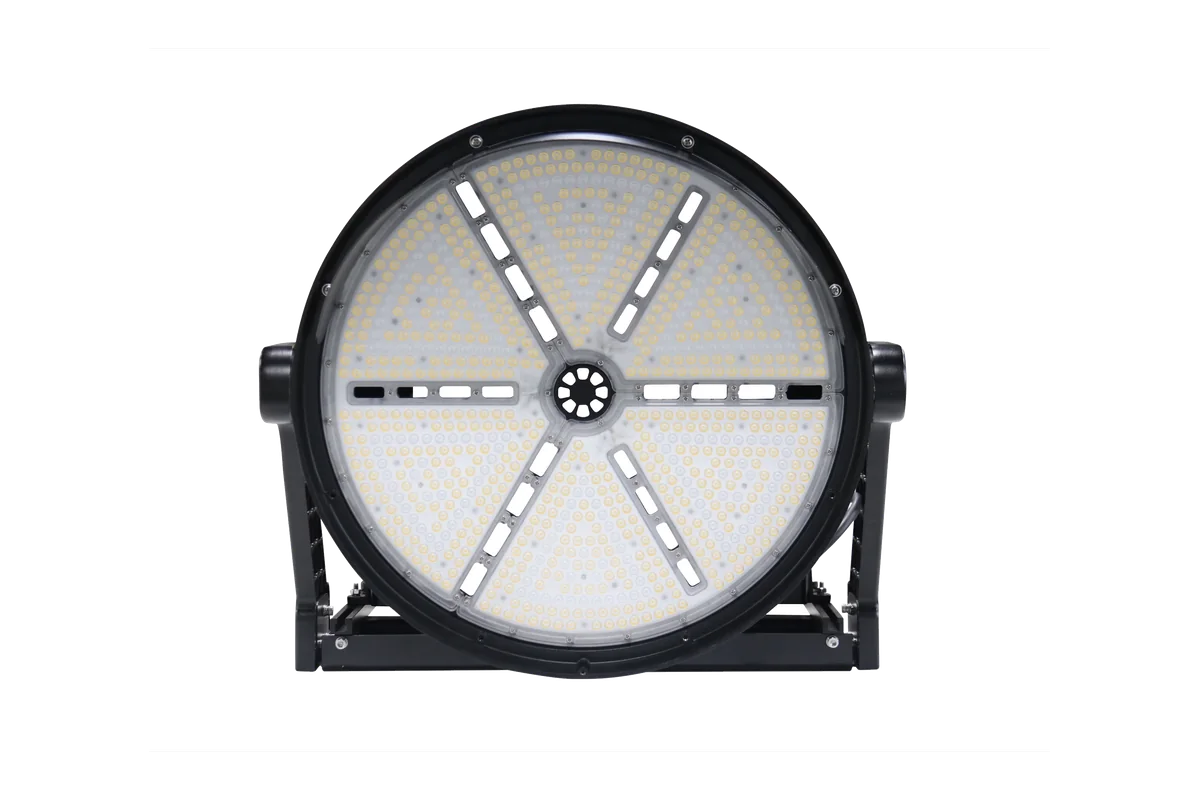

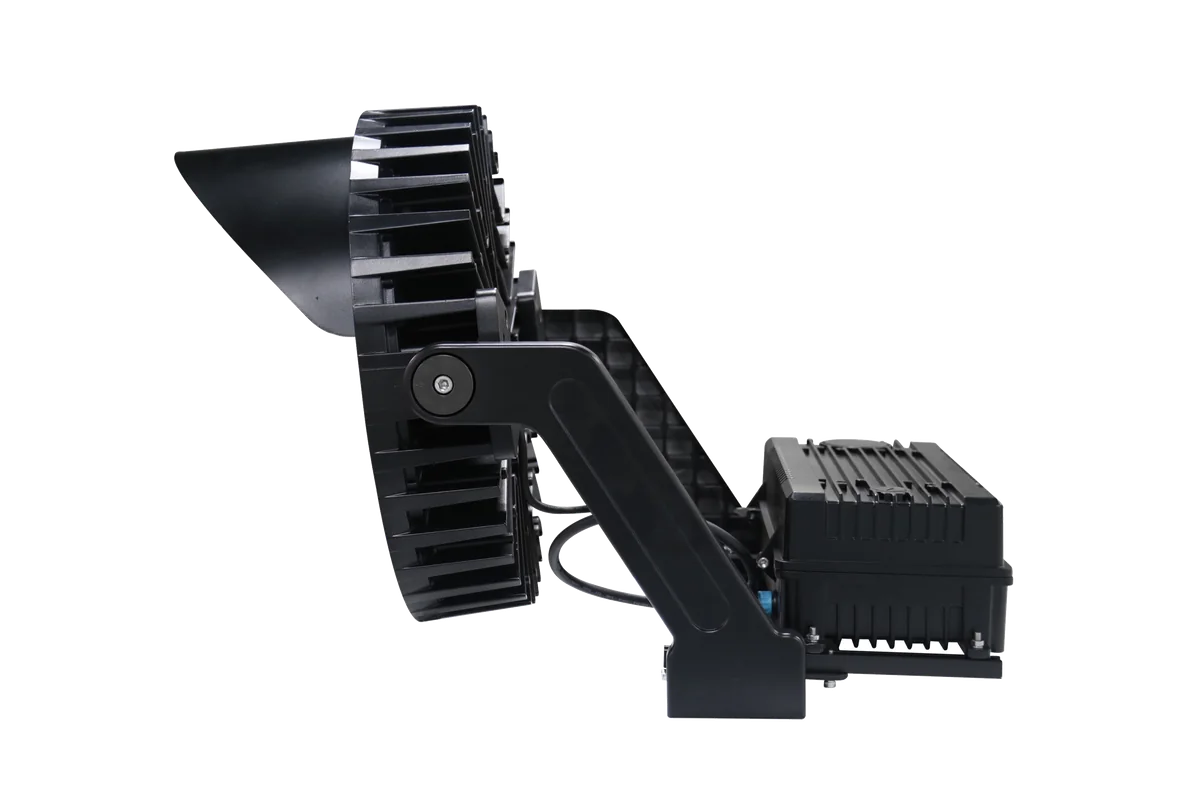

Every Radiator ships with the proⒶPTICS™ prismatic optic, the sealed cast-aluminum housing (wetGuard™ · IP65 · −40°F to 130°F · 3G vibration-rated), the universal 120-277V driver with surgeⒶRMOR built-in surge + 0-10V analog dim baseline, and the trunnion mount (/TR). All factory-installed — no upsell SKUs. Bolt to the cross-arm or yoke pole, wire 120-277V (or HV 347-480V on the high-voltage variant), DIP-set WATTSELECT on Radiator-II, walk away.
Accessories
Engineered Accessories
constⒶNT in-line surge SPDs · contrⒶLS shared LSPL-I1/* controller line · remote-driver extension cord · glare control hardware · mount swap kits · replacement optics for every wattage class · laser sight aiming aids. Factory-matched to the Radiator housings, QuickShip on most SKUs.
Build Your Model
Configure Your Radiator
Selections build the SKU live. R2 WATTSELECT is DIP-set at install — does not appear in the SKU. Required fields marked with *. See the legend for QS / MTO / DIP / LCK meanings.
Documentation & Resources
Datasheet and per-SKU submittal generator are LIVE; Installation Guide, Quick Sheet, Sell Sheet, and IES bundle ship as URLs drop. DLC Premium certified per the LSPL Radiator datasheet. 10-year / 100,000-hour limited warranty (luxoⒶRCH PRO tier · Limited Liability).
LSPL-Radiator-II_Installation.pdf staged in Zoho · external WorkDrive URL coming with the next dashboard export.RADIATOR IES FILES.zip staged in Zoho · external URL coming with the next dashboard export. Section 7 surfaces datasheet-rated 142 lm/W (R2) and 135 lm/W (R1) until per-cell SVGs render from the bundle.LSPL-{wattage}-{cct}/{series}/{voltage}/B/TR/{optic}{/taa?}), 30-row spec table covering all 3 sisters, dimensions, photometric placeholder, certifications (UL · DLC Premium · ETL · RoHS · 10-yr/100k-hr · TAA-Compliant variant), and accessory references. Defaults to LSPL-850-57/R1/U/B/TR/O30 (R1 850W · 5700K · QS) — your Section 9 selections (or Quick Pick combo) override at runtime, including the R1 1200W HV MTO variant constraint and the R3 RGB show-light scene context.Three sports luminaires. One controller line.

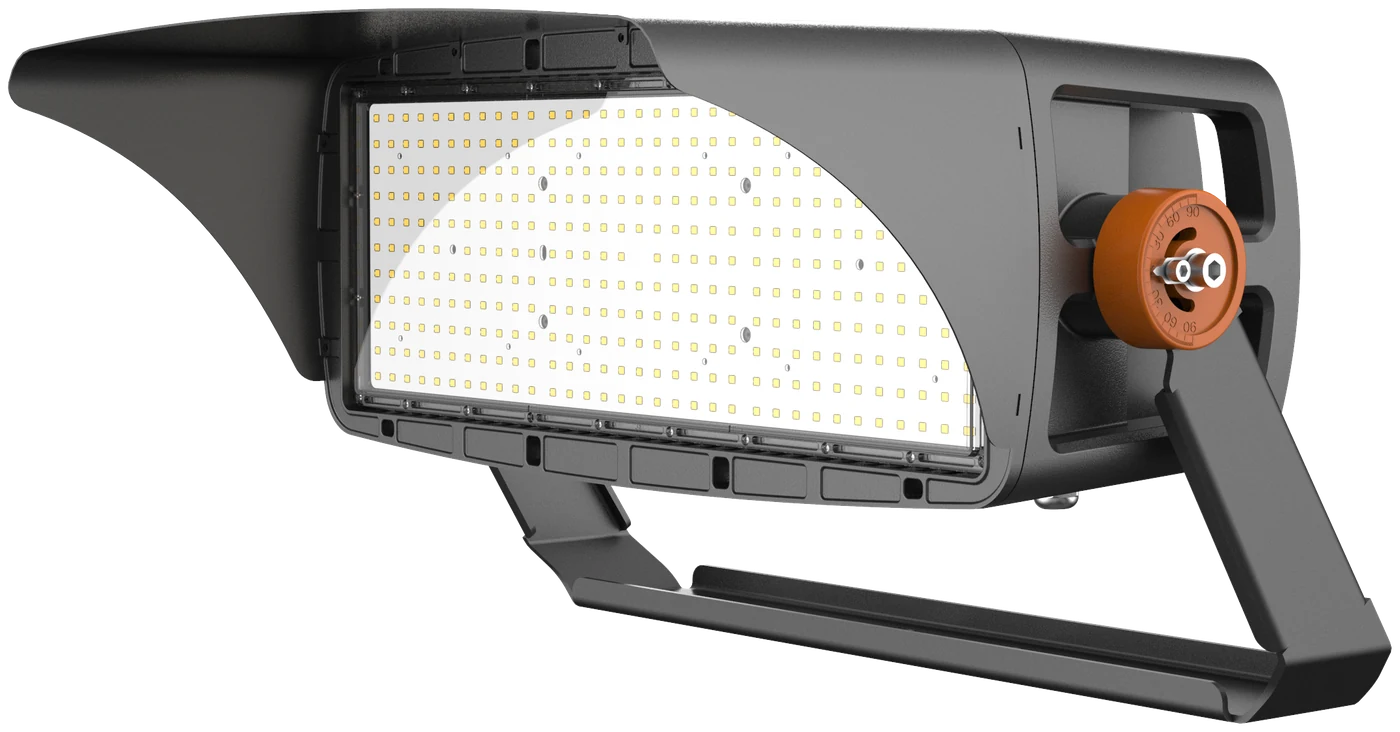

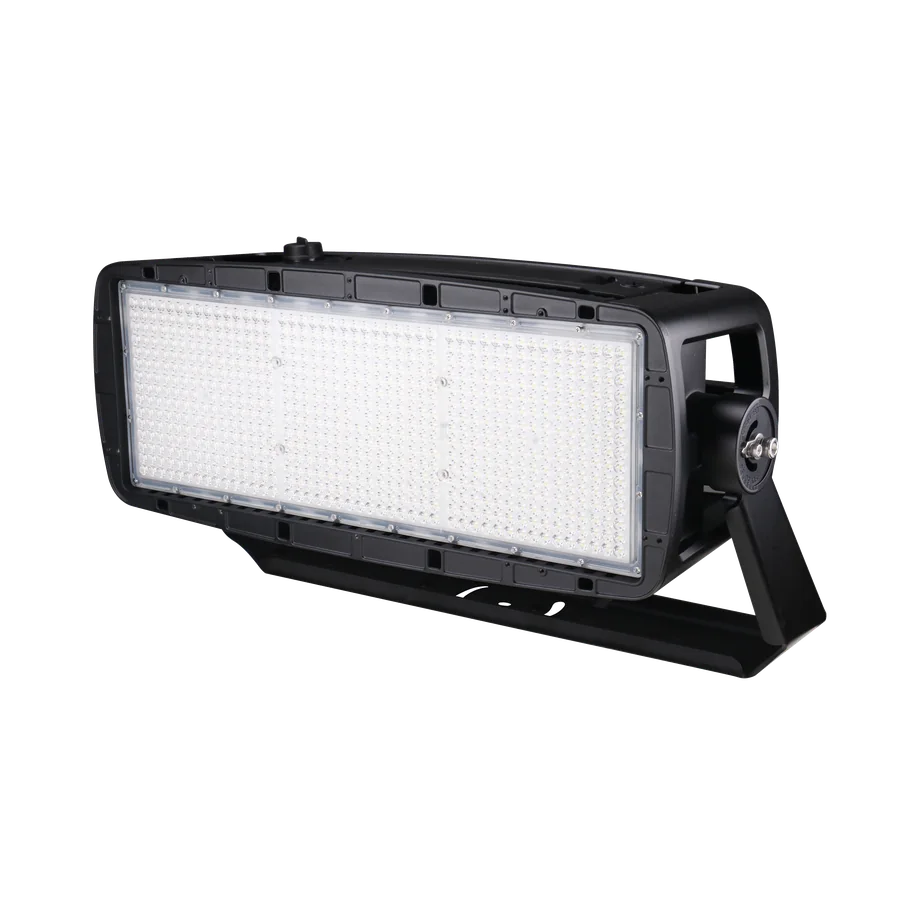

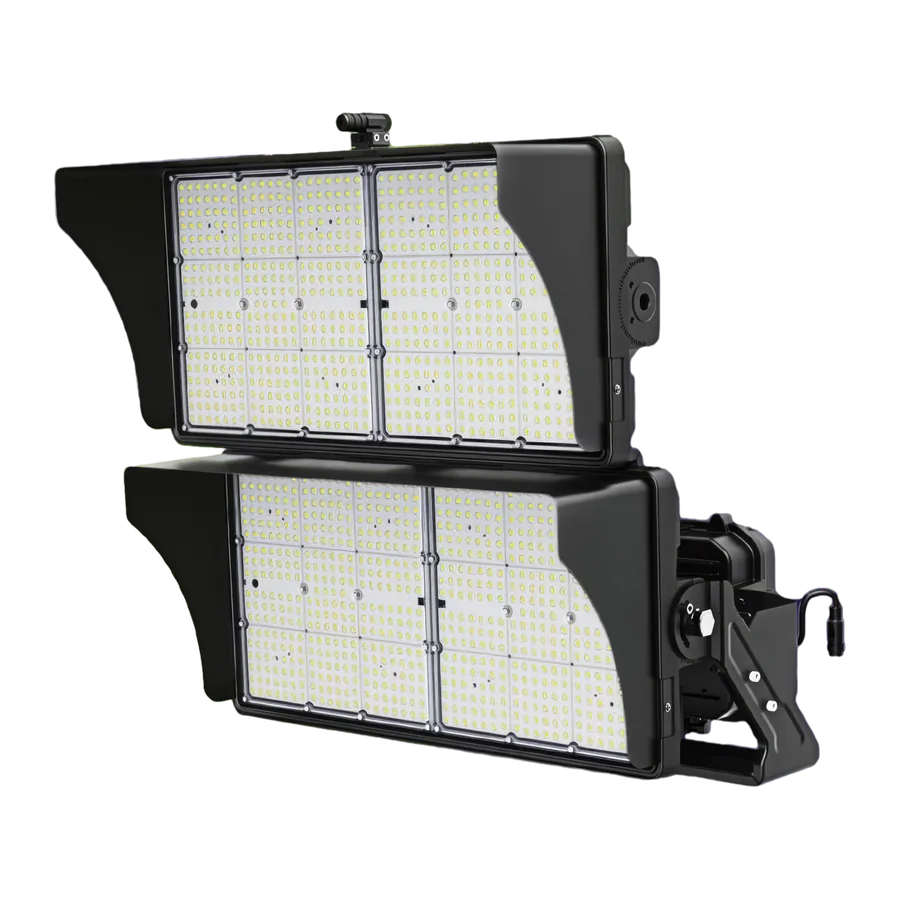

The luxoⒶRCH outdoor catalog ships three sports luminaires on the LSPL family — Radiator (this page · the 3-sister platform with RGB show-light), Illuminator (the broadcast-grade specialist), and Beacon (the mega-venue specialist). All three share the LSPL-I1/* controller line (Synapse SimplySNAP wireless mesh + DMX bridge), the 10-year / 100,000-hour warranty path, and the proⒶPTICS™ broadcast optical language. Pick by venue scale + show-light needs: Radiator for stadium / school / perimeter at 40-100ft poles + the ONLY RGB DMX show-light variant; Illuminator for broadcast-grade at 100+ ft poles; Beacon for mega-venue at 150+ ft poles. TAA-Compliant Mexico variants available across all three.
From the stadium pole to the rest of the venue.

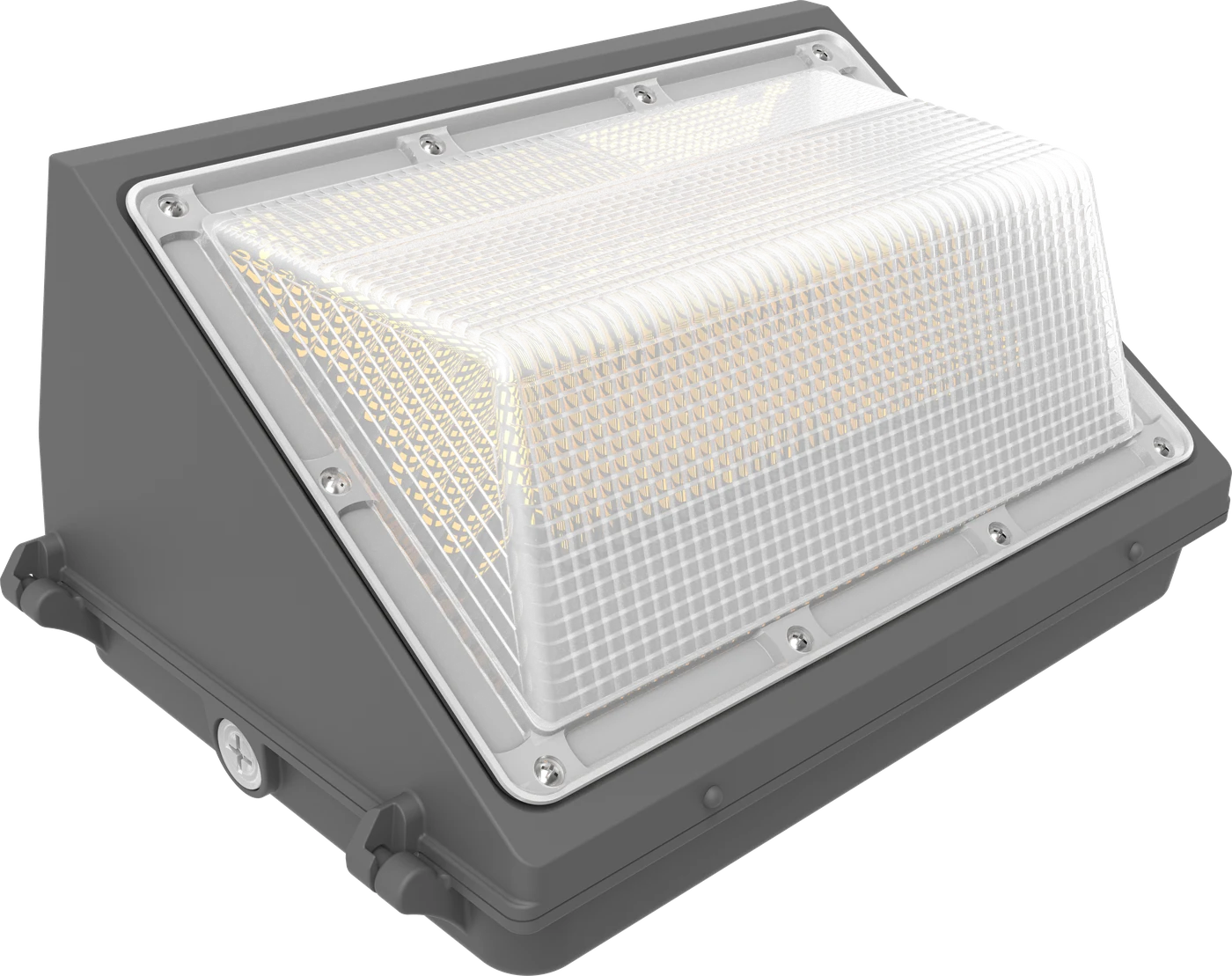

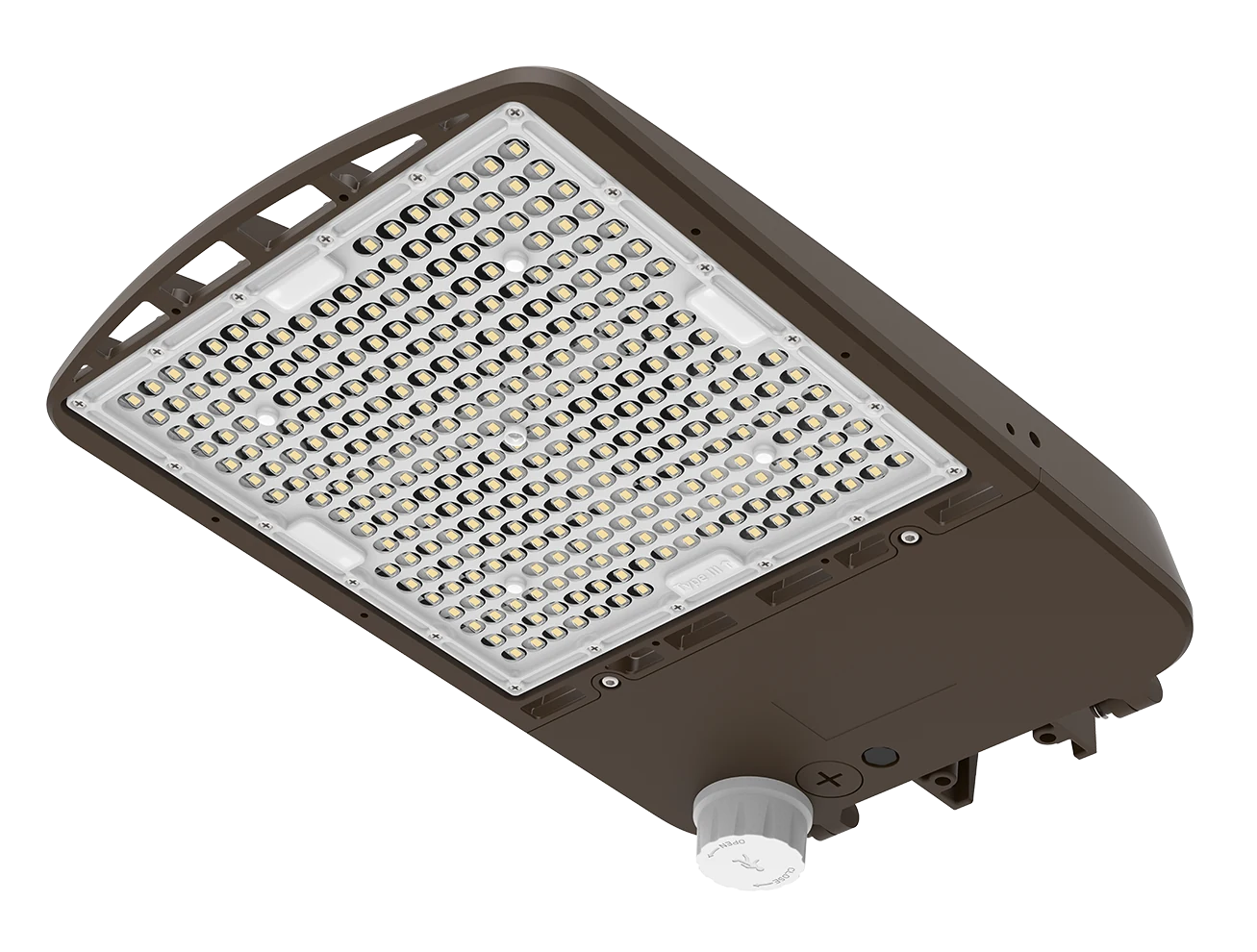

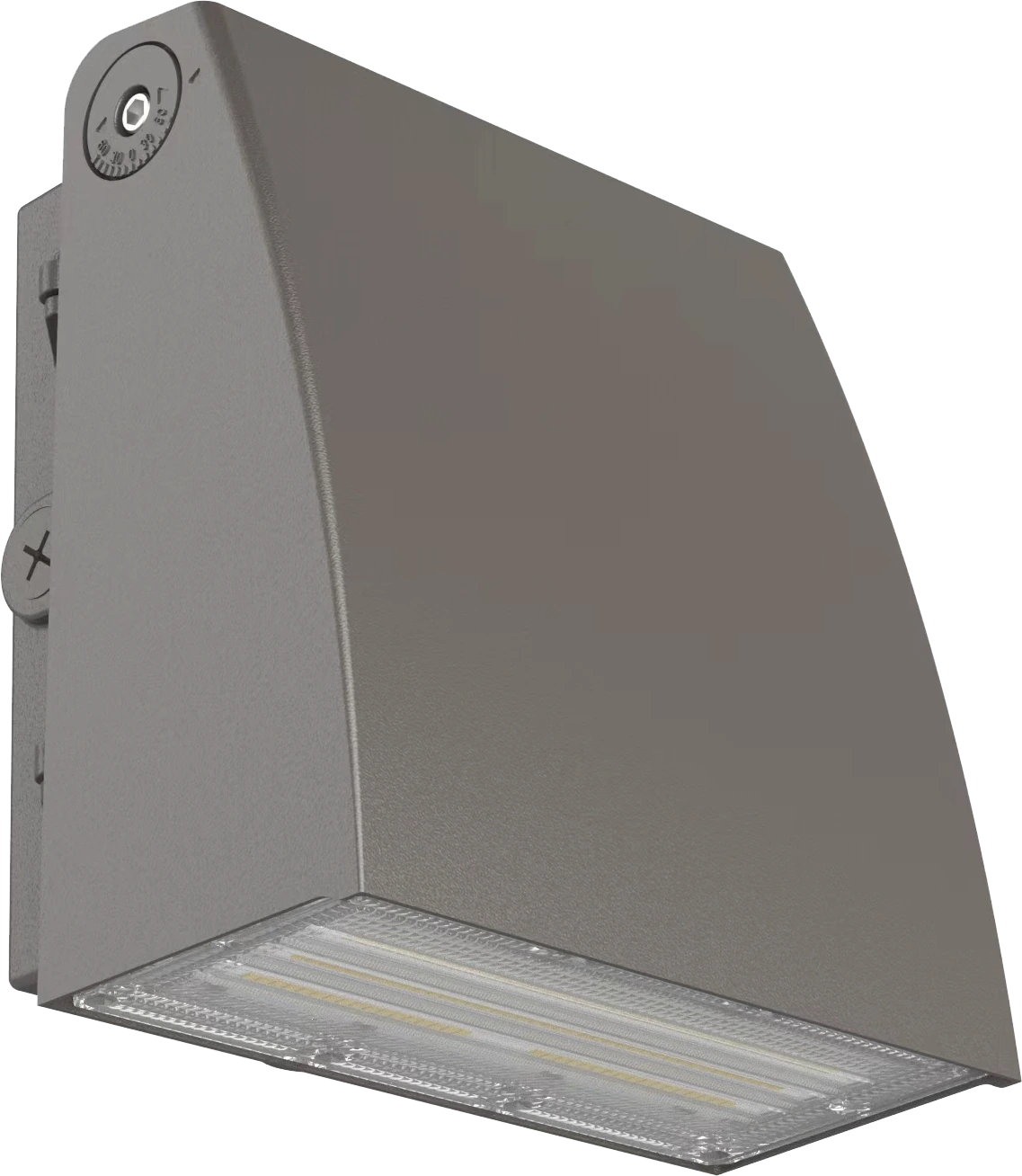

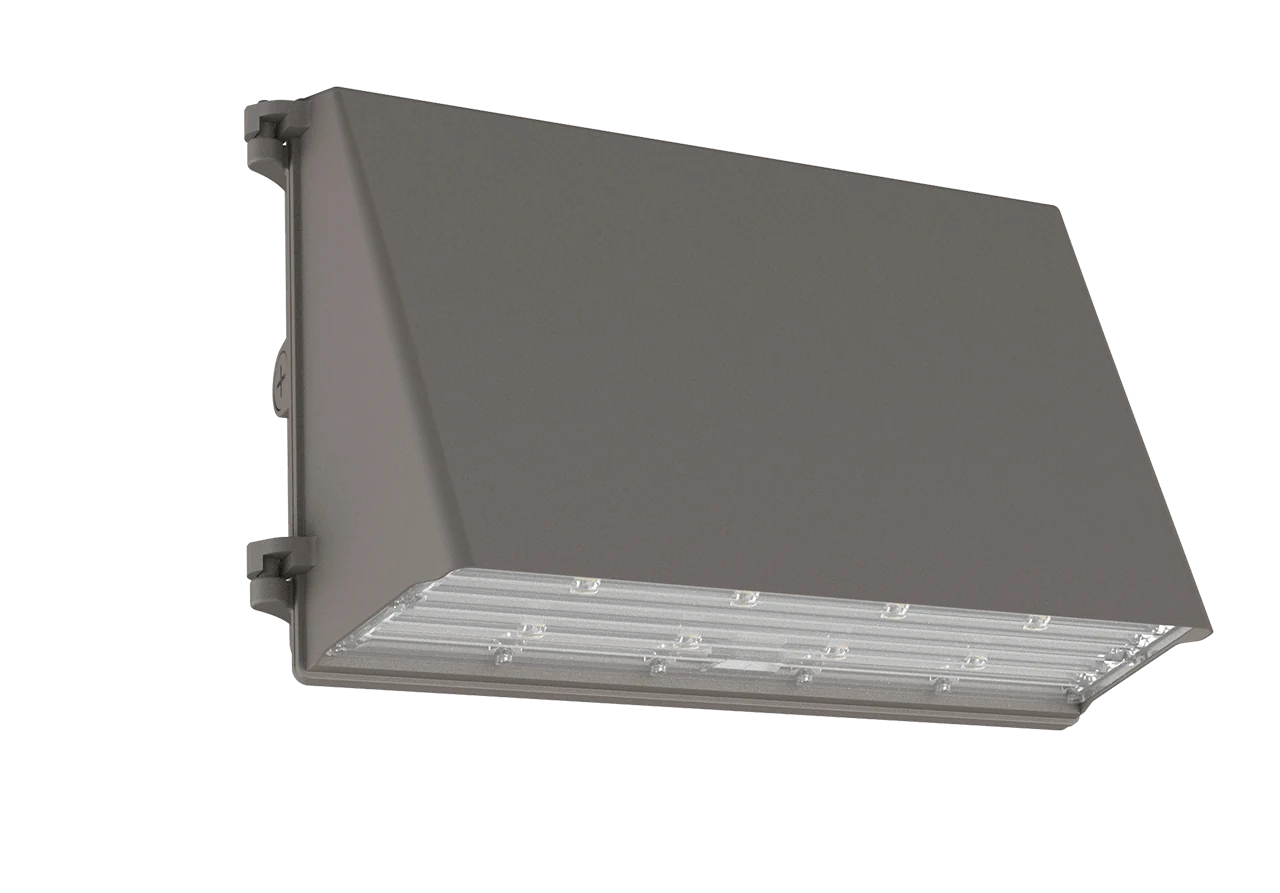

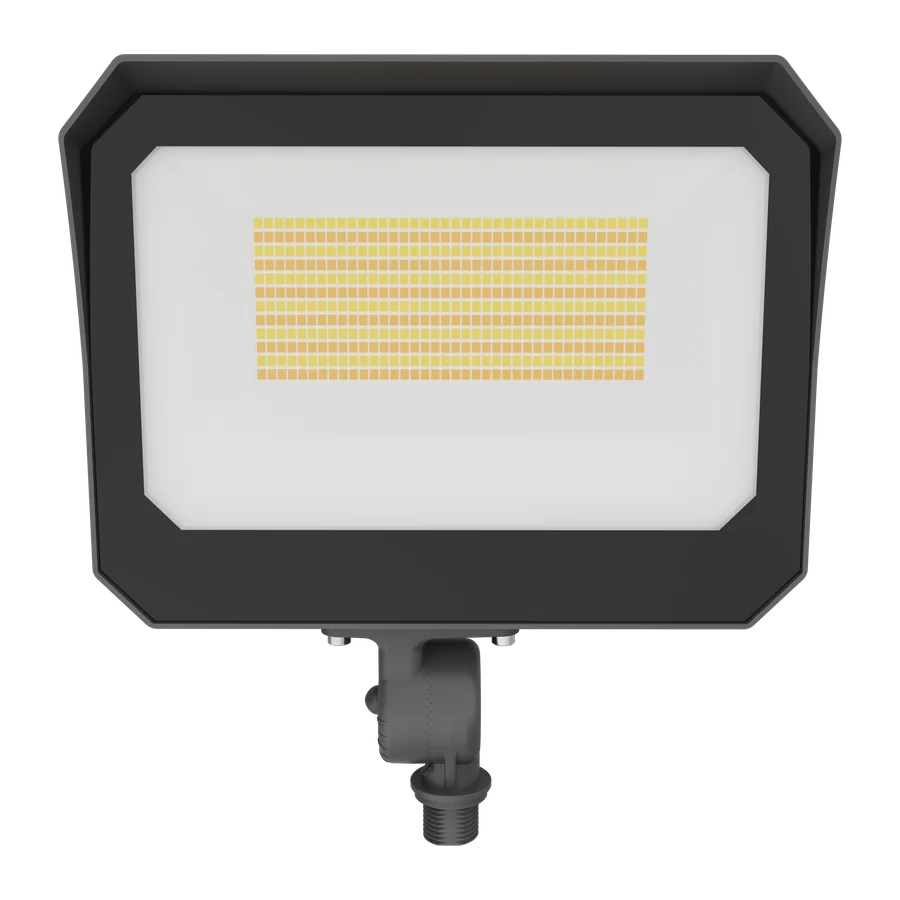

Radiator and the LSPL siblings light the field, the perimeter, the facade. These four cross-line fixtures cover the rest of the venue — parking-lot poles, perimeter wall packs, monument-sign flood, pedestrian bollards. Same engineering language, same warranty path, same factory.
Direct line to your regional rep.
Twelve US warehouses ship in 2–3 days. Layouts back in 48 hours. Quotes, samples, rebate matches: same-day reply. Stadium / sports lighting commissioning (Synapse SimplySNAP wireless mesh + showⒶSYNC™ DMX scene programming on Radiator-III) hands off to specification engineering — you get a person, not a portal.
DLC Premium. 142 lm/W. RGB show-light. Open spec.
DLC Premium certified per datasheet — the deepest utility-rebate tier. R2 142 lm/W clears Premium 130 with 12 lm/W headroom. showⒶSYNC™ RGB DMX (R3) at no service contract required — the only LSPL sister with show-light, vs premium-tier sports flood Prism + premium-tier RGBA bundled premium. TAA-Compliant Mexico variant qualifies for federal / state / municipal procurement.
