LSPL · Radiator

LED Sports Lighting · NEMA 4H×4V · up to 170,400 lm @ 142 lm/W · 4000K / 5000K · IP65

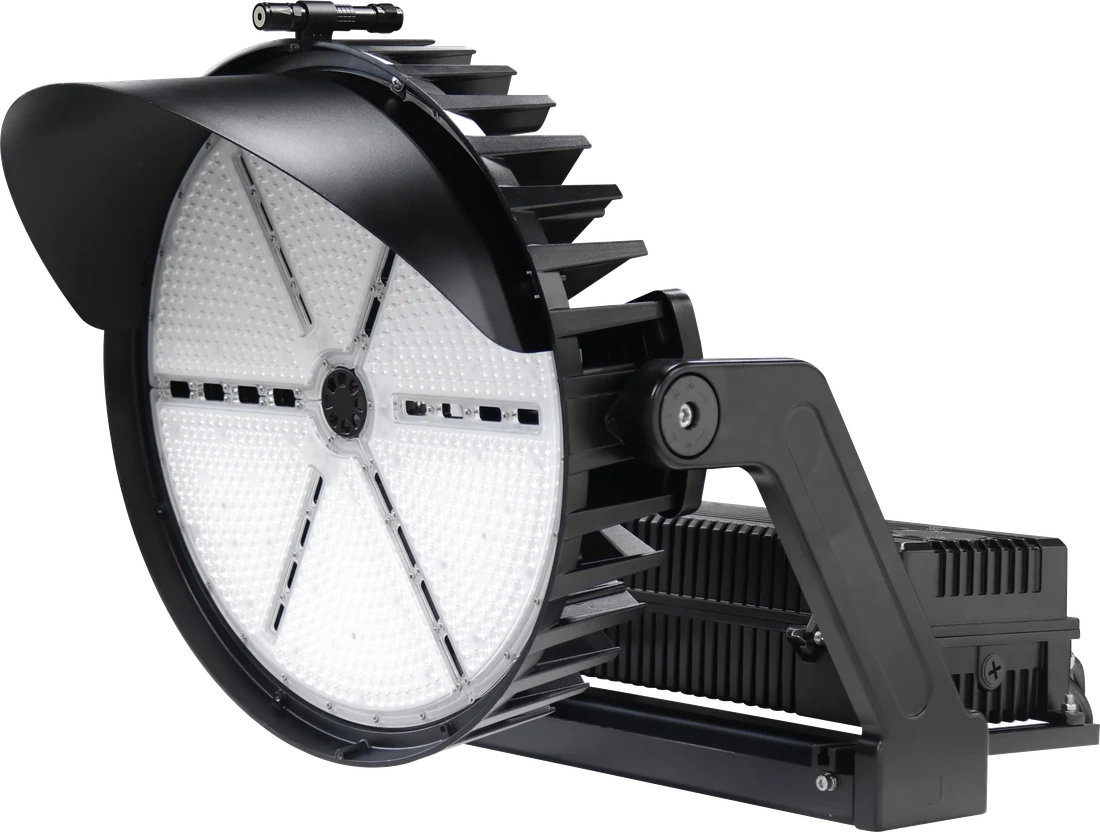

LSPL Radiator luminaire
Lumens
170,400lm
Wattage
1200W
Voltage
120-277VacV
CCT
4000K
CRI
>80
IP Rating
IP65
ALG Certified
Powerful & Efficient: Radiator covers both standard and high-power applications also multiple lumen and wattage packages across the series—ranging from 8200lm to 114750lm and 85W to 1200W—delivering maximum light output and energy savings for larger venues and higher mounting heights. High efficacy and purpose-built distributions help satisfy the most stringent requirements for sports lighting. Durable Design: Built for wet location environments with die-cast aluminum construction and IP65 protection. The compact, low-profile form factor is designed to reduce wind load, making it an ideal replacement for traditional sports lighting applications. Glare Control: Radiator integrates advanced optical design to achieve glare reduction with minimal impact on delivered light.
Approved by
Date
archipelagolighting.com · LSPL Radiator submittal · Specifications subject to change
Rev. 2026-06 · Page 1 of 4
Archipelago
Lighting Group
Catalog Number
LSPL480-3CS-UB/TR
Model Specifications
LSPL480 (480W)14,000 lm (Red) / 11,000 lm (Green) / 2,000 lm (Blue) · RGB
LSPL850 (850W)114,750 lm · 135 lm/W · 5700K
LSPL600 (600W)85,200 lm · 142 lm/W · 4000K / 5000K
LSPL1200 (1200W)170,400 lm · 142 lm/W · 4000K / 5000K
Optical
CCT Options4000K / 5000K
CRI70 (Non-Flicker) · THD <20% / PF >0.9
Optic DistributionNEMA 3H x 3V / 4H x 4V / 5H x 5V
Electrical
Input Voltage120-277Vac / 277-480Vac
Power Factor≥ 0.95 at full load
THD≤ 20% at full load
Surge ProtectionUp to 20kV @120-277V · Up to 40kV @347-480V (surgeARMOR)
Dimming0-10V standard · contrⒶLS-Ready
Construction & Environment
Ingress ProtectionIP65 wet-location rated
Operating Temp-40°C to +50°C
LED SourceCree/m 9050 (LM-80, IP-Protected) · 100,000-hr L70 lumen maintenance
Mounting
Mount OptionsSlip Fitter / Trunnion / Wall Mount
Compliance & Warranty
StandardsUL 1598 · cUL · DLC Premium QPL Listed · FCC Title 47 Part 15B · RoHS
Warranty10-year limited · 100,000-hr L70 lumen maintenance (IES LM-80 / TM-21)
archipelagolighting.com · LSPL Radiator submittal · Specifications subject to change
Rev. 2026-06 · Page 2 of 4
Archipelago
Lighting Group
Catalog Number
LSPL480-3CS-UB/TR
Ordering Guide — LSPL Radiator
Wattage / Housing
LSPL480480W · RGB · 14,000 lm (R) / 11,000 lm (G) / 2,000 lm (B)
LSPL850850W · 114,750 lm · 135 lm/W · 5700K
LSPL600600W · 85,200 lm · 142 lm/W · 4000K / 5000K
LSPL12001200W · 170,400 lm · 142 lm/W · 4000K / 5000K
CCT
404000K Neutral White
505000K Cool White
575700K (LSPL850 only)
RGBRed / Green / Blue (LSPL480 only)
Voltage
UUniversal 120-277V
HHigh Voltage 277-480V
Finish
BBlack
DDark Bronze
SSilver
WWhite
Mount
WMWall Mount
UAUniversal Arm
SFSlip Fitter
TRTrunnion
archipelagolighting.com · LSPL Radiator submittal · Specifications subject to change
Rev. 2026-06 · Page 3 of 4
Archipelago
Lighting Group
Catalog Number
LSPL480-3CS-UB/TR
Default optic · 1200W · 4000K
Radiator LSPL photometric distribution — NEMA 3 forward-throw polar plot
Lumens170,400 lm
Peak Candela
Distribution
IES FileLSPL1200-4000K.IES
archipelagolighting.com · LSPL Radiator submittal · Specifications subject to change
Rev. 2026-06 · Page 4 of 4
