LLHB · lamparⒶRCH PRO+

Poseidon Sealed LED Linear High Bay

Sealed linear high bay for cold storage and food processing.

Poseidon is a fully sealed IP65 linear high bay for freezers, coolers and food processing. Four classes from 160 W to 400 W reach up to 63,200 lm. Each one sets its wattage, color temperature and BeamLogic™ distribution on a dip switch at install, so one catalog number covers General, Aisle and Narrow. Rated to −40 °F, with an IK10 housing and lens, NSF Splash Zone 2, 6 kV surge and 0–10 V dimming.

Submittal Sheet IES Files Configure For Lead Time

Input Watts64–400 W

Lumensup to 63,200

Efficacyup to 168 lm/W

Cold Rating−40 °F

Ideal applications

Cold Storage & Freezers

Food & Beverage Processing

Hose-Down Areas

4-WATTselect

3-CCTselect

BeamLogic™

ⒶrticGuard

IP65 Sealed

IK10

surgeⒶRMOR

DLC Premium

cULus Listed

Wet Location

IP65

NSF

FCC

RoHS

DLC Premium: check Rebate Center for the QPL ID of your catalog number before you specify.

Poseidon sealed LED linear high bay on its steel wire rope suspension

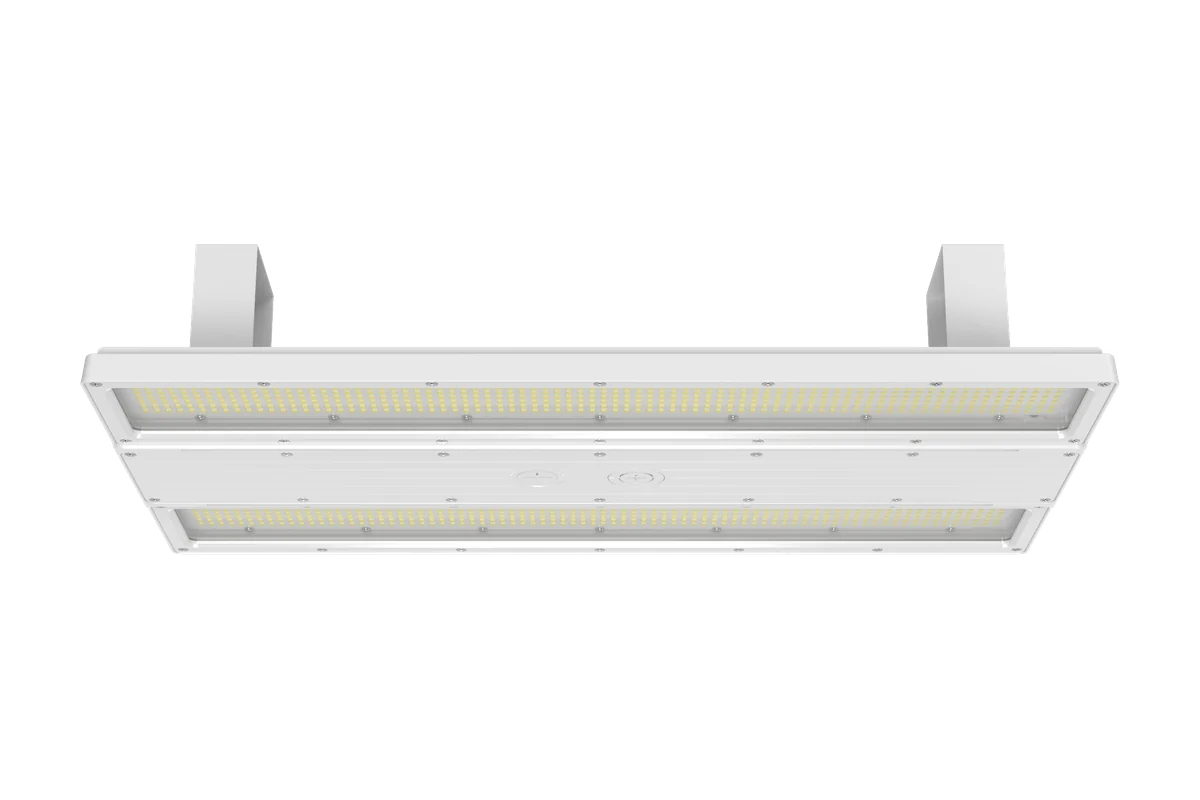

Poseidon sealed LED linear high bay on the surface mount kit

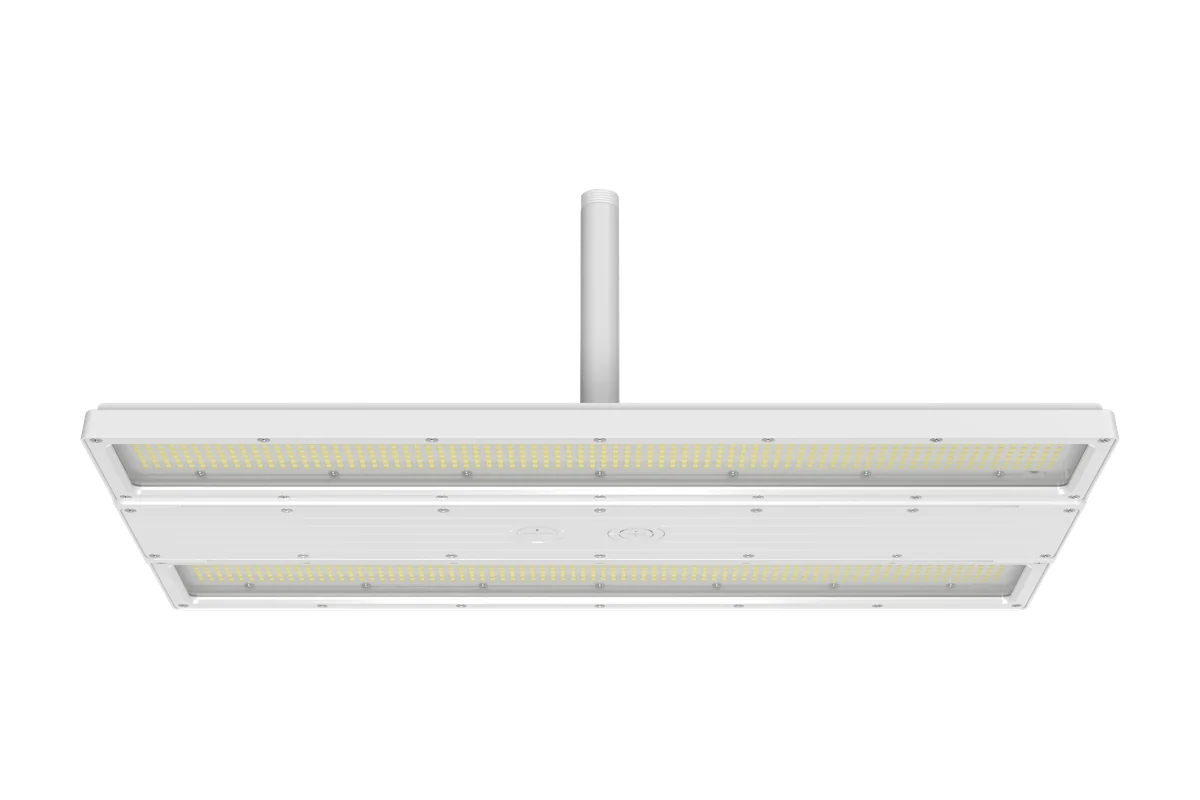

Poseidon sealed LED linear high bay on a conduit pendant at its threaded hub

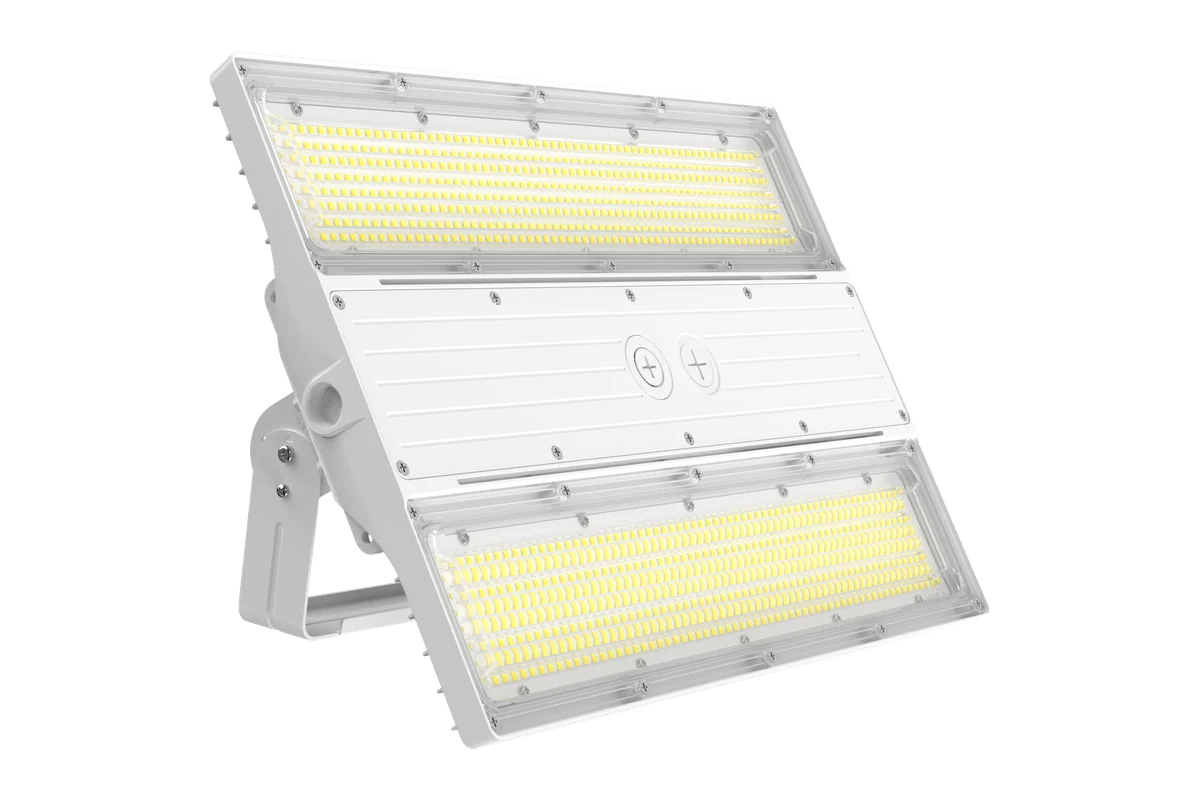

Poseidon sealed LED linear high bay on the trunnion kit, aimed

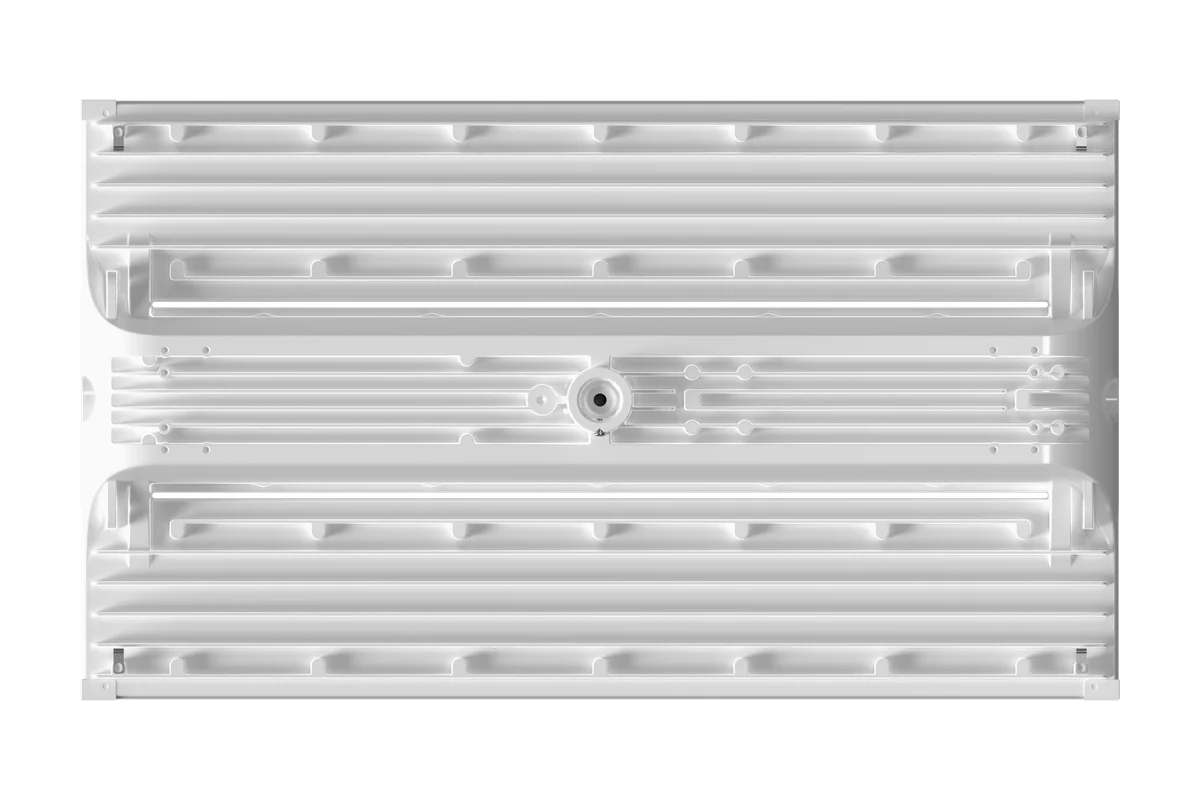

Poseidon sealed LED linear high bay from above, cooling fins and center driver housing

Documentation & Resources

Documents

Submittal SheetPrint IES Photometric FilesIES Submittal PackageBuild

Tools & Support

Free Photometric LayoutSend the floor plan, get fixture count and foot-candles.3 business days Rebate CenterActive utility programs and the forms, by ZIP.Open contrⒶLS CompatibilityWhich heads and platforms this fixture takes.View

Warranty Statement Ask For Something Else Find A Rep

Model Specifications

WATTselect	Watts	Lumens	CCTselect	lm/W

★ Default settings. Lumens and lm/W are the datasheet's, at 4000K with the General distribution; 3500K and 5000K run about 2.5 % lower. The photometric band below reads each IES file as measured.

ApplicationIndoor · PRO+ sealed linear high bay · freezers, coolers, food processing

ConstructionSingle-piece die-cast aluminum, whiteSilicone-gasketed driver and optical compartments · IK10 housing and polycarbonate lens

OpticsBeamLogic™ General ★ · Aisle · Narrow, on a dip switchOne lens in every build · the catalog number always ends /BL

Dimensions—

Operating temp—

Electrical120–347 V (27VP1) · 277–480 V (48VP1)0–10 V dimming to 10 % · PF >0.9 · THD <20 % · 6 kV surge · CRI >80

RatingsIP65 · wet location · IK10 · NSF Splash Zone 2cULus Listed (US & Canada) · FCC · RoHS · DLC Premium: check Rebate Center for the QPL ID of your catalog number

Warranty10 yr · 100,000 hrWhichever comes first

Submittal Sheet

Engineering

What you set at install, how it seals, and how it hangs.

Photometric Distribution

Peak Candela

—

Lumens

—

Beam Angle · 50 % of peak

—

Test Source

IESNA LM-63 / LM-79

Full IES Library

Engineered Accessories

Configurator

Build Your Poseidon.

Required *

WATT class—

Voltage—

Colorone number for 3500, 4000 and 5000K—

Opticone lens for General, Aisle and Narrow—

Dip switchesset on the fixture · not in the part number—

Optional

Emergencyfactory-fitted with its J-box · wire rope only · non-food zones · 32–104 °F · not on 347 V circuits—

Sensorplugs into the sealed receptacle—

Mounting kitwire rope in the carton · conduit on the ¾″ hub—

Wire guardmatched to the housing—

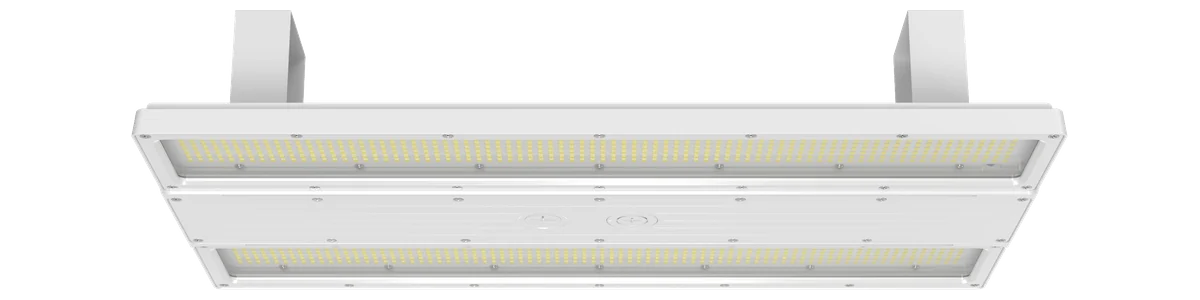

Your catalog number

Your Catalog Number

Catalog number

Output—

Efficacy—

Distribution—

Dimensions—

ListingsDLC Premium · cULus Listed (US & Canada) · wet location · IP65 · NSF Splash Zone 2 · FCC · RoHSCheck Rebate Center for the DLC QPL ID of your catalog number before you specify.

Generate Submittal Request A Layout

Get your pricing, check stock and more:

Distributors · Facility Teams I Buy From ALG Your account pricing and ordering, with your rep credited automatically. Sign In To ALG Shop Sales Representatives I’m an ALG Sales Rep Check stock and pricing for your accounts in AURA. Sign In To AURA Find A Rep

High-Bay Family

Poseidon is the sealed linear bay for cold and wet rooms. Apollo and Titan are the linear bays for dry ones, Jupiter is the round bay, and Eureka-II is the sealed vapor tight.

You are here Poseidon LLHB PRO+ sealed linear high bay

LLHB · PRO+ Poseidon The sealed linear bay. 64 W to 400 W in four classes, IP65 and wet location, rated to −40 °F. Up to 63,200 lm · 10 yr / 100,000 hr Submittal Sheet → Product Details · this page

LLHB · ECO Apollo 64–410 W in four classes. Up to 61,500 lm at 167 lm/W, 1.65 in deep. 5 yr / 50,000 hr Specification Sheet → Product Details →

LLHB · PRO Titan The PRO linear bay. 85 W to 600 W in five classes, and the optic swaps in the field. Up to 88,800 lm · 7 yr / 75,000 hr Specification Sheet → Product Details →

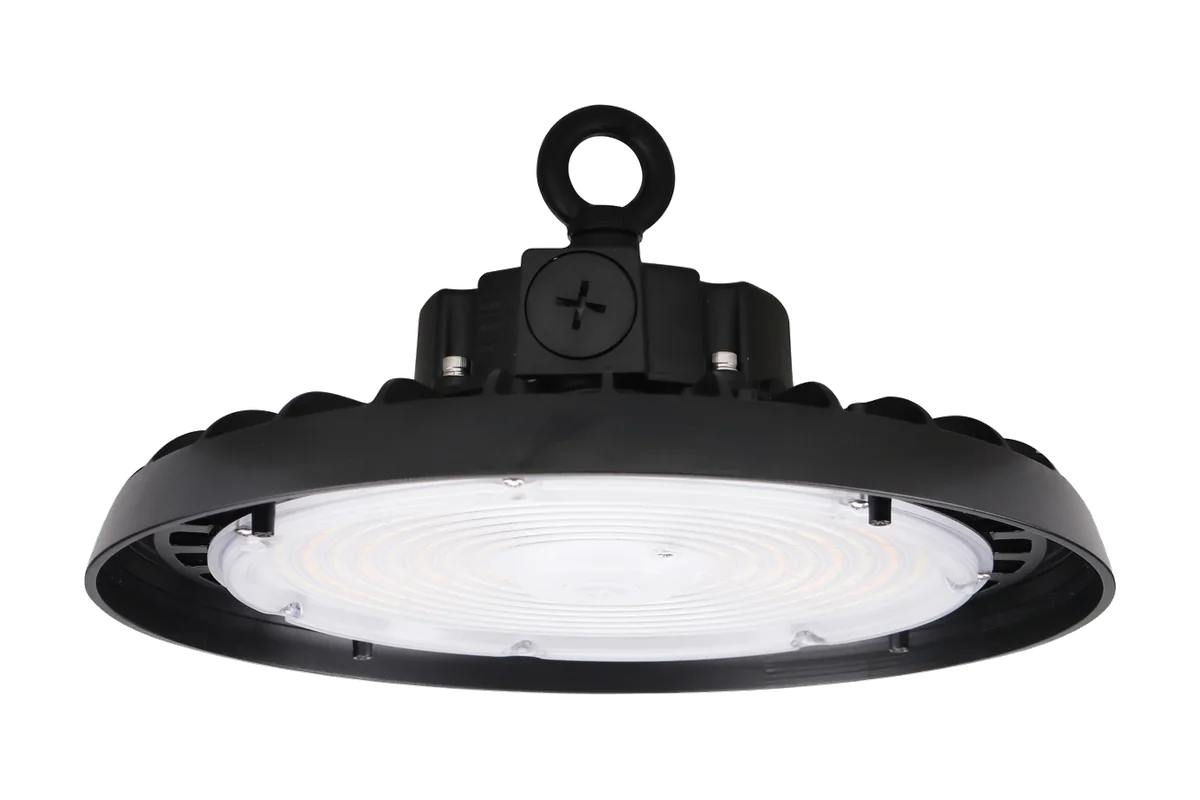

LRHB · PRO Jupiter The PRO round bay. Four housings from 100 W to a 400 W model, IP65 and wet location. Up to 67,200 lm · 7 yr / 75,000 hr Specification Sheet → Product Details →

LV3P · ECO Eureka-II The sealed vapor tight. IP66 and NEMA 4X in 2, 4 and 8 ft, and a 4 ft high bay to 39,000 lm. NSF · 5 yr / 50,000 hr Installation Guide → Product Details →

Specifier Support

Send us the floor plan.

We run the layout free and send it back in three business days — fixture count, spacing, foot-candles. Send the ZIP code too, and we match the rebate programs that apply.

3 BDLayout turnaround

FreePhotometric layout

Find A Rep Request A Layout

Rebates

Premium rebate tier, sealed build.

Poseidon is DLC Premium — the tier most utility programs pay the higher rebate on. Check Rebate Center for the DLC QPL ID of your catalog number before you specify. Send us the ZIP and we pull the active program and the forms.

168lm/W datasheet

DLCPremium

64–400 WOne family
