LRHB · Jupiter PRO
PRO Round Bay. The 400-watt fight.

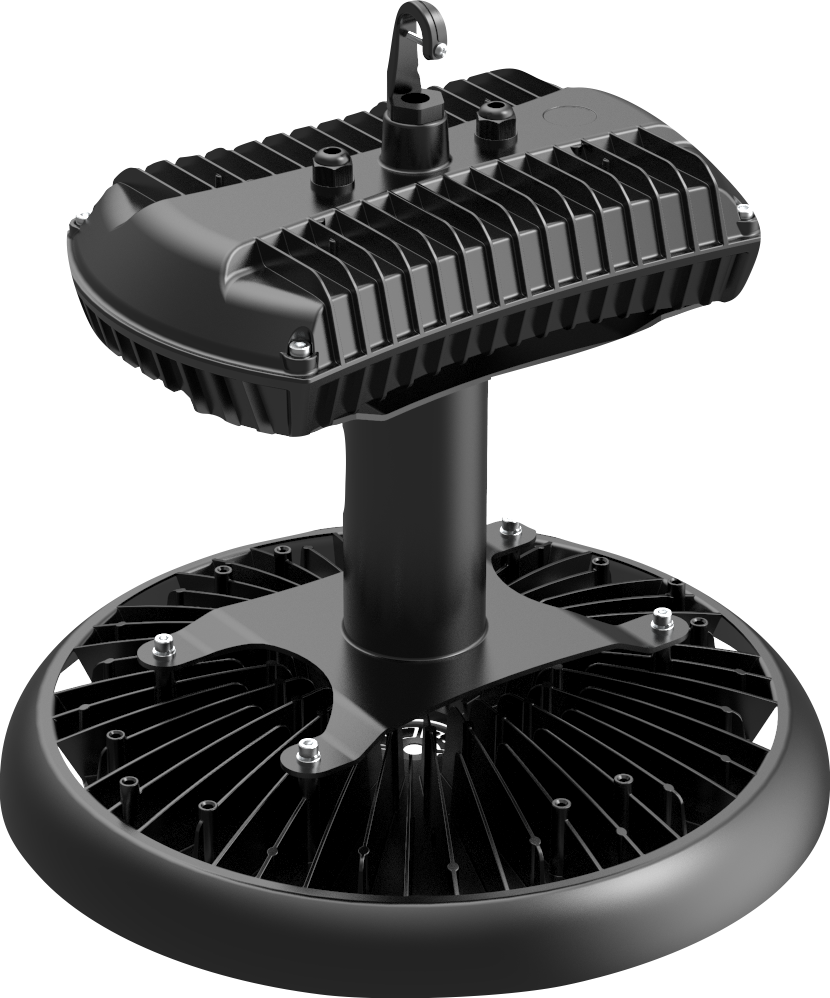

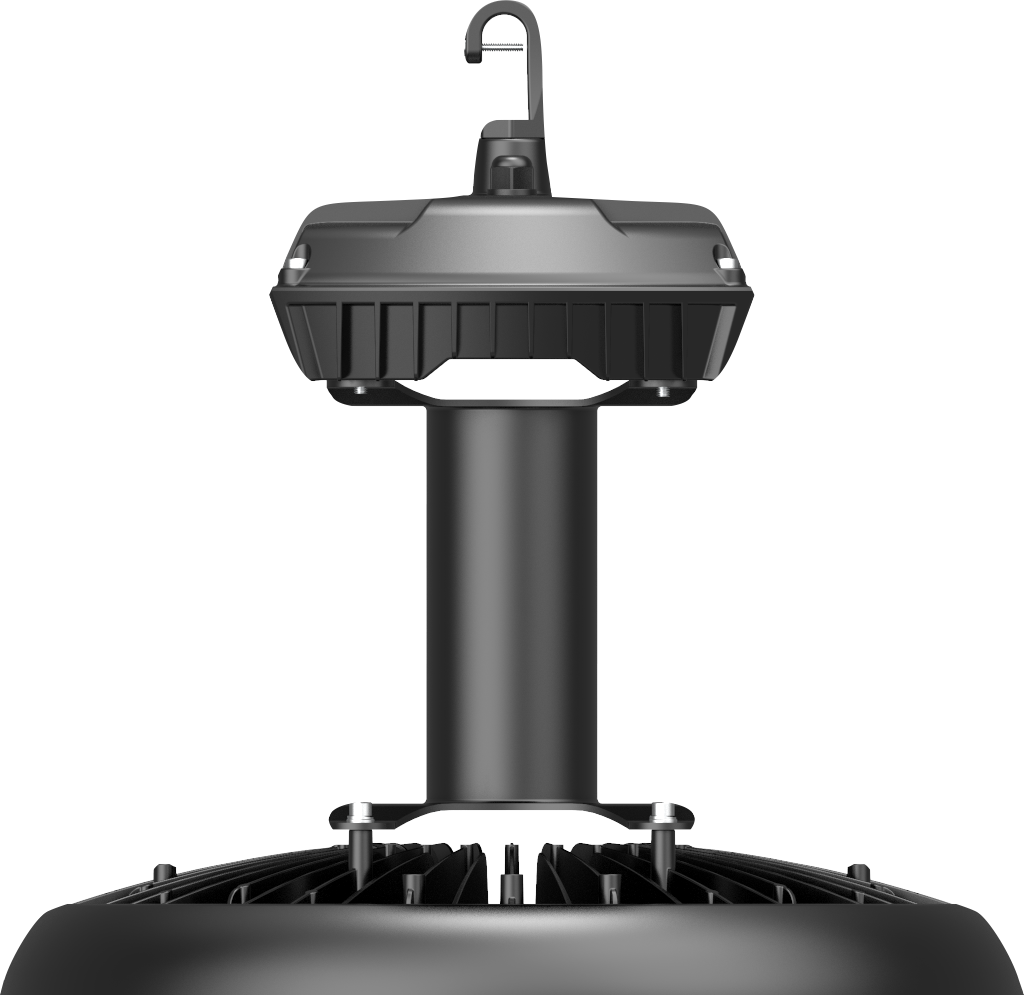

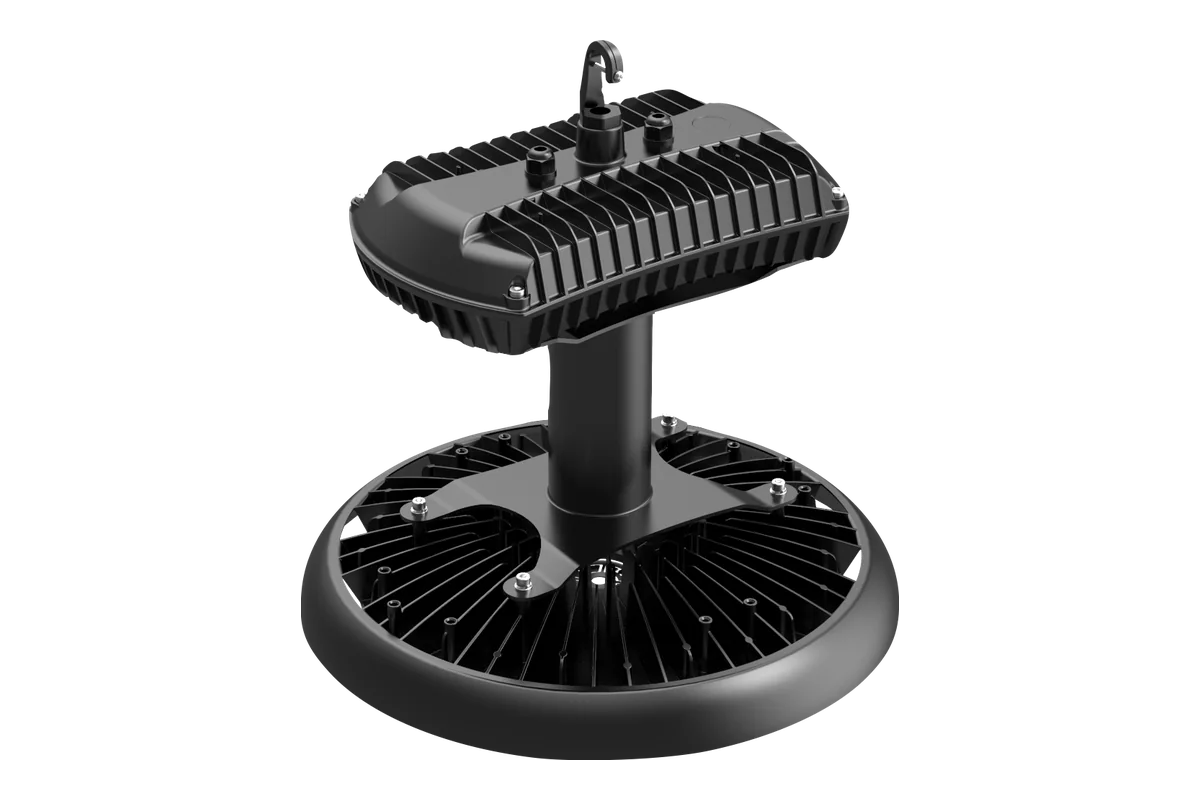

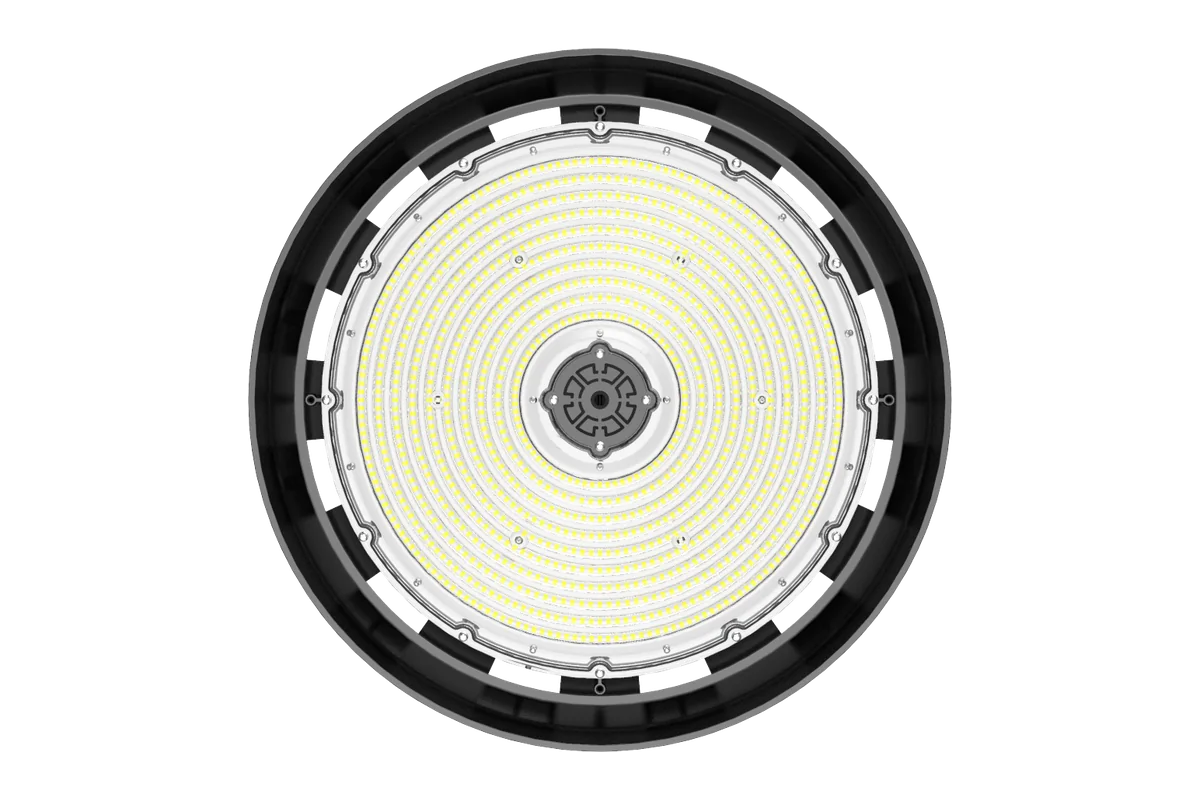

PRO-tier round (UFO) high-bay across 4 wattage classes — LRHB150 / 240 / 300 / 400 — topping out at 67,200 lm · 168 lm/W on the LRHB400 flagship · 277-480V industrial-bus option · 3-WATTSELECT × 3-CCTSELECT · 6 kVA surge · IP65 wet · thermalⒶRMOR -40°F to 155°F · contrⒶLS-Ready (Bi-Level / ⒶCS / SILVAIR) · TAA Mexico-built · 7-yr / 75,000-hr — two years past DLC Premium's minimum.
Model Specifications
Download Data Sheet| Watt | Lumens | lm/W | CCT | Voltage |
|---|
Dimensions

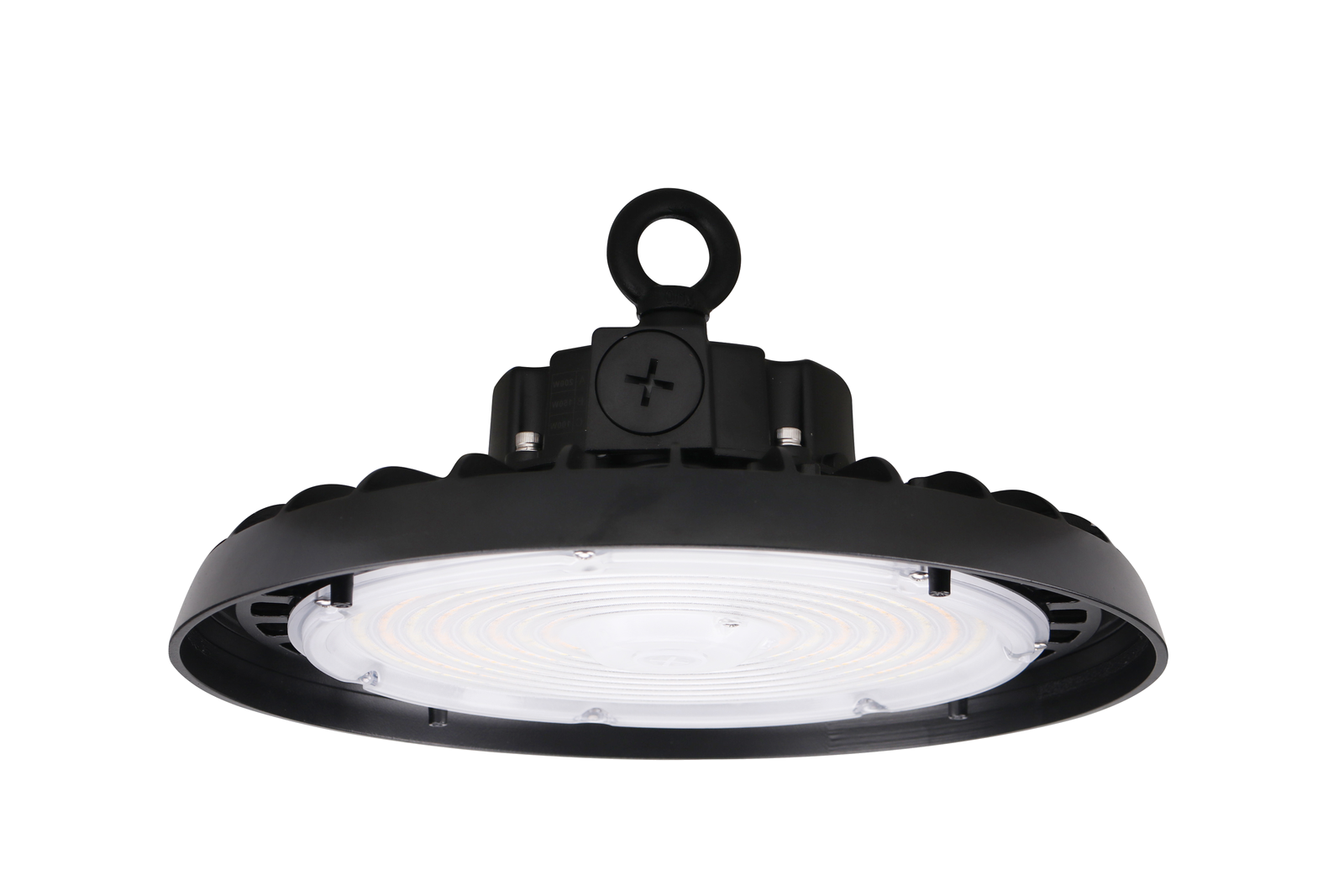

LRHB150 · 10.9" diameter × 6.06" H · Mount Ring (MR) + 6FT SOOW cord included
ENGINEERING IN MOTION
See the Jupiter in action.
Five short clips on the engineering that earns the PRO badge — the four-housing family, the install-time mounting flexibility, the pre-attached SOOW cord that takes field-wiring out of the housing, the integrated contrⒶLS-Ready sensor port, and the optical accessory ladder. Spliced from the master Jupiter promo reel.
Highlights & Features
Jupiter: Highlights & Features
Three angles anchored against the volume-tier round-bay competitive set — the volume-tier round-bay competitive set. CCT flexibility, output flexibility, and reliability with concrete numbers from the datasheet.
contrⒶLS
Total Adaptive Control.
Jupiter ships contrⒶLS-Ready out of the box — integrated sensor receptacle, three-platform open ecosystem standard across the lamparⒶRCH portfolio. PRO tier means open architecture, not locked-in: Bi-Level for hardwired drop-in code compliance, ⒶCS for ALG’s in-house Bluetooth Mesh + AURA-app commissioning + cloud analytics, or SILVAIR for DLC NLC qualification — the rebate-stack path that pairs Premium SSL (already filed across all 5 Jupiter SKUs) with NLC mesh for layered utility incentives that closed proprietary controls ecosystems can’t compose because each is a single-vendor ecosystem. volume-tier alternatives need 3rd-party sensor + separate enclosure on every install. Jupiter ships ready.
Drop-in occupancy + bi-level dimming — no commissioning, gateway, or app required. PIR (MSP-BLS) or microwave (MSM-BLS) sensors mount directly to the Jupiter integrated sensor receptacle. IR remote (RM-HT/06S) for on-site commissioning. ASHRAE 90.1 and Title 24 occupancy reduction compliance out of the box.
Discover contrⒶLS →Photometric Distribution
Beam shape, generated from the IES file.
Real luminous distribution per wattage class — single 90° wide-beam optic factory-installed across all 3 SKUs. Each curve renders directly from the certified IESNA LM-79 / LM-80 test report at 5000K. Peak candela, beam profile, and total lumen output update with the selection below. CRI >80 · UGR <28 across all configurations.
LRHB150_3CS-U-J2_5000K_90D.IES (pending)
Lumens cross-checked against Rebate Center QPL filing 2026-05-05
In the Box
Everything that ships with every Jupiter.

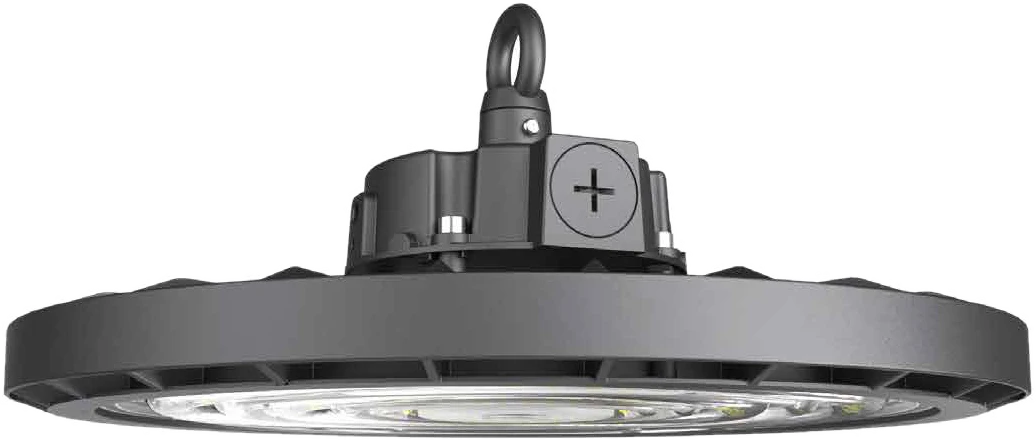

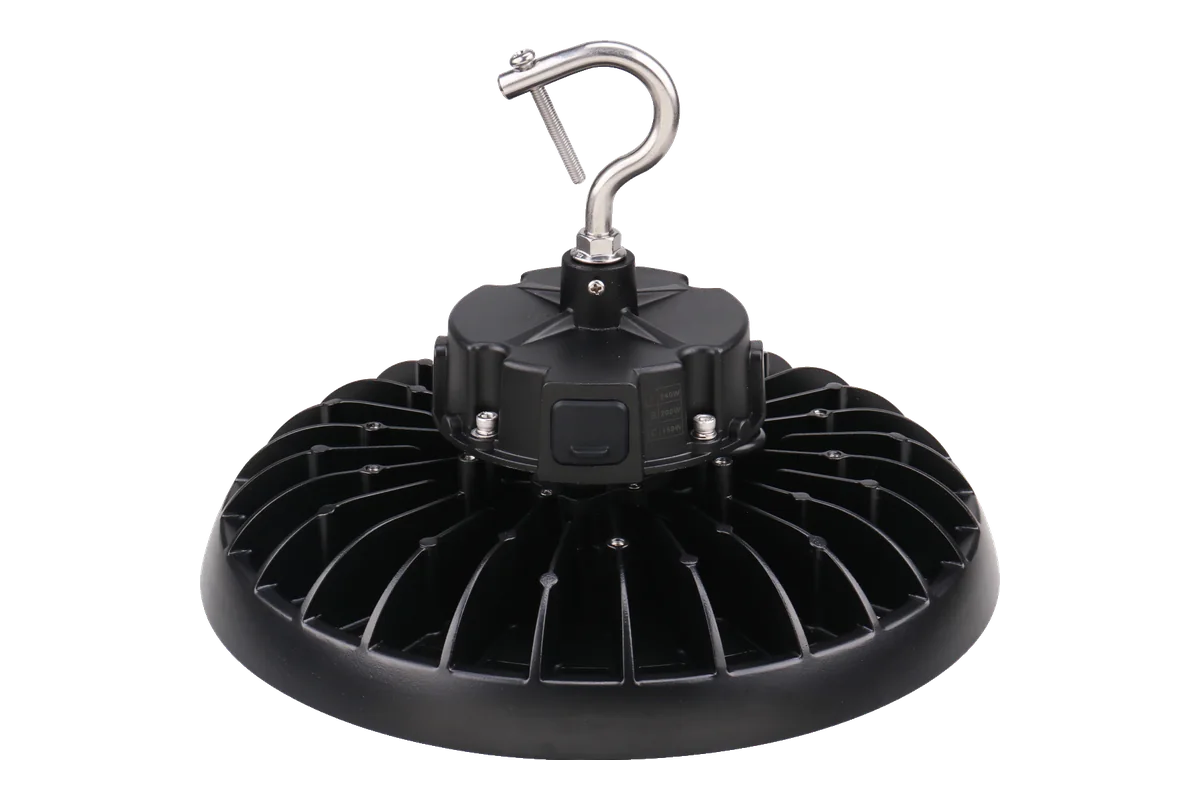

Every base SKU ships with the Mount Ring (MR · standard) · pre-attached 6FT SOOW cord for direct-to-junction-box install · integrated Sensor-Ready receptacle. Stainless Hook (MSH) · Yoke (MYK) · sensors · EM · surge · reflectors/diffusers ship per §8.
Engineered Accessories

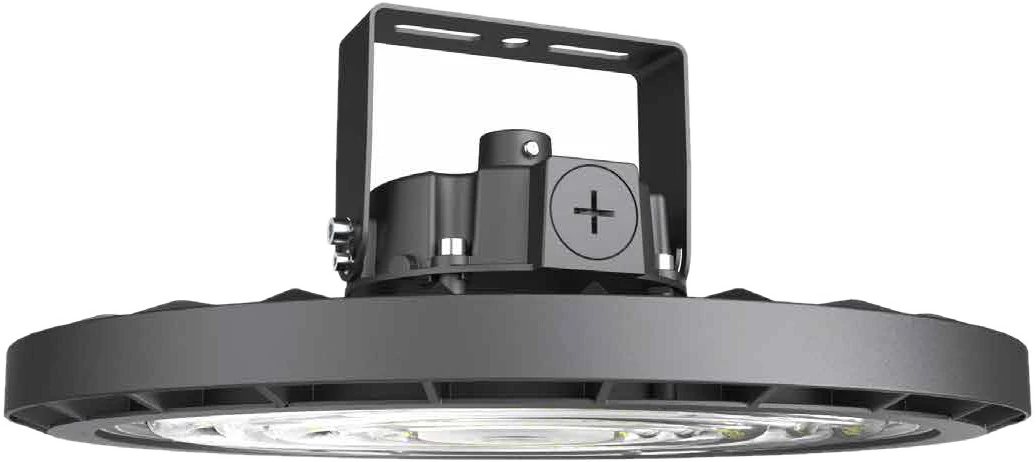

Every Jupiter accessory available in the §9 Configurator — constNT emergency battery backup, the full 11-SKU contrLS sensor ecosystem (Bi-Level / CS Bluetooth Mesh / SILVAIR DLC NLC), per-housing Reflectors (PR Acrylic + AR Aluminum · 240/300/400W), Diffusers, Wire Guards, four mount kits, in-line surge adders, and step-down transformers for the LRHB400 H-voltage installs.
35 accessory SKUs above · 15 LRHB-J2/* (Reflector PR/AR · Diffuser PD · Wire Guard WG · Mount MSH/MYK/MH12) plus 20 platform-wide (constNT · contrLS · Surge · Step-Down) · every accessory configurable in §9 · Zoho-confirmed 2026-05-27

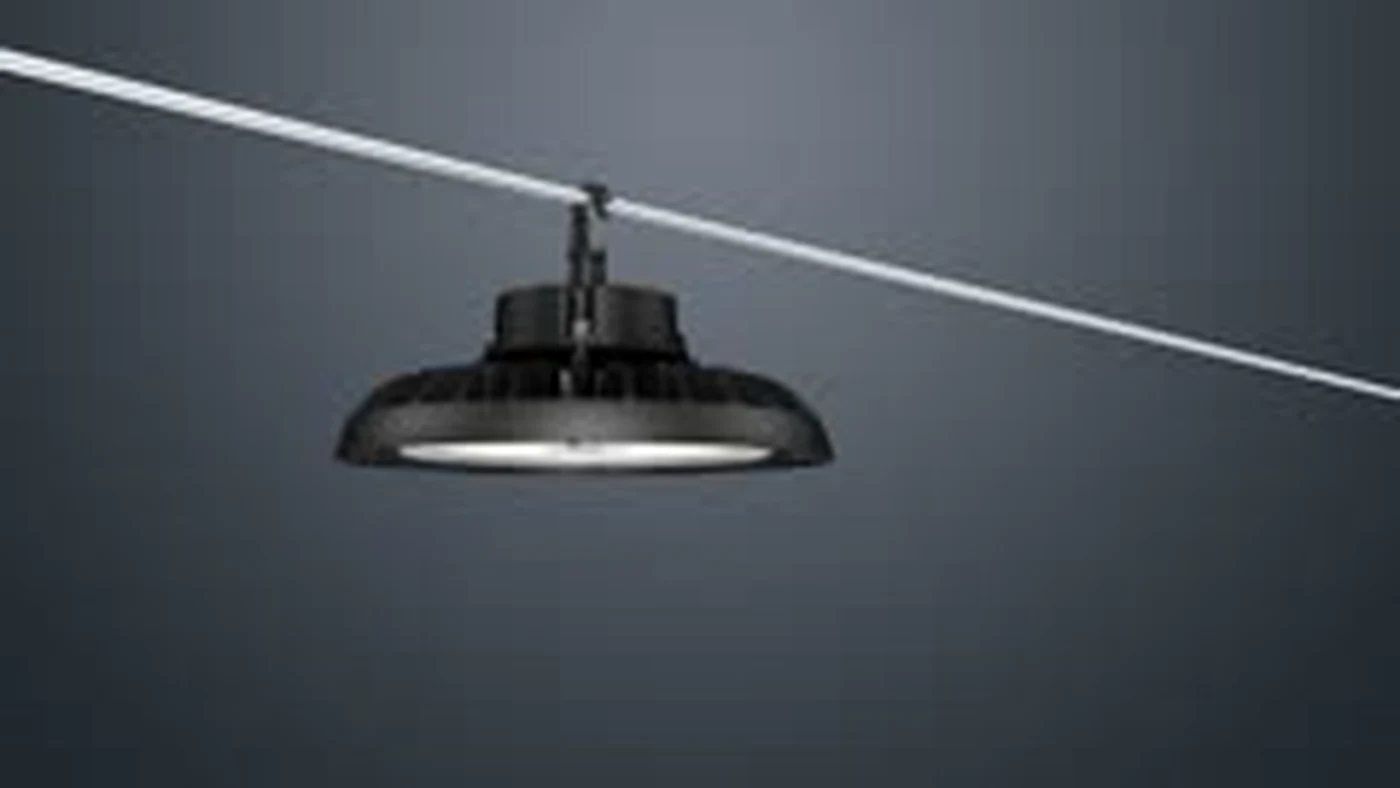

Build Your Jupiter.
Pick wattage class and finish — your SKU resolves live, your submittal generates instantly. 10 DLC-Premium base SKUs · 4 wattage classes (150 / 240 / 300 / 400) · 3-CCTSELECT bundle on 150/240/300 · single-CCT on 400 · fixed 90° optic · Datasheet pg 3 ordering guide verified 2026-05-05
Documentation & Resources
Everything specifiers, contractors, and project managers need to spec, install, and certify the Jupiter — from the contractor-grade datasheet on day one to the sell sheet for the distributor counter.
Meet the LRHB Family.
Jupiter is the PRO-tier round bay in the lamparⒶRCH LRHB lineup — Icarus-II for tight mounts and lower outputs · Icarus for the volume warehouse & retail-bay · Jupiter for the 400-watt-fight industrial floor.
For the complete industrial venue.

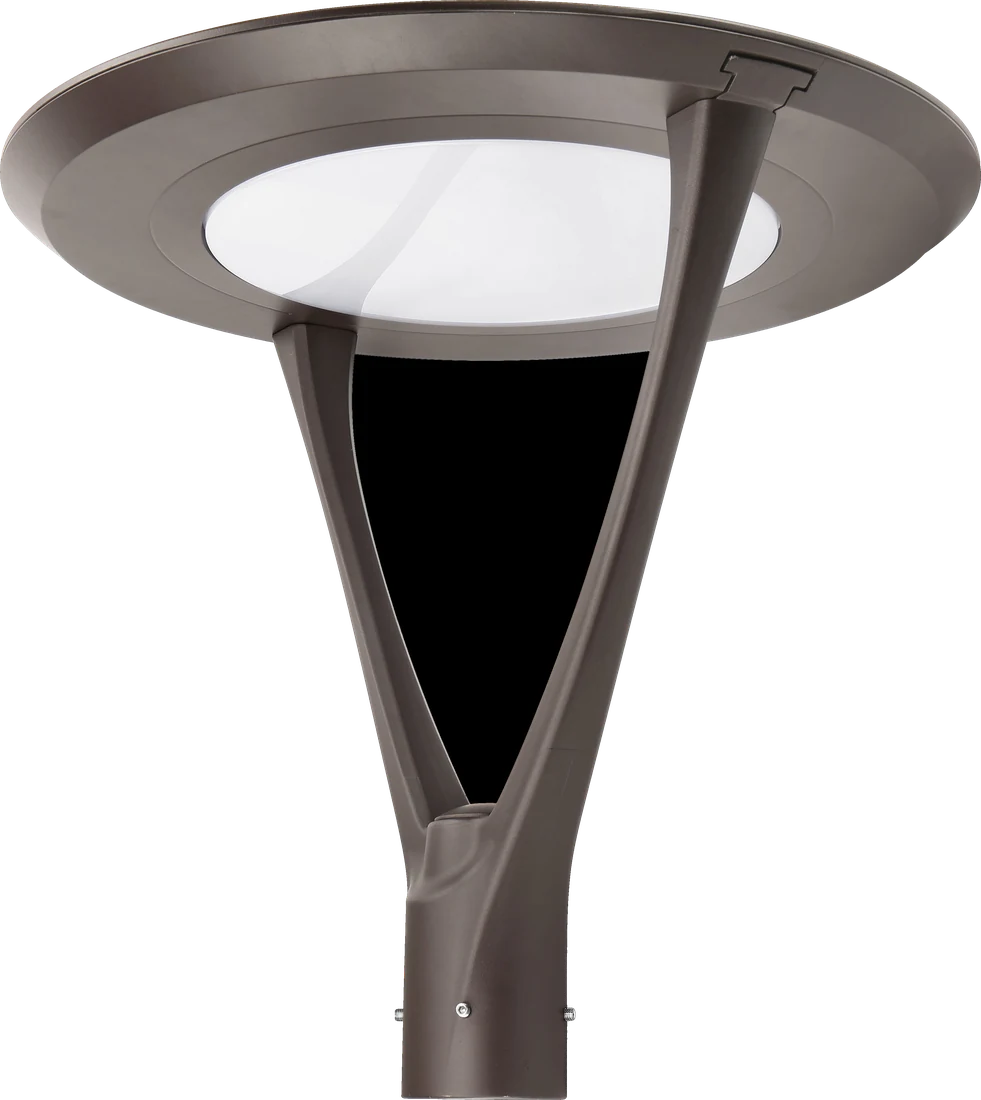

Jupiter handles the round high bay. These cross-line fixtures handle the rest — outdoor parking · indoor offices · emergency egress · exit signage. Same controls platform · same warranty · same factory.
Direct line to your regional rep.
Twelve US warehouses ship in 3-5 days. Layout requests come back inside 48 hours. Quotes, sample requests, and rebate matches reply same business day. No portal-as-the-only-channel: you get a person.
Stack the rebates.
Jupiter is DLC Premium across all 5 filed luminaire SKUs (Rebate Center 2026-05-04) — qualifying for the higher-tier utility rebates that typically offset 20-40% of project cost on round-bay industrial retrofits. We'll match your ZIP to active programs and pull the paperwork.
