LRHB · lamparⒶRCH ECO

Icarus

Three sizes. Set in the field.

Up to 41,400 lumens and up to 150 lm/W, DLC Premium, in three die-cast housings from 100 W to 300 W. Wattage and four color temperatures are switches on the fixture, and the ring and cord come in the box. IP65, sensor-ready, with a TAA-compliant build on every configuration.

Specification Sheet IES Files Installation Guide Configure For Lead Time

Input Watts100–300 W

Lumensup to 41,400

Efficacyup to 150 lm/W

Ideal applications

Warehouse & Distribution

Manufacturing

Gyms & Retail

3-WATTselect

4-CCTselect

DLC Premium

contrⒶLS-Ready

surgeⒶRMOR

IP65 Housing

Field Optics

DLC Premium

cETLus Listed

IP65

Damp Location

FCC

RoHS

TAA

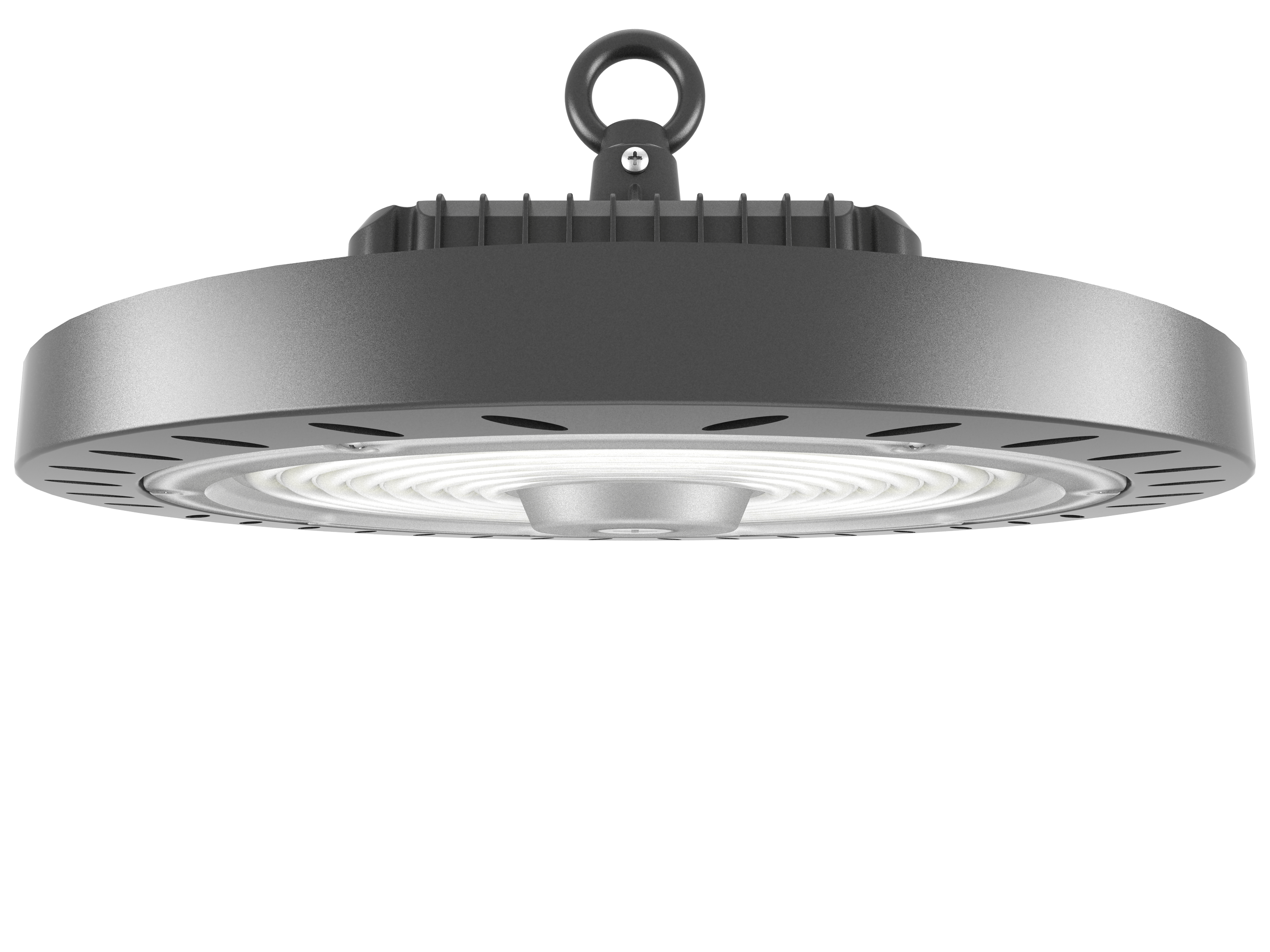

Icarus LRHB3W150 LED round high bay, 150 W class, lens view

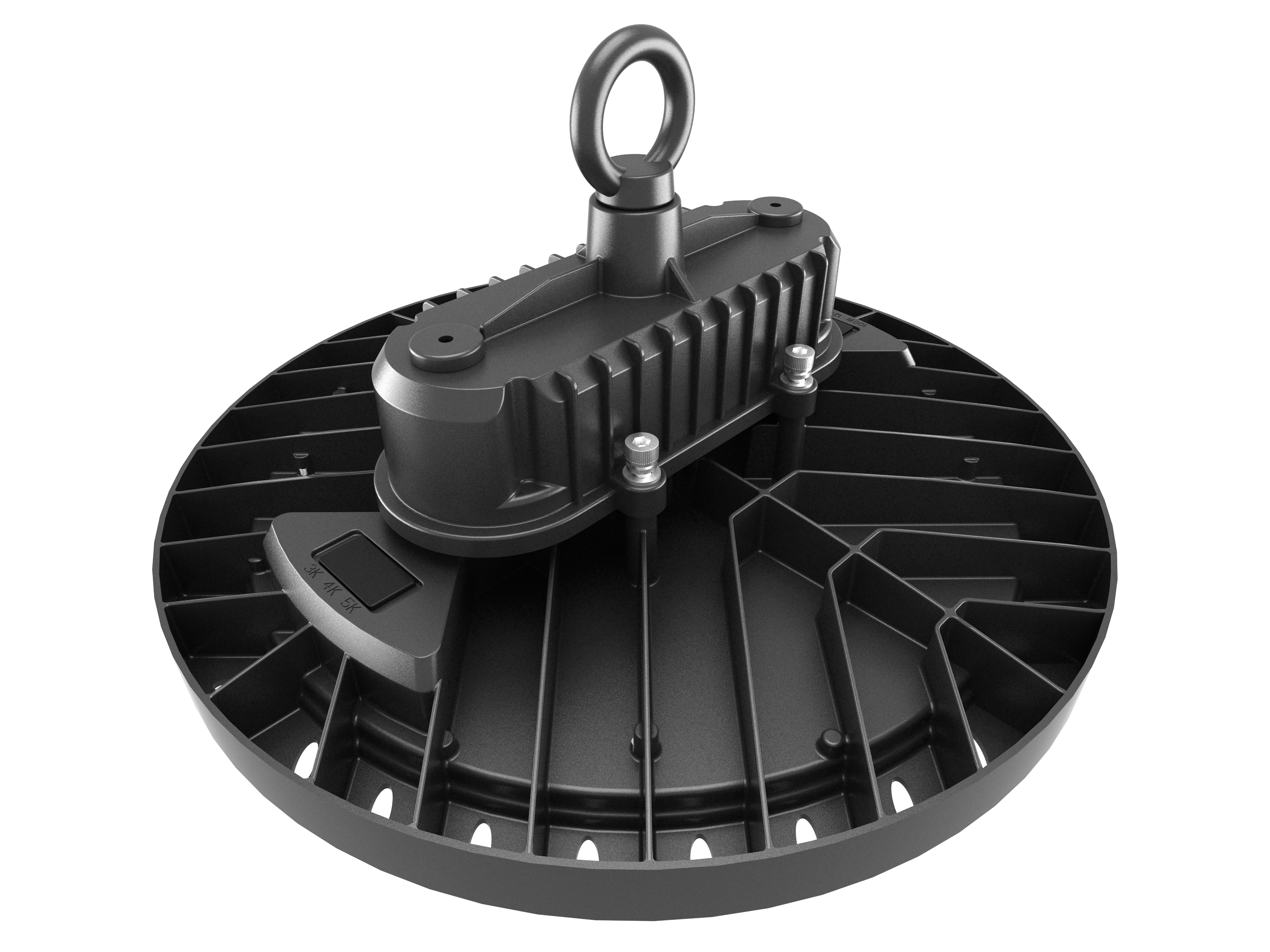

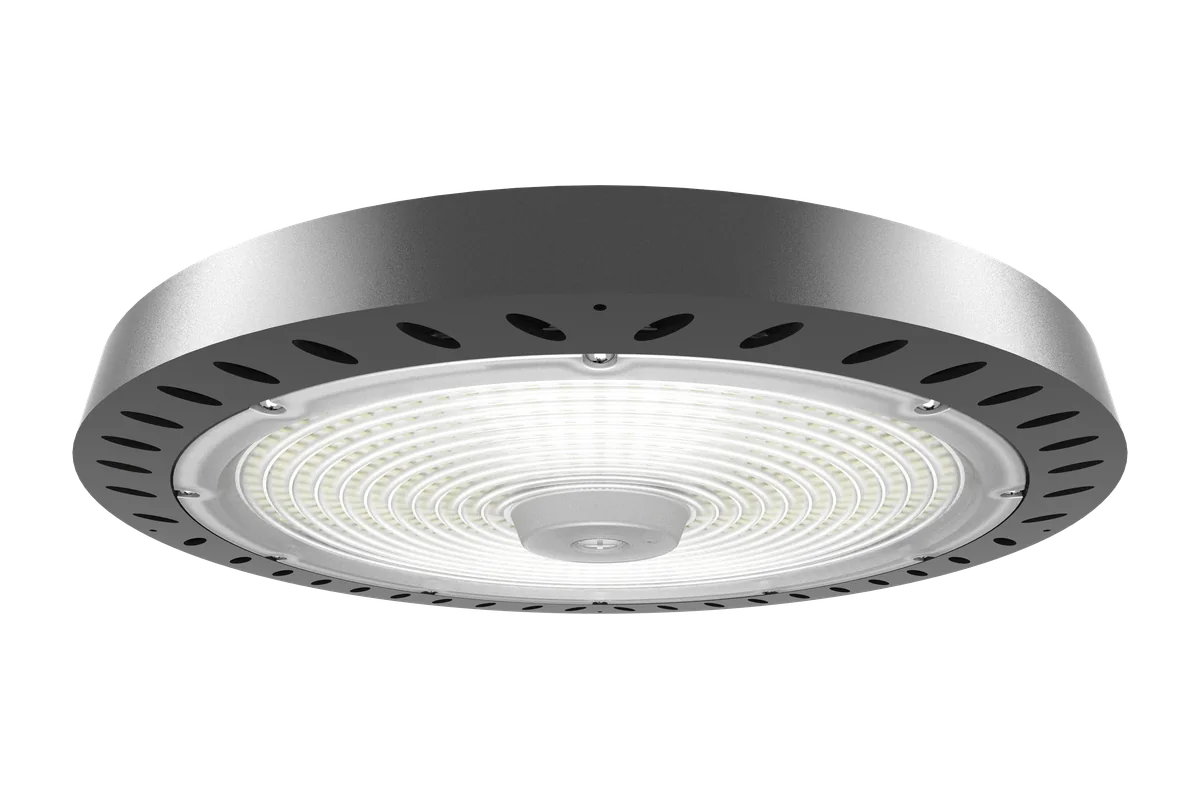

Icarus LRHB3W240 LED round high bay, 240 W class

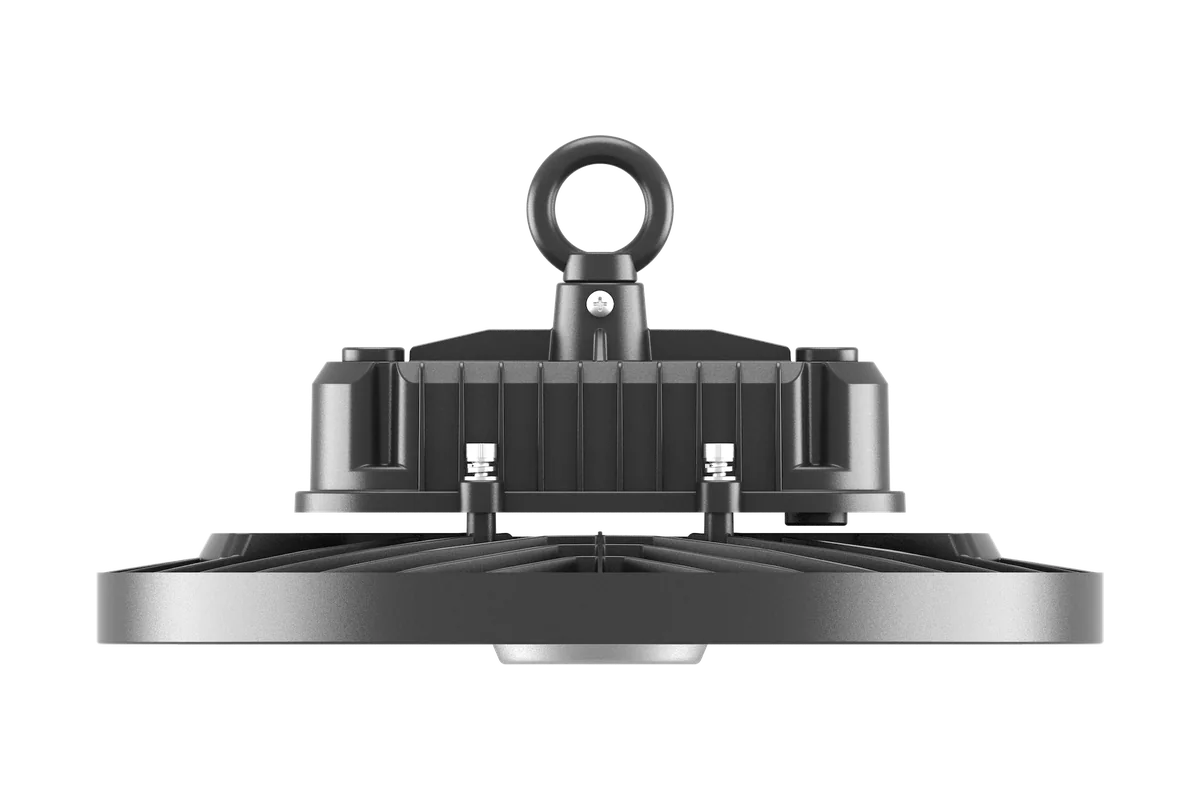

Icarus LED round high bay with the ring mount, side view

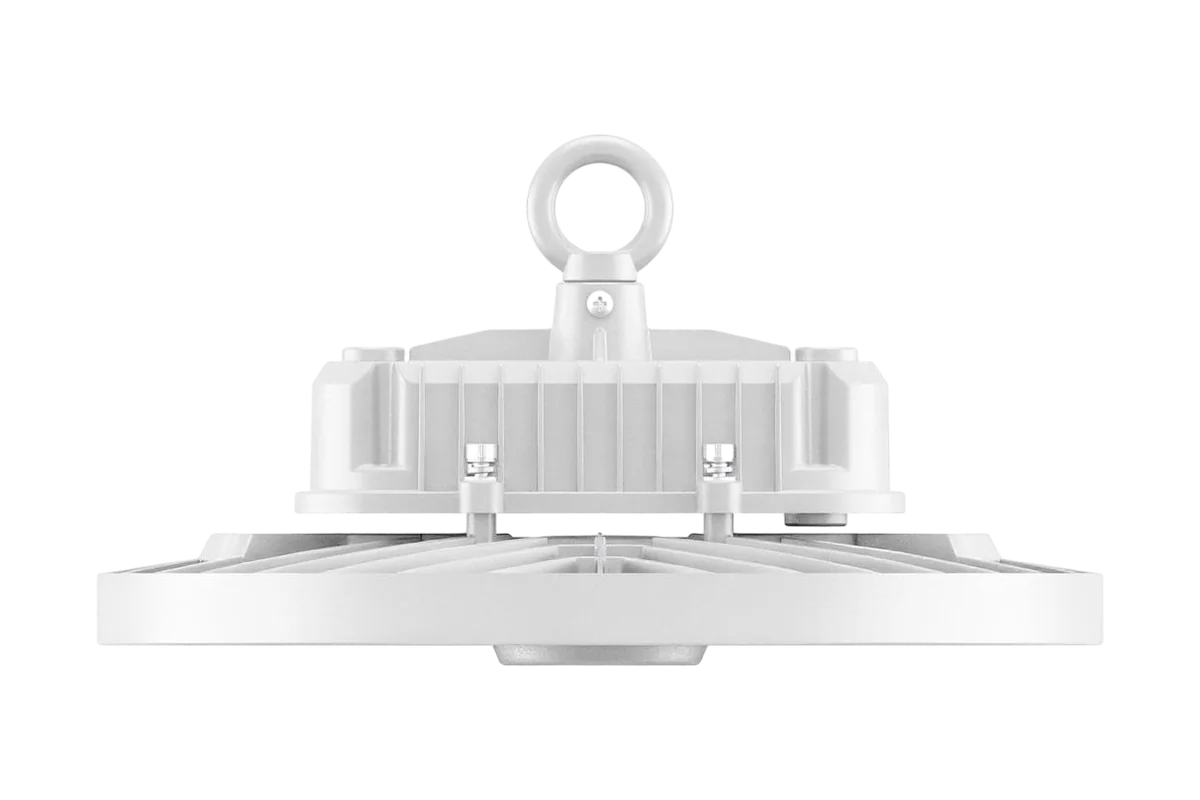

Icarus LED round high bay in white finish

Documentation & Resources

Documents

Data SheetPDF Quick SheetPDF Sell SheetPDF Installation GuidePDF IES Photometric FilesIES Submittal PackageBuild

Tools & Support

Free Photometric LayoutSend the floor plan, get fixture count and foot-candles.3 days Rebate CenterActive utility programs and the forms, by ZIP.Open contrⒶLS CompatibilityWhich heads and platforms this fixture takes.View

Warranty Statement Ask for Something Else Find a Rep

Model Specifications

WATTselect	Watts	Lumens	CCTselect	lm/W

★ Default settings. Lumens and lm/W are the datasheet's; measured files read 136–166 lm/W (Photometrics).

ApplicationIndoor · ECO round high bay · mounting to 50 ft

ConstructionDie-cast aluminum · black or whitePolycarbonate lens · IP65

Optics90° lens ±15 % · UGR <28Reflectors, a diffuser and a wire guard fit in the field

Dimensions—

Operating temp−40 °F to 122 °FWithout a sensor · IP65 · damp location

Electrical120–277 V · 0–10V dimming · PF ≥0.9 · THD ≤20 % · 6 kV surge · CRI >80With a motion sensor fitted, the fixture is not wired to a dimmer as well

Warranty5 yr · 50,000 hrExtended warranty available

Full Data Sheet Installation Guide

Engineering

How it hangs, what you set at install, and what fits in the field.

Photometric Distribution

Peak Candela

—

Lumens

—

Beam Angle · 50 % of peak

—

Test Source

IESNA LM-63 / LM-79

Full IES Library

Engineered Accessories

Configurator

Build Your Icarus.

Required *

WATT class—

Voltagethe one voltage built—

Finish—

Build—

Dip switchesset on the fixture · not in the part number—

Optional

Mountring + cord in the carton—

Reflectorfield-install · pick one—

Guard or diffuserfield-install · pick one—

Emergencyexternal · field-install—

Sensortwist-lock on the port—

Your catalog number

Your Catalog Number

Catalog number

Output—

Efficacy—

Distribution—

Dimensions—

ListingsDLC Premium · cETLus Listed (US & Canada) · IP65 · damp location · FCC · RoHS · TAA optionCheck Rebate Center for DLC QPL ID — confirm the listing for your catalog number before specifying.

Generate Submittal Request A Layout

Get your pricing, check stock and more:

Distributors · Facility Teams I Buy From ALG Your account pricing and ordering, with your rep credited automatically. Sign In To ALG Shop Sales Representatives I’m an ALG Sales Rep Check stock and pricing for your accounts in AURA. Sign In To AURA Find A Rep

High-Bay Family

Icarus is the ECO round bay and Jupiter the PRO one. Apollo and Titan are the linear bays.

You are here Icarus LRHB ECO round high bay

LRHB · ECO Icarus The ECO round bay. Three die-cast housings from 100 W to 300 W, IP65. Up to 41,400 lm · 5 yr / 50,000 hr Specification Sheet → Product Details · this page

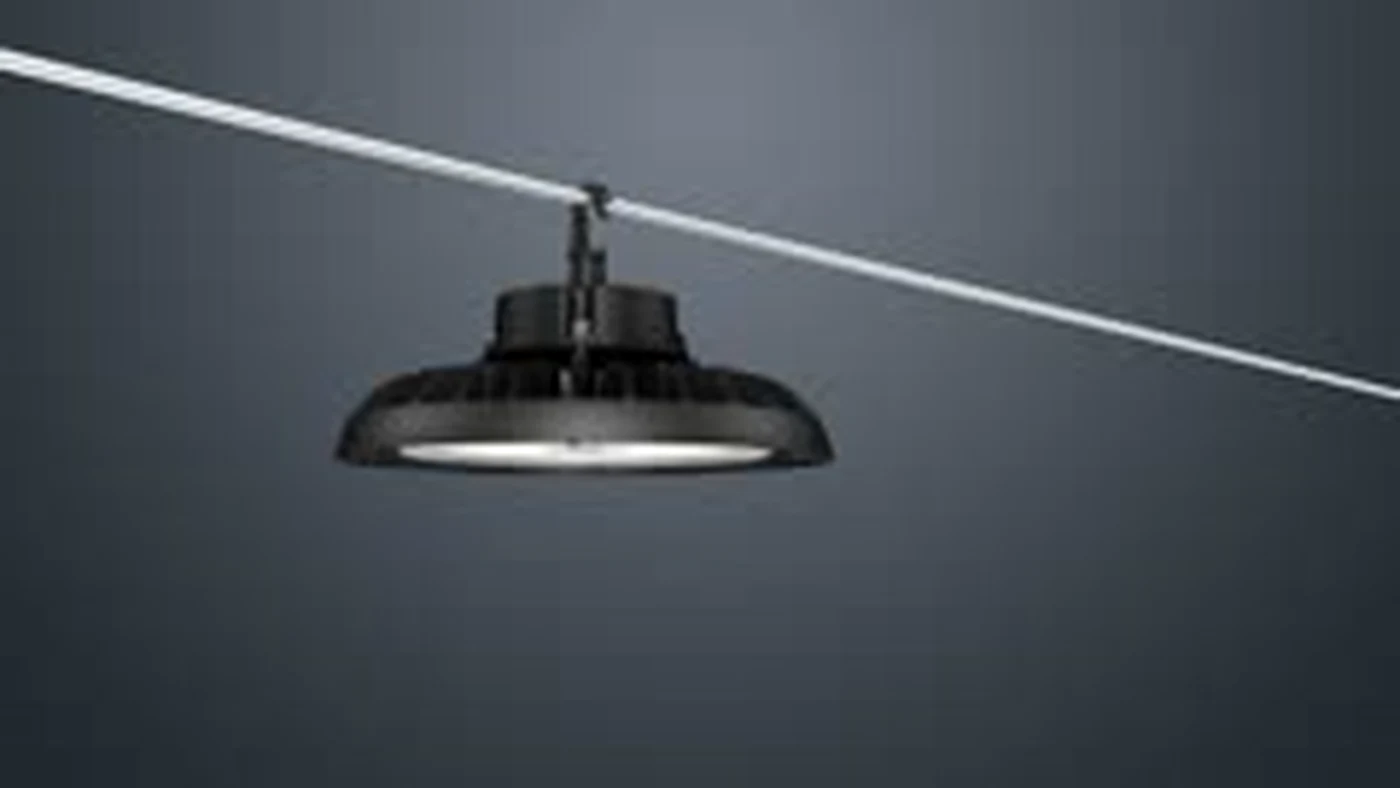

LRHB · PRO Jupiter The PRO round bay. Four housings from 100 W to a 400 W model, IP65 and wet location. Up to 67,200 lm · 7 yr / 75,000 hr Specification Sheet → Product Details →

LLHB · ECO Apollo 64–410 W in four classes. Up to 61,500 lm at 167 lm/W, 1.65 in deep. DLC Premium · 5 yr / 50,000 hr Specification Sheet → Product Details →

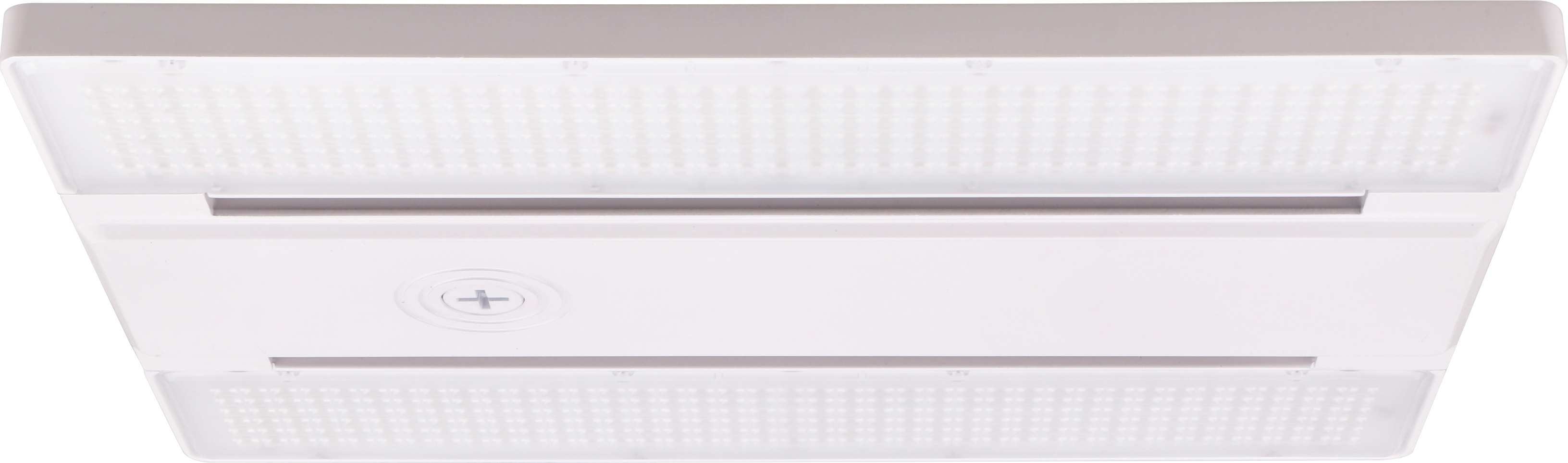

LLHB · PRO Titan The PRO linear bay. 85 W to 600 W in five classes, and the optic swaps in the field. Up to 88,800 lm · 7 yr / 75,000 hr Specification Sheet → Product Details →

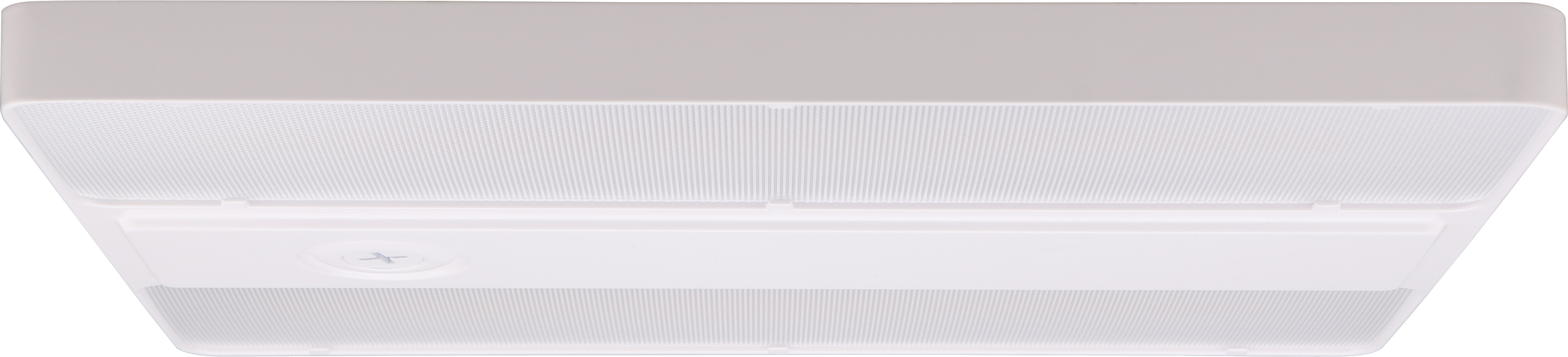

Tiny compact linear high bay, discontinued

LLHB · ECO TinyDiscontinued Apollo replaced it. The specs stay up so an installed fixture can still be matched. Superseded by Apollo Archived Spec Sheet → Product Details →

Specifier Support

Send us the floor plan.

We run the layout free and send it back in three business days — fixture count, spacing, foot-candles. Send the ZIP code too, and we match the rebate programs that apply.

3 BDLayout turnaround

FreePhotometric layout

Find A Rep Request A Layout

Rebates

Premium rebate tier, ECO order line.

Icarus is DLC Premium — the tier most utility programs pay the higher rebate on. Check Rebate Center for DLC QPL ID — confirm the listing for your catalog number before specifying. Send us the ZIP and we pull the active program and the forms.

150lm/W datasheet

DLCPremium

100–300 WThree housings

Open Rebate Center
