Eclipse

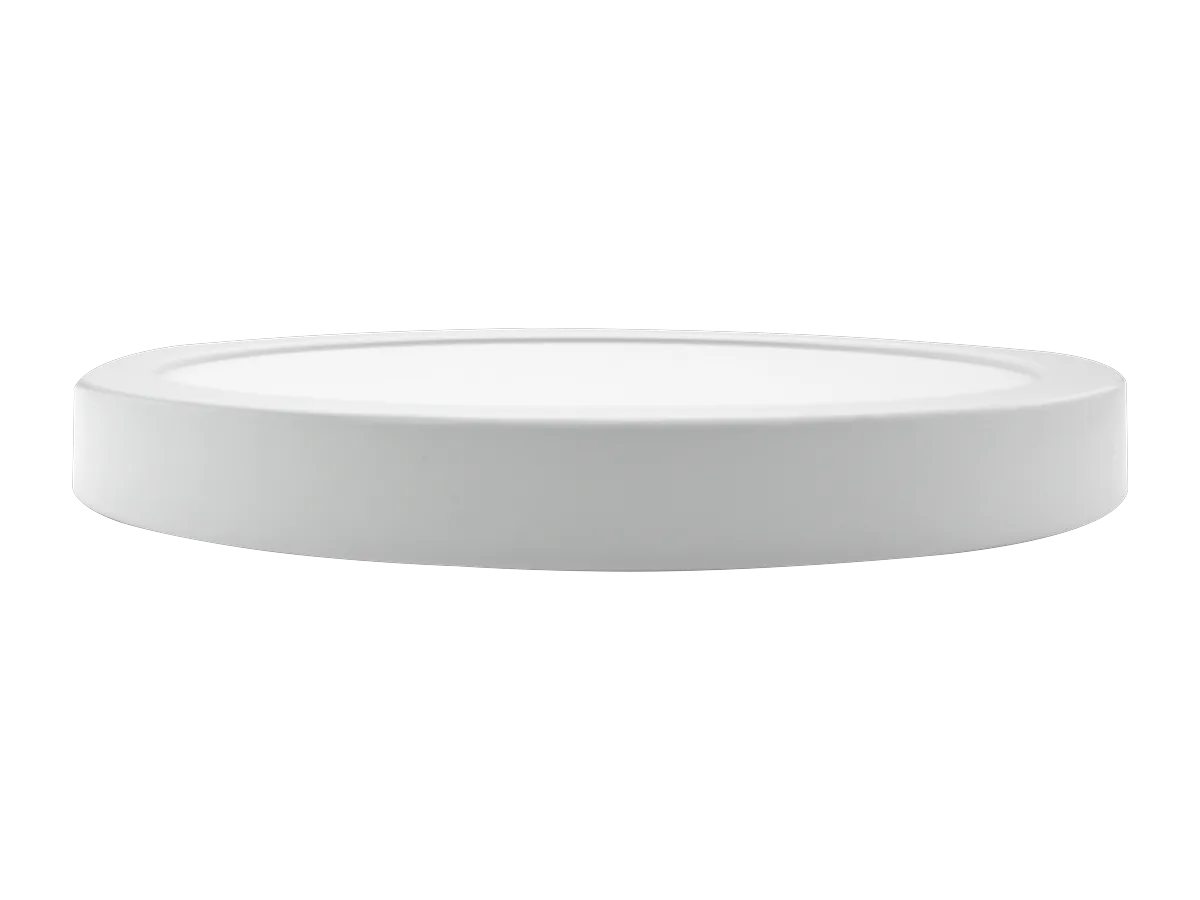

Under an inch deep. On any J-box.

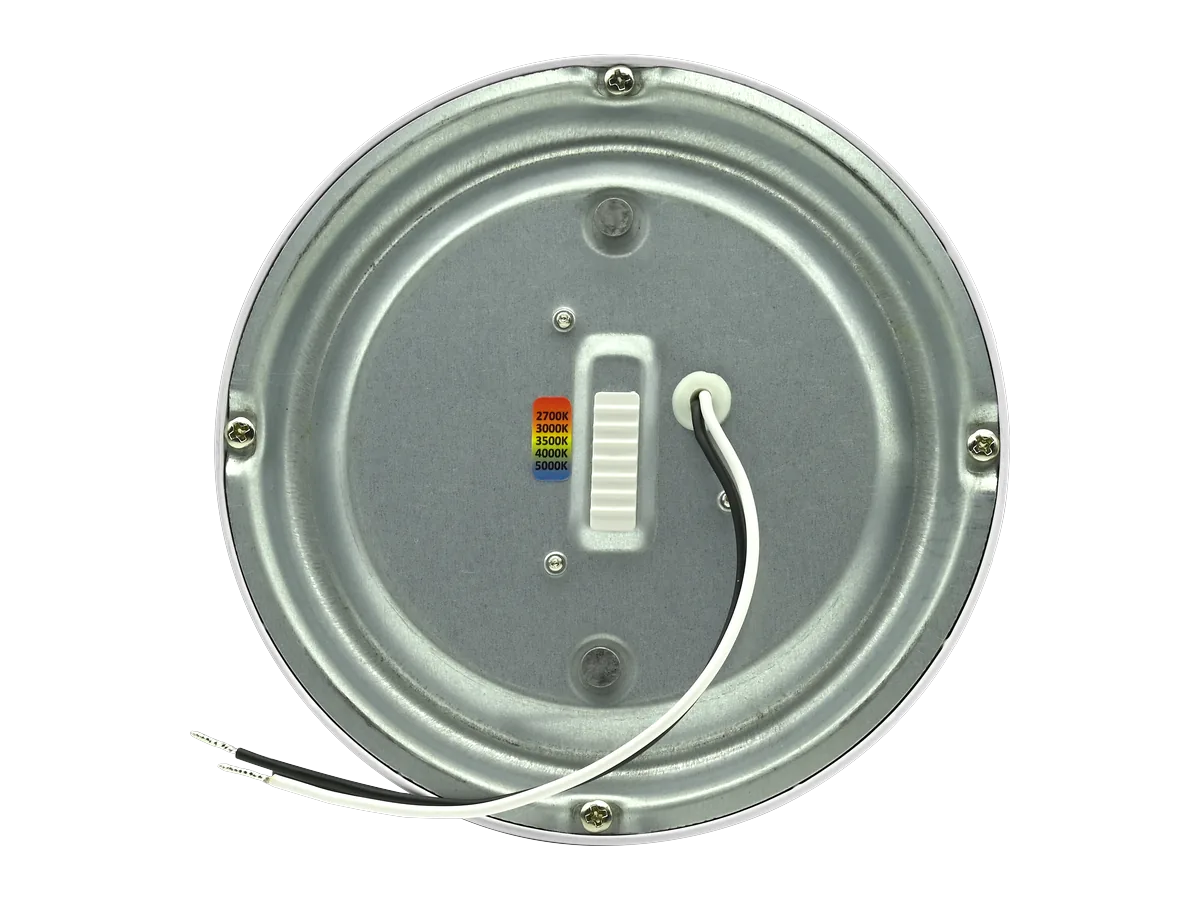

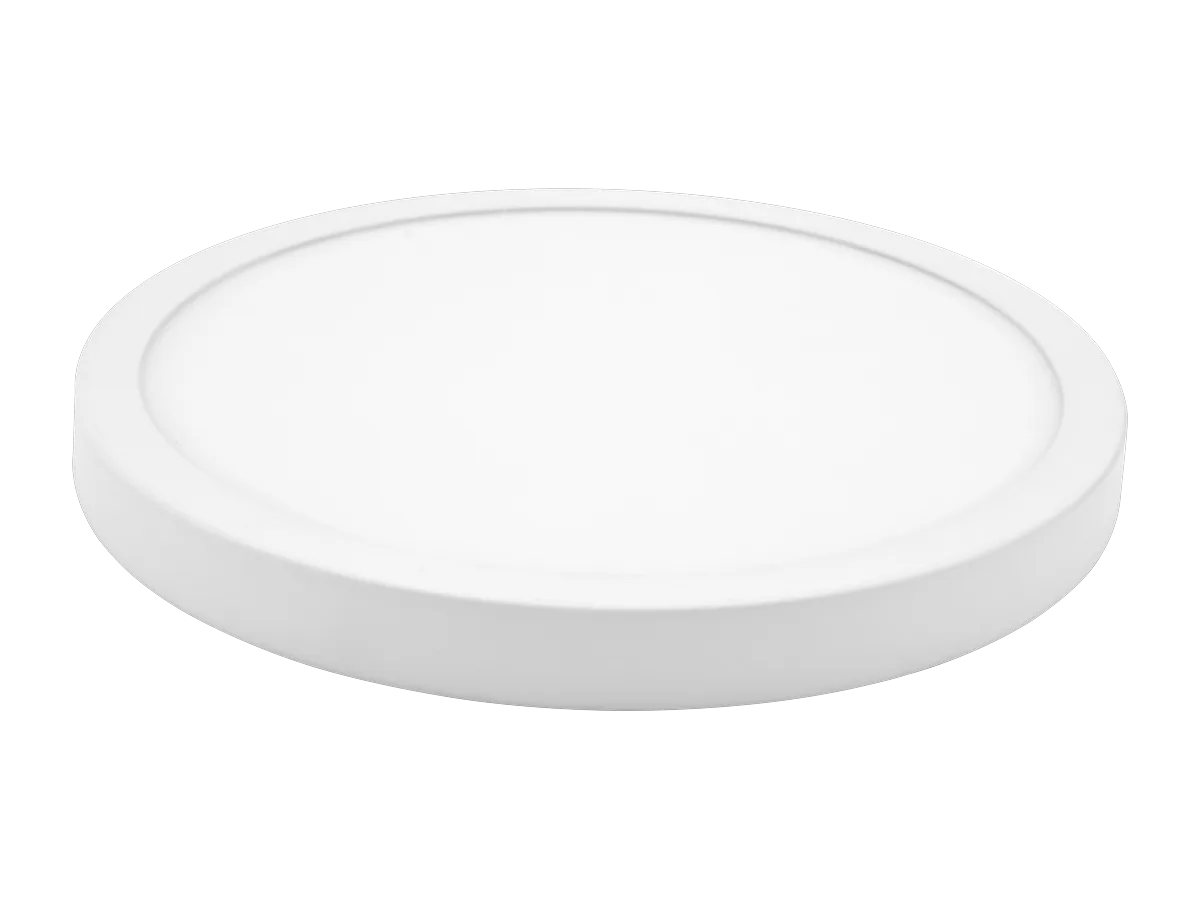

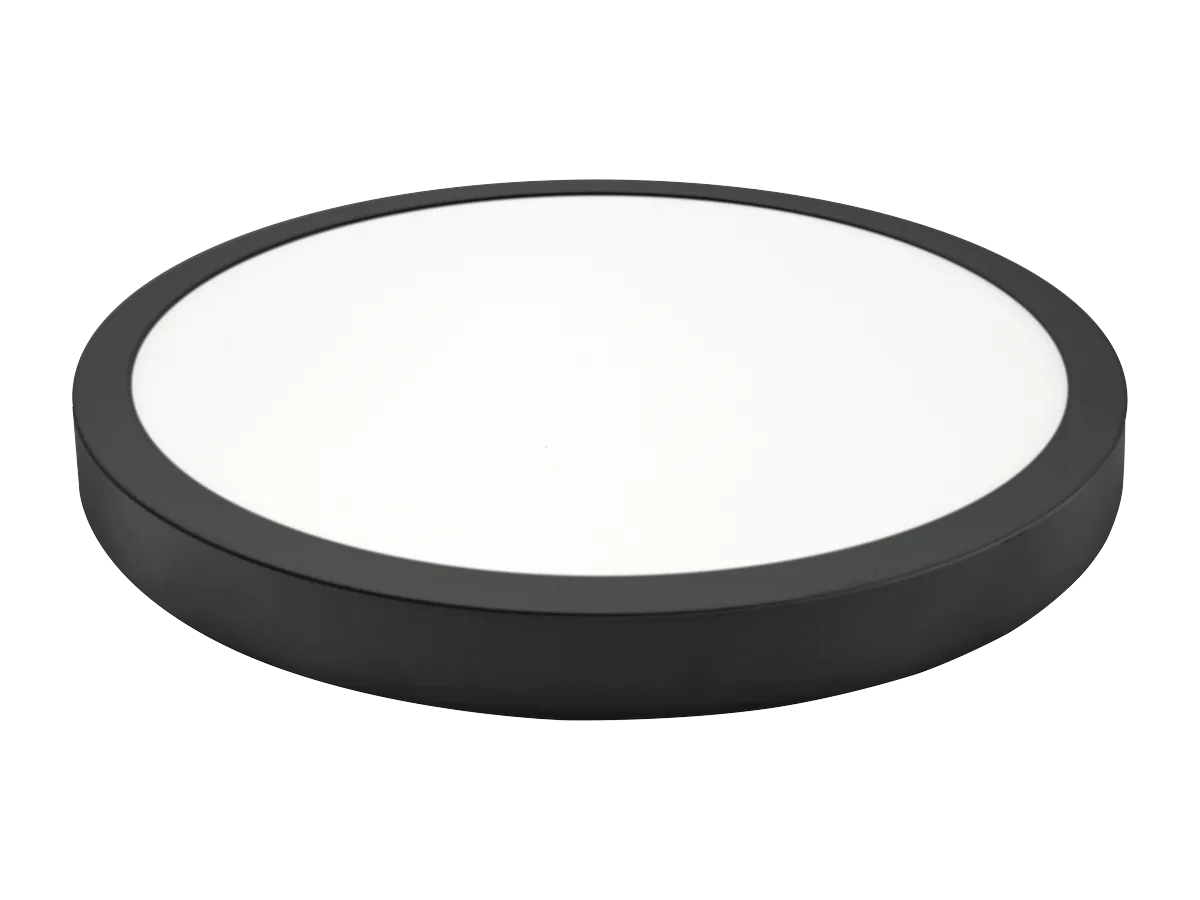

An edge-lit surface disk in five round sizes, 5 to 13 in, in black or white, and three white squares. It mounts on a standard 2.75 or 3.5 in junction box with the bracket in the carton. Color is a switch: five CCTs from 2700K to 5000K, CRI 90+. It dims to 10 % on TRIAC dimmers at 120 V. The emergency J-box and the motion sensor are each their own line.
Documentation & Resources
Model Specifications
| CCTselect | Input | Lumens | Efficacy |
|---|
Lumens are the datasheet's nominal figures for the round sizes; ★ marks the setting it ships at. The square builds have no published lumen figure yet. The measured files are in Photometrics.
Engineering
How it mounts, what you set at install, and what each line item adds.
Photometric Distribution
These are the round sizes. The square builds have no photometric file yet.
Engineered Accessories
Build Your Eclipse.

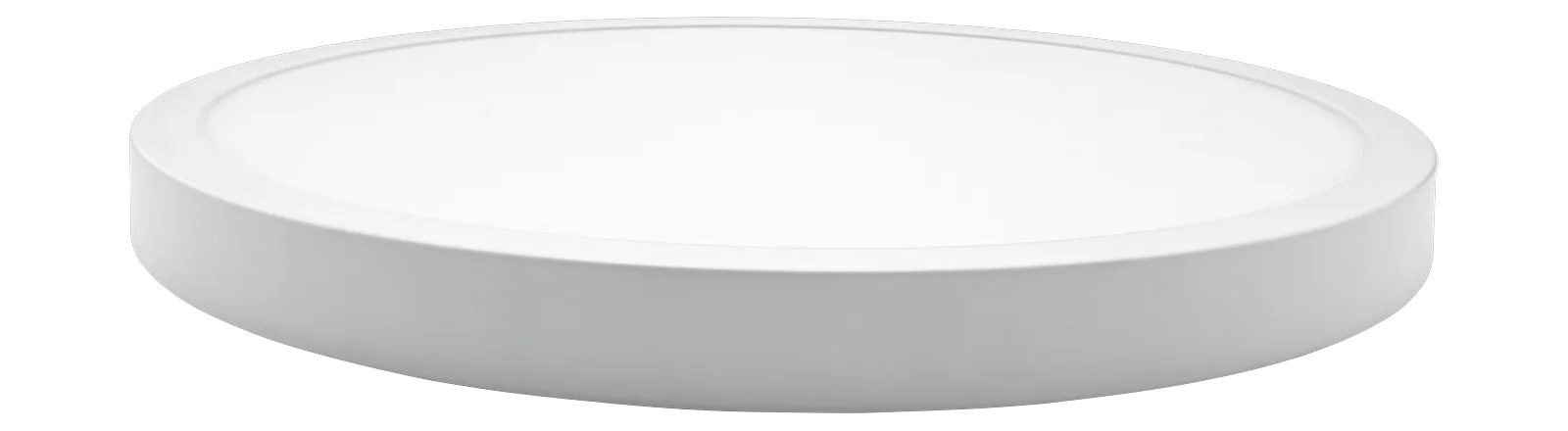

Your Catalog Number
multi-fⒶMILY Family

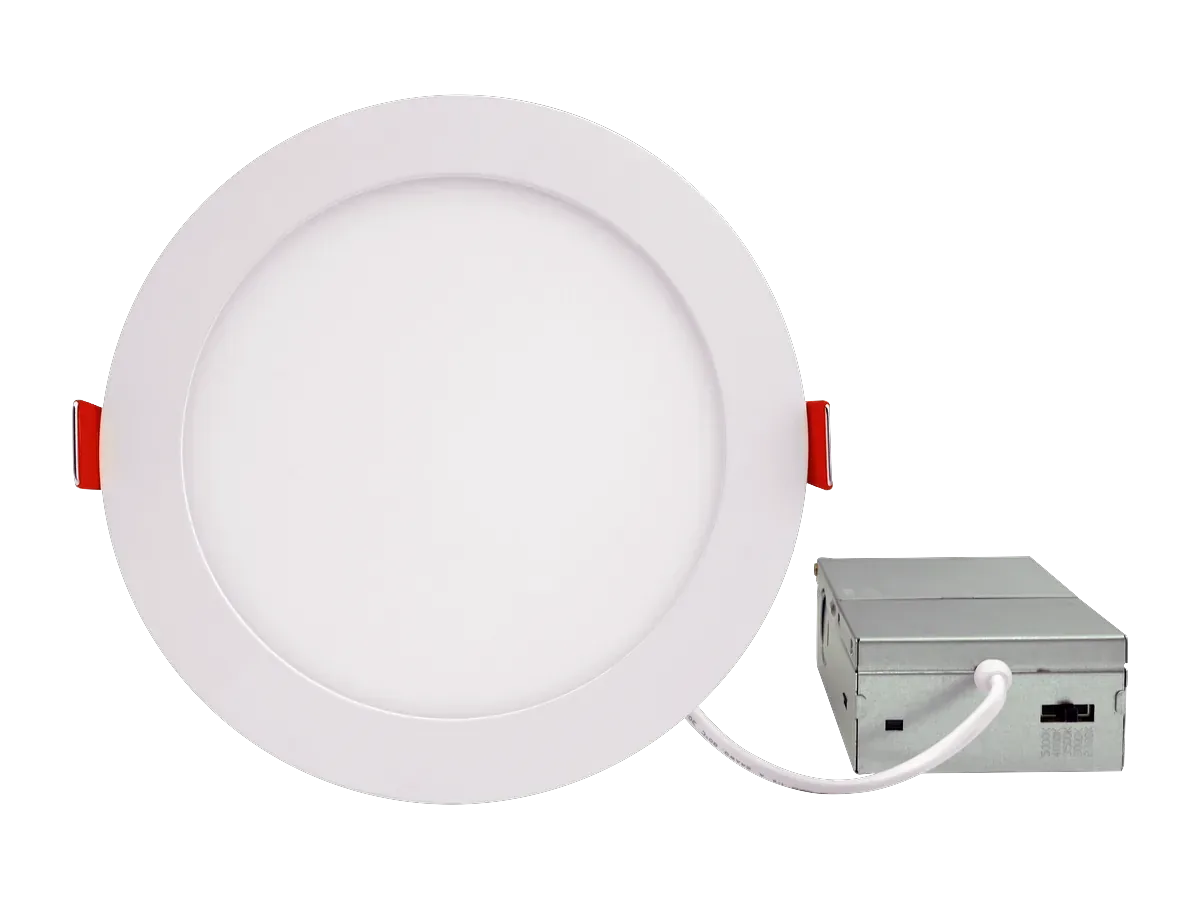

Surface and recessed downlights for the units, halls and stairs of a multi-family building.
Send us the floor plan.
We run the layout free and send it back in three business days — fixture count, spacing, foot-candles. Quotes, samples and rebate matches come back the same day.
Utility programs, checked for you.
Send us the job ZIP and your catalog number. We check which utility programs apply before you specify, and send the forms back with the answer.
