LDLL · Eclipse
Low-Profile Surface Downlight · multi-fⒶMILY PRO · under 1 in deep · on a 2.75 or 3.5 in J-box · round 5–13 in, black or white · square 7–11 in, white · 10–24 W
PRO
Shape
Round
Size
9IN
Input watts
18W
Lumens
—
Efficacy
—
CCT
5000K
Field-Set
5-CCTselect 2700K–5000K by switch, ships at 5000K · 120 V · TRIAC dimming, 100–10% · Damp location
LDLL Eclipse is the multi-fⒶMILY PRO low-profile surface downlight: edge-lit, 0.79 to 0.98 in deep, on a standard 2.75 or 3.5 in junction box with the bracket in the carton. Round in 5, 7, 9, 11 and 13 in, black or white; square in 7, 9 and 11 in, white. Color temperature is a switch and is not in the catalog number.
Approved by
Date
archipelagolighting.com · LDLL · Eclipse submittal · Specifications subject to change without notice
Rev. 2026-10 · Page 1 of 4
ARCHIPELAGO
Lighting Group · LDLL
Catalog Number
LDLL0918-E2S5/W
Specifications
LDLL Eclipse · multi-fⒶMILY PRO · low-profile surface downlight
Configured Selections (this submittal)
Build
—
Finish
—
CCTselect
—
Construction
Housing · Lens
Aluminum and polycarbonate · frosted lens, edge-lit · die-cast aluminum trim
Mounting
Surface, on a 2.75 or 3.5 in junction box · bracket, wire nuts and screws in the carton
Location
Dry and damp locations · closets per the NEC
Operating Temp
−4°F to +113°F
LED & Optics
CCT (5-CCTselect)
2700K · 3000K · 3500K · 4000K · 5000K · set by switch · ships at 5000K
CRI
CRI 90+ at every setting
Beam
120°
Rated Life
50,000 hr
Driver & Electrical
Voltage
120 V
PF · THD
> 0.9 · < 20%
Dimming
TRIAC, 100–10% · listed dimmers on page 3
Compliance
ENERGY STAR
—
Warranty
5-year / 50,000-hour limited
Spec Footnotes · Nominal lumens are the datasheet's for the round sizes; the square builds have no published lumen figure yet. Measured figures come from the IES file for the configured round size and CCT, rounded down. Utility programs: archipelagolighting.com/support/rebate-center/
archipelagolighting.com · LDLL · Eclipse submittal · Specifications subject to change without notice
Rev. 2026-10 · Page 2 of 4
ARCHIPELAGO
Lighting Group · LDLL
Catalog Number
LDLL0918-E2S5/W
Dimensions & Mounting
—
Profile

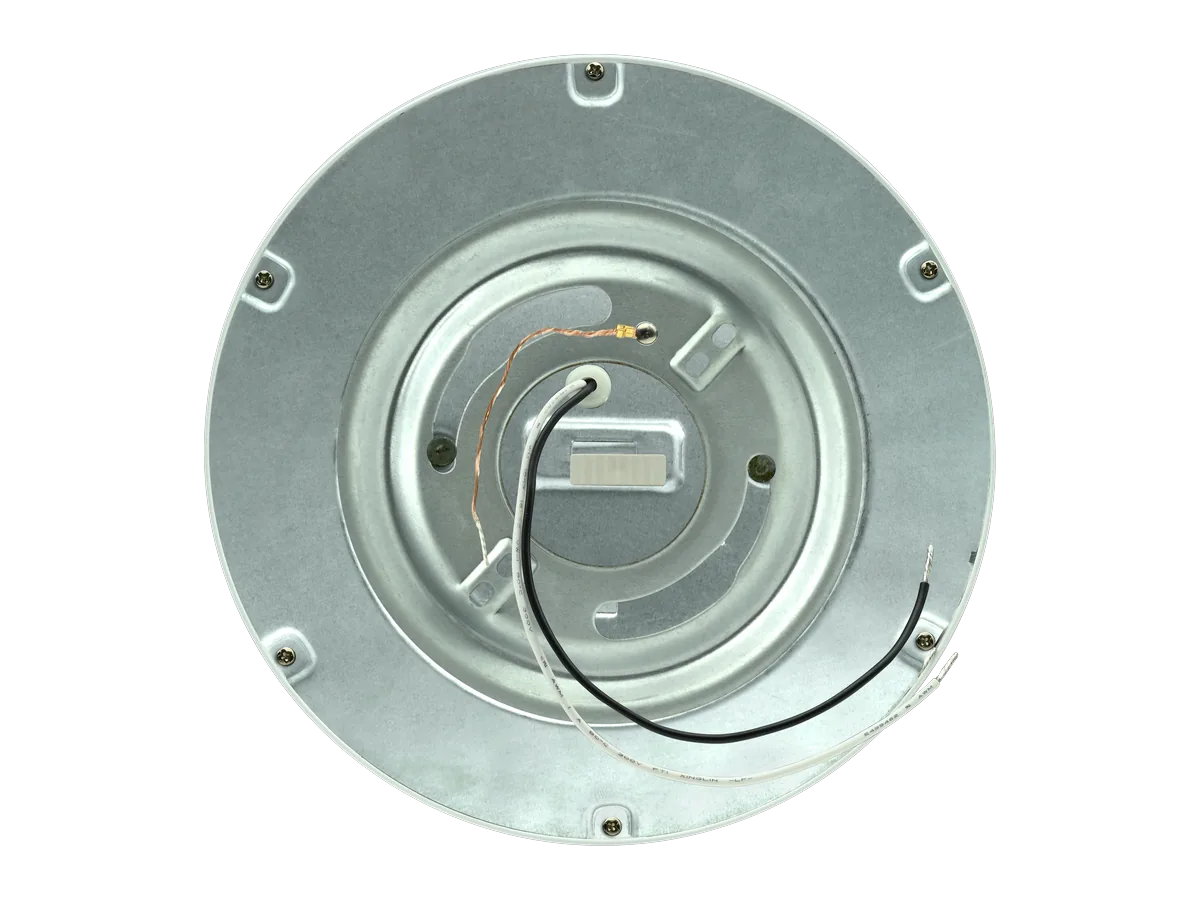

Back
Dimensions (selected build)
Diameter
—
Depth
—
Mounting
Standard
Surface, on a 2.75 or 3.5 in junction box
Line items (each its own line)
Emergency
LDLL-E2/JBX · emergency battery J-box · 7–13 in round
Sensor
LDLL-E2/MSP/W · PIR bi-level, plug-in · 7 and 9 in round, white
archipelagolighting.com · LDLL · Eclipse submittal · Specifications subject to change without notice
Rev. 2026-10 · Page 3 of 4
ARCHIPELAGO
Lighting Group · LDLL
Catalog Number
LDLL0918-E2S5/W
Ordering Information
Round 5–13 in, black or white · square 7–11 in, white
Family · Size · Watts
LDLL0918
Series · CCT
E2S5
Finish · Shape
W
Segment
Codes
LDLL{N}{W}
Round: 0510 (5 in, 10 W) · 0715 (7 in, 15 W) · 0918 (9 in, 18 W) · 1121 (11 in, 21 W) · 1324 (13 in, 24 W). Square: 0712 (7 in, 12 W) · 0918 (9 in, 18 W) · 1122 (11 in, 22 W)
E2S5
Eclipse series · 5-CCTselect 2700K–5000K by switch
/B · /W · /W/S
Black or white, round · white, square
Photometric Data
—
No IES file has been issued for the square builds yet.
Total Lumens
—
Input Watts
—
Efficacy
—
Peak Candela
—
Beam Angle
—
Plot
4000K
Test Standard
IESNA LM-79 / LM-63
IES File
—
archipelagolighting.com · LDLL · Eclipse submittal · Specifications subject to change without notice
Rev. 2026-10 · Page 4 of 4
ARCHIPELAGO
Lighting Group · LDLL
Catalog Number
LDLL0918-E2S5/W
