LY-T10 · LED Slimline T10 Sign Lamp ECO
Slimline T10. No mercury. Drops into the socket you have.
LY-T10 is the LED replacement for the slimline fluorescent T10 lamps that have illuminated internally-lit street name signs and backlit advertising cabinets for the last 50 years. Most "T10 LED" retrofits in the market are T8 lamps with adapters; LY-T10 ships the actual single-pin slimline T10 form factor — drops directly into the historical sign-fixture socket without adapters or housing modification. Three lengths cover the entire municipal sign-cabinet matrix. 100 lm/W constant. ETL US/C cross-border listed. No mercury. 5-year warranty.
Model Specifications
Download Data Sheet| Watt | Lumens | Efficacy | CCT | Voltage |
|---|
Dimensions
(For the selected size)
Highlights & Features
The slimline T10 LED retrofit that actually fits the sign cabinet you already have.
Seven highlights anchored to one authenticity — true single-pin slimline T10, not a T8-with-adapter. Three lengths · 100 lm/W constant · no mercury · ETL US/C · 5-year warranty.
Engineering · Anatomy
Six details that make this the slimline T10 spec engineers actually want.

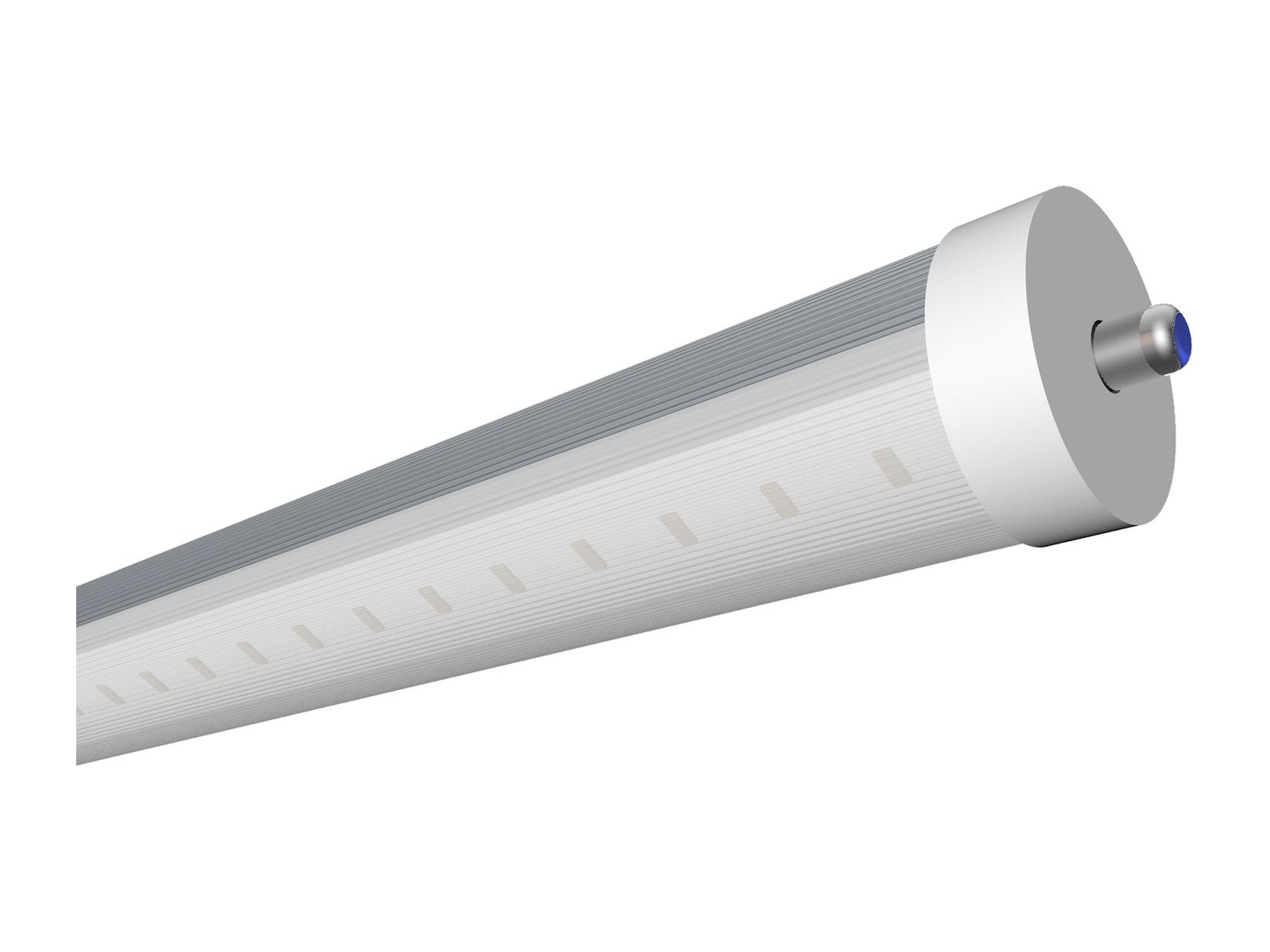

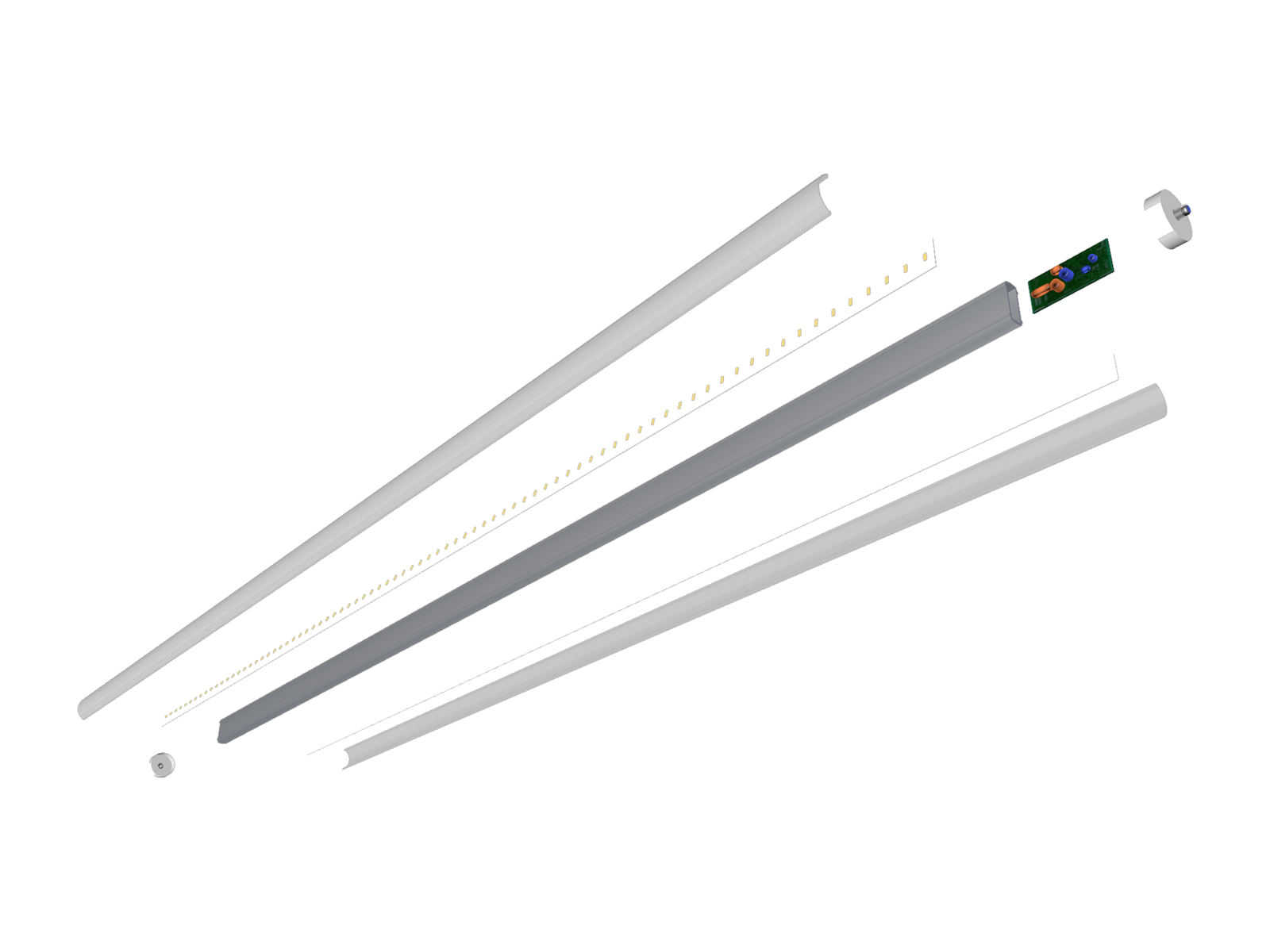

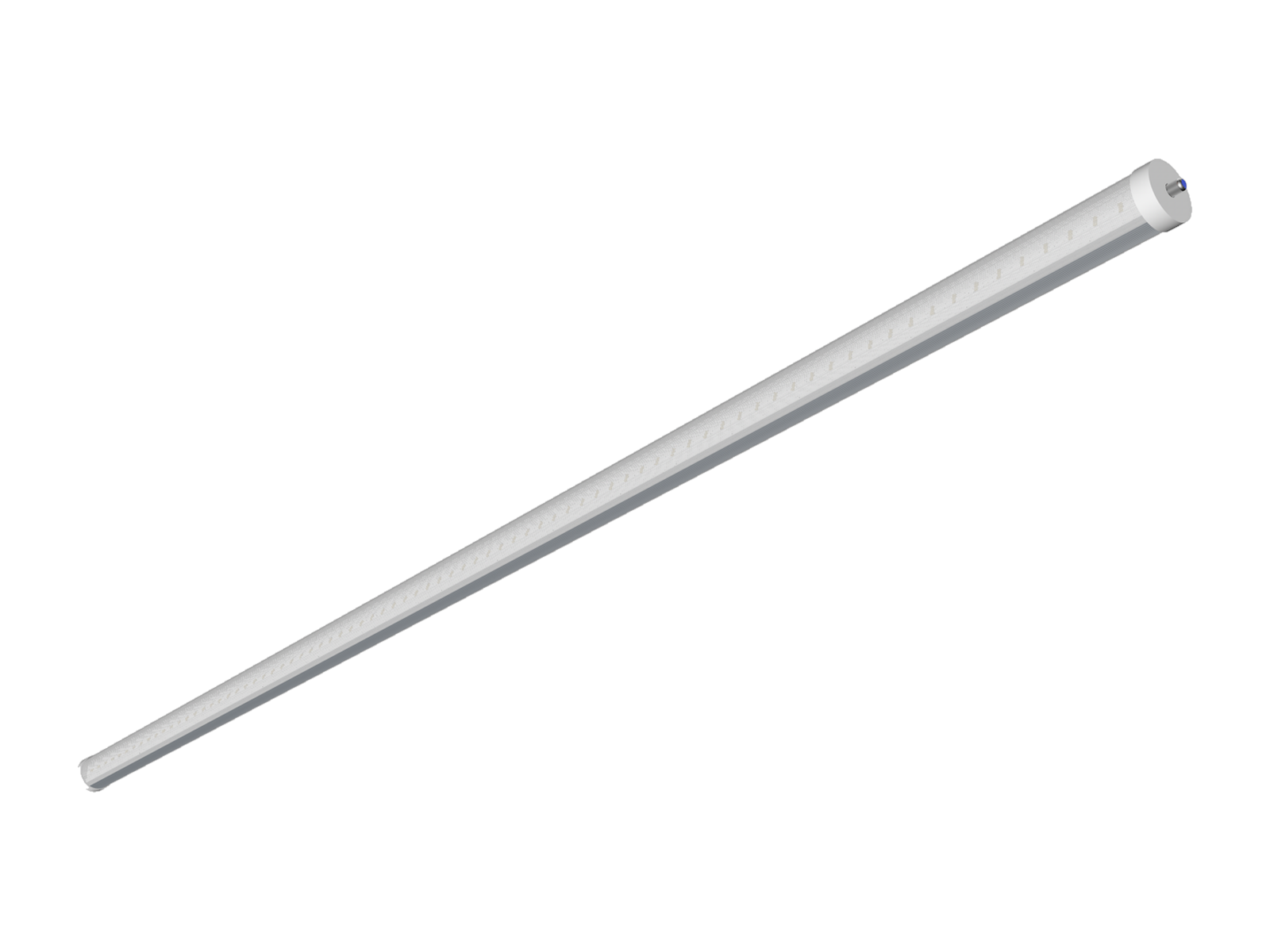

Single-pin slimline base on one end. Linear T10 tube body at 1.25" diameter. LED array along the lamp length under a clear lens. Universal voltage input on the contact end. ETL US/C label for cross-border DOT projects. Six engineered details delivered for one job: drop straight into the existing slimline fluorescent T10 socket on the existing voltage with no modification.
Anatomy callouts derived from the datasheet Product Features list and Product Specifications table. Single-pin slimline base is the technical authenticity that defines this product against the T8-with-adapter peer set. T10 = 1.25" tube diameter (vs T8 = 1.0" and T12 = 1.5") — standard slimline-fluorescent form factor preserved for true drop-in retrofit.
Configure Your LY-T10
Every option below maps to the LY-T10 order code. Selections build the SKU live — no checkout, no surprises. Required fields marked with *. Greyed-out options are not selectable with your current configuration. See the legend in the Optional column for ★ / QS / MTO meanings.
Documentation & Resources
Spec engineers, municipal sign-maintenance procurement teams, and transit-authority engineers need the datasheet for the project schedule and the SKU on the bid line. Two documents cover the workflow.
One PO. The whole signalized intersection lit.

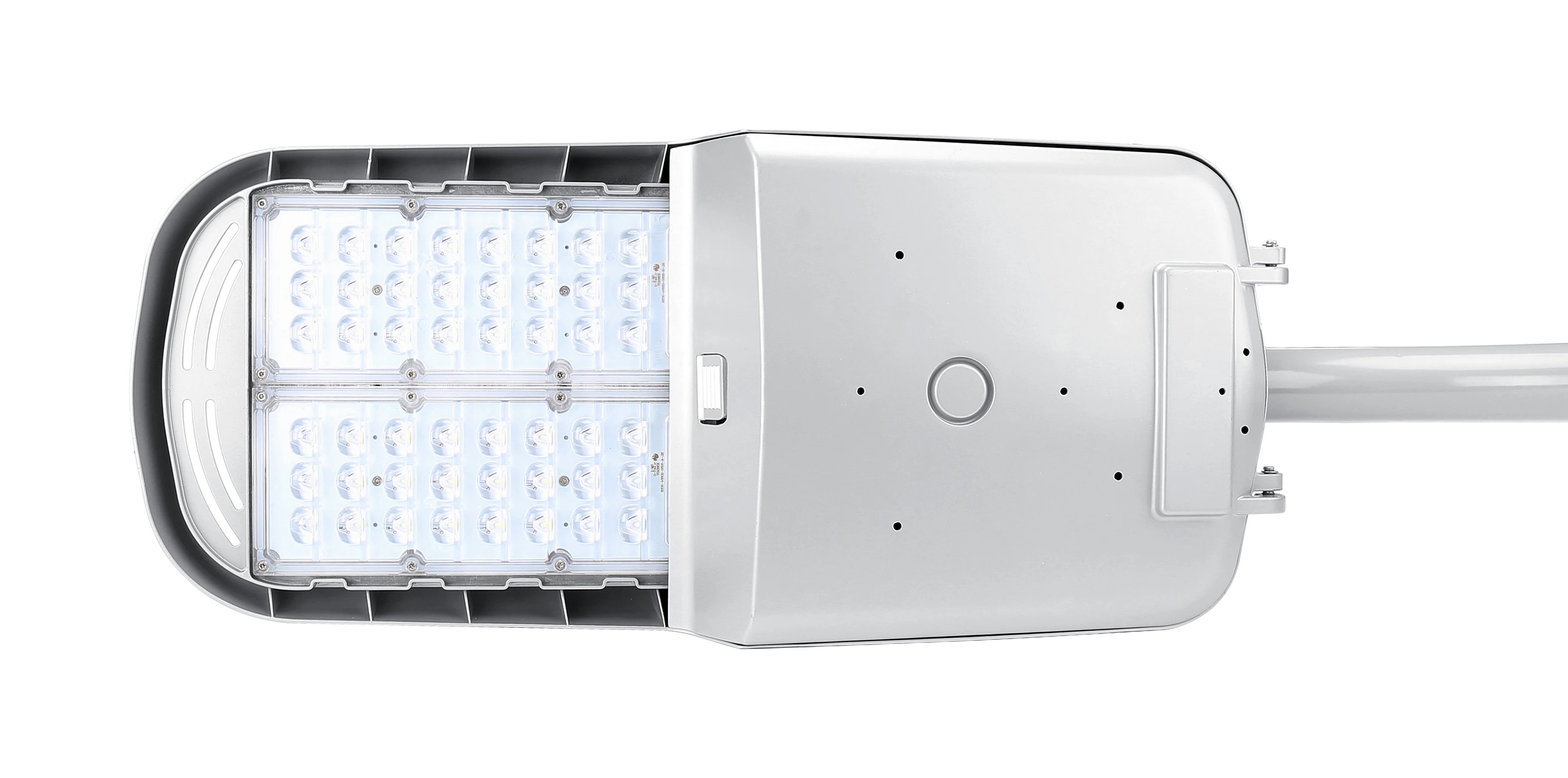

LY-T10 lights the street name signs and backlit advertising. The other three cityⒶRCH outdoor lines — LPAR for the EVP confirm beacon, Abbey for the area roadway cobra-head, OmniMax for the major-intersection high mast — light the rest of the intersection. Same factory. Same warranty platform. One bid sheet for the whole signalized corridor.
For the complete venue.
LY-T10 handles the street name signs and backlit advertising. These cross-line fixtures handle everything else — same warranty platform, same factory. Specify them together for a coherent ALG package across the whole intersection.
Direct line to your regional rep.
Twelve US warehouses. Layout requests come back inside 48 hours. Quotes, sample requests, and rebate matches reply same business day. No portal-as-the-only-channel: you get a person.
One PO. The whole signalized intersection.
LY-T10 ships ETL US/C cross-border listed — qualifying for utility rebate programs that supports cross-border DOT projects (US + Canada) without separate listing paperwork. Pair with LPAR (EVP confirm beacon), Abbey (roadway cobra-head), and OmniMax (high mast) on the same municipal PO. One inventory line for the cityⒶRCH outdoor portfolio reduces procurement complexity by an order of magnitude across a multi-intersection contract.
