LDRS · Radius SafeZone PRO+ 2-HR FIRE-RATED
Performance That Won’t Melt · UL 263 + ASTM E119 · 3″ / 4″ / 6″ / 8″

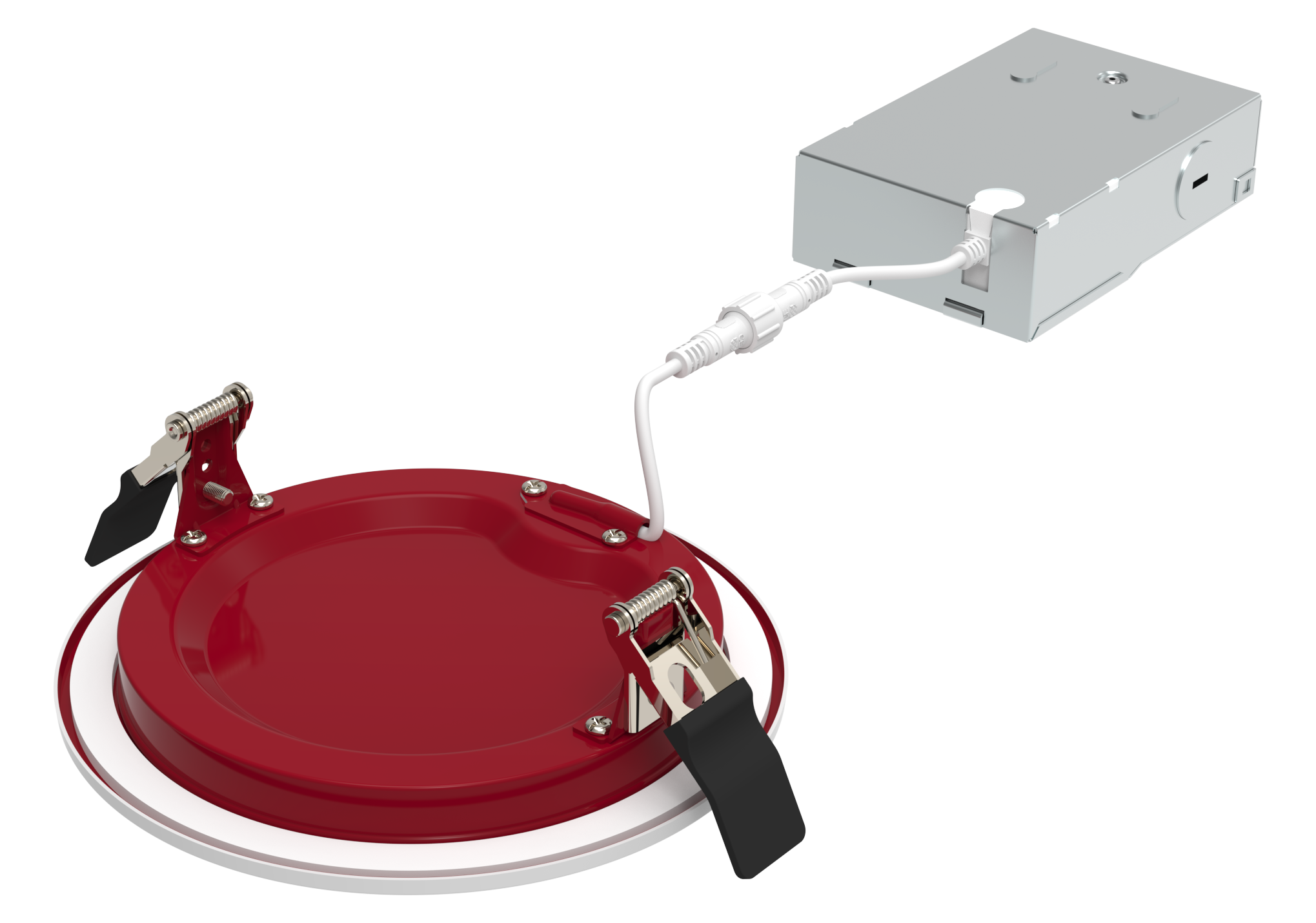

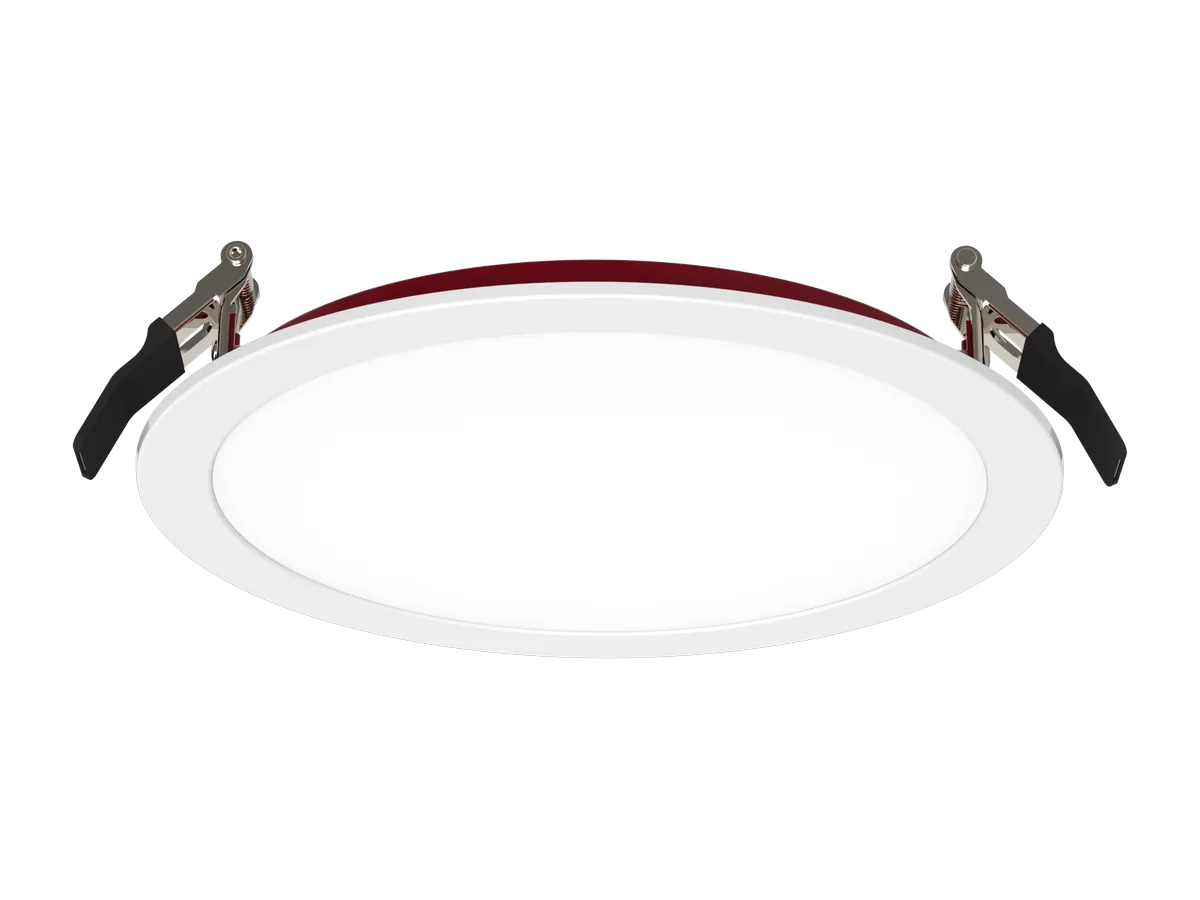

The 2-hour fire-rated slim wafer — tested to UL 263 and ASTM E119 on its own integrated aluminum housing. No enclosure box. No tent. Wet-rated and 2-hour fire-resistant in the same SKU — the only combo in the slim-wafer category. CCT-selectable on the Plug-n-Play J-Box, so color is locked before the disk seats into the rated penetration. 90+ CRI TruColor across four sizes — 3″ / 4″ / 6″ / 8″ — the fire-rated slim wafer that doesn’t stop at six inches.
Model Specifications
Download Data Sheet| Watt | Lumens | lm/W | CCT | Voltage |
|---|
Dimensions
(For the selected size)Highlights & Features
>Performance that won’t melt — in a slim wafer that holds the rating without a tent.
UL 263 + ASTM E119 2-hour fire-rated · Wet Location · 4 sizes (3″ / 4″ / 6″ / 8″) · 90+ CRI TruColor · 5-CCT on the J-Box · CRCU-EM/JBM EMB compatible · T-Grid kits for 4″ + 6″.
Three Components, One Rated Assembly
>Three components. Together they hold the rating.

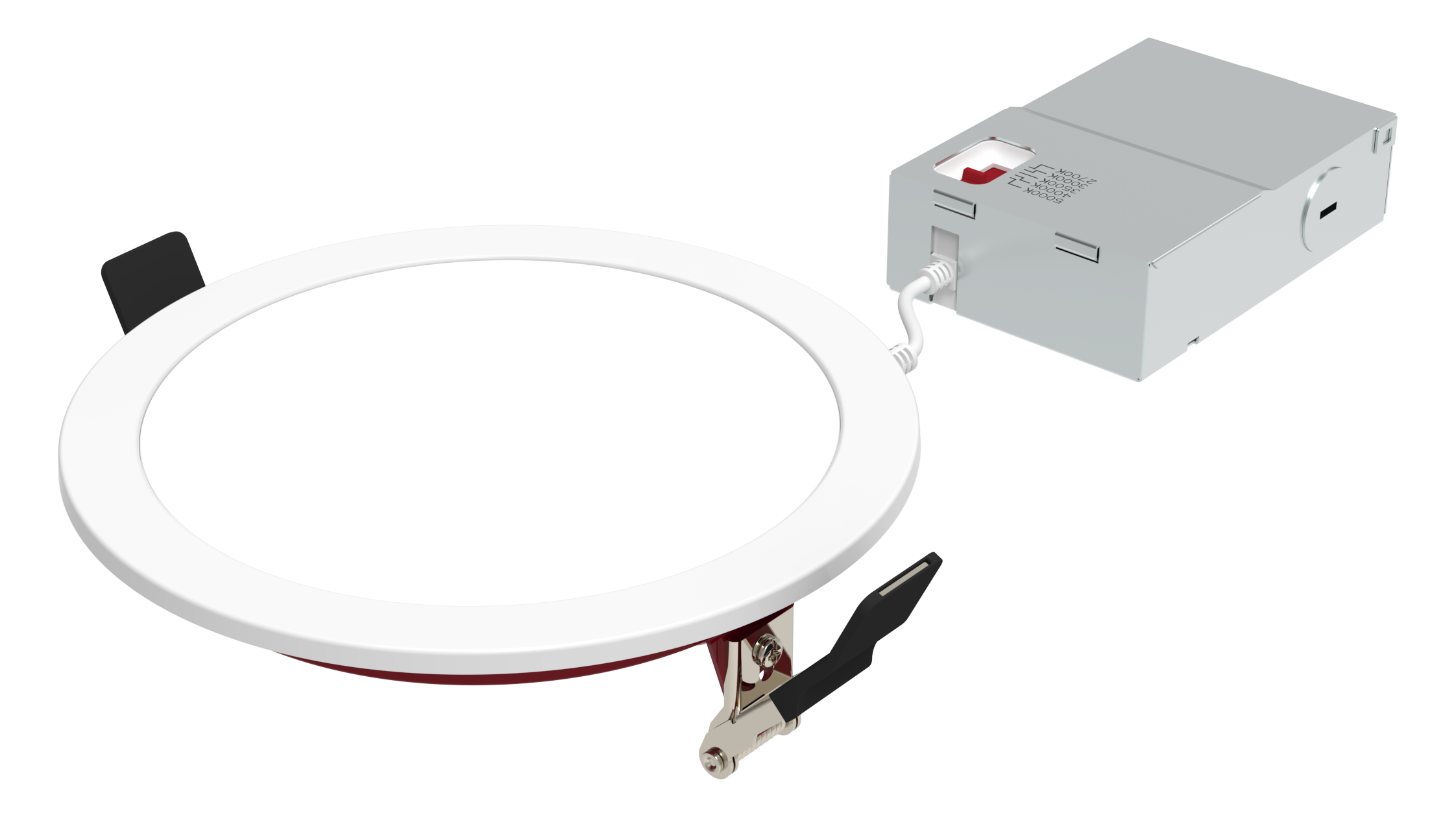

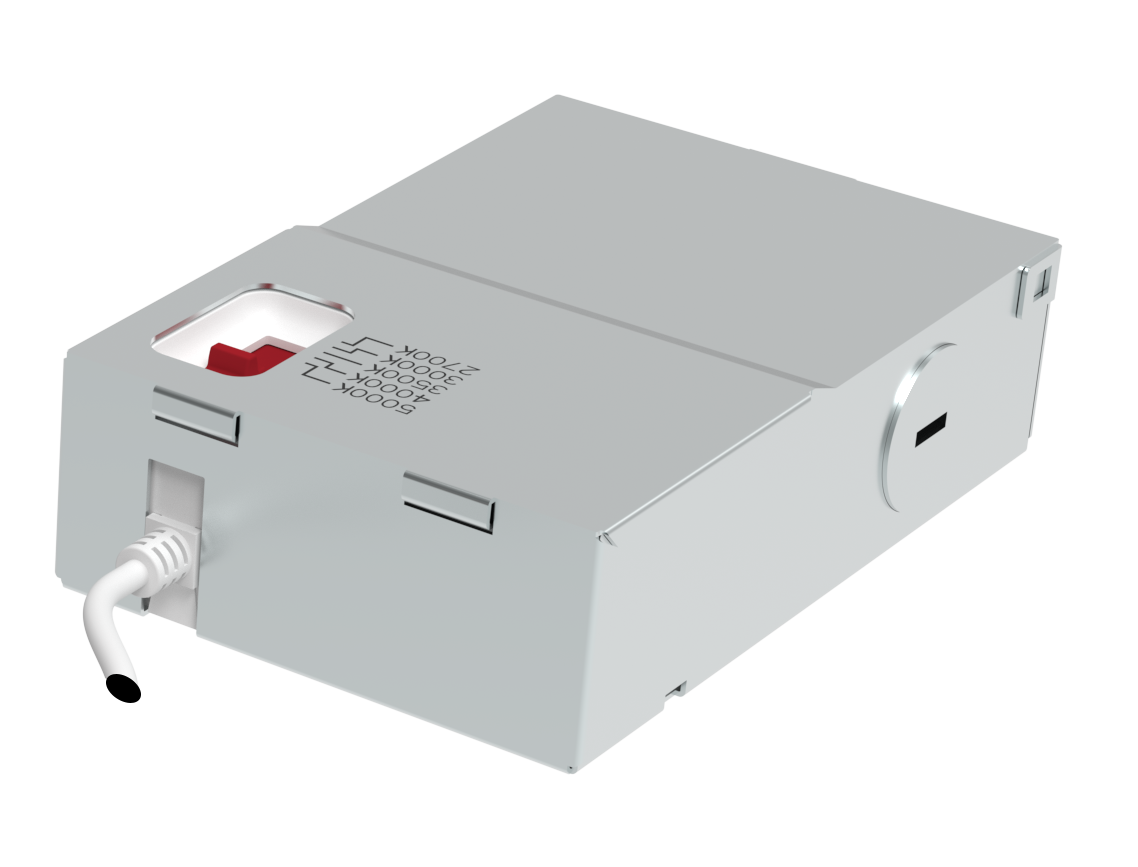

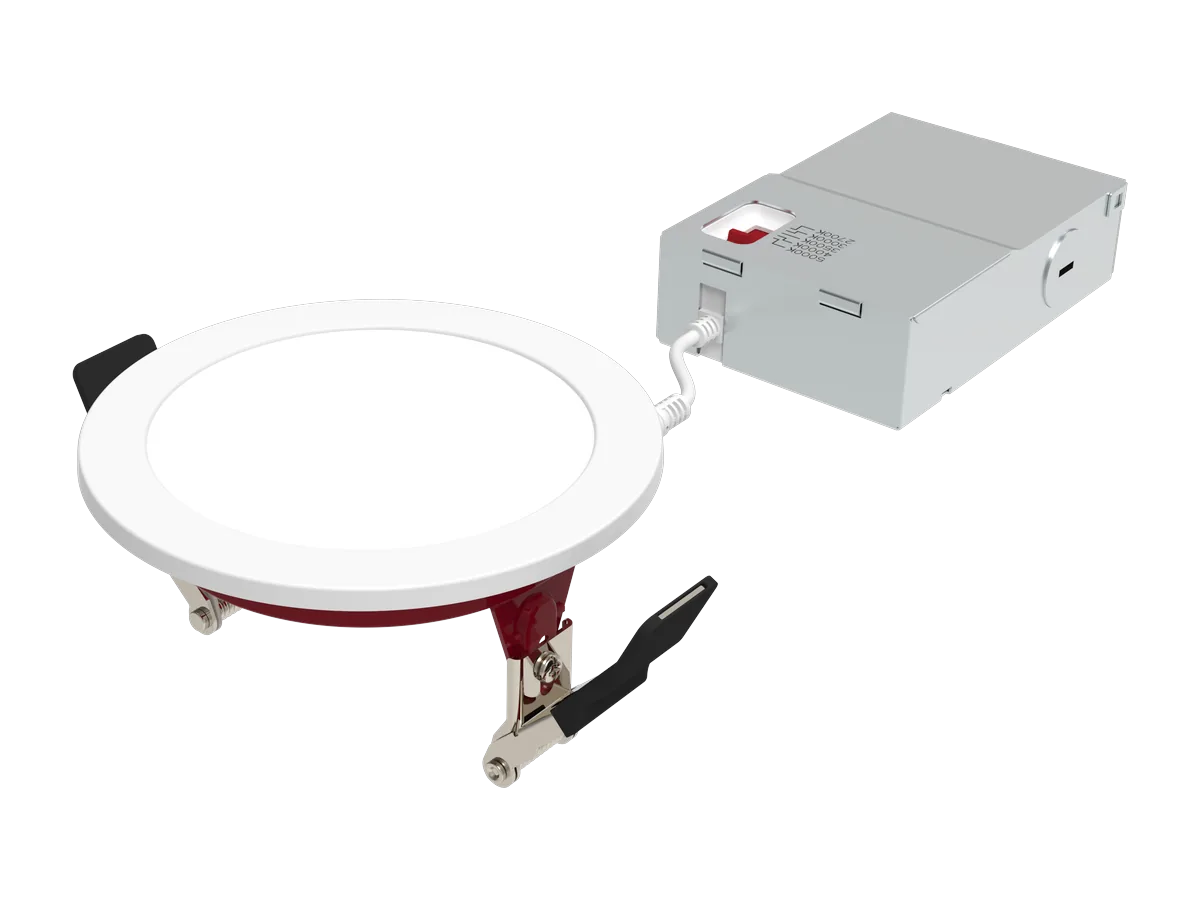

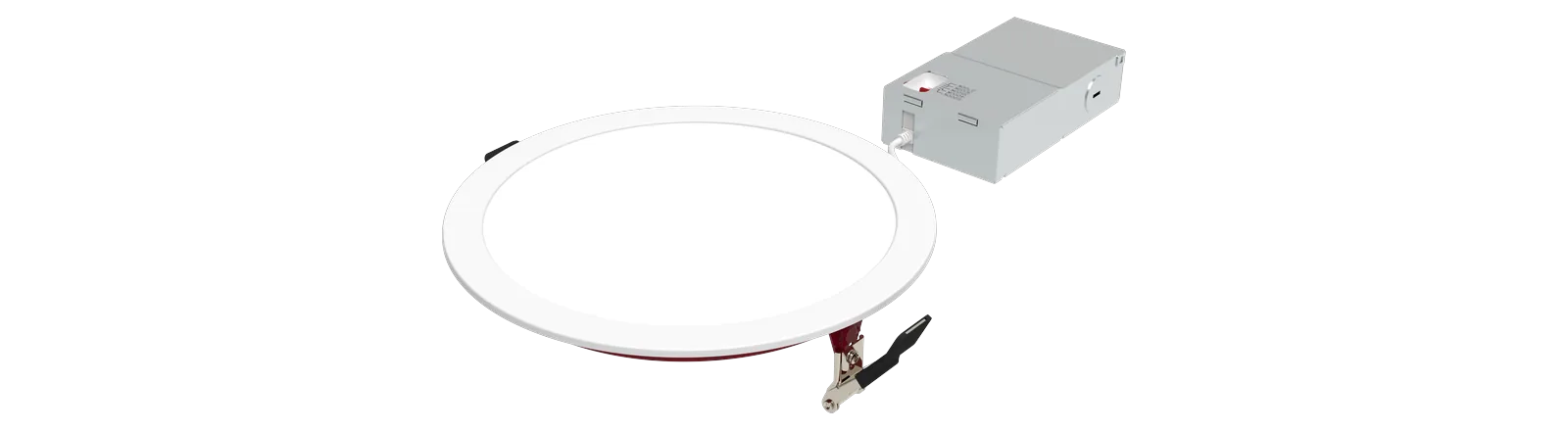

When you drop a SafeZone into a fire-rated ceiling, you’re installing a rated assembly — not just a fixture. Wafer disk (spring-clip cutout install) · Plug-n-Play J-Box (remote · 5-CCT dip on the face) · optional T-Grid Installation Kit (4″ / 6″ · lay-in to 2×2 or 2×4 grid without cutting tile). Click each component to see what it does and why it matters under UL 263 and ASTM E119.

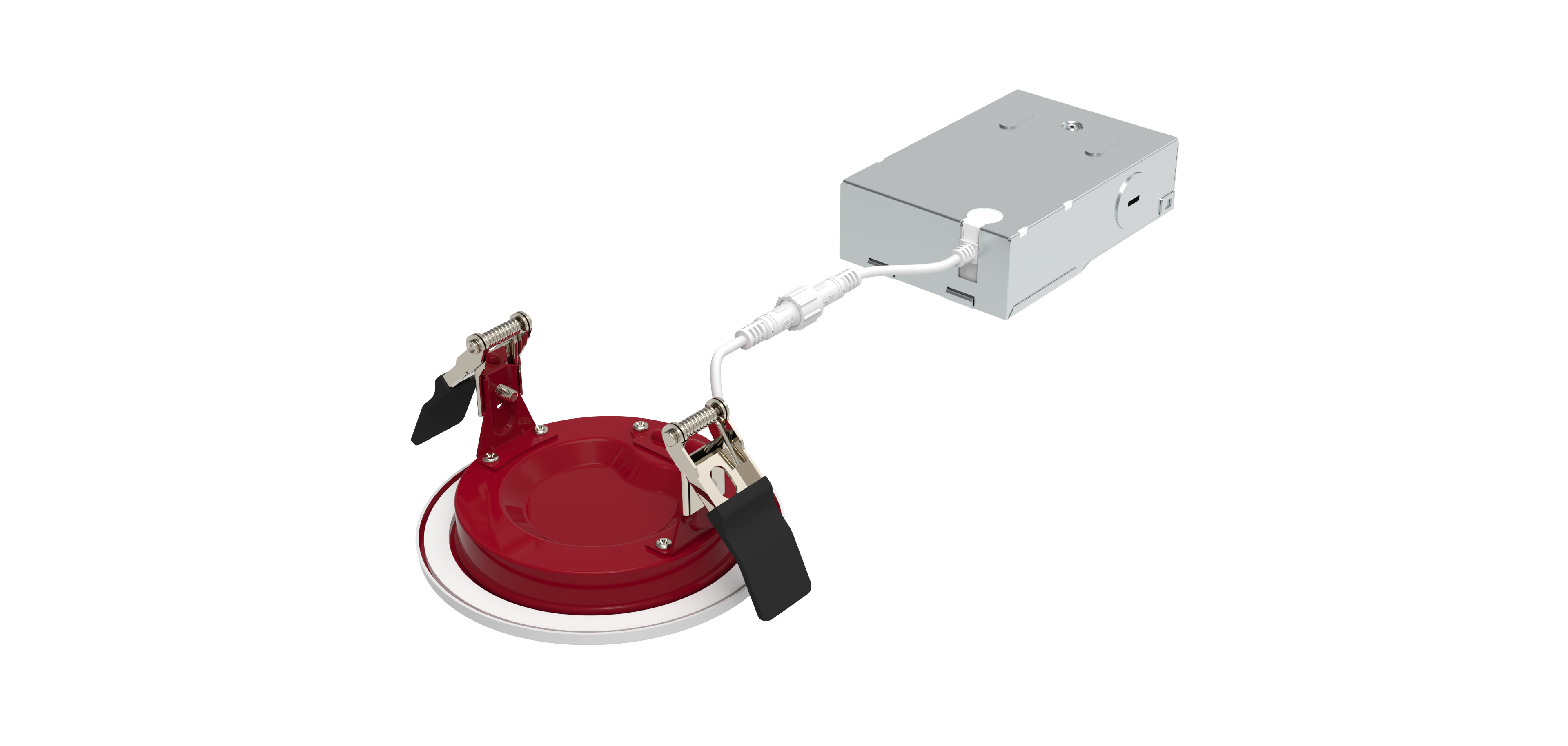

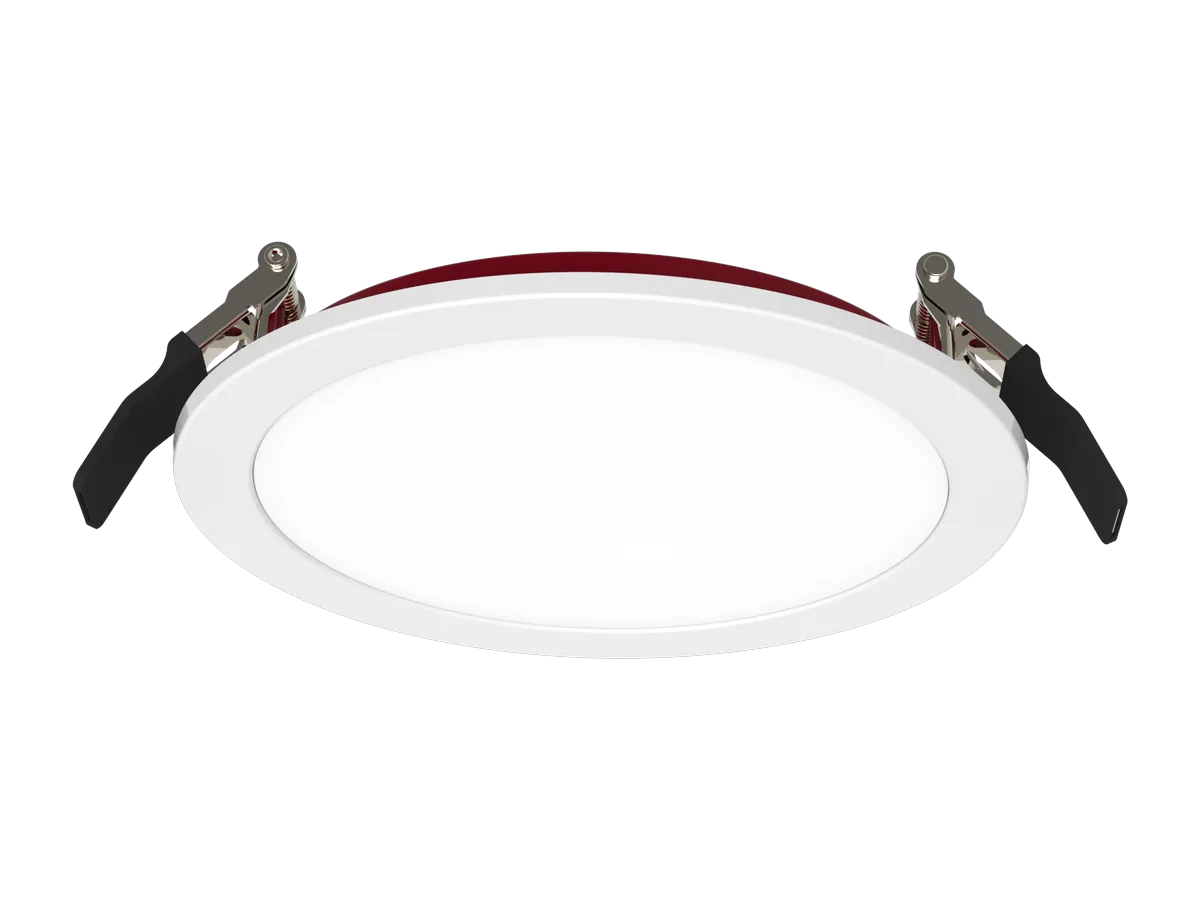

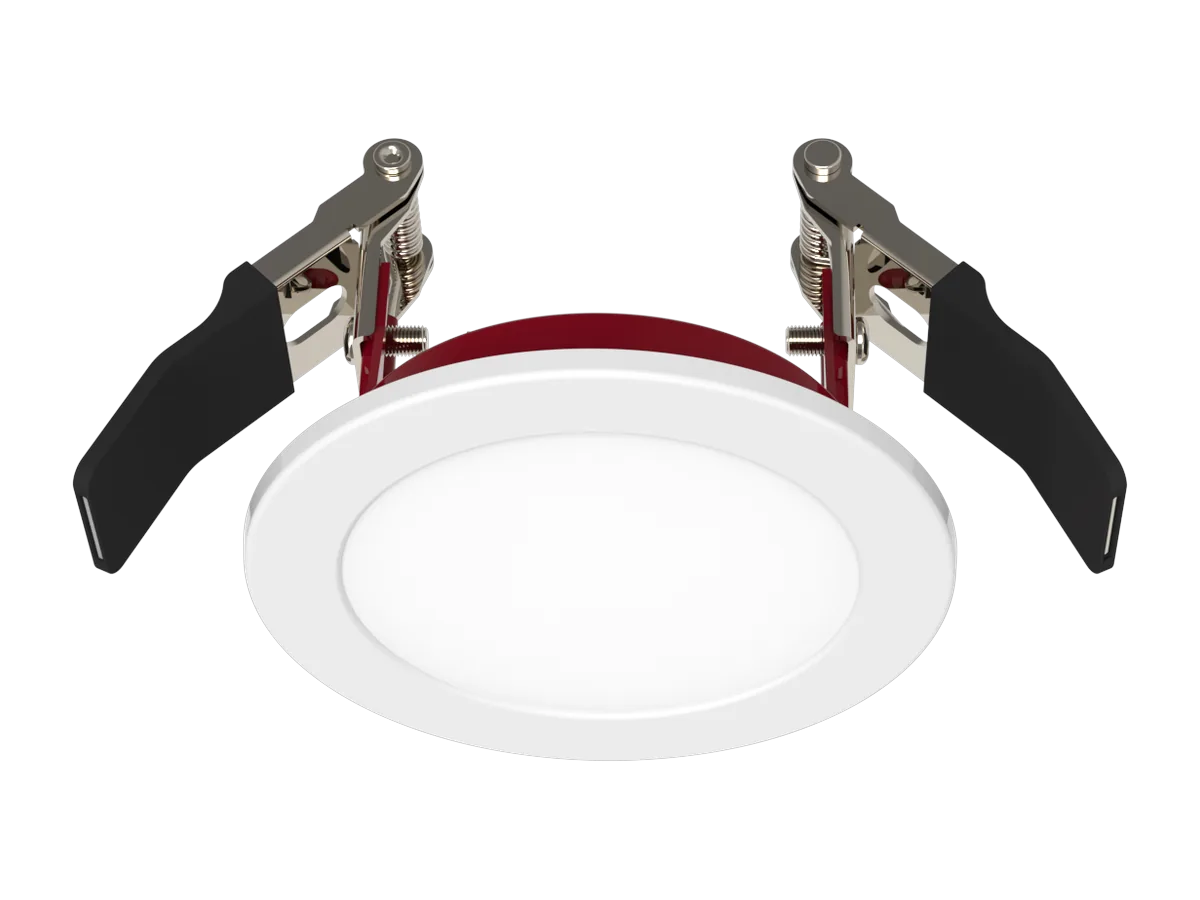

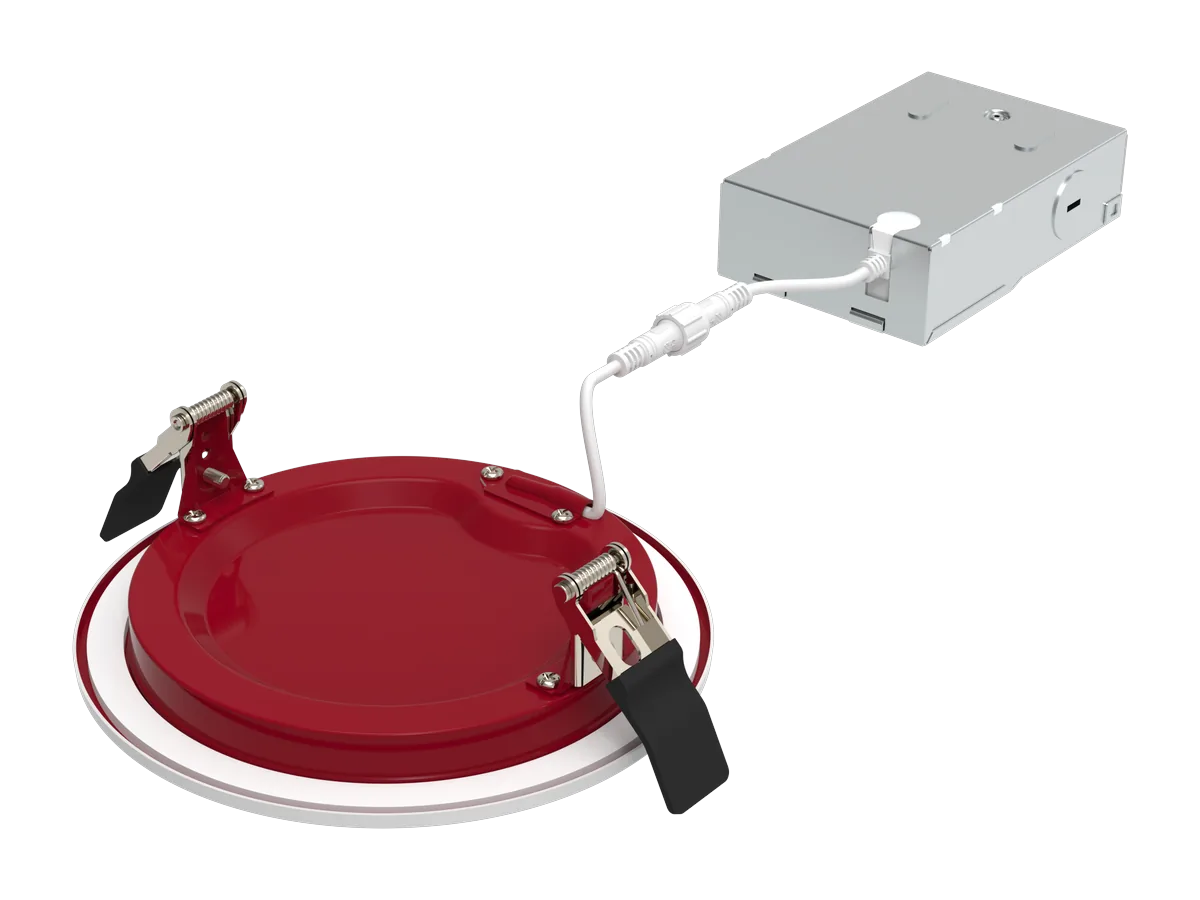

The Radius SafeZone wafer disk — a stamped aluminum heat-sink with frosted polycarbonate lens, edge-lit PMMA optic, and spring-loaded retention clips. Drops into a standard cutout (3-9/16″ for 3″ · 4-3/4″ for 4″ · 6-13/16″ for 6″ · 8-7/8″ for 8″) and pops in with the clips. No can, no separate housing, no enclosure box. The aluminum housing has been independently tested as part of the rated assembly to UL 263 and ASTM E119 — meaning the disk + J-Box hold 2-hour fire resistance together with no tent above. A plenum-rated quick-connector cable links the wafer to the remote J-Box (Component 2).
See EM drivers, T-Grid kits & CS sensors →Photometric Distribution

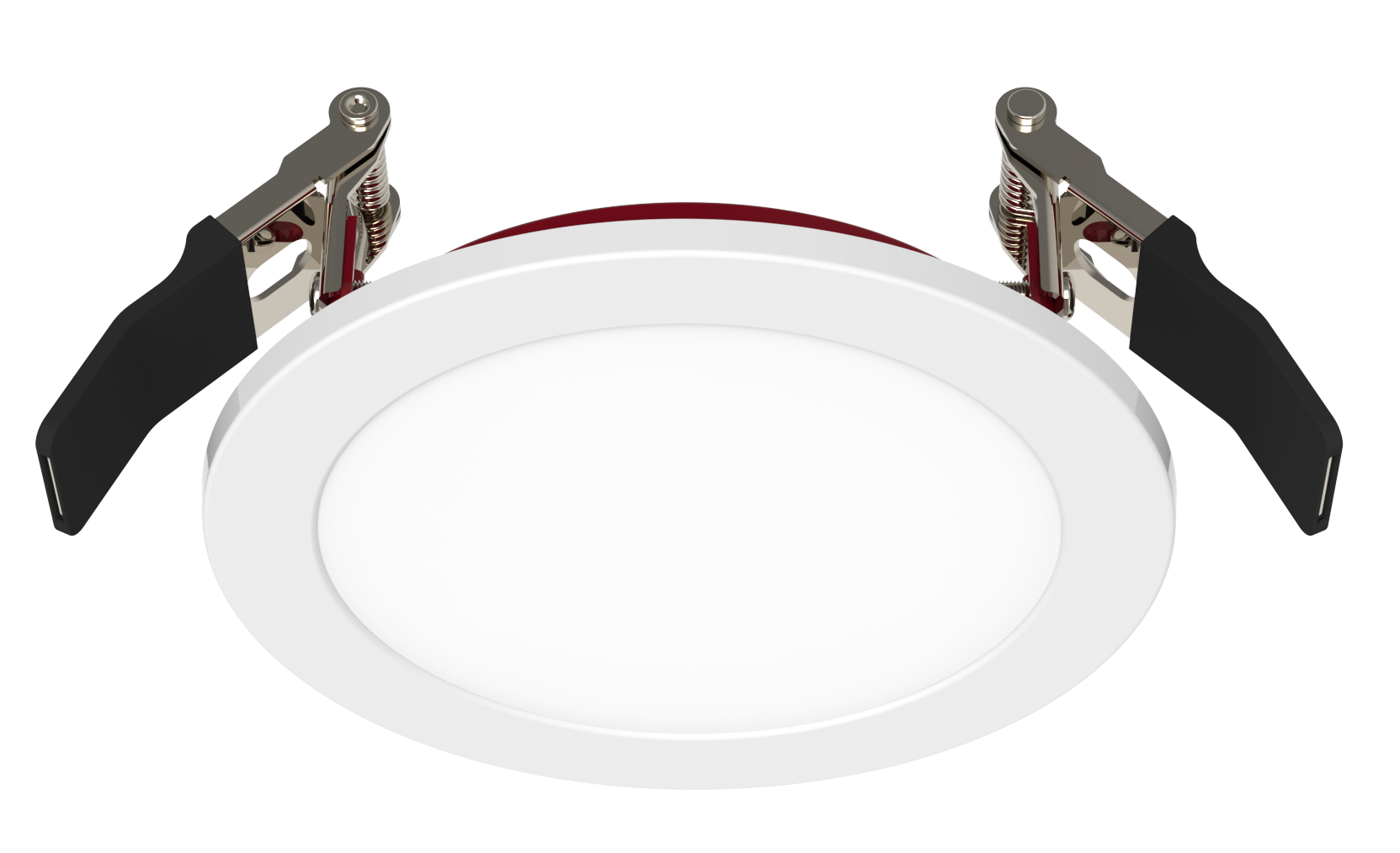

>110° even-distribution PMMA beam. Pick a size and CCT.

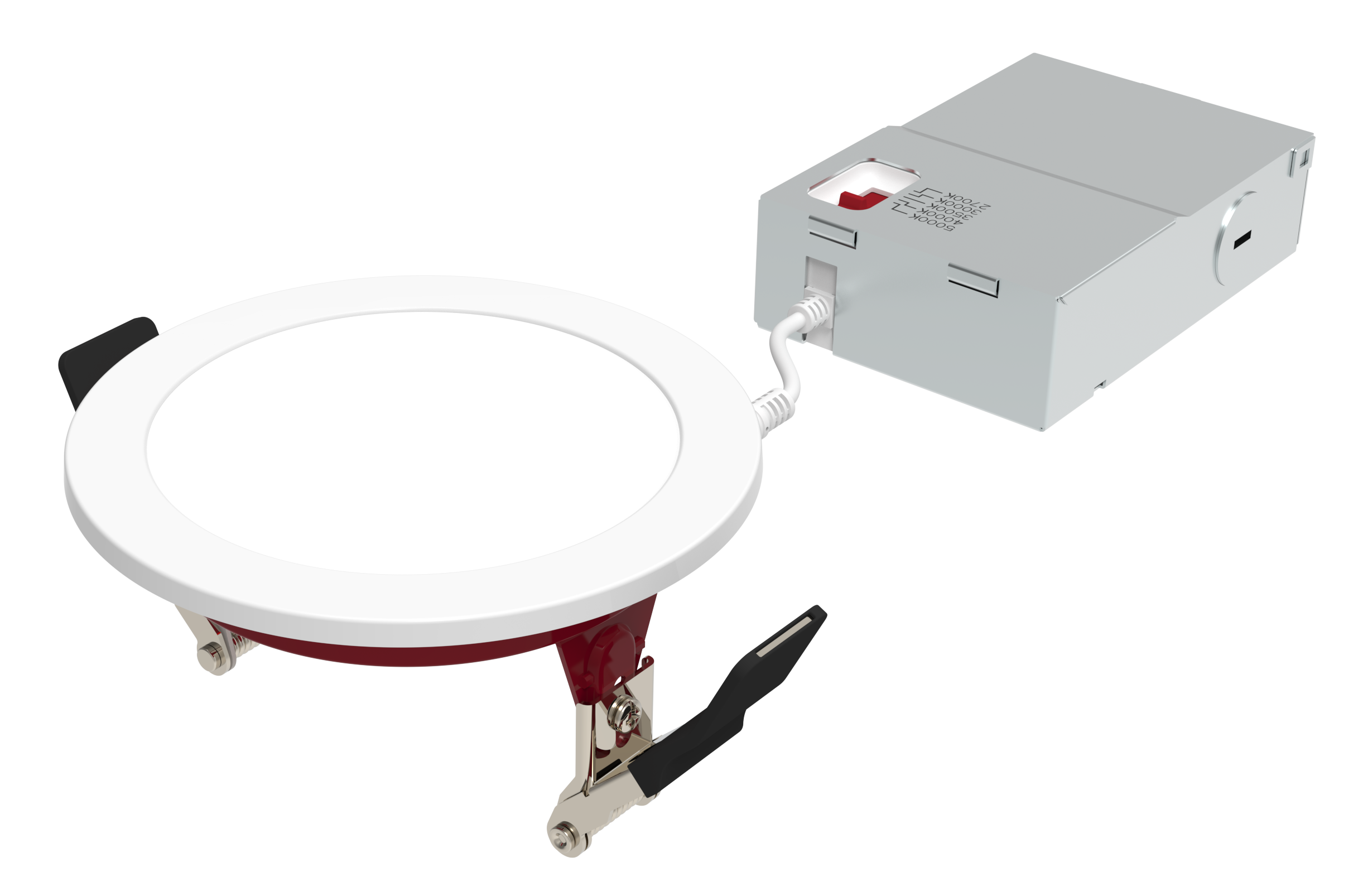

Radius SafeZone shares the Plug-n-Play J-Box / edge-lit PMMA optical platform with Radius-II — same beam shape, same single 110° even-distribution PMMA cone, with SafeZone catalog lumens (550 / 957 / 1,330 / 1,692 lm @ 4000K). The polar plots below are the real LM-79 IES distribution from the shared platform — tested by EVERFINE on a GO-2000B goniophotometer (2024-02 / 2024-06). 3″ (LDRS3) and 8″ (LDRS8) photometrics not yet published — flagged for engineering follow-up. SafeZone-labeled IES files for all 4 sizes are pending lab cert and will be re-published to WorkDrive once received.
LDRS615-RSZ5/F 4000K.IES (pending re-cert)
>Five companions. One catalog. One rated PO.
Five drop-in companions for the LDRS Radius SafeZone — controls, egress, and rough-in — on the same PO as the wafer.
Two contrLS by CS Bluetooth-Mesh PIR sensors (8 FT in-unit · 40 FT high-bay) ·
one constNT CRCU-EM/JBM 15W Universal-Mount emergency driver (≥90 min · UL 924) ·
two T-Grid Installation Kits (LDRS-4R1/TGK · LDRS-6R1/TGK).
UL 263 / ASTM E119 / JA8 / Wet pedigree throughout. Dimmer compatibility lives in §3 spec body (12-SKU Leviton + Lutron ladder per datasheet) — dimmers are an installer/electrician sourcing choice, not a fixture-line companion.
>Configure Your Radius SafeZone
Size + Pack Size → one of 4 base SKUs · every config is 2-hour fire-rated. ★ default · QS QuickShip · MTO Made-to-Order · + companion (EMB, CS sensor, T-Grid · separate line items) · CCT on J-Box dip (§5)
/6PK) for project-scale buys — distributors stock 6-up cartons standard. Trim ships Flat (/F) across all configurations per datasheet. >Documentation & Resources
Everything specifiers, contractors, and property managers need to spec, install, and certify Radius SafeZone — the data sheet (on disk at /uploads/LDRS-Radius-SafeZone_Datasheet.pdf, WorkDrive URL pending), the IES photometric bundle (3″ and 8″ pending lab cert; 4″ + 6″ share the Radius-II distribution platform), and the live submittal generator. UL 263 Test Report, Sell Sheet, Installation Guide, and ENERGY STAR Certificate are pending registration. All URLs marked PENDING below are placeholder.
>The full multi-fMILY collection.
Radius SafeZone is the fire-rated SKU set in the Radius family — the 2-hour UL 263 + ASTM E119 hammer for fire-rated corridors, stairwells, and rated bath / wet assemblies in multifamily. It shares the Plug-n-Play J-Box architecture and 5-CCTselect platform with Radius-II (the non-fire-rated sibling) and Radius-I (the original Radius). Pick SafeZone where the assembly is rated; pick Radius-II elsewhere on the same property for spec consistency.
>For the whole property.
Radius SafeZone handles the 2-hour fire-rated recessed install — rated corridors, stairwells, rated bath / wet assemblies, and any membrane penetration cited under IBC § 712 / § 711 / NFPA 101 § 8.6.5. These cross-line fixtures handle everything else on the property — parking lot, walkways, garage, leasing office — same CS controls platform, same factory, same warranty. Specify them together for a single-source multi-family package.
Built for turn-over speed.
Hundreds of thousands ship from five US warehouses — 3-5 day QS lead means a unit refurb between tenants doesn't wait on lighting. Layouts back in 48 hours, quotes and rebate matches reply same business day. 24-pack contractor cartons standard.
Stack the California rebates.
Radius SafeZone is JA8 / Title-24 compliant and ENERGY STAR certified — the hooks that unlock CalEnergyWise, PG&E / SCE / SDG&E utility rebates, and HUD multi-family programs. Typical offset on a property-wide retrofit: 25-50% of fixture cost (SafeZone is PRO+ tier — ENERGY STAR + JA8 paths apply at every IOU). The fire-rated combination plays into HUD and ICC code-compliance grants in many AHJ jurisdictions. We'll match your APN and pull the paperwork. Note: SafeZone is not DLC-listed; commercial rebate ladders that require DLC don't apply.
