contrⒶLS · by SILVAIR · Occupancy sensor
MSM-HTI/08P1 /NLC
Fixture-integrated microwave sensor · 1-pin · SILVAIR firmware
Microwave occupancy sensor (5.8 GHz) running SILVAIR firmware for enterprise networked lighting control. Plugs into the luminaire's 1-pin audio-jack port and mounts up to 13 ft. Zones, scenes and daylight harvesting are set from the SILVAIR app, and building systems read the network through open APIs.
Sensor
OCCUPIED
Light level
100%
Hold
—
Levels and timing are set in the SILVAIR app; the bar is illustrative.
Downloads
Documents & tools
Documents
- DatasheetMSM-HTI/08P1/NLCPDF ↓
- Quick SheetMSM-HTI/08P1/NLCPDF ↓
- Sell SheetMSM-HTI/08P1/NLCPDF ↓
- contrⒶLS Product GuideAll platforms · selection and orderingPDF ↓
Tools & support
Model specifications
MSM-HTI/08P1/NLC
Performance
| Detection | Microwave · 5.8 GHz |
|---|---|
| Max mounting height | 13 ft (4 m) |
| Daylight harvesting | Yes |
| Zone control | Per zone |
Electrical
| Input voltage | 12–24 Vdc |
|---|---|
| Connector | 1-pin audio jack |
Network
| Network | Wireless mesh · SILVAIR |
|---|---|
| Scale | 500+ nodes |
| Commissioning | SILVAIR app |
| BMS integration | Open APIs |
Construction
| Rating | IP20 |
|---|---|
| Operating temp | −4 °F to 122 °F (−20 °C to 50 °C) |
| Finish | White |
| Application | Fixture-integrated |
Compliance
| Certification | UL Listed |
|---|---|
| DLC NLC | Listed · V5.2 |
| Warranty | — |
How it works
Enterprise controls on the SILVAIR network.
Zones
Granular zone control
Group fixtures into zones and scenes from the SILVAIR app.
Daylight
Daylight harvesting
Trims output when daylight is available.
Integrate
Open APIs
Building management systems read and act on the network through open APIs.
Scale
500+ nodes
Enterprise-size networks on one platform.
Detection
Rated to 13 ft.
Mounting · side elevation, to scale13 ft max
Adjustable on siteenterprise nlc
Max mount
13 ftCoverage area not published on the datasheet.
Input
12–24 VdcFrom the host luminaire.
Scale
500+ nodesPer SILVAIR network.
Set-up
AppSILVAIR app commissioning.

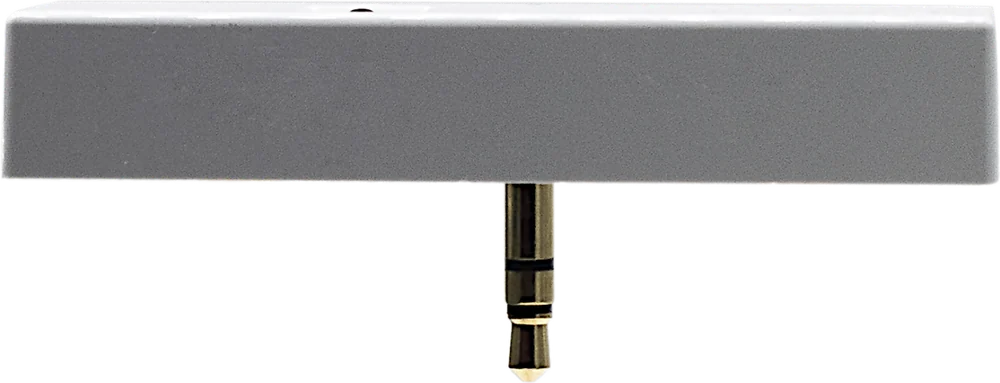

Connector
1-pin audio jack
Plugs into the luminaire's 1-pin sensor port.
Where it fits
Luminaires that take this sensor
Platforms
Same plug-in idea, three ways to run it.
Bi-Level
Standalone
- Network
- None · standalone
- Set up with
- IR remote, dials or DIP
- Scale
- One fixture
- Input
- 10–15 Vdc · or line voltage
- Reporting
- —
- DLC NLC
- No · standalone
Same body, Bi-Level firmware
MSM-HTI/08P1/BLSby ⒶCS
Mesh + cloud
- Network
- Wireless mesh
- Set up with
- ⒶCS app · QR code
- Scale
- Up to 500 nodes
- Input
- 12–24 Vdc · or line voltage
- Reporting
- Cloud dashboard · rebate export
- DLC NLC
- Listed · V5.2
Nearest ⒶCS fixture sensor
MSP-SRI/903P1/ACSby SILVAIR
Enterprise NLC
- Network
- Wireless mesh · SILVAIR
- Set up with
- SILVAIR app
- Scale
- 500+ nodes
- Input
- 12–24 Vdc
- Reporting
- BMS via open APIs
- DLC NLC
- Listed · V5.2
Order
Read the catalog number
MSM
Microwave sensor
HTI
Indoor
08P1
Series 08 · 1-pin
/NLC
by SILVAIR
Ordering information
At a glance
| Catalog number | MSM-HTI/08P1/NLC |
|---|---|
| UPC | — |
| Listing | UL Listed |
| DLC | DLC NLC Listed · V5.2 |
| Warranty | — |
| Brand | contrⒶLS |
| Platform | by SILVAIR |
| Manufacturer | Archipelago Lighting Group |
Not sure which platform?
Standalone, mesh or enterprise.
Start from the job: one fixture that dims itself, a building you want to see and report on, or a network that talks to the BMS.
Rebates
Check rebates before you specify.
Utility programs for lighting controls vary by service territory. The Rebate Center shows what applies to your site.
