contrⒶLS · Bi-Level · Occupancy sensor
MSM-MTO/7D /BLS
Compact microwave sensor · DIP switch · IP20

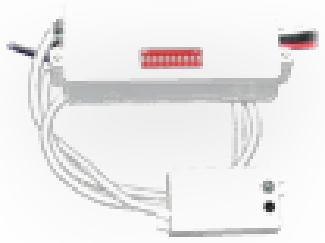

Compact microwave occupancy sensor for low ceilings up to 8 ft. Low profile for surface-mount and recessed fixtures. Wires in on 10–15 Vdc. Hold time, stand-by level and daylight harvesting are set with DIP switches. Standalone: no network, no app.
Sensor
OCCUPIED
Light level
100%
Hold
—
Stand-by shown at the 10% floor of the 10–100% range.
Downloads
Documents & tools
Documents
- DatasheetMSM-MTO/7D/BLSPDF ↓
- Quick SheetMSM-MTO/7D/BLSPDF ↓
- Sell SheetMSM-MTO/7D/BLSPDF ↓
- contrⒶLS Product GuideAll platforms · selection and orderingPDF ↓
Tools & support
Model specifications
MSM-MTO/7D/BLS
Performance
| Detection | Microwave · 5.8 GHz |
|---|---|
| Max mounting height | 8 ft (2.4 m) |
| Detection range | Adjustable · DIP switch |
| Hold time | 5 s – 30 min |
| Stand-by dimming | 10 – 100% |
| Daylight harvesting | Yes |
Electrical
| Input voltage | 10–15 Vdc |
|---|---|
| Connector | Wire-in |
Installation
| Commissioning | DIP switch |
|---|---|
| Network | None · standalone |
Construction
| Rating | IP20 |
|---|---|
| Operating temp | −4 °F to 122 °F (−20 °C to 50 °C) |
| Finish | White |
Compliance
| Certification | UL Listed |
|---|---|
| DLC NLC | No · standalone sensor |
| Warranty | — |
How it works
One sensor, one luminaire. Nothing to network.
Occupied
Full output on motion
The sensor sees movement and the fixture runs at full output.
Vacant
Hold time, then stand-by
After the hold time (5 s – 30 min) the light drops to its stand-by level instead of switching off.
Daylight
Holds back when it's bright
The built-in daylight sensor keeps the fixture from running when there is enough daylight.
Set-up
DIP switches, on site
Hold time, stand-by level and daylight harvesting are set with DIP switches.
Detection
Rated to 8 ft.
Mounting · side elevation, to scale8 ft max
Adjustable on sitestandalone
Hold time
5 s – 30 minSet with the remote.
Stand-by level
10 – 100 %Where the light rests when the space is empty.
Detection range
DIP adj.Adjustable with DIP switches. Pattern not dimensioned on the datasheet.
Daylight
YesBuilt-in daylight harvesting sensor.
Connector
Wire-in
Low-voltage wire-in, 10–15 Vdc.
