contrⒶLS · Bi-Level · Occupancy sensor
MSM-HTI/407 /BLS
Line-voltage microwave sensor · wire-in · IP20

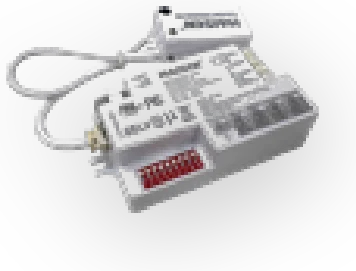

Wire-in microwave occupancy sensor for retrofits. Runs directly on 120–277 V AC, so no low-voltage sensor port is needed. Mounts up to 20 ft. Hold time, sensitivity, stand-by level and daylight harvesting are set with DIP switches on the sensor. Standalone: no network, no app.
Sensor
OCCUPIED
Light level
100%
Hold
—
Stand-by shown at the 10% floor of the 10–100% range.
Downloads
Documents & tools
Documents
- DatasheetMSM-HTI/407/BLSPDF ↓
- Quick SheetMSM-HTI/407/BLSPDF ↓
- Sell SheetMSM-HTI/407/BLSPDF ↓
- contrⒶLS Product GuideAll platforms · selection and orderingPDF ↓
Tools & support
Model specifications
MSM-HTI/407/BLS
Performance
| Detection | Microwave · 5.8 GHz |
|---|---|
| Max mounting height | 20 ft (6 m) |
| Detection range | Adjustable · DIP switch |
| Hold time | 5 s – 30 min |
| Stand-by dimming | 10 – 100% |
| Daylight harvesting | Yes |
Electrical
| Input voltage | 120–277 V AC |
|---|---|
| Connector | Wire-in · line voltage |
Installation
| Commissioning | DIP switch |
|---|---|
| Network | None · standalone |
Construction
| Rating | IP20 |
|---|---|
| Operating temp | −4 °F to 122 °F (−20 °C to 50 °C) |
| Finish | White |
Compliance
| Certification | UL Listed |
|---|---|
| DLC NLC | No · standalone sensor |
| Warranty | — |
How it works
One sensor, one luminaire. Nothing to network.
Occupied
Full output on motion
The sensor sees movement and the fixture runs at full output.
Vacant
Hold time, then stand-by
After the hold time (5 s – 30 min) the light drops to its stand-by level instead of switching off.
Daylight
Holds back when it's bright
The built-in daylight sensor keeps the fixture from running when there is enough daylight.
Set-up
DIP switches, on site
Hold time, sensitivity, stand-by level and daylight harvesting are set with DIP switches before the sensor goes up.
Detection
Rated to 20 ft.
Mounting · side elevation, to scale20 ft max
Adjustable on sitestandalone
Hold time
5 s – 30 minSet with the remote.
Stand-by level
10 – 100 %Where the light rests when the space is empty.
Detection range
DIP adj.Adjustable with DIP switches. Pattern not dimensioned on the datasheet.
Daylight
YesBuilt-in daylight harvesting sensor.
Connector
Wire-in · line voltage
120–277 V AC direct. No driver sensor port required.
Where it fits
Luminaires that take this sensor
Platforms
Same plug-in idea, three ways to run it.
Bi-Level
Standalone
- Network
- None · standalone
- Set up with
- IR remote, dials or DIP
- Scale
- One fixture
- Input
- 10–15 Vdc · or line voltage
- Reporting
- —
- DLC NLC
- No · standalone
by ⒶCS
Mesh + cloud
- Network
- Wireless mesh
- Set up with
- ⒶCS app · QR code
- Scale
- Up to 500 nodes
- Input
- 12–24 Vdc · or line voltage
- Reporting
- Cloud dashboard · rebate export
- DLC NLC
- Listed · V5.2
Nearest ⒶCS line-voltage sensor
MSP-SRI/20CM/HD/ACSby SILVAIR
Enterprise NLC
- Network
- Wireless mesh · SILVAIR
- Set up with
- SILVAIR app
- Scale
- 500+ nodes
- Input
- 12–24 Vdc
- Reporting
- BMS via open APIs
- DLC NLC
- Listed · V5.2
Nearest SILVAIR microwave
MSM-SRI/903P1/NLCOrder
Read the catalog number
MSM
Microwave sensor
HTI
Indoor
407
Series 407 · wire-in
/BLS
Bi-Level
Ordering information
At a glance
| Catalog number | MSM-HTI/407/BLS |
|---|---|
| UPC | — |
| Listing | UL Listed |
| DLC | Not applicable · standalone |
| Warranty | — |
| Brand | contrⒶLS |
| Platform | Bi-Level |
| Manufacturer | Archipelago Lighting Group |
