contrⒶLS · Bi-Level · Occupancy sensor
MSP-HTO/09P3/5D /BLS
Outdoor PIR occupancy sensor · 5 dials · 3-pin · IP65

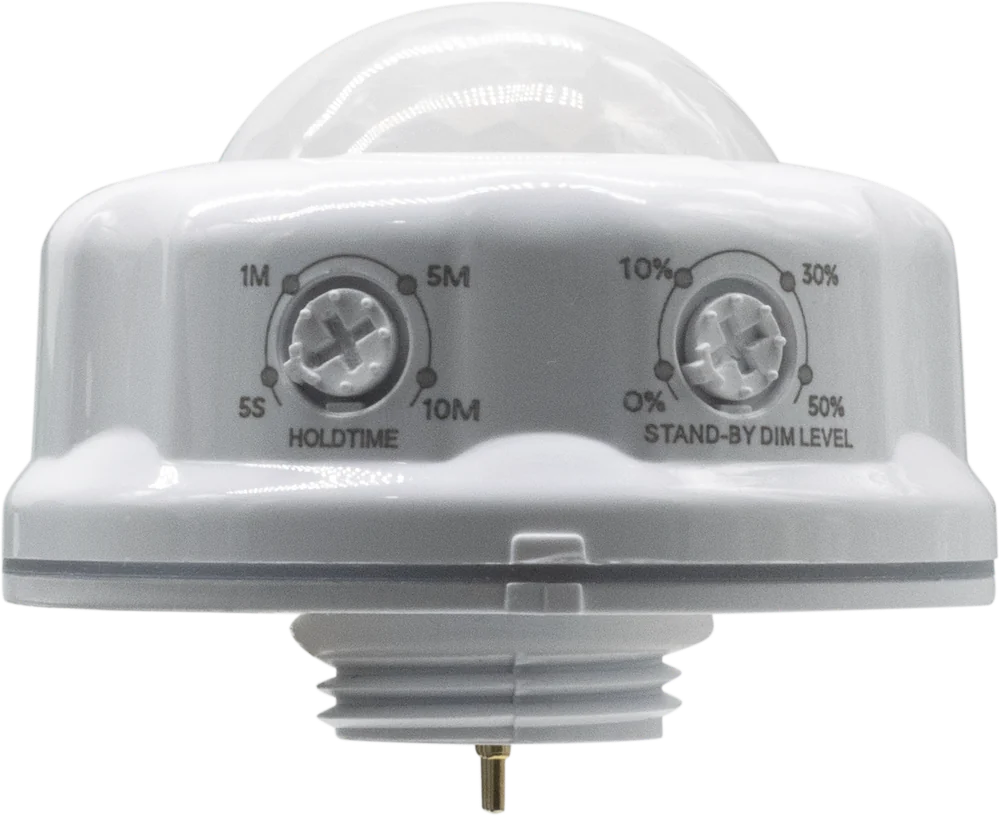

Outdoor PIR occupancy sensor with five dials on the body: sensitivity, hold time, daylight threshold, stand-by level and detection range. Set it by hand with no tools, or from the floor with the IR remote. Mounts up to 49 ft on luminaires with a 3-pin sensor port. Rated IP65. No network, no app.
Sensor
OCCUPIED
Light level
100%
Hold
—
Stand-by shown at the 10% floor of the 10–100% range.
Downloads
Documents & tools
Documents
- DatasheetMSP-HTO/09P3/5D/BLSPDF ↓
- Quick SheetMSP-HTO/09P3/5D/BLSPDF ↓
- Sell SheetMSP-HTO/09P3/5D/BLSPDF ↓
- contrⒶLS Product GuideAll platforms · selection and orderingPDF ↓
Tools & support
Model specifications
MSP-HTO/09P3/5D/BLS
Performance
| Detection | Passive infrared (PIR) |
|---|---|
| Max mounting height | 49 ft (15 m) |
| Detection range | Adjustable · dial or IR remote |
| Hold time | 5 s – 30 min |
| Stand-by dimming | 10 – 100% |
| Daylight harvesting | Yes · dial threshold |
Electrical
| Input voltage | 10–15 Vdc |
|---|---|
| Connector | 3-pin outdoor |
Installation
| Commissioning | IR remote or 5 dials |
|---|---|
| Network | None · standalone |
Construction
| Rating | IP65 |
|---|---|
| Operating temp | −22 °F to 140 °F (−30 °C to 60 °C) |
| Finish | White |
Compliance
| Certification | UL Listed |
|---|---|
| DLC NLC | No · standalone sensor |
| Warranty | — |
How it works
One sensor, one luminaire. Nothing to network.
Occupied
Full output on motion
The sensor sees movement and the fixture runs at full output.
Vacant
Hold time, then stand-by
After the hold time (5 s – 30 min) the light drops to its stand-by level instead of switching off.
Daylight
Holds back when it's bright
The built-in daylight sensor keeps the fixture from running when there is enough daylight.
Set-up
Five dials, or the remote
Sensitivity, hold time, daylight threshold, stand-by level and range each have their own dial. No app or software.
Detection
Rated to 49 ft.
Mounting · side elevation, to scale49 ft max
Adjustable on sitestandalone
Hold time
5 s – 30 minDial or remote.
Stand-by level
10 – 100 %Dial or remote.
Detection range
DialDial or IR remote. Pattern not dimensioned on the datasheet.
Daylight
DialDaylight threshold has its own dial.
Connector
3-pin outdoor
Plugs into the luminaire's 3-pin sensor receptacle. 10–15 Vdc input.
