contrⒶLS · by ⒶCS · Mesh controller

MSX-CTI/LV20/ACS

Line-voltage mesh controller · J-box mount · 500 nodes

Line-voltage mesh controller for retrofits. Wires to 120–277 V AC with L, N and G screw terminals and mounts in a single-gang J-box, replacing a line-voltage switch. Anchors the ⒶCS mesh, coordinating up to 500 sensor and switch nodes, and links it to the ⒶCS app for commissioning and reporting.

Datasheet Product Guide Compare Platforms
100ftRange · LOS
120–277V ACInput
500nodesPer mesh
<2.0WTypical
UL · FCC · RoHSIP20DLC NLC Listed · V5.2

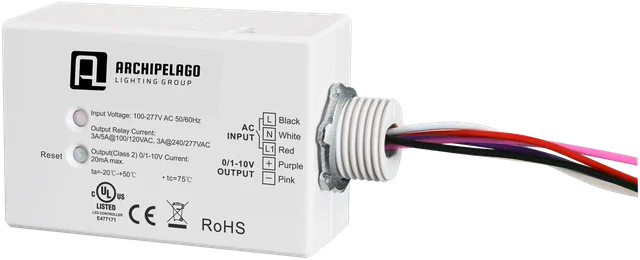

MSX-CTI/LV20/ACS mesh controller

Mesh

PAIRING

Nodes

48

Cloud

LINKED

Illustrative: pairing, then the cloud drops and the mesh keeps running locally.

Downloads

Documents & tools

Documents

Tools & support

QR code: download the ACS app from the App Store

ⒶCS appScan to download for iPhone. Commission, configure and manage the network.
App Store · iOS

Model specifications

MSX-CTI/LV20/ACS

Performance

RoleMesh anchor + relay
Range100 ft clear line of sight
Mesh nodesUp to 500
Multi-hopSelf-healing
Power supplyInternal

Electrical

Input120–277 V AC
Power<2.0 W typical
WirelessMesh 1.1
ChannelsAdaptive frequency hopping
WiringL · N · G screw terminals

Installation

MountSingle-gang J-box
CommissionⒶCS app
PairingQR code
Status LEDPairing + network health
RetrofitReplaces a line-voltage switch

Construction

HousingWhite ABS
AntennaInternal PCB
Operating temp14 °F to 122 °F
ColorWhite
ClassClass II

Compliance

ListingsUL · FCC · RoHS
DLC NLCListed · V5.2
Title 24§130.1 · §140.7
ASHRAE / IECC90.1 · C405.2
Warranty—

How it works

One controller anchors the whole mesh.

ACS mesh: fixtures relay to each other; the app commissions the network.CTRLSENSORS + SWITCHES JOIN AS NODES; THE CONTROLLER ANCHORSLine-voltage anchor for the mesh · up to 500 nodesⒶCS appQR-code onboardingcommission · configure · scheduleⒶCS clouddaily energy + occupancymulti-site dashboard · rebate exportCLOUD UNREACHABLE → LOCAL CONTROL CONTINUES

Anchor

Coordinates the mesh

Anchors up to 500 sensor and switch nodes per network.

Retrofit

Goes where the switch was

Single-gang J-box mount with L, N and G screw terminals.

Status

Status LED

Shows pairing and network health at a glance.

Resilient

Cloud drops, lights don't

Local occupancy, daylight and schedules continue unchanged. Reports queue and upload on reconnect.

Range

100 ft node to node, clear line of sight.

Mesh range · top-down, to scalecontroller centered

Mesh range, to scale: 100 ft node to node in clear line of sight, 30 to 50 ft through interior walls.CTRL100 FTRINGS EVERY 20 FT · OUTER RING 100 FT CLEAR LINE OF SIGHTSHADED BAND 30–50 FT · THROUGH STANDARD INTERIOR WALLS

Placementdatasheet values

Clear line of sight

100 ft

Node to node.

Through walls

30–50 ft

Standard interior walls.

Mesh nodes

500

Sensors + switches per network.

Placement

1 per zone

Or one per floor, for resilience.

Connector

Line voltage · L · N · G

Screw terminals, 120–277 V AC. Mismatched voltage damages the unit.

Connection · Line voltage · L · N · Gfrom the datasheet wiring diagram

Line-voltage wiring: line, neutral and ground from the branch circuit to screw terminals.Branch circuit120–277 V ACDeviceL · N · G screw terminalsLED driverluminaireL · lineN · neutralG · groundTO DRIVER

Screw terminals, 120–277 V AC. Mismatched voltage damages the unit.

Where it fits

Where it goes

Single-gang J-boxReplaces a line-voltage wall switchL · N · G

Platforms

Same plug-in idea, three ways to run it.

Bi-Level

Standalone

Network
None · standalone
Set up with
IR remote, dials or DIP
Scale
One fixture
Input
10–15 Vdc · or line voltage
Reporting
—
DLC NLC
No · standalone
No Bi-Level equivalent: standalone sensors have no network.

by ⒶCS

Mesh + cloud

Network
Wireless mesh
Set up with
ⒶCS app · QR code
Scale
Up to 500 nodes
Input
12–24 Vdc · or line voltage
Reporting
Cloud dashboard · rebate export
DLC NLC
Listed · V5.2
You are here

by SILVAIR

Enterprise NLC

Network
Wireless mesh · SILVAIR
Set up with
SILVAIR app
Scale
500+ nodes
Input
12–24 Vdc
Reporting
BMS via open APIs
DLC NLC
Listed · V5.2

SILVAIR controller · no datasheet yet

MSX-CTI/LV5/NLC

Order

Read the catalog number

MSX

Controller

CTI

Indoor

LV20

Line voltage

/ACS

by ⒶCS

MSX-CTI/LV20/ACS
Request A QuoteFind A Rep

Ordering information

At a glance

Catalog numberMSX-CTI/LV20/ACS
UPC—
ListingUL · FCC · RoHS
DLCDLC NLC Listed · V5.2
Warranty—
BrandcontrⒶLS
Platformby ⒶCS
ManufacturerArchipelago Lighting Group
