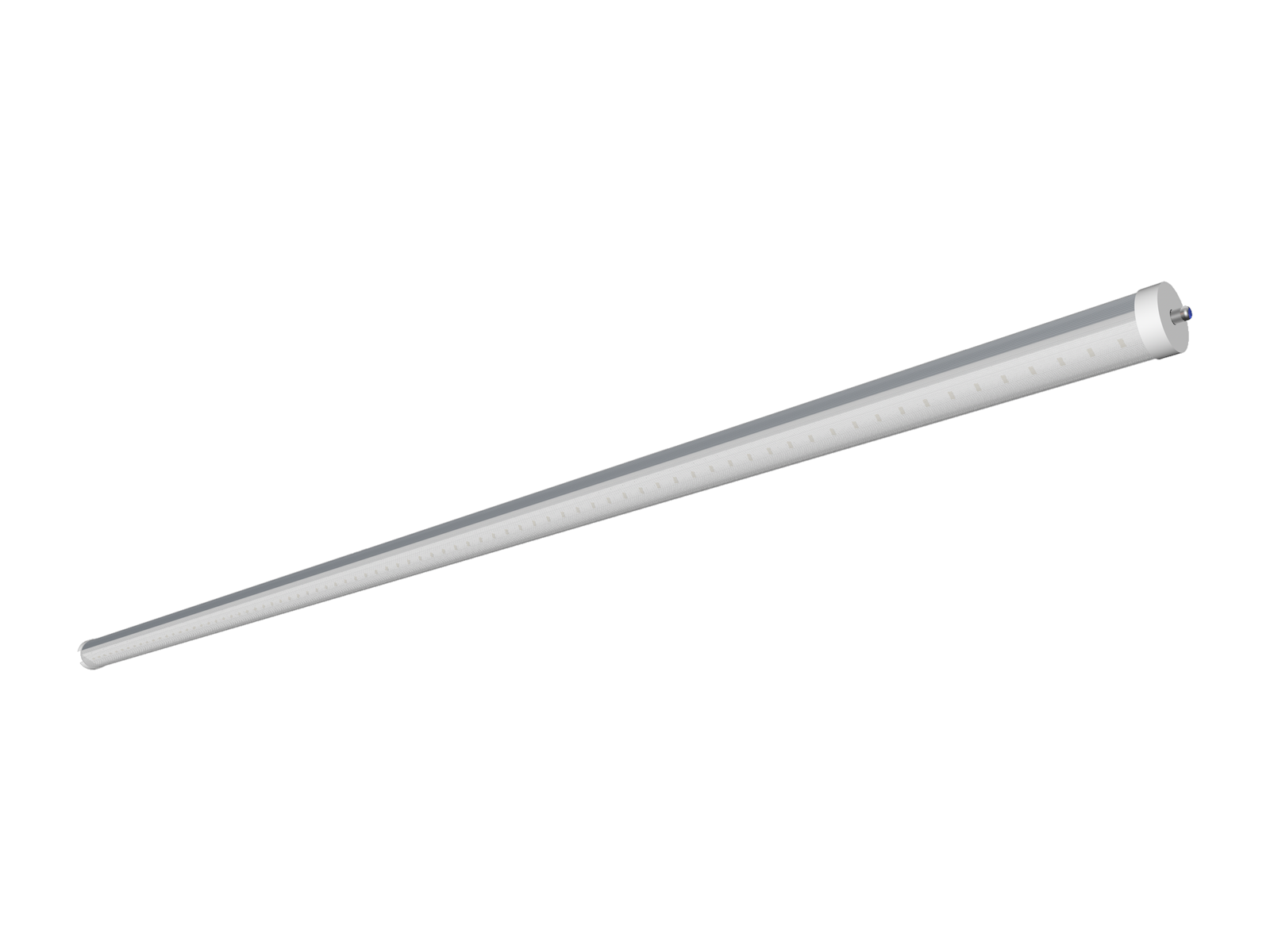

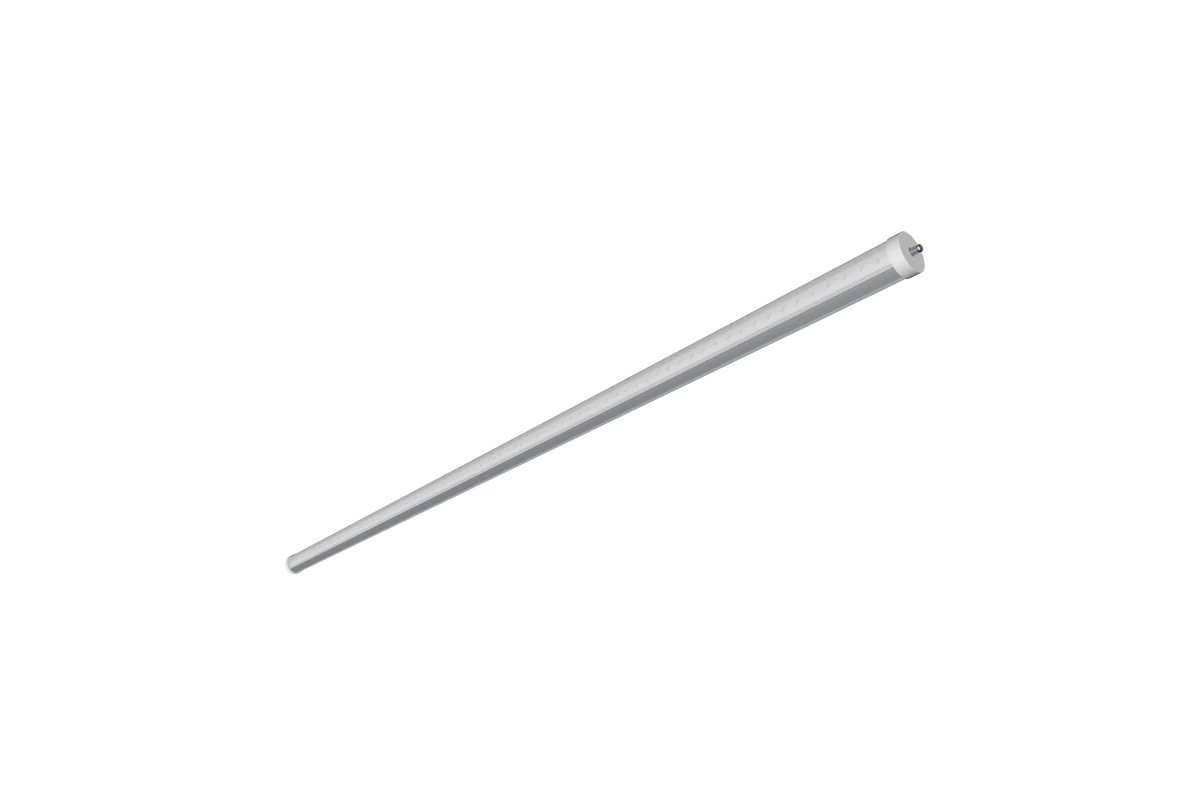

LY-T10 · LED Slimline T10 Sign Lamp ECO
Slimline T10. No mercury. Drops into the socket you have.
LY-T10 is the LED replacement for the slimline fluorescent T10 lamps that have illuminated internally-lit street name signs and backlit advertising cabinets for the last 50 years. Most "T10 LED" retrofits in the market are T8 lamps with adapters; LY-T10 ships the actual single-pin slimline T10 form factor — drops directly into the historical sign-fixture socket without adapters or housing modification. Three lengths cover the entire municipal sign-cabinet matrix. 100 lm/W constant. ETL US/C cross-border listed. No mercury. 5-year warranty.
Model Specifications
Download Data Sheet| Watt | Lumens | Efficacy | CCT | Voltage |
|---|
Dimensions
(For the selected size)
Highlights & Features
The slimline T10 LED retrofit that actually fits the sign cabinet you already have.
Seven highlights anchored to one authenticity — true single-pin slimline T10, not a T8-with-adapter. Three lengths · 100 lm/W constant · no mercury · ETL US/C · 5-year warranty.
Engineering · Anatomy
Six details that make this the slimline T10 spec engineers actually want.

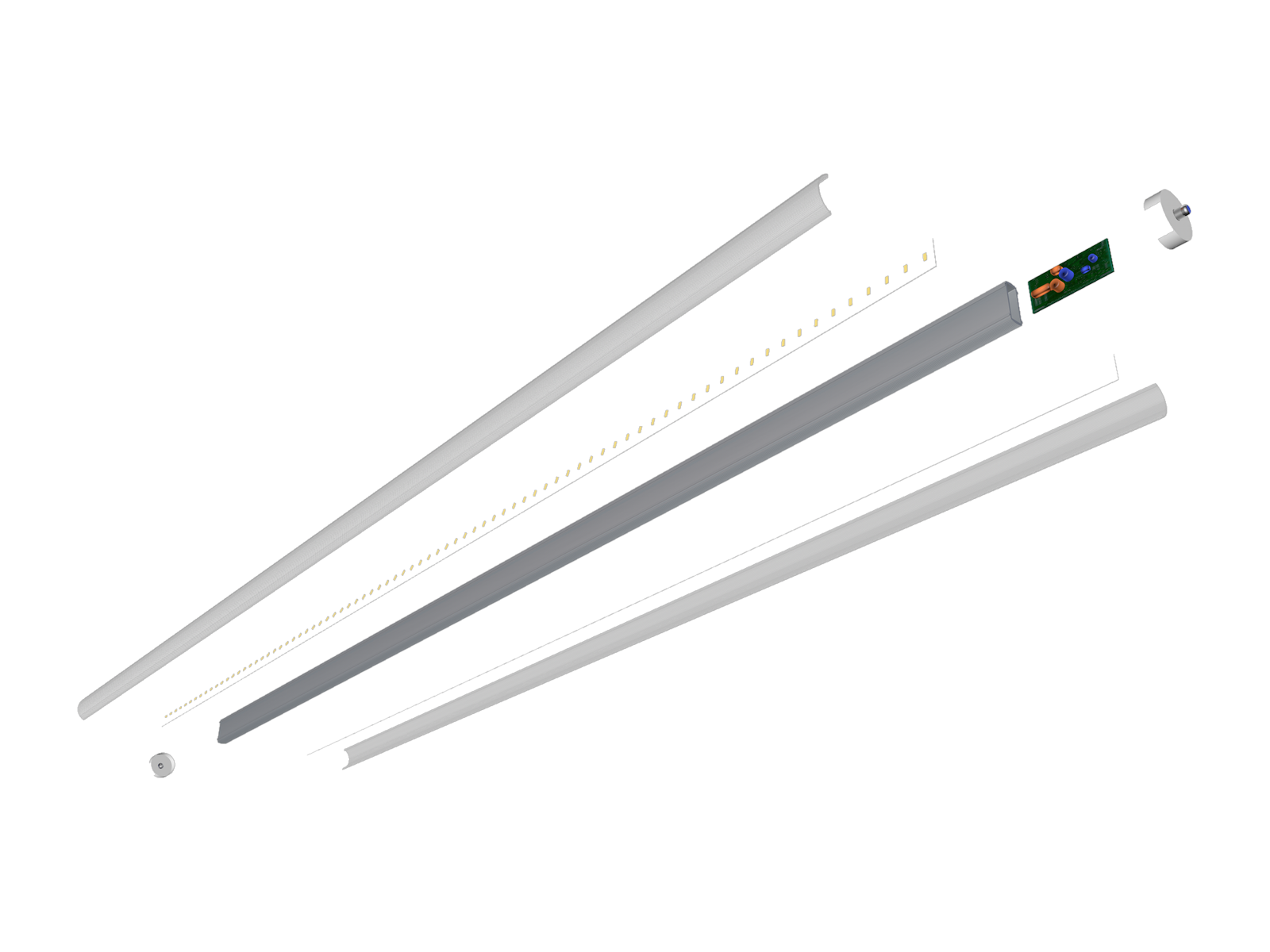

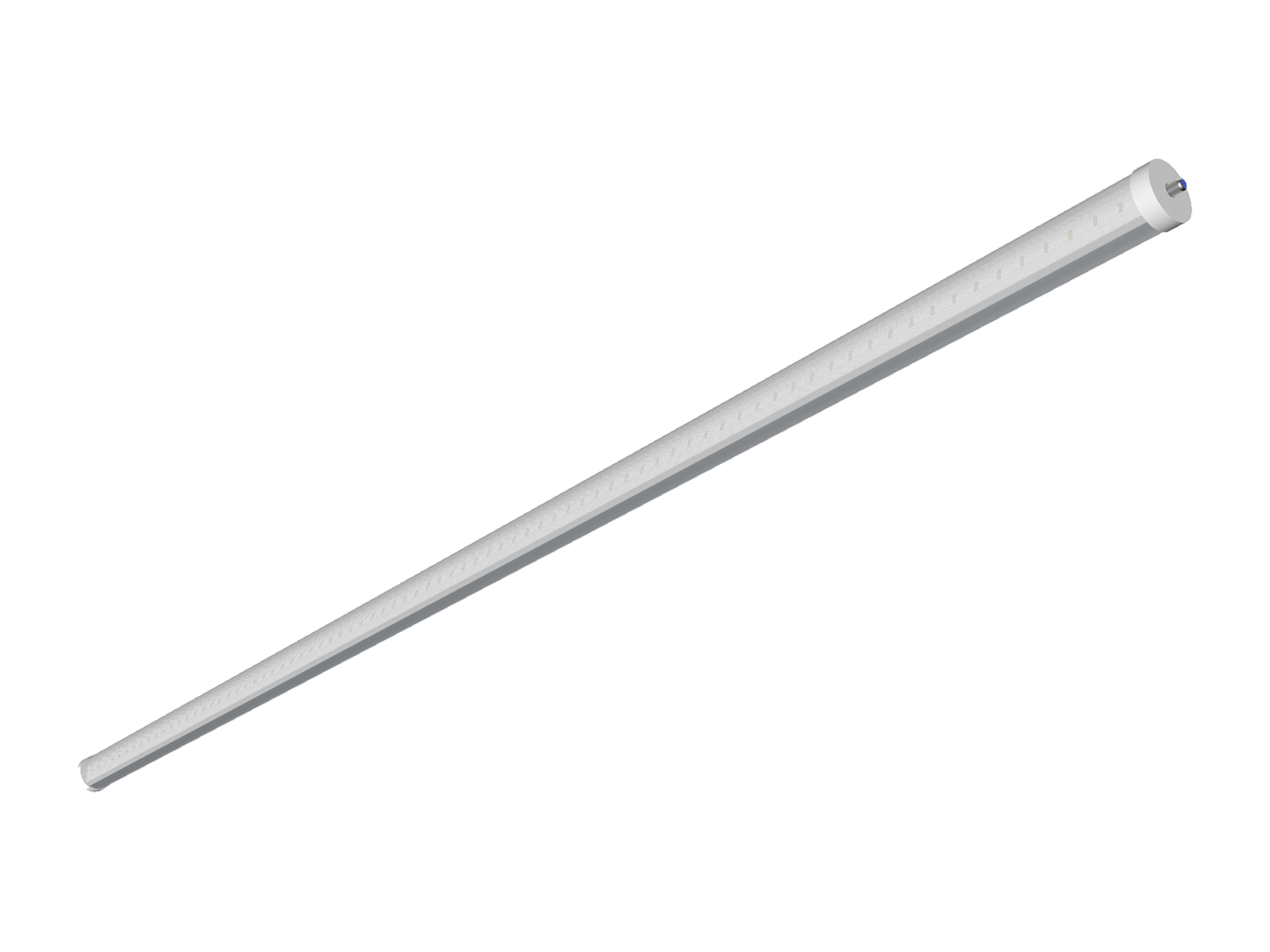

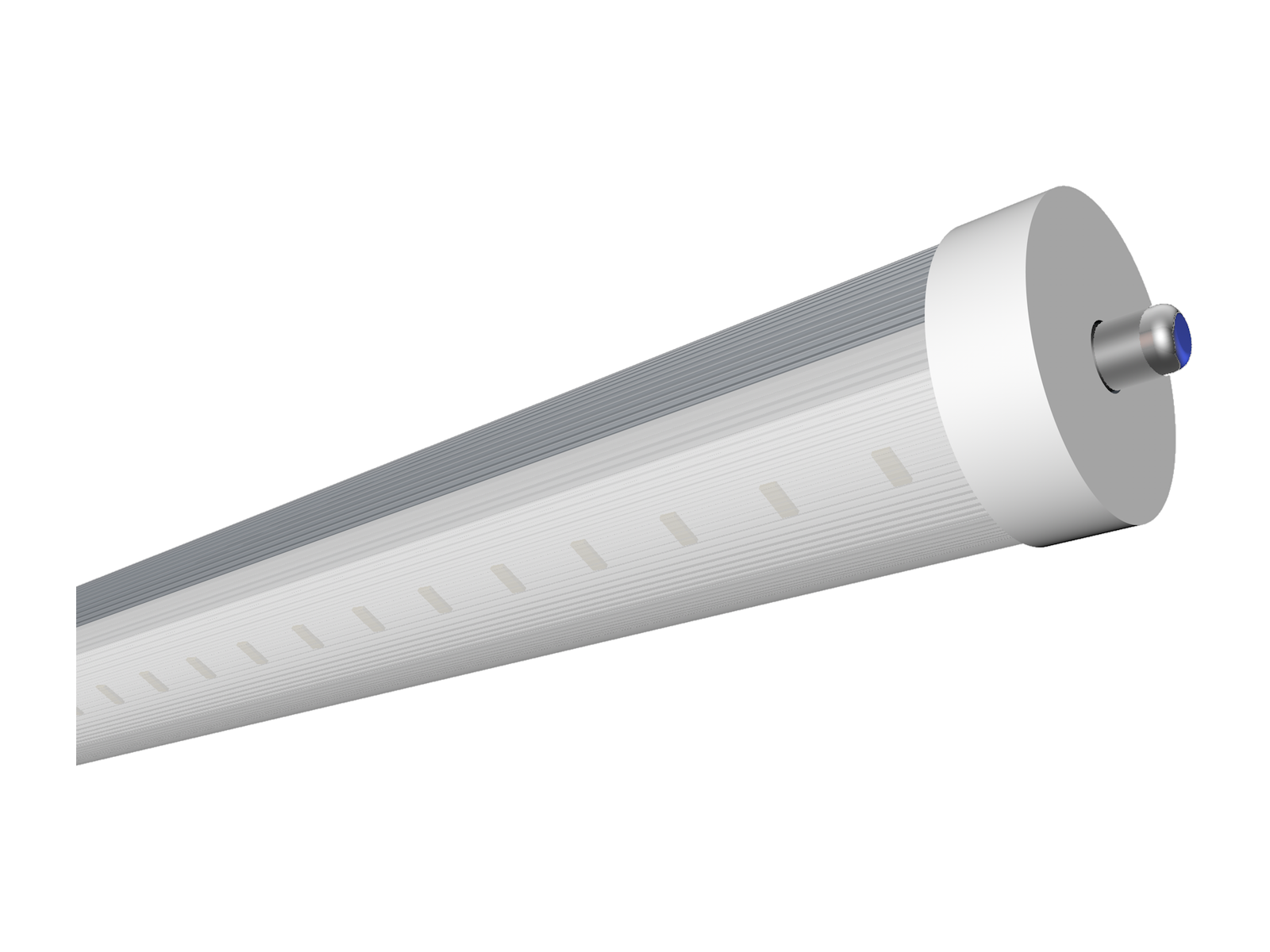

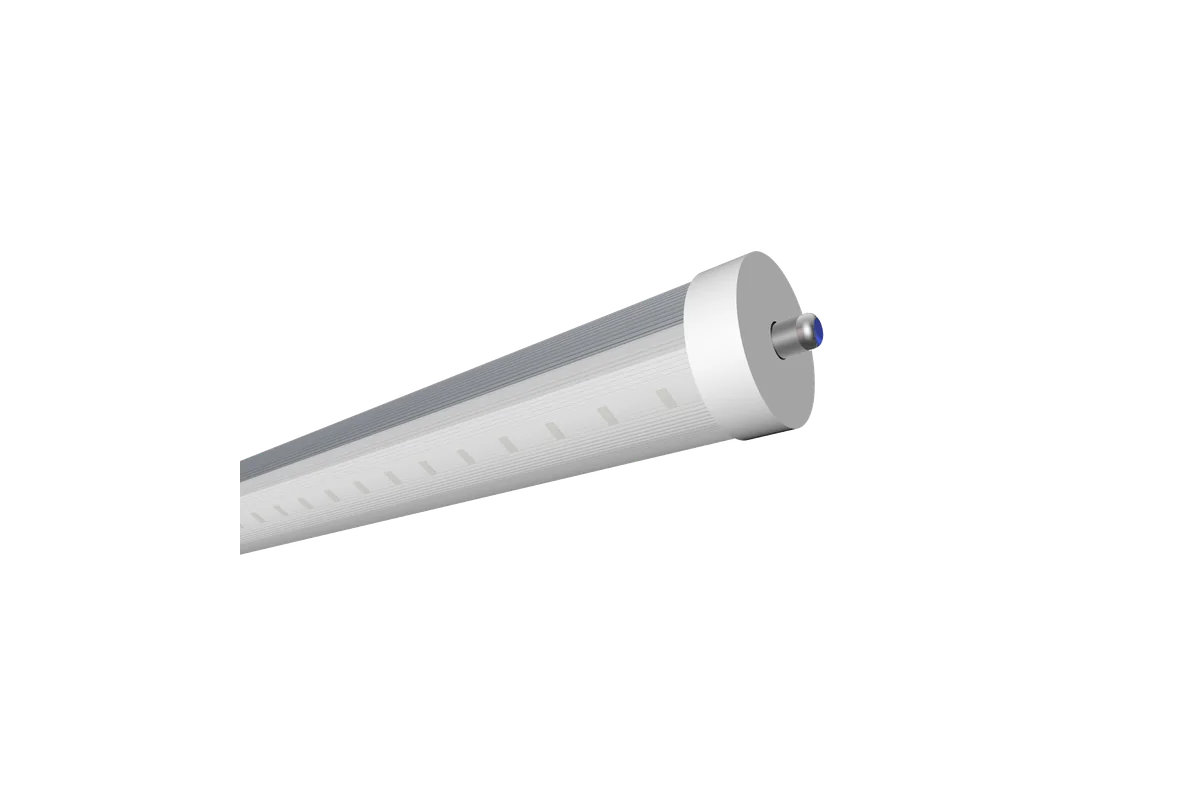

Single-pin slimline base on one end. Linear T10 tube body at 1.25" diameter. LED array along the lamp length under a clear lens. Universal voltage input on the contact end. ETL US/C label for cross-border DOT projects. Six engineered details delivered for one job: drop straight into the existing slimline fluorescent T10 socket on the existing voltage with no modification.
Anatomy callouts derived from the datasheet Product Features list and Product Specifications table. Single-pin slimline base is the technical authenticity that defines this product against the T8-with-adapter peer set. T10 = 1.25" tube diameter (vs T8 = 1.0" and T12 = 1.5") — standard slimline-fluorescent form factor preserved for true drop-in retrofit.
Configure Your LY-T10
Every option below maps to the LY-T10 order code. Selections build the SKU live — no checkout, no surprises. Required fields marked with *. Greyed-out options are not selectable with your current configuration. See the legend in the Optional column for ★ / QS / MTO meanings.
Documentation & Resources
Spec engineers, municipal sign-maintenance procurement teams, and transit-authority engineers need the datasheet for the project schedule and the SKU on the bid line. Two documents cover the workflow.
One PO. The whole signalized intersection lit.

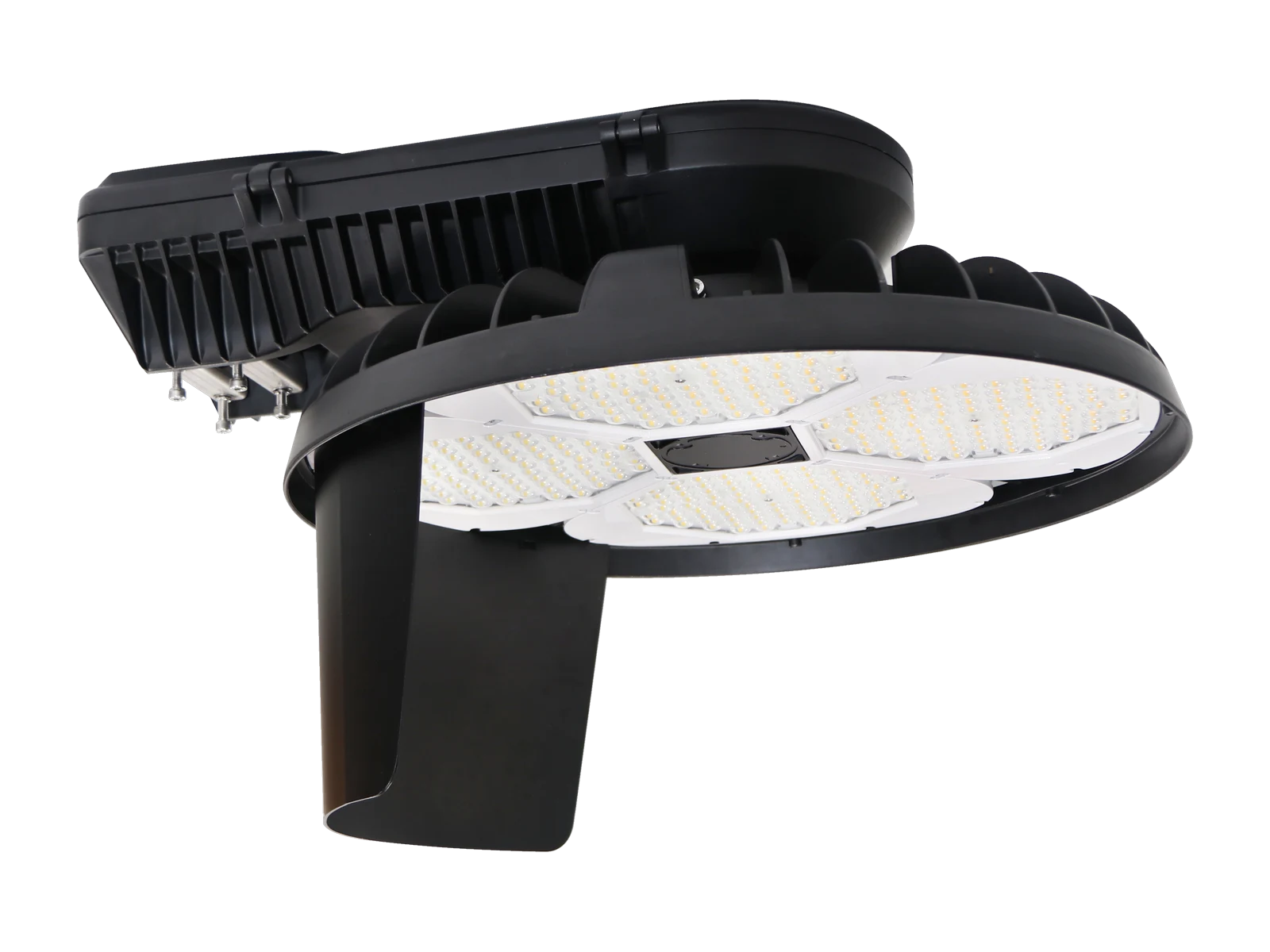

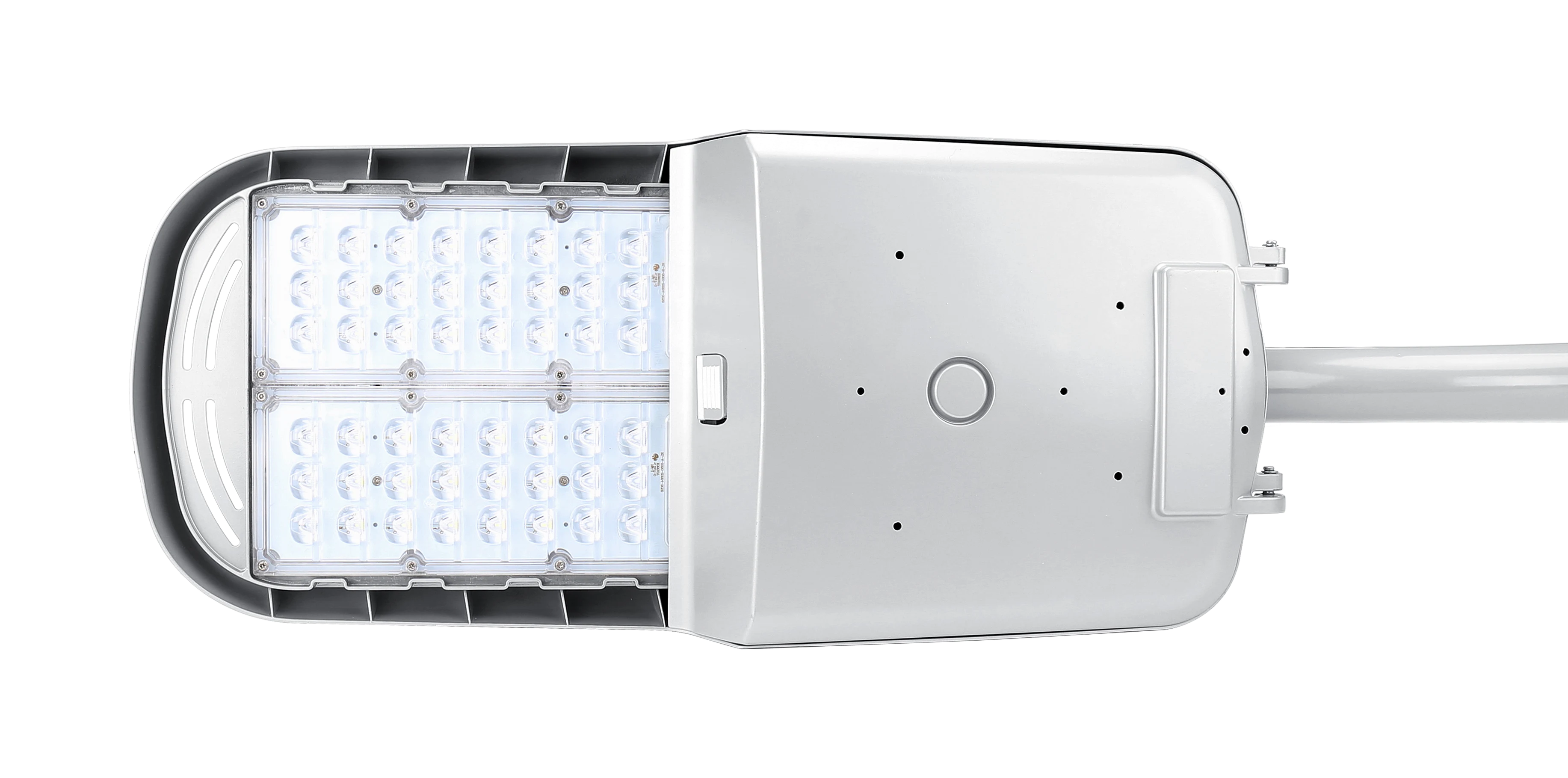

LY-T10 lights the street name signs and backlit advertising. The other three cityⒶRCH outdoor lines — LPAR for the EVP confirm beacon, Abbey for the area roadway cobra-head, OmniMax for the major-intersection high mast — light the rest of the intersection. Same factory. Same warranty platform. One bid sheet for the whole signalized corridor.
For the complete venue.
LY-T10 handles the street name signs and backlit advertising. These cross-line fixtures handle everything else — same warranty platform, same factory. Specify them together for a coherent ALG package across the whole intersection.
Direct line to your regional rep.
Twelve US warehouses ship in 3-5 days. Layout requests come back inside 48 hours. Quotes, sample requests, and rebate matches reply same business day. No portal-as-the-only-channel: you get a person.
One PO. The whole signalized intersection.
LY-T10 ships ETL US/C cross-border listed — qualifying for utility rebate programs that supports cross-border DOT projects (US + Canada) without separate listing paperwork. Pair with LPAR (EVP confirm beacon), Abbey (roadway cobra-head), and OmniMax (high mast) on the same municipal PO. One inventory line for the cityⒶRCH outdoor portfolio reduces procurement complexity by an order of magnitude across a multi-intersection contract.
