LPTP · Symmetry PRO
Three distributions. One optic. Pick at install.
Specification-grade LED post-top for the cityⒶRCH LPTP family — pedestrian streetscapes, plazas, and parks. Three field-set dials at install · 4-WATTSELECT (36–160W) × 3-CCTSELECT × BeamLogic™ T3/T4/T5 via OpticⒶDAPT. Up to 197 lm/W · up to 25,500 lm · CRI ≥80. Five mount types · contrⒶLS-Ready SILVAIR mesh. TAA · UL Wet Loc · 7-yr / 75,000-hr warranty.
Model Specifications
Download Data Sheet| WATTSELECT | Lumens | Efficacy | BeamLogic™ Optic | CCTSELECT |
|---|

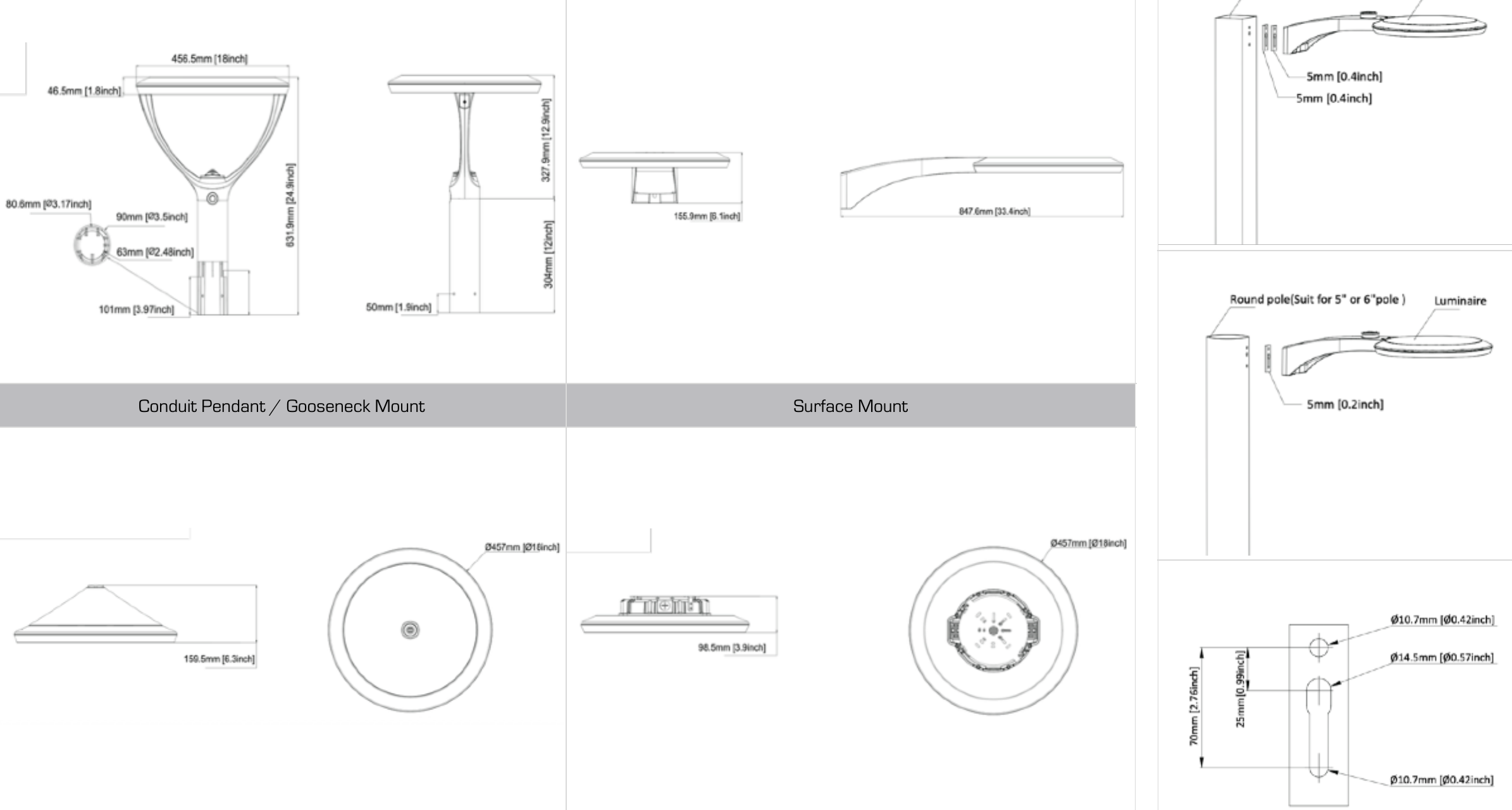

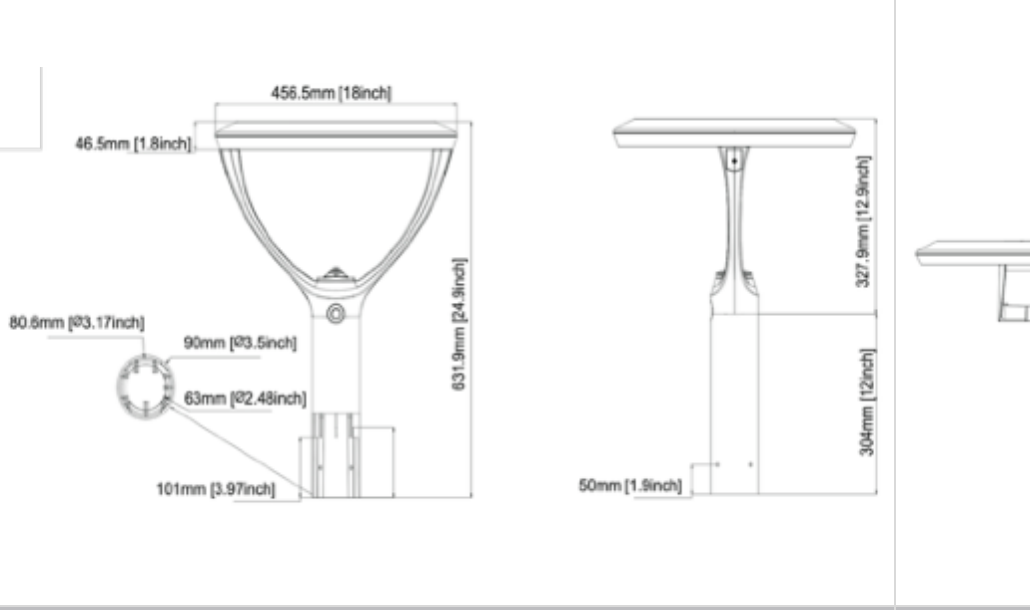

Dimensions

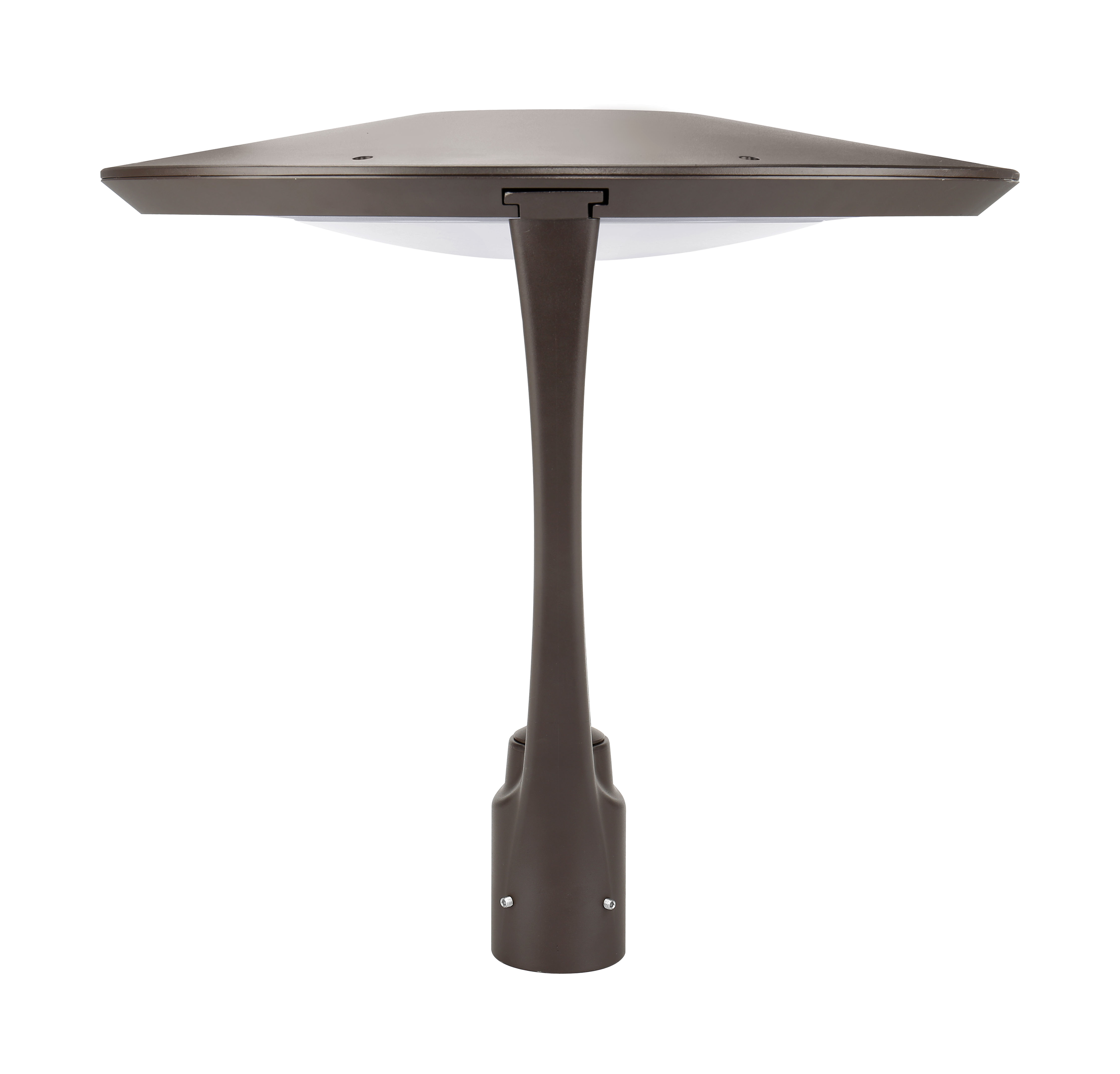

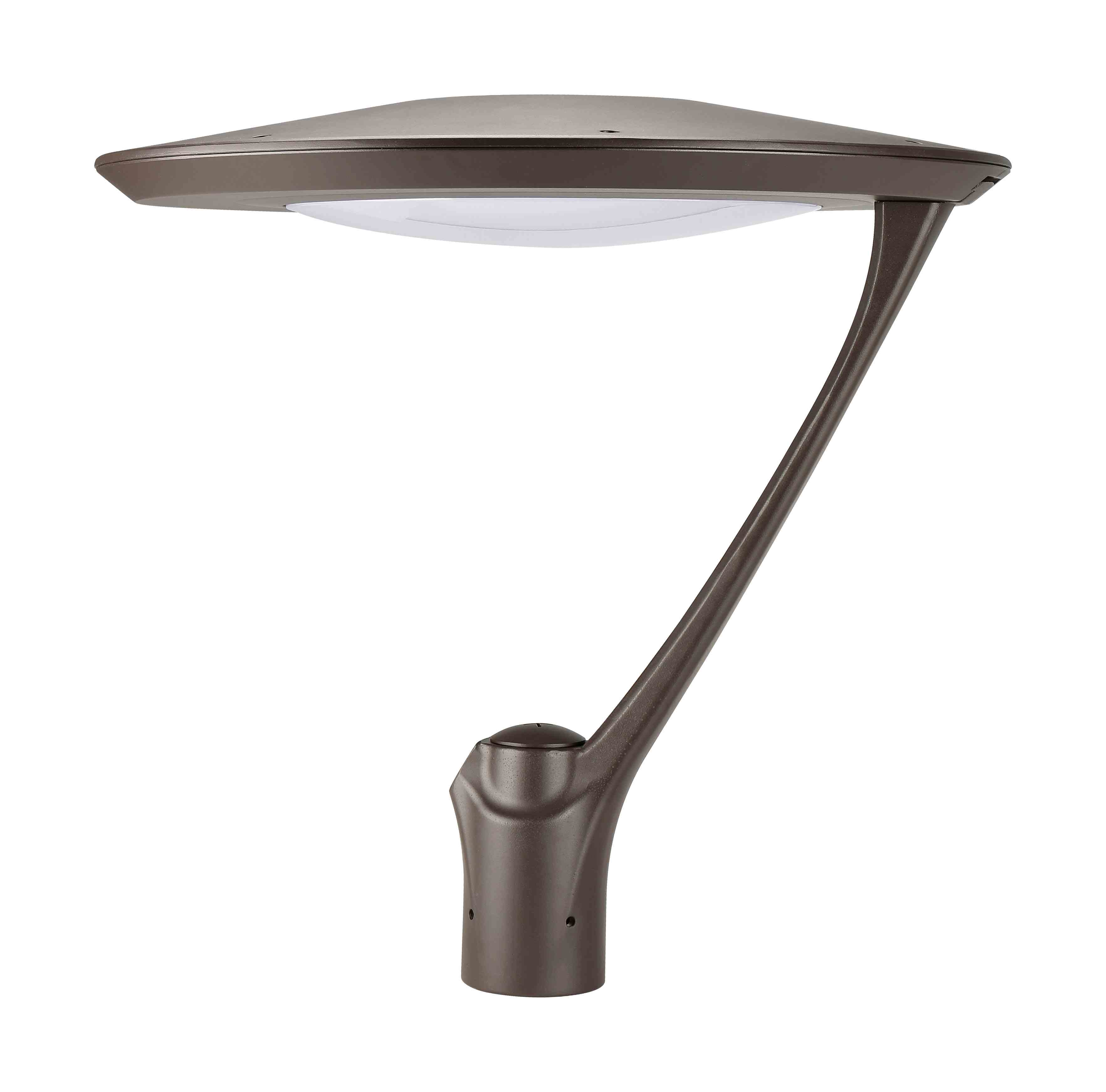

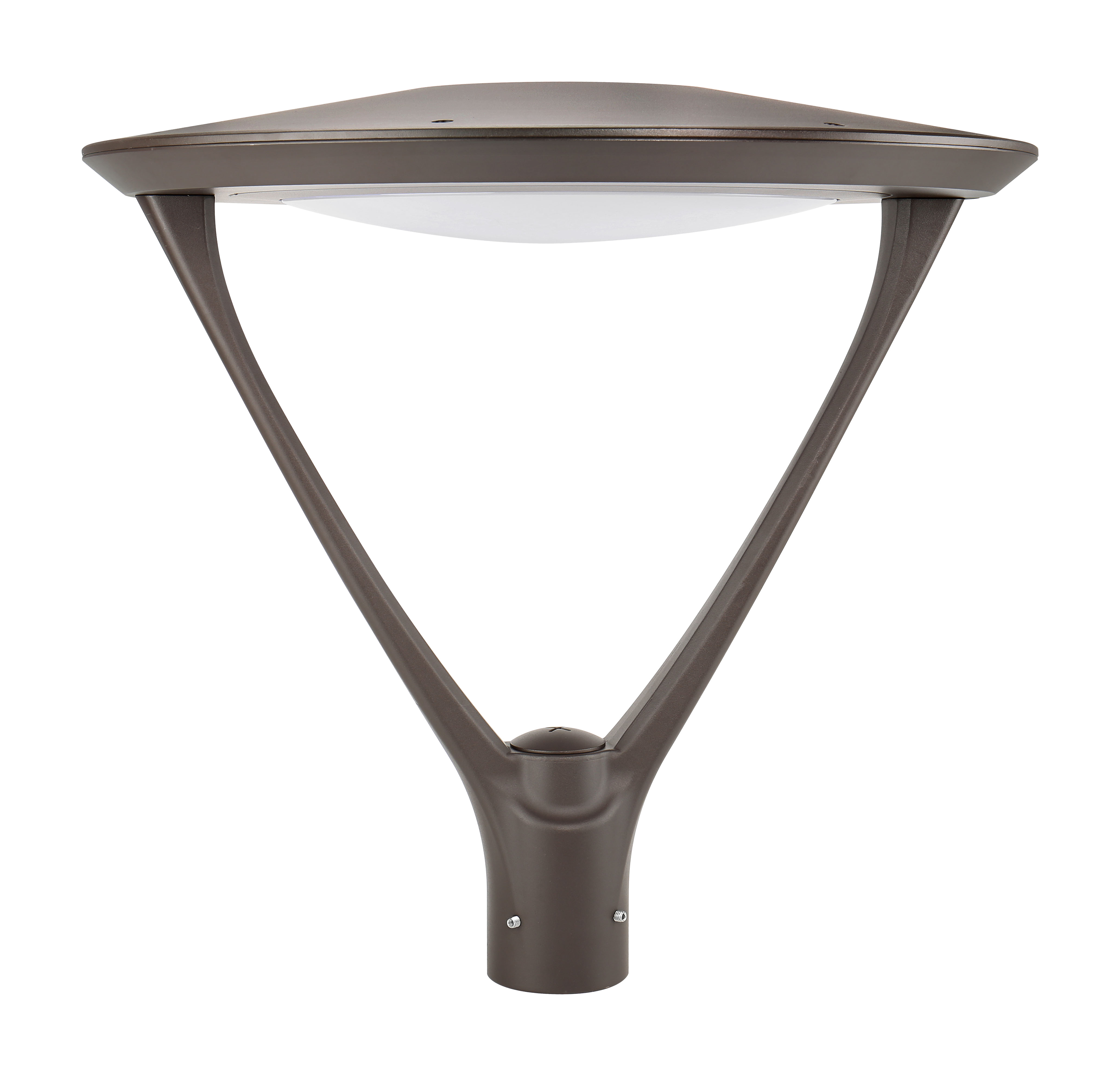

(Pole Mount shown · 4 other mount types share the same hood + V-yoke)
HIGHLIGHTS & FEATURES
Five reasons Symmetry rewires the post-top spec.
cityⒶRCH PRO pedestrian post-top — three field-set dials, five mounts, four contrⒶLS platforms on one housing. Beats standard fixture, Cooper, Lumec, standard post-top, RAB.
contrⒶLS
Three platforms. One housing. SILVAIR-neutral.

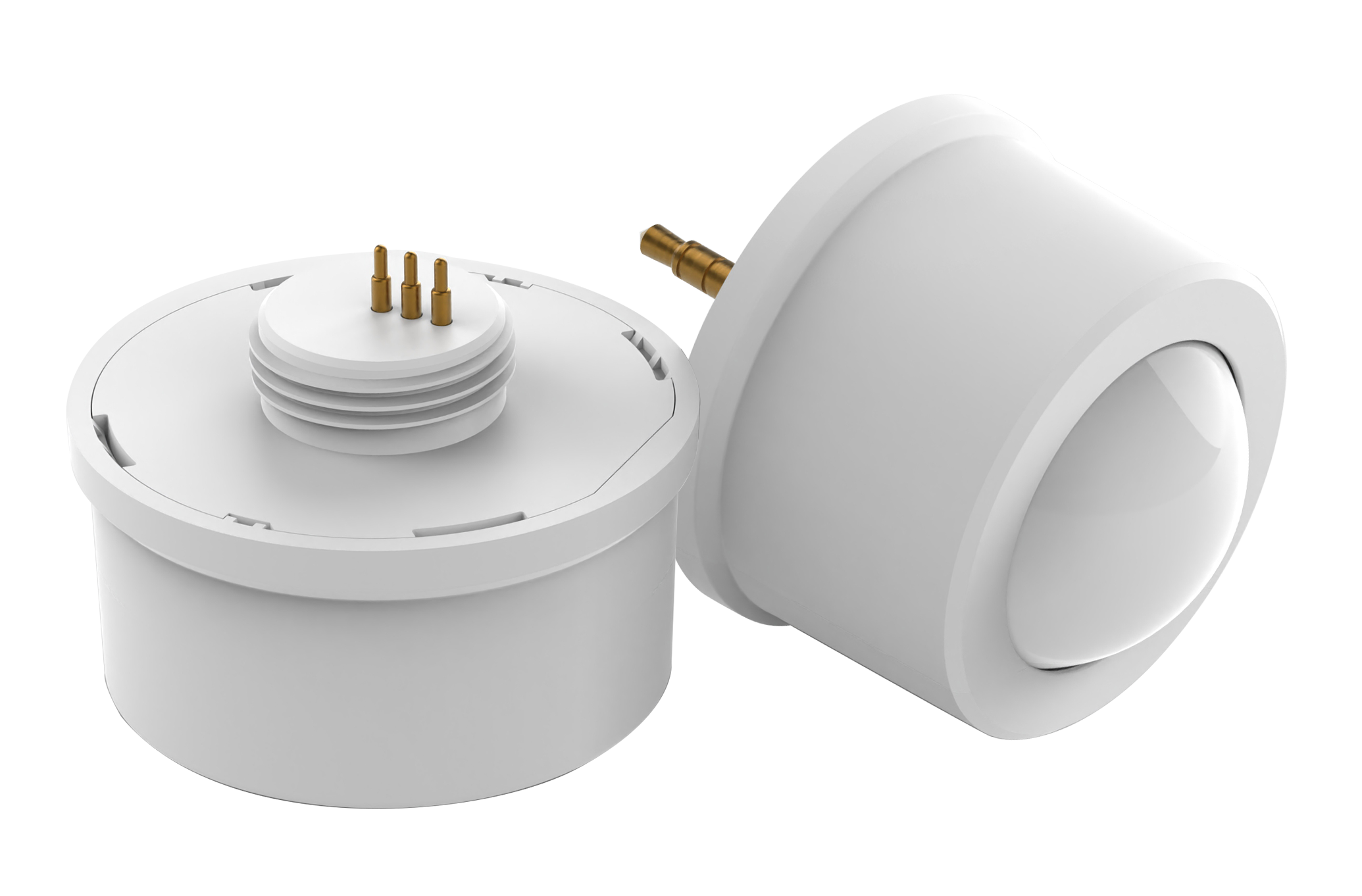

Symmetry ships 4 contrⒶLS ordering codes across 3 platforms on one housing. Bi-Level for stand-alone PIR. by ⒶCS for Bluetooth Mesh + cloud — DLC NLC qualified. by SILVAIR for SIG-qualified, gateway-free enterprise mesh. standard post-top locks you into proprietary controls system. standard post-top locks you into proprietary controls system. Symmetry ships the SILVAIR-neutral upgrade path on the same chassis.

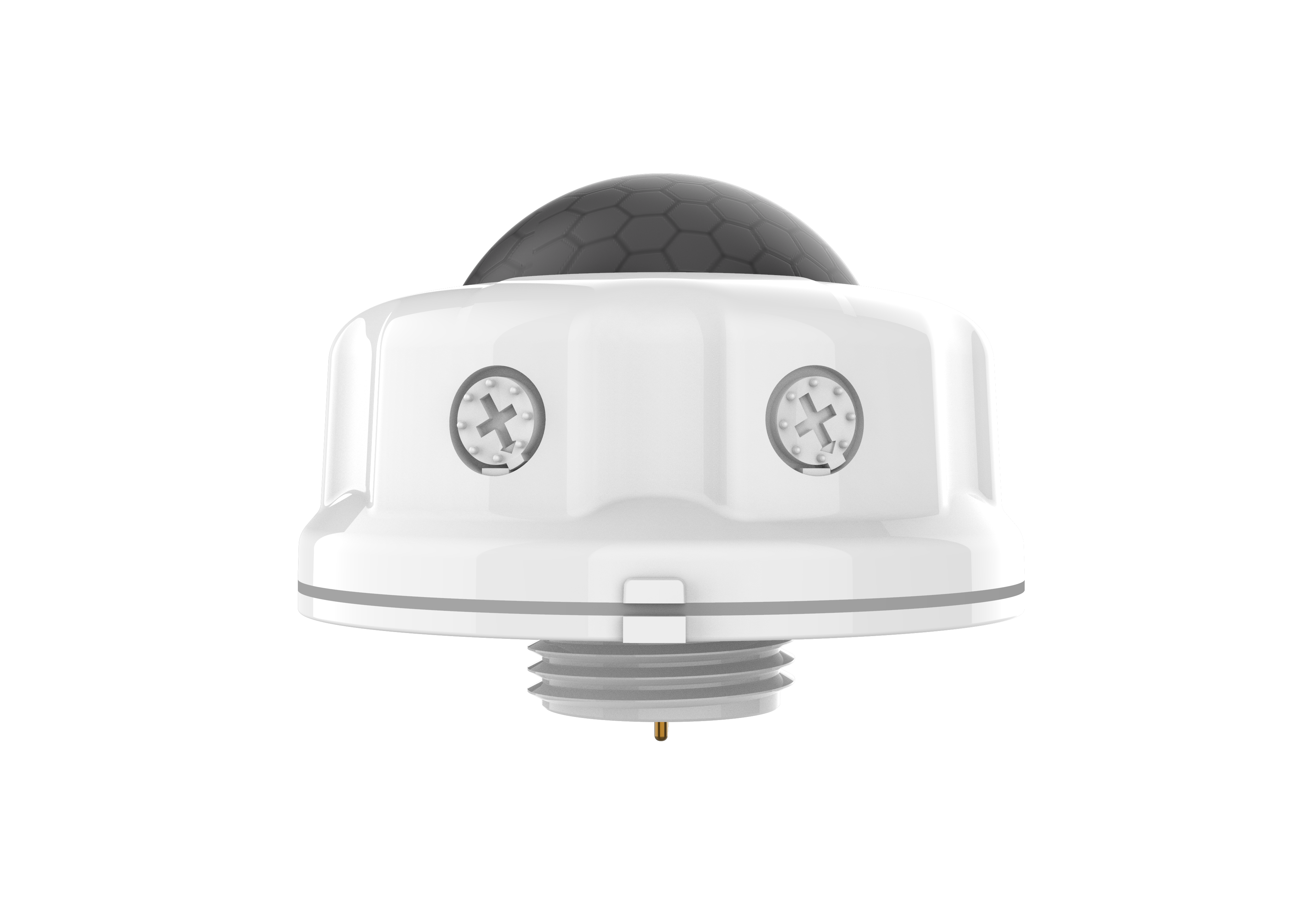

Two PIR bi-level variants — IR-remote commissioned, no gateway, no IT, no third-party sensor BOM line. /MSP-BLS standard auto high/low switching · /MSP-BLS-5D adds 5 manual dials for site-tuned thresholds. Both: PIR · 49-ft mount · 10-15Vdc · IP65 · UL · pole-mount. Commissioning via optional RM-06S IR remote (45-ft range · 2× AAA · IP20). Drives Title 24 §140.7 / IECC §C405.2 / ASHRAE 90.1 bi-level credits without networking. Daylight-harvest capable: adjust lux threshold (>50 lux), preset standby, 3× press to enable. Spec when bi-level occupancy is the entire ask.
Photometric Distribution
Beam shape, by housing × optic.
Polar luminous-distribution plots across all 3 housings × 3 optic platforms at 4000K — the peak-efficacy CCT in every cell. Curve shape and peak intensity update with the housing and optic selection below. Full LM-79 measured per-cell .ies files ship in the bundle linked from the stat panel.
LPTP090-3CS-S1-FD/BL-T4-40K.IES
In the Box
Three components, factory-installed.
Every Symmetry ships with the BeamLogic™ optic + OpticⒶDAPT field-set dial (Type III · IV · V at install · darkⒶRCH-conforming), 0-10V universal-voltage driver with 4-WATTSELECT × 3-CCTSELECT DIPs + 6KVA surge standard, and the contrⒶLS-ready sensor housing (ANSI C136.41 7-pin photocell receptacle · accepts /MSP-BLS, /MSP-BLS-5D, /MSP-ACS, /MSP-NLC on the same envelope). Lift onto the pole, wire to the J-box, dial in W · CCT · distribution, walk away.
Accessories
Engineered Accessories
contrⒶLS sensors, IR commissioning remote, glare control, alternate mount adders, in-line surge protection, and tenon adapters — factory-matched to the LPTP housing, QuickShip unless noted. Ordering codes drop into the SKU at PO; the matching hardware ships in the box.
Configure Your Symmetry-Series
Every option below maps to the LPTP order code. Selections build the SKU live — no checkout, no surprises. Required fields marked with *. Greyed-out chips are not selectable with the current configuration. See the legend in the Optional column for ★ / QS / MTO meanings.
Documentation & Resources
Everything specifiers, contractors, and project managers need to spec, install, and certify the Symmetry-Series — the datasheet on day one, the IES bundle on the bid sheet, the submittal sheet on the project stamp, and country-of-origin documentation on the federal RFQ.
cityⒶRCH Outdoor Family
One factory. Five outdoor fixtures.

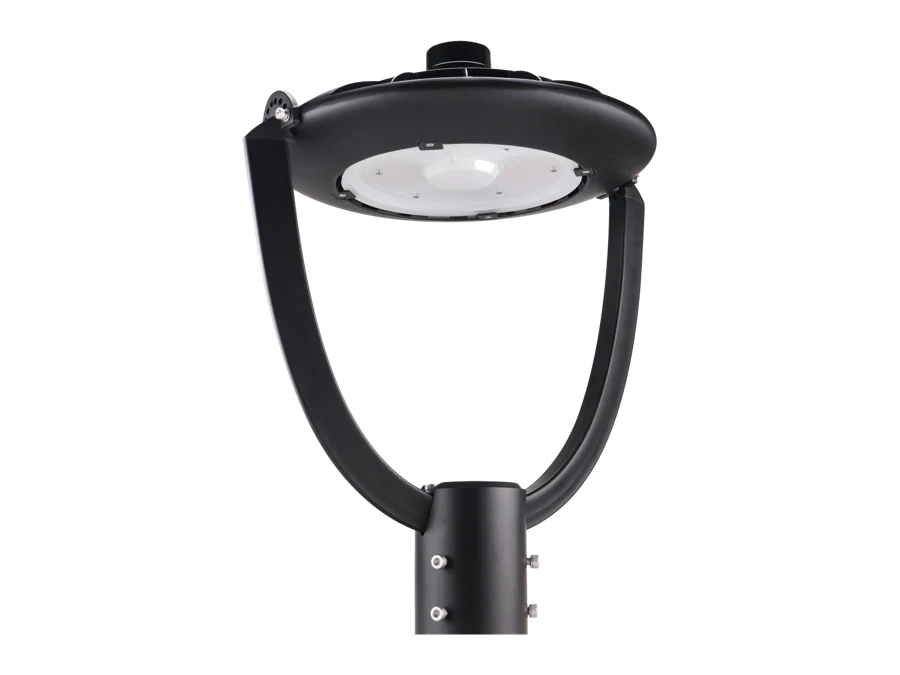

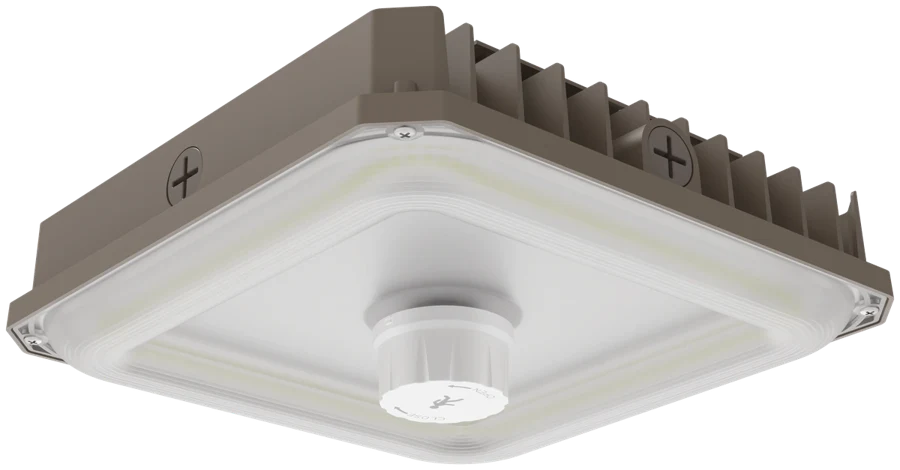

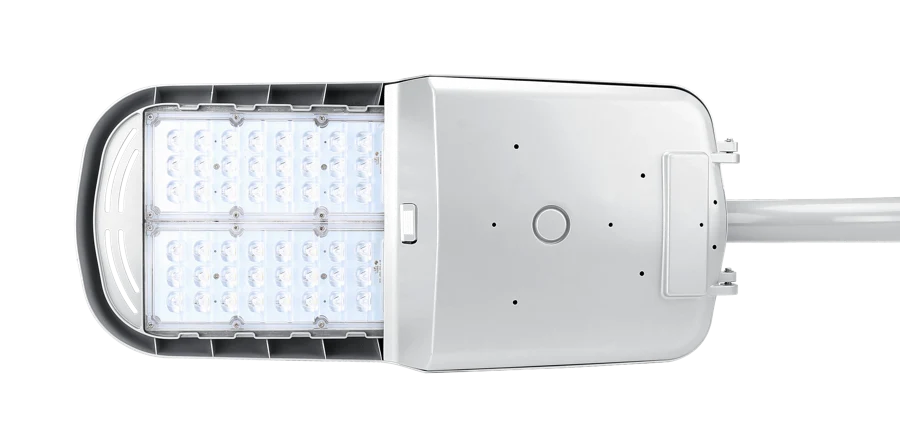

Symmetry-Series is the post-top in the cityⒶRCH outdoor family — the workhorse pedestrian fixture with the 3-mechanism field-set stack. The other four cover the rest of a typical streetscape: budget post-top, roadway cobra-head, pedestrian bollard, and high-mast crown. Same factory, same warranty backbone, same contrⒶLS platform across the line.
For the complete municipal package.
Symmetry handles the pedestrian streetscape. These cross-line fixtures handle the rest of a typical municipal project — same warranty, same factory, same contrⒶLS platform. Specify them together for a coherent lighting package across the whole site.
Direct line to your regional rep.
Twelve US warehouses ship in 3-5 days. Layout requests come back inside 48 hours. Quotes, sample requests, and rebate matches reply same business day. No portal-as-the-only-channel: you get a person.
Stack the rebates.
Symmetry is DLC-listed (Premium pending) and the /MSP-ACS sensor variant is DLC NLC qualified — the NLC rebate stacks on top of the SSL rebate on a single line. We’ll match your project to active programs in your ZIP and pull the paperwork.
