LPTP | Symmetry-series

Durable Outdoor Beauty

The Symmetry is the ideal post-top area lighting system, boasting an adjustable layout, robust functioning, and an attractive appearance. Various options such as cantilever design, CCT and wattage, as well as supplemental extras are available.

Input Watts: Up to 130W | Lumens: Up to 15,600LM | lm/W: 121 | CRI: >70
  • UL | Listed
  • DLC | Listed

Rep Portal Login

Login with your Sales Rep Account to see pricing & availability
We've sent you an email with a link to update your password.
Forgot password?
Request Account

Reset your password

We will send you an email to reset your password.

Documentation Download
  • UL | Listed
  • DLC | Listed

Architectural Spaces

The Symmetry is a versatile, easy-to-install, and easy-to-maintain post-top area lighting solution for outdoor spaces. It provides a high level of light output and is ideal for walkways, pathways, greenbelts, and general lighting.

  • Pathways
  • Greenbelts
  • General

Robust and Refined

Easy to install and built for the ultimate urban lifestyle, the Symmetry is perfectly designed for green belts, walkways, pedestrian paths and retail plazas.

  • 7 years / 75,000hr Warranty
  • Up to 20FT Placement
  • Harsh Environmental Applications

Simple Specs

The Symmetry is available with a matching 2 3/8” or 3” diameter round pole, and it is rugged and durable against vibration.

  • 0°F
    0°F
    Operating
    Temp
  • >0
    lm/W
    Efficacy
  • 0
    PF
  • <0%
    THD
  • >0
    CRI

Optional Accessories

Build the best version of the Symmetry with key accessories

Single-Cantilever

LPTP-SC

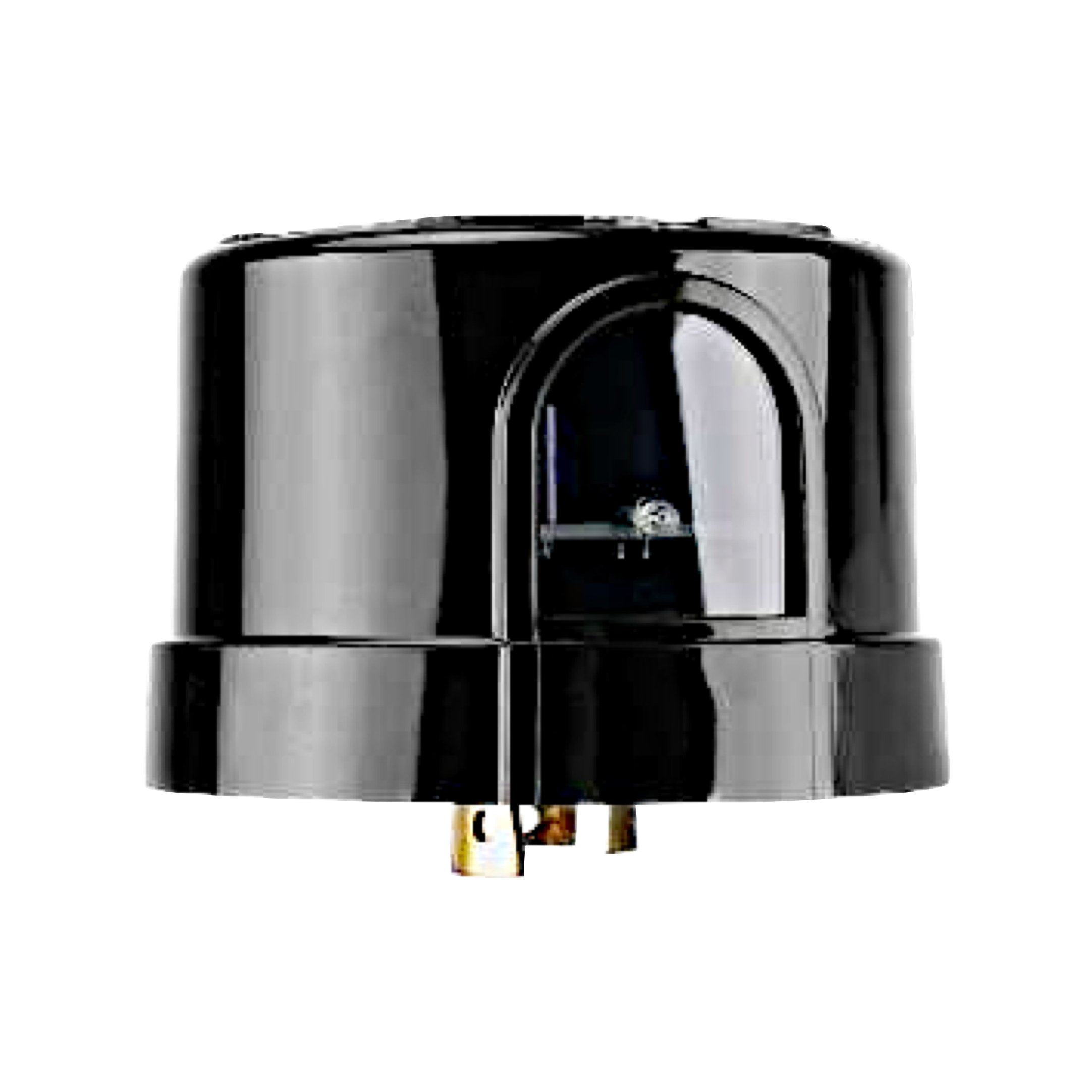

3 Pin Photocell

PS-MU3
Sensor Remote Controller

RM-MS-S1

Product Dimensions

Dimensions may vary, depending on the accessories.

Build your LPTP | Symmetry-series

Select the options below to build your own LPTP | Symmetry-series model.

Your Model:
LPTP 4W -S3 -XXX XXX XXX XXX XXX

Rep Portal Login

Login with your Sales Rep Account to see request quote
We've sent you an email with a link to update your password.
Forgot password?
Request Account

Reset your password

We will send you an email to reset your password.

Rep Portal Login

Login with your Sales Rep Account to see pricing & availability
We've sent you an email with a link to update your password.
Forgot password?
Request Account

Reset your password

We will send you an email to reset your password.

Overview

Fields marked with * are required. | Grayed out options are not selectable.

Model Series:

* WATTselect

* CCTselect

* Voltage

* Color Finish

* Photometry

Photocell

Sensor

Download Data Sheet
Product DLC ID DLC Class Watts Lumens Efficacy PF CCT CRI
LPTP045-30-U[D,B,W]-[Blank,PA][Blank,MS]D[Blank,0-9,A-Za-z] S-04R87K Premium 45 5400 120 0.9 3000 70
LPTP045-40-U[D,B,W]-[Blank,PA][Blank,MS]D[Blank,0-9,A-Za-z] S-20K13C Premium 45 5450 121 0.9 4000 70
LPTP045-50-U[D,B,W]-[Blank,PA][Blank,MS]D[Blank,0-9,A-Za-z] S-3IDOFV Premium 45 5500 122 0.9 5000 70
LPTP070-30-U[D,B,W]-[Blank,PA][Blank,MS]D[Blank,0-9,A-Za-z] S-3QH910 Premium 70 8400 120 0.9 3000 70
LPTP070-40-U[D,B,W]-[Blank,PA][Blank,MS]D[Blank,0-9,A-Za-z] S-40HT6Q Premium 70 8450 121 0.9 4000 70
LPTP070-50-U[D,B,W]-[Blank,PA][Blank,MS]D[Blank,0-9,A-Za-z] S-A48XOS Premium 70 8500 121 0.9 5000 70
LPTP070-30-U[D,B,W]5-[Blank,PA][Blank,MS]D[Blank,0-9,A-Za-z] S-CEUKBI Premium 70 8500 121 0.9 3000 70
LPTP070-40-U[D,B,W]5-[Blank,PA][Blank,MS]D[Blank,0-9.A-Za-z] S-EUY6B8 Premium 70 8600 123 0.9 4000 70
LPTP070-50-U[D,B,W]5-[Blank,PA][Blank,MS]D[Blank,0-9,A-Za-z] S-GU7KOW Premium 70 8700 124 0.9 5000 70
LPTP087-30-U[D,B,W]-[Blank,PA][Blank,MS]D[Blank,0-9,A-Za-z] S-HKUL3Z Premium 87 10500 121 0.9 5000 70
LPTP087-40-U[D,B,W]-[Blank,PA][Blank,MS]D[Blank,0-9,A-Za-z] S-JBEUC8 Premium 87 10600 122 0.9 4000 70
LPTP087-50-U[D,B,W]-[Blank,PA][Blank,MS]D[Blank,0-9,A-Za-z] S-JXIBFE Premium 87 10600 122 0.9 5000 70
LPTP087-30-U[D,B,W]5-[Blank,PA][Blank,MS]D[Blank,0-9,A-Za-z] S-K5WEOD Premium 87 10400 120 0.9 3000 70
LPTP087-40-U[D,B,W]5-[Blank,PA][Blank,MS]D[Blank,0-9,A-Za-z] S-LATVRQ Premium 87 10500 121 0.9 4000 70
LPTP087-50-U[D,B,W]5-[Blank,PA][Blank,MS]D[Blank,0-9,A-Za-z] S-NKX230 Premium 87 10600 122 0.9 5000 70
LPTP130-30-U[D,B,W]-[Blank,PA][Blank,MS]D[Blank,0-9,A-Za-z] S-OYNAVK Premium 130 15600 120 0.9 3000 70
LPTP130-40-U[D,B,W]-[Blank,PA][Blank,MS]D[Blank,0-9,A-Za-z] S-QPA9TM Premium 130 15800 122 0.9 4000 70
LPTP130-50-U[D,B,W]-[Blank,PA][Blank,MS]D[Blank,0-9,A-Za-z] S-RM6QVG Premium 130 15800 122 0.9 5000 70
LPTP130-30-H[D,B,W]-[Blank,PA][Blank,MS]D[Blank,0-9,A-Za-z] S-RO04JP Premium 130 15600 120 0.9 3000 70
LPTP130-40-H[D,B,W]-[Blank,PA][Blank,MS]D[Blank,0-9,A-Za-z] S-UWSFIT Premium 130 15800 122 0.9 4000 70
LPTP130-50-HD,BW]-[Blank,PA][Blank,MS]D[Blank,0-9,A-Za-z] S-YXMSF1 Premium 130 15800 122 0.9 5000 70
Product IES
LPTP130-50-UD.ies
LPTP130-50-HD.ies
LPTP130-30-UD.ies
LPTP130-30-HD.ies
LPTP87-50-UD5.ies
LPTP87-50-UD.ies
LPTP87-30-UD5.ies
LPTP87-30-UD.ies
LPTP70-50-UD5.ies
LPTP70-50-UD.ies
LPTP70-30-UD5.ies
LPTP70-30-UD.ies
LPTP45-50-UD.ies
LPTP45-30-UD.ies

Documentation Download

Downloadable resources for you to learn more about the product

Data Sheet

Learn everything about the product

Quick Sheet

Useful to build and request your product

Installation

Step by step on how to install this product
