selectⒶRCH-Series
Modern Contemporary
The LPVT selectⒶRCH-Series center-basket troffer features a modern architectural-grade design and integrated switches to easily select between 3 or 5-WATTselect and 3-CCTselect settings.
Rep Portal Login
Login with your Sales Rep Account to see pricing & availabilityReset your password
We will send you an email to reset your password.
WATTselect Option Available
25W|30W|35W / 40W|45W|50W
CCTselect Option Available
3500K|4000K|5000K
Unveiling LPVT-selectⒶRCH: Versatile Illumination Solutions
-
Office Space
-
Commercial
-
Schools
LPVT selectⒶRCH is ideal for interior spaces. Due to its effortless installation, its easy maintenance, and its lighting level, LPVT selectⒶRCH is optimal for interior spaces such as offices, schools, hospitalities and Commercial Buildings. This luminaire is versatile enough to fit all of these facilities and more.
-
7 years / 75,000hr Warranty
-
Efficient Heat Dissipation
-
High-Density Led Chips
Featuring 3-WATTselect and 3-CCTselect onboard, the selectⒶRCH seamless light distribution is superior to competing stamped metal troffer.
-
Operating0°F0°F
Temp -
Efficacy>0lm/W
-
PF0
-
THD<0%
-
CRI>0
Features a 6063 Aluminum Frame for superior structural integrity and optimum passive heat dissipation. A built-in driver-based microprocessor is programmed to deliver consistent power output and precise color temperature. The all-in-one lighting solution for center basket troffer.
Modern Design
Features modern architectural grade design
Purposefully Distributed LED Chips
Smartly placed LEDs: Cool, bright, uniform
Aluminum Frame
6063 aluminum frame for superior structural integrity
Lensing Technology
Glass/poly lens for max light, high temps
Seismic Hooks
Built-in seismic hooks as a standard accessory
Product Dimensions
Dimensions may vary, depending on the accessories.
Optional Accessories
Build to spec with bespoke accessories designed for the selectⒶRCH
Build your selectⒶRCH-Series
Select the options below to build your own selectⒶRCH-Series model.
LPVT XXX -XXX -S3 -XXX -XXX
Rep Portal Login
Login with your Sales Rep Account to see request quoteReset your password
We will send you an email to reset your password.
Rep Portal Login
Login with your Sales Rep Account to see pricing & availabilityReset your password
We will send you an email to reset your password.
Overview
Fields marked with * are required. | Grayed out options are not selectable.
Model Series:
* Size
* 3-WATTselect
* 3-CCTselect
OPTIONAL: Motion Sensor

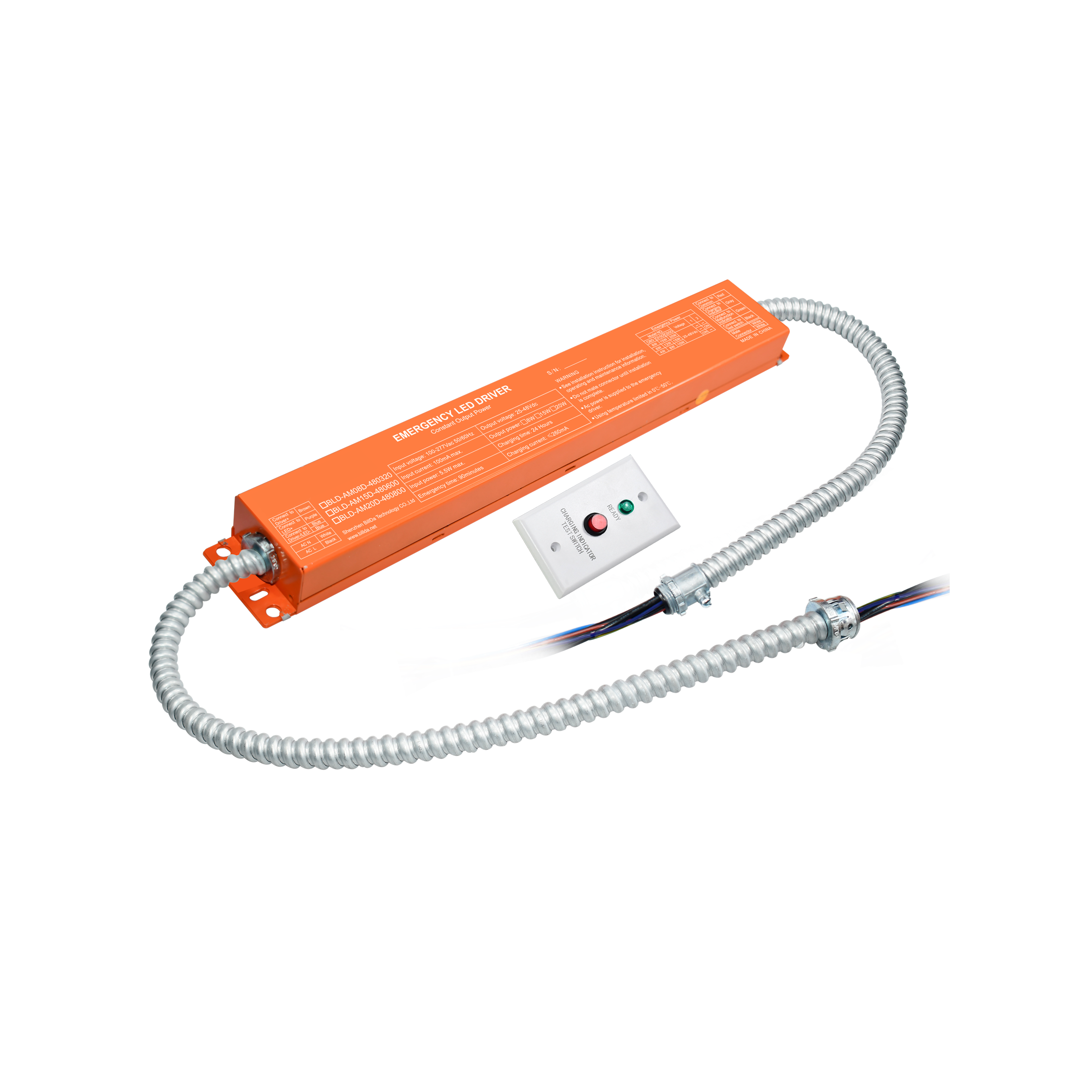

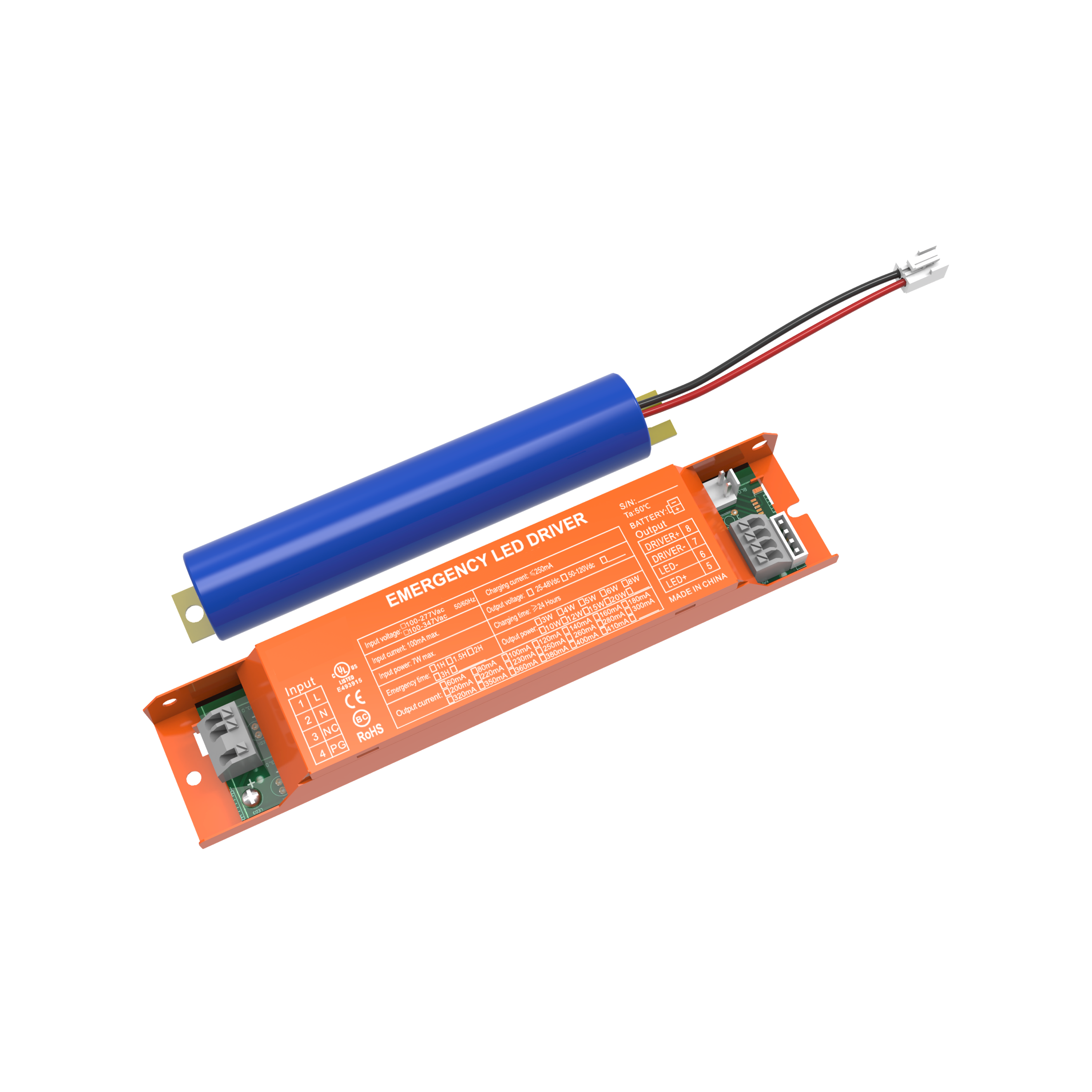

OPTIONAL: EM Driver
| Product | DLC ID | DLC Class | Controls | Lumens | Efficacy | THD | PF | CCT |
|---|---|---|---|---|---|---|---|---|
| LPVT22-25-S3 | PJOIY5LV | Standard | Yes | 3,225 | 129 | 12.9 | 0.9 | 3500 - 5000 |
| LPVT22-30-S3 | PXQGFBXX | Standard | Yes | 3,892 | 127 | 13.6 | 0.9 | 3500 - 5000 |
| LPVT22-35-S3 | PL2SBRM0 | Standard | Yes | 4,410 | 126 | 15.2 | 0.9 | 3500 - 5000 |
| LPVT24-40-S3 | P3XZP4FL | Standard | Yes | 4,907 | 128 | 11.1 | 0.9 | 3500 - 5000 |
| LPVT24-45-S3 | PC6BNOVE | Standard | Yes | 5,457 | 127 | 10.7 | 0.9 | 3500 - 5000 |
| LPVT24-50-S3 | POQ9MH2T | Standard | Yes | 6,275 | 126 | 10.9 | 0.9 | 3500 - 5000 |
