Titan-II Series
Peak of Power & Intellect
The latest in cutting-edge LED linear high-bay technology, the lamparⒶRCH LLHB Titan-II Series is engineered to outshine standard fluorescent, metal halide high-bays, and even run-of-the-mill LED options. Boasting robust performance in a compact form, this luminaire is designed for superior industrial lighting.
3-WATTselect:
85W|130W|155W Max
210W|255W|320W Max
330W|360W|400W Max
2-CCTselect:
4000K|5000K
The Apex High-Bay Solution
-
Warehouse & Storages
-
Production Facilities
-
Gymnasium Lighting
- Thermally isolated driver design with 0-10V dimming
- Die-cast aluminum for superior structural integrity
- Built-in 6KVa surge protection w/ option to add in-line surge protection
- The compact design not only reduces weight but also minimizes installation time, while delivering performance at the highest levels comparable to a full-sized linear high bay.
- Advanced lensing meets DLCv5.1 standard with optional distribution optics
- Eco-friendly packaging reduces packaging waste
- Standard suspend mounting hardware (included)
- 70% lumen maintenance at >100,000 hours
- The advanced driver is rated for AC97-305Vin
- Suitable for use in -40°F to 140°F
-
7Yrs, 75,000Hr
-
Replaces up to 2000W MH
-
50FT+ Placement
The lamparⒶRCH LLHB Titan-II series luminaire is the latest in high-performance LED linear highbay technology. Engineered to replace traditional fluorescent or metal halide highbays, the LLHB Titan-II delivers superior performance in a compact, easy-to-manage package.
-
Operating0°F0°F
Temp -
Ambient0°F0°F
Temp -
Efficacy>0lm/W
-
PF0
-
THD<0%
-
CRI>0
- Wattage selectable: 3-way dip-switch
- CCT selectable: 2-way dip-switch
- NLC Compliant, SIG-qualified Bluetooth Mesh lighting control
- Up to 400W, replacing up to 2,000W MH
Product Dimensions
Dimensions may vary, depending on the accessories.
Optional Accessories
Build to spec with bespoke accessories designed for the Titan-II
Note: All Titan-IIs come standard with V-hooks & 6ft aircraft cables for suspension
Build your Titan-II Series
Select the options below to build your own Titan-II Series model.
LLHB XXX -XXX XXX XXX XXX XXX XXX XXX -XXX
Overview
Fields marked with * are required. | Grayed out options are not selectable.
Model Series:
* 3-WATTselect (W)
* Voltage (V)
OPTIONAL: EM Driver (requires J-Box to be included with order)
OPTIONAL: Motion Sensor

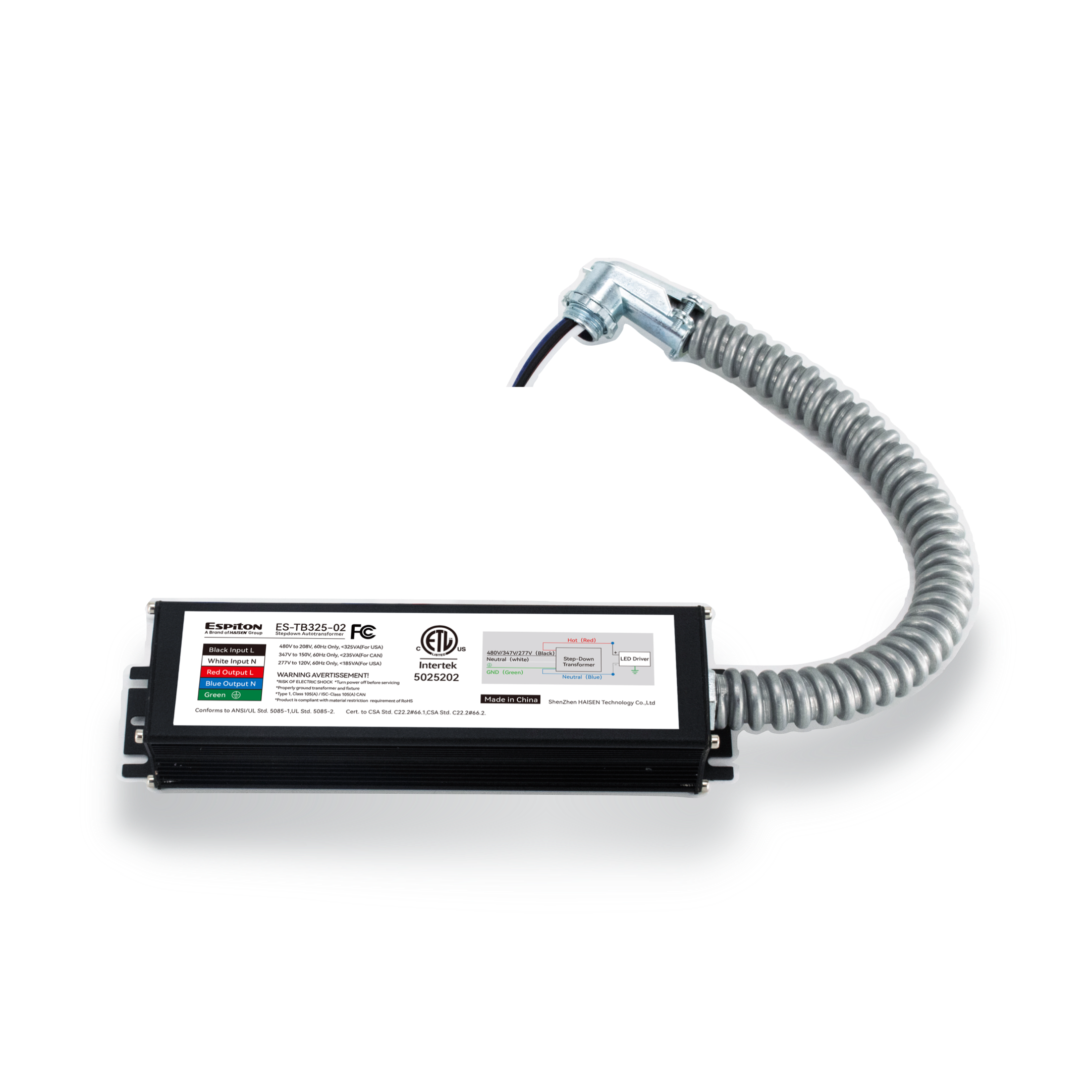

OPTIONAL: Step-Down Transformer
OPTIONAL: Wire Guard
OPTIONAL: Mounts
OPTIONAL: Optics
OPTIONAL: J-Box (required when ordering an EM Driver)
| Product | DLC ID | Models | Type | Controls | Watts | Lumens | Efficacy | CCT | White Tunable |
|---|---|---|---|---|---|---|---|---|---|
| LLHB085-2CS-UT/d/b | S-4CP19M | Premium | High-Bay Luminaires | Yes | 84.9 | 13062 | 153.77 | 4000 | TRUE |
| LLHB130-2CS-UT/d/b | S-AEH62D | Premium | High-Bay Luminaires | Yes | 128.5 | 19620 | 152.69 | 4000 | TRUE |
| LLHB155-2CS-UT/d/b | S-L5MOC7 | Premium | High-Bay Luminaires | Yes | 155.3 | 23469 | 151.14 | 4000 | TRUE |
| LLHB215-2CS-UT/d/b | S-SHCQIL | Premium | High-Bay Luminaires | Yes | 217.1 | 32881 | 151.07 | 4000 | TRUE |
| LLHB255-2CS-UT/d/b | S-IFKA6Y | Premium | High-Bay Luminaires | Yes | 252.5 | 38149 | 150.7 | 4000 | TRUE |
| LLHB320-2CS-UT/d/b | S-24XMG6 | Premium | High-Bay Luminaires | Yes | 322.6 | 49837 | 154.5 | 4000 | TRUE |
| LLHB400-2CS-UT/d/b | S-H03UNB | Premium | High-Bay Luminaires | Yes | 391.7 | 59742 | 152.54 | 4000 | TRUE |
