proⒶRCH-II Series
Contractors' Choice
The LBLP proⒶRCH-II-Series LED Panel Light is specifically designed for commercial indoor spaces such as offices, schools, and hospitality venues. With 15-variations that can be selected via dip-switches, the luminaire is built for 3-way switchable power and 3-way CCT, promising versatility and adaptability.
Rep Portal Login
Login with your Sales Rep Account to see pricing & availabilityReset your password
We will send you an email to reset your password.
3-WATTselect:
1x4: 20W|30W|40W
2x2: 20W|30W|40W
2x4: 30W|40W|50W
3-CCTselect:
3500K|4000K|5000K
Optimal, Versatile, and Compliant
-
Office Space
-
Hospitals
-
Schools
The LBLP proⒶRCH-II-Series is TAA compliant and is effortless to install, easy to maintain and provides the perfect lighting level for any application. Whether you are looking to light an office, school, hospital, or commercial building, the LBLP proⒶRCH-II-Series is the perfect choice.
The LBLP proⒶRCH-II-Series is dual-listed as ambient lighting panels and low-bay luminaires.
-
7 year / 75,000hr Warranty
-
Efficient Heat Dissipation
-
High-Density LED Chips
Unlike conventional edge-lit panels, the LBLP proⒶRCH-II-Series boasts seamless light distribution, thanks to its advanced lens design. Crafted with a reinforced 6063 aluminum alloy frame, this luminaire offers enhanced structural integrity, ensuring long-lasting performance even in demanding settings.
Optimize shelf space, minimize inventory expenditure, enhance product accessibility, and elevate customer satisfaction by acquiring all lighting options and more from a single unit.
-
Operating0°F0°F
Temp -
Ambient0°F0°F
Temp -
Efficacy>0lm/W
-
PF0
-
THD<0%
-
CRI>0
Equipped with intuitive dip-switches integrated into the driver, the LBLP proⒶRCH-II-Series allows seamless selection between four distinct wattage and correlated color temperature (CCT) ranges. This unique feature empowers users to tailor the lighting output precisely to their requirements, ensuring optimal comfort and productivity in any environment.
Product Dimensions
Dimensions may vary, depending on the accessories.
Optional Accessories
Build to spec with bespoke accessories designed for the LBLP | proⒶRCH-II
Build your proⒶRCH-II Series
Select the options below to build your own proⒶRCH-II Series model.
LBLP XXX -3 3MXP2 XXX XXX XXX XXX XXX
Rep Portal Login
Login with your Sales Rep Account to see request quoteReset your password
We will send you an email to reset your password.
Rep Portal Login
Login with your Sales Rep Account to see pricing & availabilityReset your password
We will send you an email to reset your password.
Overview
Fields marked with * are required. | Grayed out options are not selectable.
Model Series:
* Size
* CCTselect
* WATTselect

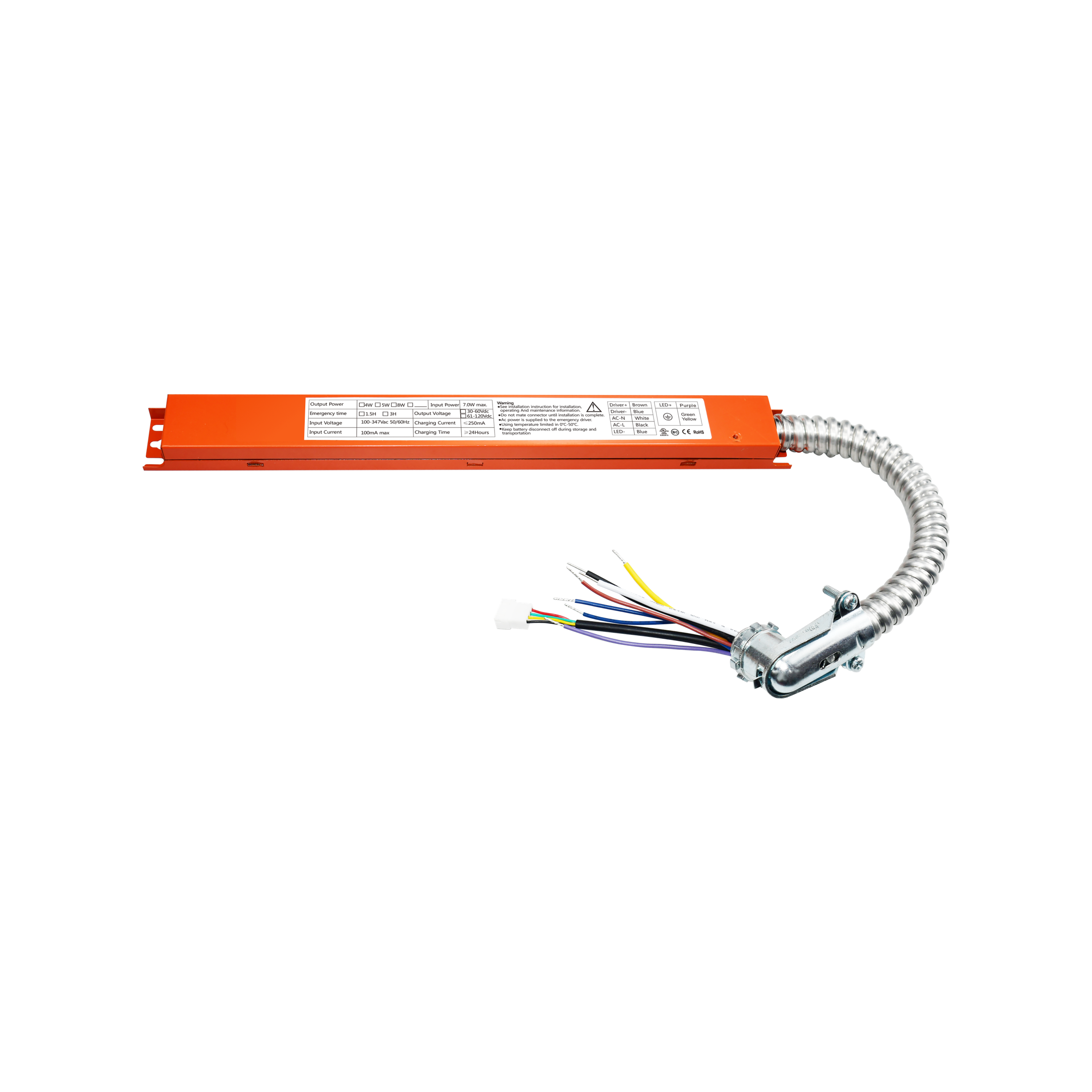

EM Driver
Sensors
Flange Kit
Surface Mount
Suspension Kit
| DLC ID | Models | Controls | Lumens | Efficacy | THD | PF | CCT |
|---|---|---|---|---|---|---|---|
| S-STEDKF | LBLP14-33MXP2-[Blank,DS,MS] | Yes | 4788 | 130 | 15 | 0.9 | 3500K — 5000K |
| S-HJ4FK6 | LBLP22-33MXP2-[Blank,DS,MS] | Yes | 4707 | 130 | 15 | 0.9 | 3500K — 5000K |
| S-DFC2J1 | LBLP24-33MXP2-[Blank,DS,MS] | Yes | 6006 | 130 | 15 | 0.9 | 3500K — 5000K |
