Configured SKU
LWPE10-3CS-U-WM
Generated
—
Archipelago
Lighting Group
Catalog Number
LWPE10-3CS-U-WM
Project
Type
Catalog #
Prepared By
Notes
Date

LWPE · Wedge

LED Entryway Wall Pack · Clear / Matte Clear · 2,550 lm · 3000K / 4000K / 5000K

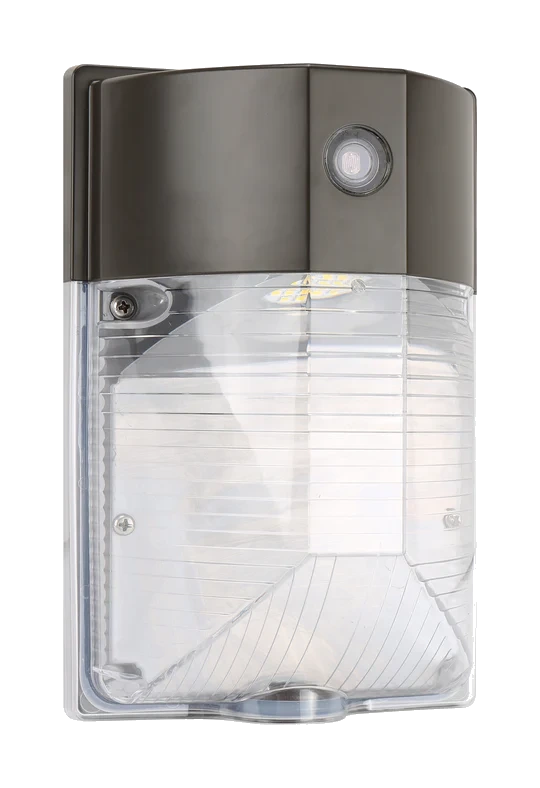

LWPE Wedge luminaire
Lumens
2,550lm
Wattage
20W
Voltage
120-277VV
CCT
4000K
CRI
80
IP Rating
IP65
ALG Certified
3-CCT selectable switch, Integrated 4W emergency battery backup, Integrated photocontrol, Built-in test button, IP65 rated
Approved by
Date
archipelagolighting.com · LWPE Wedge submittal · Specifications subject to change
Rev. 2026-06 · Page 1 of 4
Archipelago
Lighting Group
Catalog Number
LWPE10-3CS-U-WM
Model Specifications
10W1,300 lm · 130 lm/W
10W1,400 lm · 140 lm/W
10W1,350 lm · 135 lm/W
20W2,550 lm · 128 lm/W
20W2,660 lm · 133 lm/W
20W2,600 lm · 130 lm/W
Optical
CCT Options3000K / 4000K / 5000K
CRI80 typical
Optic DistributionClear / Matte Clear
Electrical
Input Voltage120-277V
Power Factor≥ 0.95 at full load
THD≤ 20% at full load
Surge ProtectionNot specified standard
Dimming0-10V standard · contrⒶLS-Ready
Construction & Environment
Ingress ProtectionIP65 wet-location rated
Operating Temp-20C to +40C
LED SourceIntegrated LED light engine · L70 lumen maintenance
Mounting
Mount OptionsWall Mount
Compliance & Warranty
StandardsUL 1598 · cUL · DLC Premium QPL Listed · FCC Title 47 Part 15B · RoHS
Warranty5-year limited · 50000-hr L70 lumen maintenance
archipelagolighting.com · LWPE Wedge submittal · Specifications subject to change
Rev. 2026-06 · Page 2 of 4
Archipelago
Lighting Group
Catalog Number
LWPE10-3CS-U-WM
Ordering Guide — LWPE Wedge
Wattage / Housing
10W1,300 lm · 130 lm/W
10W1,400 lm · 140 lm/W
10W1,350 lm · 135 lm/W
20W2,550 lm · 128 lm/W
20W2,660 lm · 133 lm/W
20W2,600 lm · 130 lm/W
CCT
303000K Warm White
404000K Neutral White
505000K Cool White
Voltage
UUniversal 120-277V
HHigh Voltage 277-480V
Finish
BBlack
DDark Bronze
SSilver
WWhite
Mount
WMWall Mount
UAUniversal Arm
SFSlip Fitter
TRTrunnion
archipelagolighting.com · LWPE Wedge submittal · Specifications subject to change
Rev. 2026-06 · Page 3 of 4
Archipelago
Lighting Group
Catalog Number
LWPE10-3CS-U-WM
Default optic · 20W · 4000K

Dimensions & Mounting

LWPA Wedge — Dimension drawing
Dimension drawing (in)
LWPA Wedge dimension drawing

Refer to dimension drawing for exact housing dimensions, mounting hole patterns, and clearance requirements.

Contact ALG for DWG/DXF CAD files.

Polar plot
Lumens2,550 lm
Peak Candela—
Distribution—
IES FileLWPE20-4000K.IES
