Configured SKU
LWPC80-3CS-U-WM
Generated
—
Archipelago
Lighting Group
Catalog Number
LWPC80-3CS-U-WM
Project
Type
Catalog #
Prepared By
Notes
Date

LWPC · Watchtower

LED Full-Cutoff Wall Pack · Full-cutoff · 16,560 lm · 3000K / 4000K / 5000K

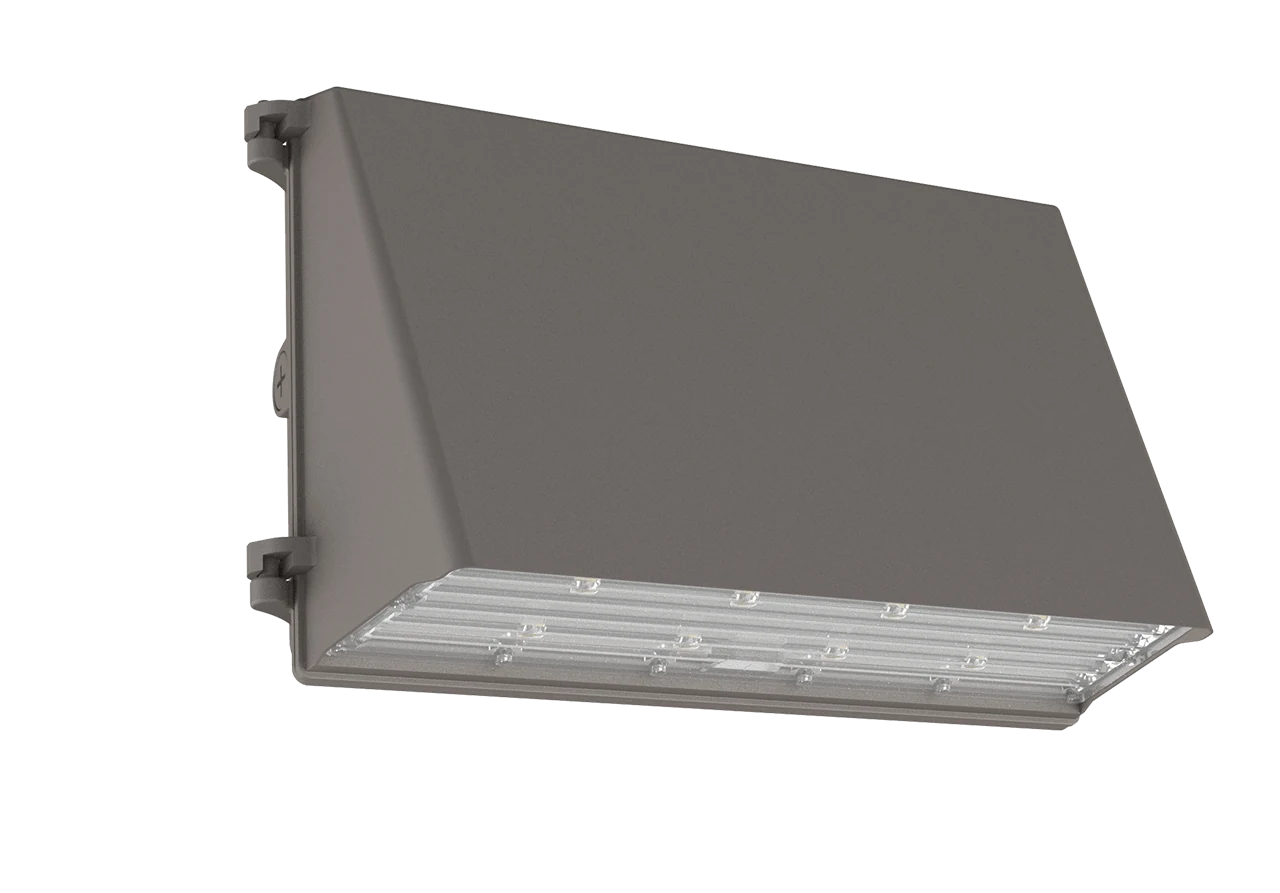

LWPC Watchtower luminaire
Lumens
16,560lm
Wattage
120W
Voltage
120-277VacV
CCT
4000K
CRI
>80
IP Rating
IP65
ALG Certified
Full-Cutoff Design, Advanced Driver Technology, Thermal Excellence
Approved by
Date
archipelagolighting.com · LWPC Watchtower submittal · Specifications subject to change
Rev. 2026-06 · Page 1 of 4
Archipelago
Lighting Group
Catalog Number
LWPC80-3CS-U-WM
Model Specifications
40W5,440 lm · 136 lm/W
60W8,160 lm · 136 lm/W
80W11,120 lm · 139 lm/W
100W13,900 lm · 139 lm/W
120W16,560 lm · 138 lm/W
Optical
CCT Options3000K / 4000K / 5000K
CRI>80 typical
Optic DistributionFull-cutoff
Electrical
Input Voltage120-277Vac
Power Factor≥ 0.95 at full load
THD≤ 20% at full load
Surge Protection10KVa / 20KVa standard
Dimming0-10V standard · contrⒶLS-Ready
Construction & Environment
Ingress ProtectionIP65 wet-location rated
Operating Temp-40°F to 113°F
LED SourcePremium SMD LED · L70 lumen maintenance
Mounting
Mount OptionsDirect wall surface or standard J-box
Compliance & Warranty
StandardsUL 1598 · cUL · DLC Premium QPL Listed · FCC Title 47 Part 15B · RoHS
Warranty5-year limited · 50000-hr L70 lumen maintenance
archipelagolighting.com · LWPC Watchtower submittal · Specifications subject to change
Rev. 2026-06 · Page 2 of 4
Archipelago
Lighting Group
Catalog Number
LWPC80-3CS-U-WM
Ordering Guide — LWPC Watchtower
Wattage / Housing
40W5,440 lm · 136 lm/W
60W8,160 lm · 136 lm/W
80W11,120 lm · 139 lm/W
100W13,900 lm · 139 lm/W
120W16,560 lm · 138 lm/W
CCT
303000K Warm White
404000K Neutral White
505000K Cool White
Voltage
UUniversal 120-277V
HHigh Voltage 277-480V
Finish
BBlack
DDark Bronze
SSilver
WWhite
Mount
WMWall Mount
UAUniversal Arm
SFSlip Fitter
TRTrunnion
archipelagolighting.com · LWPC Watchtower submittal · Specifications subject to change
Rev. 2026-06 · Page 3 of 4
Archipelago
Lighting Group
Catalog Number
LWPC80-3CS-U-WM
Default optic · 120W · 4000K

Dimensions & Mounting

LWPC Watchtower — Dimension drawing
Dimension drawing (in)
LWPC Watchtower dimension drawing

Refer to dimension drawing for exact housing dimensions, mounting hole patterns, and clearance requirements.

Contact ALG for DWG/DXF CAD files.

Polar plot
Lumens16,560 lm
Peak Candela—
Distribution—
IES FileLWPC120-4000K.IES
archipelagolighting.com · LWPC Watchtower submittal · Specifications subject to change
Rev. 2026-06 · Page 4 of 4
