Configured SKU
LWPF40-3CS-U-WM
Generated
—
Archipelago
Lighting Group
Catalog Number
LWPF40-3CS-U-WM
Project
Type
Catalog #
Prepared By
Notes
Date

LWPF · Sentinel

LED Wall Pack · Type II · 16,500 lm · 3500K / 4000K / 5000K

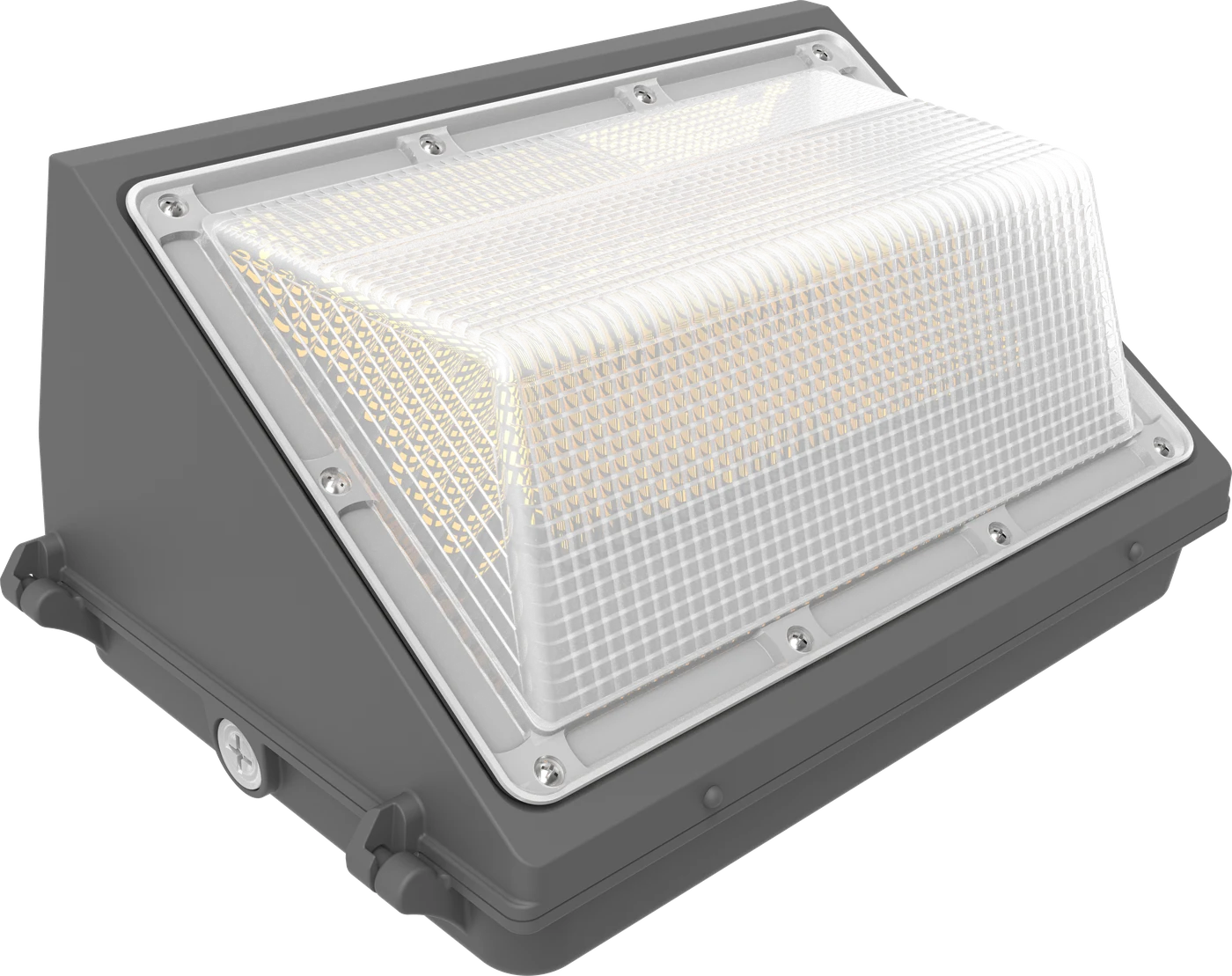

LWPF Sentinel luminaire
Lumens
16,500lm
Wattage
120W
Voltage
120-277VV
CCT
4000K
CRI
>80
IP Rating
IP65
ALG Certified
Precision optics deliver controlled forward throw with zero uplight; 3-WATTselect and 3-CCTselect for on-site tuning; Up to 140 lm/W efficacy and 16,500 lumens.
Approved by
Date
archipelagolighting.com · LWPF Sentinel submittal · Specifications subject to change
Rev. 2026-06 · Page 1 of 4
Archipelago
Lighting Group
Catalog Number
LWPF40-3CS-U-WM
Model Specifications
20W5,500 lm · 137 lm/W
30W5,500 lm · 137 lm/W
40W5,500 lm · 137 lm/W
40W11,250 lm · 140 lm/W
60W11,250 lm · 140 lm/W
80W11,250 lm · 140 lm/W
80W16,500 lm · 139 lm/W
100W16,500 lm · 139 lm/W
120W16,500 lm · 139 lm/W
Optical
CCT Options3500K / 4000K / 5000K
CRI>80 typical
Optic DistributionType II
Electrical
Input Voltage120-277V
Power Factor≥ 0.95 at full load
THD≤ 20% at full load
Surge Protection10kV / 20kV standard
Dimming0-10V standard · contrⒶLS-Ready
Construction & Environment
Ingress ProtectionIP65 wet-location rated
Operating Temp-40C to +45C
LED SourcePremium SMD LED · L70 lumen maintenance
Mounting
Mount OptionsWall Mount / J-box Mounting
Compliance & Warranty
StandardsUL 1598 · cUL · DLC Premium QPL Listed · FCC Title 47 Part 15B · RoHS
Warranty5-year limited · 50000-hr L70 lumen maintenance
archipelagolighting.com · LWPF Sentinel submittal · Specifications subject to change
Rev. 2026-06 · Page 2 of 4
Archipelago
Lighting Group
Catalog Number
LWPF40-3CS-U-WM
Ordering Guide — LWPF Sentinel
Wattage / Housing
20W5,500 lm · 137 lm/W
30W5,500 lm · 137 lm/W
40W5,500 lm · 137 lm/W
40W11,250 lm · 140 lm/W
60W11,250 lm · 140 lm/W
80W11,250 lm · 140 lm/W
80W16,500 lm · 139 lm/W
100W16,500 lm · 139 lm/W
120W16,500 lm · 139 lm/W
CCT
303000K Warm White
404000K Neutral White
505000K Cool White
Voltage
UUniversal 120-277V
HHigh Voltage 277-480V
Finish
BBlack
DDark Bronze
SSilver
WWhite
Mount
WMWall Mount
UAUniversal Arm
SFSlip Fitter
TRTrunnion
archipelagolighting.com · LWPF Sentinel submittal · Specifications subject to change
Rev. 2026-06 · Page 3 of 4
Archipelago
Lighting Group
Catalog Number
LWPF40-3CS-U-WM
Default optic · 120W · 4000K

Dimensions & Mounting

LWPF Sentinel — Dimension drawing
Dimension drawing (in)
LWPF Sentinel dimension drawing

Refer to dimension drawing for exact housing dimensions, mounting hole patterns, and clearance requirements.

Contact ALG for DWG/DXF CAD files.

Polar plot
Lumens16,500 lm
Peak Candela—
Distribution—
IES FileLWPF120-4000K.IES
archipelagolighting.com · LWPF Sentinel submittal · Specifications subject to change
Rev. 2026-06 · Page 4 of 4
