Configured SKU
LWPE20-3CS-U-WM
Generated
—
Archipelago
Lighting Group
Catalog Number
LWPE20-3CS-U-WM
Project
Type
Catalog #
Prepared By
Notes
Date

LWPE · Ramparts

Entryway Wall Pack · Matte Clear · 2,650 lm · 3000K / 4000K / 5000K

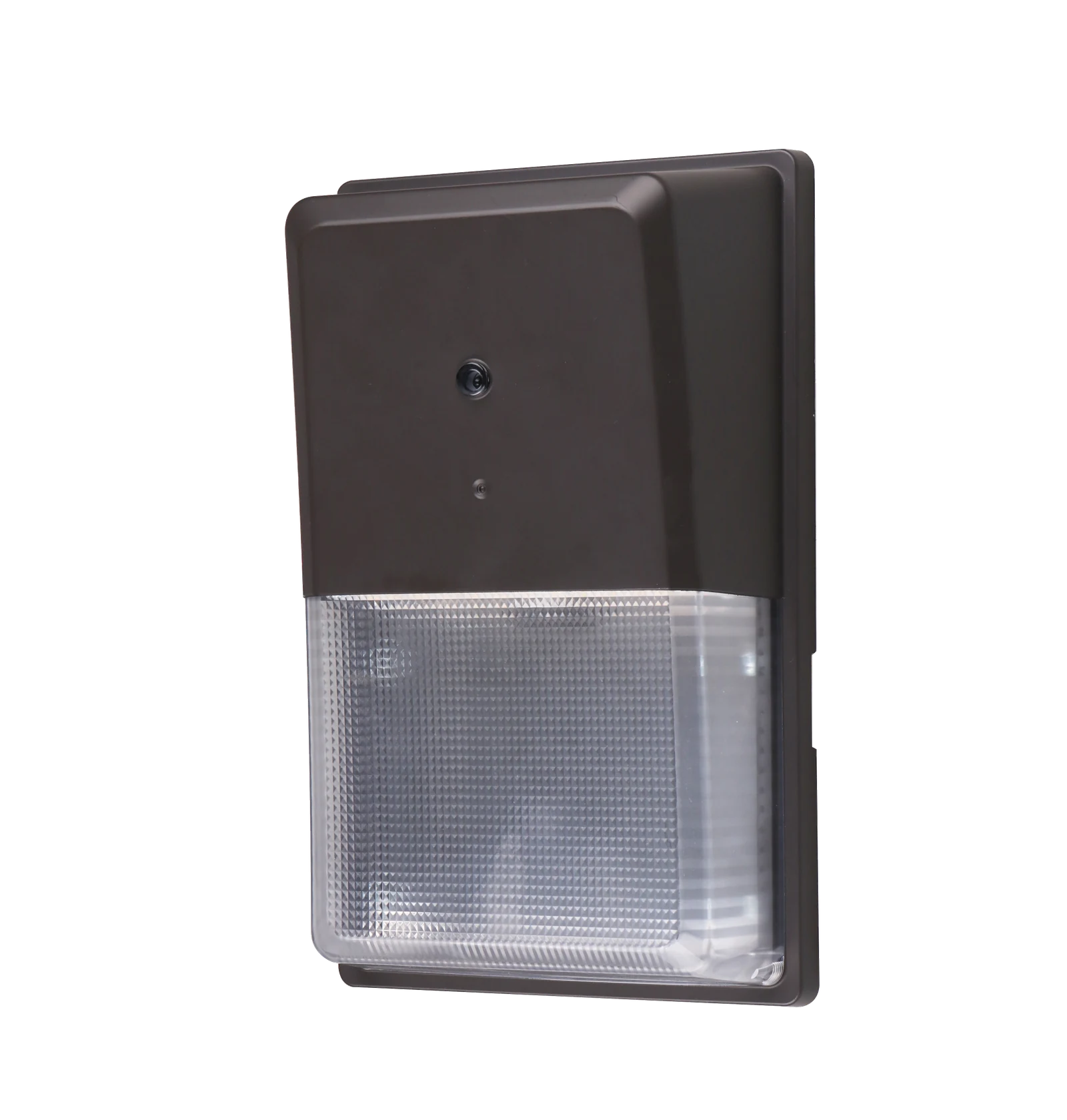

LWPE Ramparts Entryway Wall Pack luminaire
Lumens
2,650lm
Wattage
20W
Voltage
120-277VV
CCT
4000K
CRI
>80
IP Rating
IP65
ALG Certified
3-WATTselect field-adjustable / 3-CCTselect field-adjustable / WetGuard IP65 rated
Approved by
Date
archipelagolighting.com · LWPE Ramparts Entryway Wall Pack submittal · Specifications subject to change
Rev. 2026-06 · Page 1 of 4
Archipelago
Lighting Group
Catalog Number
LWPE20-3CS-U-WM
Model Specifications
10W2,450 lm · 124 lm/W
15W2,750 lm · 139 lm/W
20W2,650 lm · 134 lm/W
Optical
CCT Options3000K / 4000K / 5000K
CRI>80 typical
Optic DistributionMatte Clear
Electrical
Input Voltage120-277V
Power Factor≥ 0.95 at full load
THD≤ 20% at full load
Surge Protection2.5kV standard
Dimming0-10V standard · contrⒶLS-Ready
Construction & Environment
Ingress ProtectionIP65 wet-location rated
Operating Temp-40C to +50C
LED SourceLumileds SMD2835 LEDs · L70 lumen maintenance
Mounting
Mount OptionsIntegrated mounting plate
Compliance & Warranty
StandardsUL 1598 · cUL · DLC Premium QPL Listed · FCC Title 47 Part 15B · RoHS
Warranty5-year limited · 50000-hr L70 lumen maintenance
archipelagolighting.com · LWPE Ramparts Entryway Wall Pack submittal · Specifications subject to change
Rev. 2026-06 · Page 2 of 4
Archipelago
Lighting Group
Catalog Number
LWPE20-3CS-U-WM
Ordering Guide — LWPE Ramparts Entryway Wall Pack
Wattage / Housing
10W2,450 lm · 124 lm/W
15W2,750 lm · 139 lm/W
20W2,650 lm · 134 lm/W
CCT
303000K Warm White
404000K Neutral White
505000K Cool White
Voltage
UUniversal 120-277V
HHigh Voltage 277-480V
Finish
BBlack
DDark Bronze
SSilver
WWhite
Mount
WMWall Mount
UAUniversal Arm
SFSlip Fitter
TRTrunnion
archipelagolighting.com · LWPE Ramparts Entryway Wall Pack submittal · Specifications subject to change
Rev. 2026-06 · Page 3 of 4
Archipelago
Lighting Group
Catalog Number
LWPE20-3CS-U-WM
Default optic · 20W · 4000K

Dimensions & Mounting

LWPA Ramparts — Dimension drawing
Dimension drawing (in)
LWPA Ramparts dimension drawing

Refer to dimension drawing for exact housing dimensions, mounting hole patterns, and clearance requirements.

Contact ALG for DWG/DXF CAD files.

Polar plot
Lumens2,650 lm
Peak Candela—
Distribution—
IES FileLWPE20-4000K.IES
archipelagolighting.com · LWPE Ramparts Entryway Wall Pack submittal · Specifications subject to change
Rev. 2026-06 · Page 4 of 4
