Configured SKU
LCNP100-3CS-UB/UA
Generated
—
Archipelago
Lighting Group
Catalog Number
LCNP100-3CS-UB/UA
Project
Type
Catalog #
Prepared By
Notes
Date

LCNP · Pathfinder

LED Canopy · Anti-UV Prismatic · 17,050 lm · 3000K / 4000K / 5000K

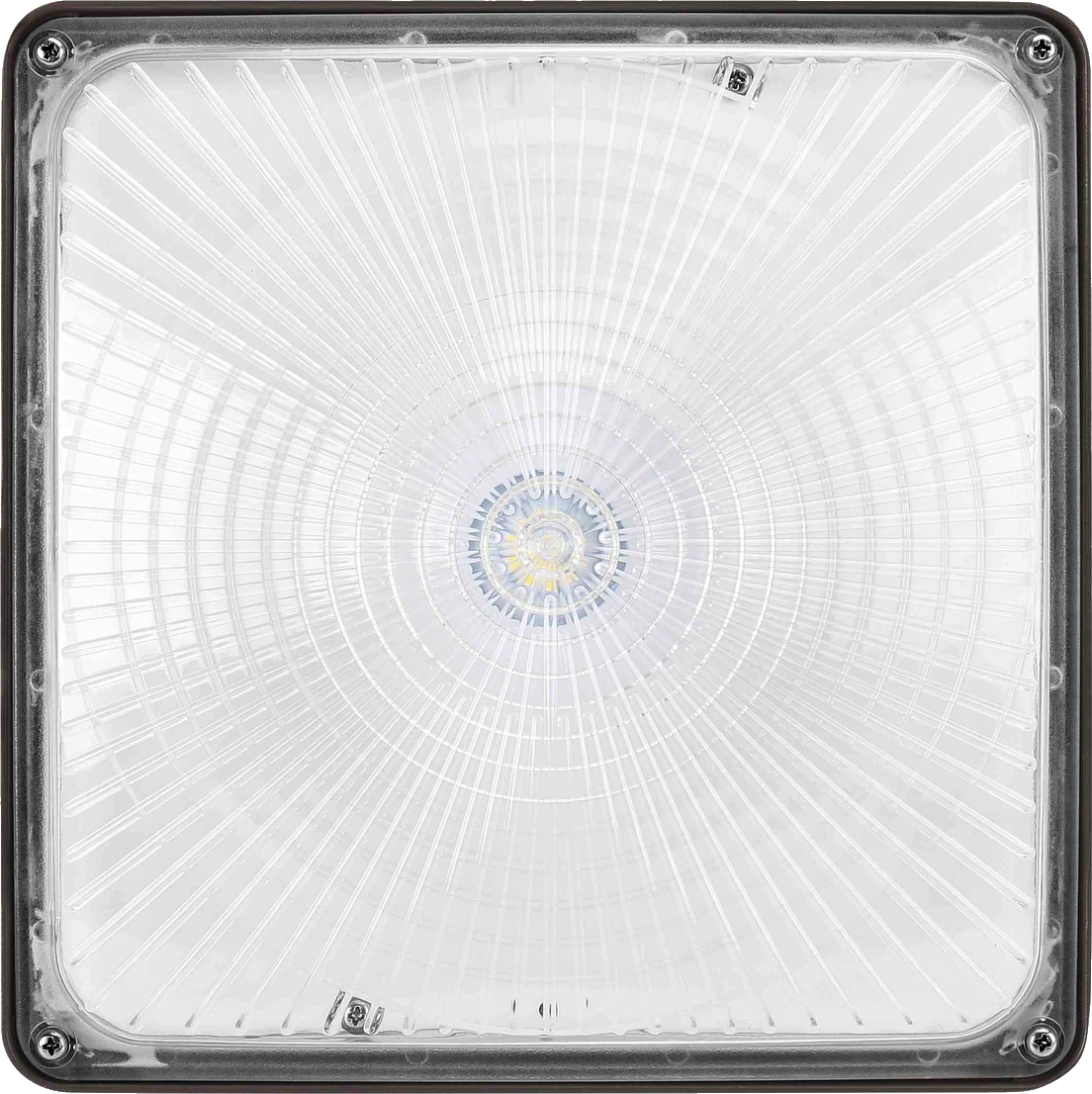

LCNP Pathfinder luminaire
Lumens
17,050lm
Wattage
110W
Voltage
120-277VACV
CCT
4000K
CRI
70
IP Rating
IP65
ALG Certified
Field-selectable wattage and CCT, Rugged thermally efficient construction, Installation-friendly mounting platform
Approved by
Date
archipelagolighting.com · LCNP Pathfinder submittal · Specifications subject to change
Rev. 2026-06 · Page 1 of 4
Archipelago
Lighting Group
Catalog Number
LCNP100-3CS-UB/UA
Model Specifications
25W (Surface Mount (J-Box) Quick-Mount Plate)9,600 lm · 160 lm/W
36W (Surface Mount (J-Box) Quick-Mount Plate)9,600 lm · 160 lm/W
48W (Surface Mount (J-Box) Quick-Mount Plate)9,600 lm · 160 lm/W
60W (Surface Mount (J-Box) Quick-Mount Plate)9,600 lm · 160 lm/W
45W (3/4" Pendant Compatible)17,050 lm · 155 lm/W
65W (3/4" Pendant Compatible)17,050 lm · 155 lm/W
90W (3/4" Pendant Compatible)17,050 lm · 155 lm/W
110W (3/4" Pendant Compatible)17,050 lm · 155 lm/W
Optical
CCT Options3000K / 4000K / 5000K
CRI70 typical
Optic DistributionAnti-UV Prismatic
Electrical
Input Voltage120-277VAC
Power Factor≥ 0.95 at full load
THD≤ 20% at full load
Surge ProtectionNot specified standard
Dimming0-10V standard · contrⒶLS-Ready
Construction & Environment
Ingress ProtectionIP65 wet-location rated
Operating Temp-40°F to 104°F
LED SourceNot specified · L70 lumen maintenance
Mounting
Mount OptionsSurface Mount (J-Box) / 3/4" Pendant
Compliance & Warranty
StandardsUL 1598 · cUL · DLC Premium QPL Listed · FCC Title 47 Part 15B · RoHS
Warranty7-year limited · 75000-hr L70 lumen maintenance
archipelagolighting.com · LCNP Pathfinder submittal · Specifications subject to change
Rev. 2026-06 · Page 2 of 4
Archipelago
Lighting Group
Catalog Number
LCNP100-3CS-UB/UA
Ordering Guide — LCNP Pathfinder
Wattage / Housing
25W (Surface Mount (J-Box) Quick-Mount Plate)9,600 lm · 160 lm/W
36W (Surface Mount (J-Box) Quick-Mount Plate)9,600 lm · 160 lm/W
48W (Surface Mount (J-Box) Quick-Mount Plate)9,600 lm · 160 lm/W
60W (Surface Mount (J-Box) Quick-Mount Plate)9,600 lm · 160 lm/W
45W (3/4" Pendant Compatible)17,050 lm · 155 lm/W
65W (3/4" Pendant Compatible)17,050 lm · 155 lm/W
90W (3/4" Pendant Compatible)17,050 lm · 155 lm/W
110W (3/4" Pendant Compatible)17,050 lm · 155 lm/W
CCT
303000K Warm White
404000K Neutral White
505000K Cool White
Voltage
UUniversal 120-277V
HHigh Voltage 277-480V
Finish
BBlack
DDark Bronze
SSilver
WWhite
Mount
WMWall Mount
UAUniversal Arm
SFSlip Fitter
TRTrunnion
archipelagolighting.com · LCNP Pathfinder submittal · Specifications subject to change
Rev. 2026-06 · Page 3 of 4
Archipelago
Lighting Group
Catalog Number
LCNP100-3CS-UB/UA
Default optic · 110W · 4000K

Dimensions & Mounting

LCNP Pathfinder — Dimension drawing
Dimension drawing (in)
LCNP Pathfinder dimension drawing

Refer to dimension drawing for exact housing dimensions, mounting hole patterns, and clearance requirements.

Contact ALG for DWG/DXF CAD files.

Polar plot
Lumens17,050 lm
Peak Candela—
Distribution—
IES FileLCNP110-4000K.IES
archipelagolighting.com · LCNP Pathfinder submittal · Specifications subject to change
Rev. 2026-06 · Page 4 of 4
