Configured SKU
LWPC30-3CS-U-WM
Generated
—
Archipelago
Lighting Group
Catalog Number
LWPC30-3CS-U-WM
Project
Type
Catalog #
Prepared By
Notes
Date

LWPC · Nightwatch

Full-Cutoff Wall Pack · Type I / II / III / IV · 19,000 lm · 3000K / 4000K / 5000K

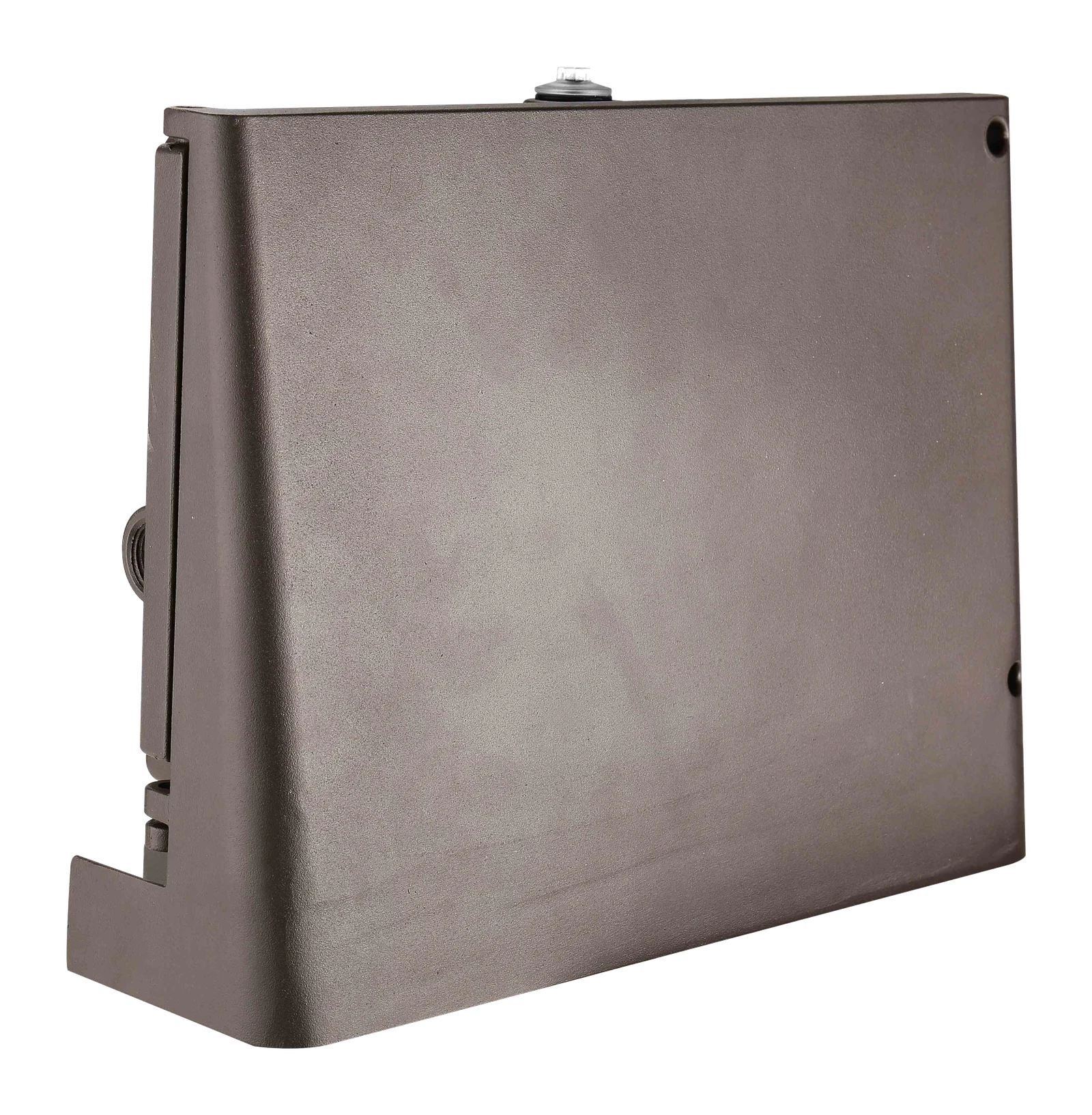

LWPC Nightwatch luminaire
Lumens
19,000lm
Wattage
135W
Voltage
120-277VacV
CCT
4000K
CRI
>70
IP Rating
IP65
ALG Certified
4-WATTselect, 3-CCTselect, beamADJUST™-Ready
Approved by
Date
archipelagolighting.com · LWPC Nightwatch submittal · Specifications subject to change
Rev. 2026-06 · Page 1 of 4
Archipelago
Lighting Group
Catalog Number
LWPC30-3CS-U-WM
Model Specifications
30W (LWPC38)4,200 lm · 140 lm/W
30W (LWPC38)4,400 lm · 147 lm/W
30W (LWPC38)4,300 lm · 143 lm/W
38W (LWPC38)5,600 lm · 147 lm/W
38W (LWPC38)6,000 lm · 158 lm/W
38W (LWPC38)5,700 lm · 150 lm/W
60W (LWPC65)7,800 lm · 130 lm/W
60W (LWPC65)8,400 lm · 140 lm/W
60W (LWPC65)8,200 lm · 137 lm/W
65W (LWPC65)9,500 lm · 146 lm/W
65W (LWPC65)10,000 lm · 154 lm/W
65W (LWPC65)9,700 lm · 149 lm/W
100W (LWPC100)14,800 lm · 148 lm/W
100W (LWPC100)15,500 lm · 155 lm/W
100W (LWPC100)15,000 lm · 150 lm/W
135W (LWPC135)19,000 lm · 141 lm/W
135W (LWPC135)20,000 lm · 148 lm/W
135W (LWPC135)20,000 lm · 148 lm/W
Optical
CCT Options3000K / 4000K / 5000K
CRI>70 typical
Optic DistributionType I / II / III / IV
Electrical
Input Voltage120-277Vac
Power Factor≥ 0.95 at full load
THD≤ 20% at full load
Surge ProtectionBuilt-in surge protection standard
Dimming0-10V standard · contrⒶLS-Ready
Construction & Environment
Ingress ProtectionIP65 wet-location rated
Operating Temp-40°C to 40°C (-40°F to +104°F)
LED SourcePremium SMD LED · L70 lumen maintenance
Mounting
Mount OptionsWall / J-box
Compliance & Warranty
StandardsUL 1598 · cUL · DLC Premium QPL Listed · FCC Title 47 Part 15B · RoHS
Warranty5-year limited · 50000-hr L70 lumen maintenance
archipelagolighting.com · LWPC Nightwatch submittal · Specifications subject to change
Rev. 2026-06 · Page 2 of 4
Archipelago
Lighting Group
Catalog Number
LWPC30-3CS-U-WM
Ordering Guide — LWPC Nightwatch
Wattage / Housing
30W (LWPC38)4,200 lm · 140 lm/W
30W (LWPC38)4,400 lm · 147 lm/W
30W (LWPC38)4,300 lm · 143 lm/W
38W (LWPC38)5,600 lm · 147 lm/W
38W (LWPC38)6,000 lm · 158 lm/W
38W (LWPC38)5,700 lm · 150 lm/W
60W (LWPC65)7,800 lm · 130 lm/W
60W (LWPC65)8,400 lm · 140 lm/W
60W (LWPC65)8,200 lm · 137 lm/W
65W (LWPC65)9,500 lm · 146 lm/W
65W (LWPC65)10,000 lm · 154 lm/W
65W (LWPC65)9,700 lm · 149 lm/W
100W (LWPC100)14,800 lm · 148 lm/W
100W (LWPC100)15,500 lm · 155 lm/W
100W (LWPC100)15,000 lm · 150 lm/W
135W (LWPC135)19,000 lm · 141 lm/W
135W (LWPC135)20,000 lm · 148 lm/W
135W (LWPC135)20,000 lm · 148 lm/W
CCT
303000K Warm White
404000K Neutral White
505000K Cool White
Voltage
UUniversal 120-277V
HHigh Voltage 277-480V
Finish
BBlack
DDark Bronze
SSilver
WWhite
Mount
WMWall Mount
UAUniversal Arm
SFSlip Fitter
TRTrunnion
archipelagolighting.com · LWPC Nightwatch submittal · Specifications subject to change
Rev. 2026-06 · Page 3 of 4
Archipelago
Lighting Group
Catalog Number
LWPC30-3CS-U-WM
Default optic · 135W · 4000K

Dimensions & Mounting

LWPC Nightwatch — Dimension drawing
Dimension drawing (in)
LWPC Nightwatch dimension drawing

Refer to dimension drawing for exact housing dimensions, mounting hole patterns, and clearance requirements.

Contact ALG for DWG/DXF CAD files.

Polar plot
Lumens19,000 lm
Peak Candela—
Distribution—
IES FileLWPC135-4000K.IES
