LCNP · Navigator

LED Canopy · 140° beam angle · 12,000 lm · 3500K / 4000K / 5000K

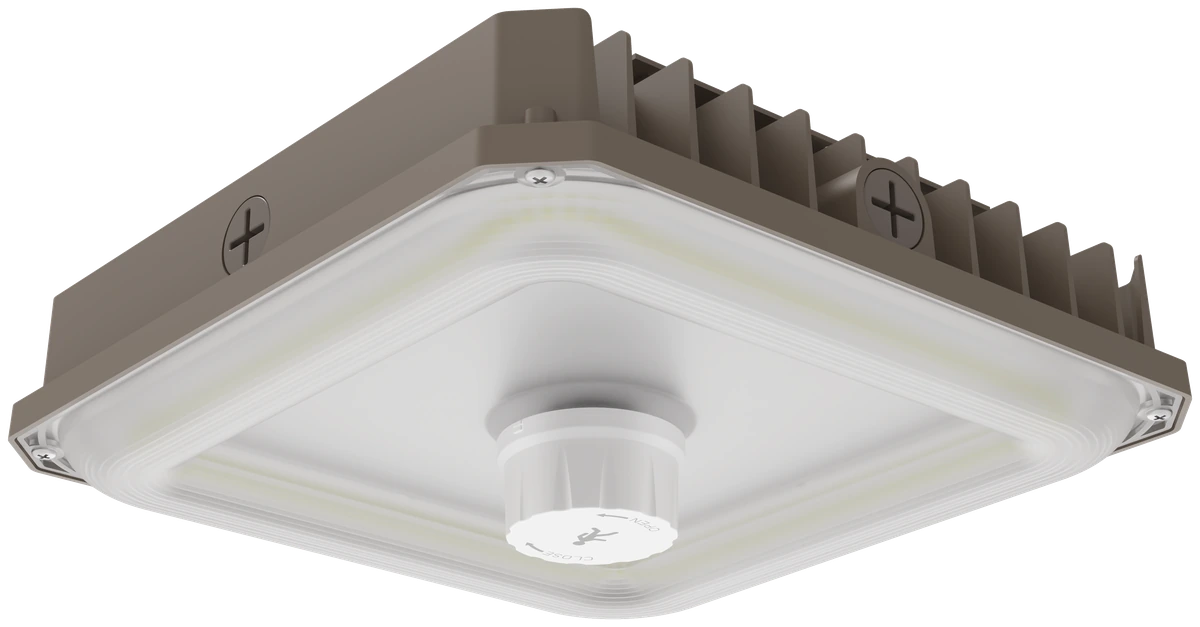

LCNP Navigator luminaire
Lumens
12,000lm
Wattage
100W
Voltage
120-277VV
CCT
4000K
CRI
>80
IP Rating
Not specified
ALG Certified
3-WATTselect, 3-CCTselect, constⒶNT-Ready, contrⒶLS-Ready, wetⒶGUARD
Approved by
Date
archipelagolighting.com · LCNP Navigator submittal · Specifications subject to change
Rev. 2026-06 · Page 1 of 4
Archipelago
Lighting Group
Catalog Number
LCNP100-3CS-UB/UA
Model Specifications
20W2,400 lm · 120 lm/W
30W3,600 lm · 120 lm/W
40W4,800 lm · 120 lm/W
60W7,200 lm · 120 lm/W
80W9,600 lm · 120 lm/W
100W12,000 lm · 120 lm/W
Optical
CCT Options3500K / 4000K / 5000K
CRI>80 typical
Optic Distribution140° beam angle
Electrical
Input Voltage120-277V
Power Factor≥ 0.95 at full load
THD≤ 20% at full load
Surge ProtectionNot specified standard
Dimming0-10V standard · contrⒶLS-Ready
Construction & Environment
Ingress ProtectionNot specified wet-location rated
Operating Temp-40°F to 104°F
LED SourceNot specified · L70 lumen maintenance
Mounting
Mount OptionsSurface mount / pendant mount via rigid conduit
Compliance & Warranty
StandardsUL 1598 · cUL · DLC Premium QPL Listed · FCC Title 47 Part 15B · RoHS
Warranty7-year limited · 75000-hr L70 lumen maintenance
archipelagolighting.com · LCNP Navigator submittal · Specifications subject to change
Rev. 2026-06 · Page 2 of 4
Archipelago
Lighting Group
Catalog Number
LCNP100-3CS-UB/UA
Ordering Guide — LCNP Navigator
Wattage / Housing
20W2,400 lm · 120 lm/W
30W3,600 lm · 120 lm/W
40W4,800 lm · 120 lm/W
60W7,200 lm · 120 lm/W
80W9,600 lm · 120 lm/W
100W12,000 lm · 120 lm/W
CCT
303000K Warm White
404000K Neutral White
505000K Cool White
Voltage
UUniversal 120-277V
HHigh Voltage 277-480V
Finish
BBlack
DDark Bronze
SSilver
WWhite
Mount
WMWall Mount
UAUniversal Arm
SFSlip Fitter
TRTrunnion
archipelagolighting.com · LCNP Navigator submittal · Specifications subject to change
Rev. 2026-06 · Page 3 of 4
Archipelago
Lighting Group
Catalog Number
LCNP100-3CS-UB/UA
Default optic · 100W · 4000K

Dimensions & Mounting

LCNP Navigator — Dimension drawing
Dimension drawing (in)
LCNP Navigator dimension drawing

Refer to dimension drawing for exact housing dimensions, mounting hole patterns, and clearance requirements.

Contact ALG for DWG/DXF CAD files.

Polar plot
Lumens12,000 lm
Peak Candela—
Distribution—
IES FileLCNP100-4000K.IES
