ARCHIPELAGO
Lighting Group · LDRS
Catalog Number
LDRS612-R2S5/F
Click to relabel for project
Project
Type
Catalog #
LDRS612-R2S5/F
Prepared By
Notes
Date
LDRS · Radius
Ultra-Slim Downlight · multi-fⒶMILY PRO · 0.38 in deep · remote J-box, no housing needed · wet location · 4, 6 and 8 in · 9–18 W
PRO
Size
6IN
Input watts
12W
Lumens (measured)
—
Efficacy (measured)
—
CRI
>90CRI
CCT
4000K
Field-Set
5-CCTselect 2700K/3000K/3500K/4000K/5000K, a switch on the J-box ·
120 V · TRIAC and ELV dimming, 100–5% ·
Wet location

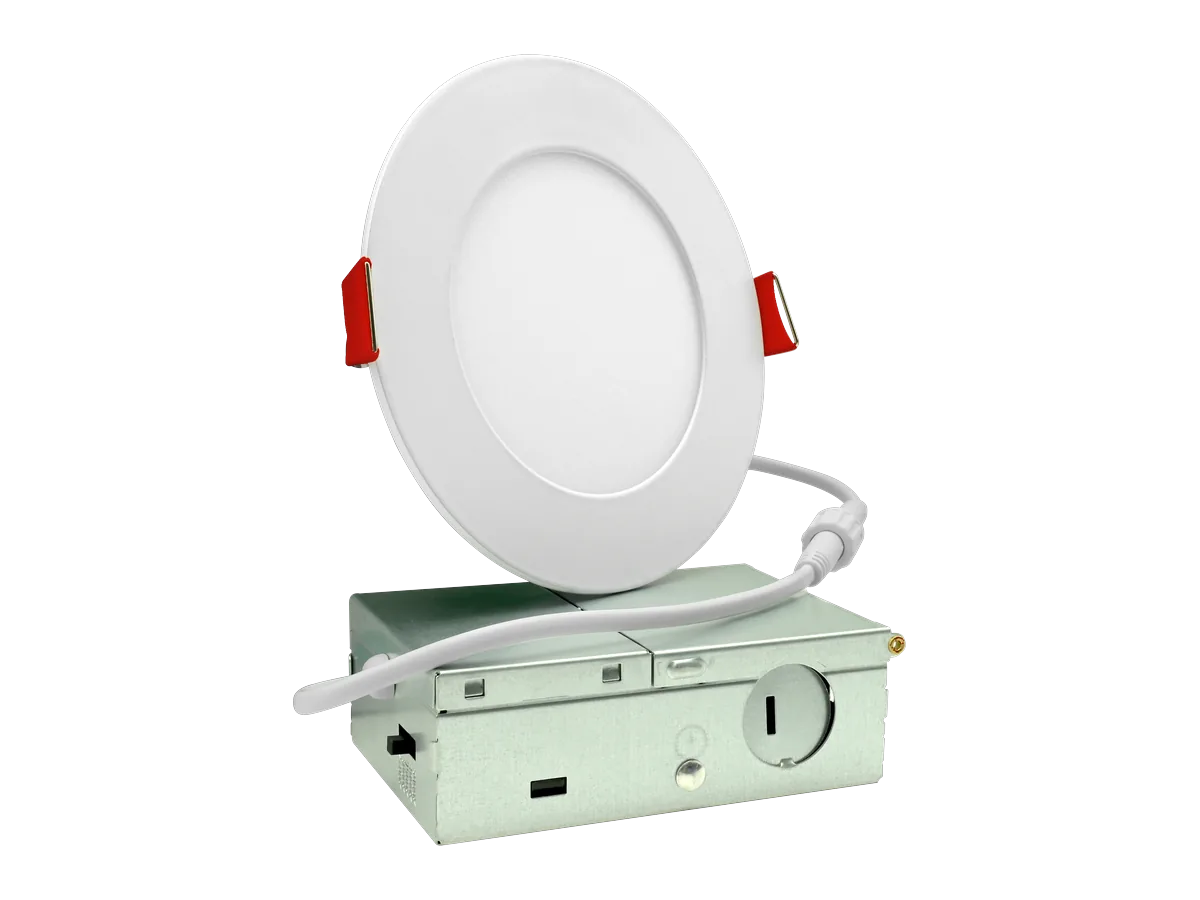

LDRS Radius is the multi-fⒶMILY PRO ultra-slim downlight: an edge-lit panel 0.38 in deep that clips into the ceiling cut-out on its own remote J-box, with no housing needed. It also fits most 4 and 6 in housings. It comes in 4, 6 and 8 in, from 9 to 18 W, and is rated for wet locations and for closets under the NEC. Color temperature is a switch on the J-box and is not in the catalog number.
Approved by
Date
archipelagolighting.com · LDRS Radius submittal · Specifications subject to change without notice
Rev. 2026-10 · Page 1 of 4
ARCHIPELAGO
Lighting Group · LDRS
Catalog Number
LDRS612-R2S5/F
Specifications
LDRS Radius · multi-fⒶMILY PRO · ultra-slim recessed downlight
Configured Selections (this submittal)
Size
LDRS612 · 6 in · 12 W
Lens
/F · flat, frosted, edge-lit
Carton
Single
CCTselect
4000K · set by switch
Trim
White face, standard
Mounting
Spring clips into the ceiling cut-out
Construction
Housing · Lens
Aluminum · frosted PMMA lens, edge-lit
Location
Wet location · closets per the NEC
Operating Temp
−22°F to +105°F ambient
LED & Optics
CCT (5-CCTselect)
2700K · 3000K · 3500K · 4000K · 5000K · switch on the J-box
CRI
CRI > 90 at every setting (truⒶCOLOR)
Beam
113° measured (4 and 6 in)
Lumen Output
Datasheet, 2700K–5000K: 4 in 562–644 lm · 6 in 936–1,041 lm · 8 in 1,409–1,504 lm
Rated Life
50,000 hr
Driver & Electrical
Voltage
120 V
Watts
4 in 9 W · 6 in 12 W · 8 in 18 W
PF · THD
> 0.9 · < 15%
Dimming
TRIAC and ELV, 100–5% · tested dimmers listed on page 3
Emergency (optional, its own line)
Emergency
CRCU-EM15/JBM · 15 W emergency driver in a universal J-box, new construction · 8 in
Compliance
ENERGY STAR
Certified: LDRS409-R2S5/F and LDRS612-R2S5/F
Warranty
5-year / 50,000-hour limited
Spec Footnotes · Nominal lumens are the datasheet's; measured figures come from the IES file for the configured size and CCT (IESNA LM-79), rounded down. The 8 in has no IES file yet. Utility programs: archipelagolighting.com/support/rebate-center/
archipelagolighting.com · LDRS Radius submittal · Specifications subject to change without notice
Rev. 2026-10 · Page 2 of 4
ARCHIPELAGO
Lighting Group · LDRS
Catalog Number
LDRS612-R2S5/F
Dimensions & Mounting
LDRS612 · 6 in
Profile
Remote J-box
Dimensions (selected size, datasheet)
Diameter
6.69 in
Depth
0.38 in
Cut-out
6 19/64 in
Mounting (each its own line)
Standard
Spring clips into the cut-out, on a remote J-box · no housing needed · fits most 4 and 6 in housings
T-grid kit
LDRS-4R1/TGK · LDRS-6R1/TGK · 4 and 6 in
Plate
LCDL-SE/NCP · new-construction plate, galvanized iron · spans joists or a T-grid
Trims (each its own line)
Trim Rings
LDRS-4R1/TBK · /TCR · LDRS-6R1/TBK · /TCR · matte black, copper · 4 and 6 in
archipelagolighting.com · LDRS Radius submittal · Specifications subject to change without notice
Rev. 2026-10 · Page 3 of 4
ARCHIPELAGO
Lighting Group · LDRS
Catalog Number
LDRS612-R2S5/F
Ordering Information
3 sizes · flat lens · single or 12-pack
Family · Size · Watts
LDRS612
Series · CCT
R2S5
Lens
F
Carton
—
Segment
Codes
LDRS{N}{W}
Ultra-slim downlight, size and watts: LDRS409 (4 in, 9 W) · LDRS612 (6 in, 12 W) · LDRS818 (8 in, 18 W)
R2S5
Radius series · 5-CCTselect 2700K–5000K · set on the J-box
F
Flat frosted lens, edge-lit · white
12PK
Optional: twelve fixtures to the carton. Leave it off for a single fixture.
Photometric Data
LDRS612 · 12 W · 4000K
No IES file has been issued for the 8 in yet. Its figures are the datasheet's.
Total Lumens
—
Input Watts
—
Efficacy
—
Peak Candela
—
CRI
CRI > 90
Beam Angle
—
Plot
4000K
Test Standard
IESNA LM-79 / LM-63
IES File
—
archipelagolighting.com · LDRS Radius submittal · Specifications subject to change without notice
Rev. 2026-10 · Page 4 of 4
