Configured SKU
LDGR615-S5/O1/W
Generated
—
Browser will open the print dialog · choose Save as PDF as the destination · Letter portrait · Margins: Default · Background graphics: ON
ARCHIPELAGO
Lighting Group · LDGR
Catalog Number
LDGR615-S5/O1/W
Click to relabel for project
Project
Type
Catalog #
LDGR615-S5/O1/W
Prepared By
Notes
Date

LDGR · Orbit

Gimbal Retrofit Downlight · multi-fⒶMILY ECO · tilts 60°, turns 360° · for 4 and 6 in housings · E26 adapter · white or black · 10 and 15 W
ECO
Orbit gimbal retrofit downlight
Size
6IN
Input watts
15W
Lumens (datasheet)
—
Efficacy (datasheet)
—
Aim
60° · 360°
CCT
5000K
Field-Set
5-CCTselect 2700K–5000K by switch, ships at 5000K · 120 V · TRIAC dimming, 100–5% · Damp location
LDGR Orbit is the multi-fⒶMILY ECO gimbal retrofit downlight for 4 and 6 in housings. The light tilts 60° and the trim turns 360°. An E26 adapter connects it to the existing socket, and torsion springs hold it in the can. Color temperature is a switch and is not in the catalog number.
Approved by
Date
archipelagolighting.com · LDGR · Orbit submittal · Specifications subject to change without notice
Rev. 2026-10 · Page 1 of 4
ARCHIPELAGO
Lighting Group · LDGR
Catalog Number
LDGR615-S5/O1/W

Specifications

LDGR Orbit · multi-fⒶMILY ECO · gimbal retrofit downlight
Configured Selections (this submittal)
Size—
Finish—
CCTselect—
Construction
HousingAluminum and polycarbonate
Aiming60° tilt · 360° rotation
MountingE26 adapter · torsion springs
LocationDamp location
Operating Temp−4°F to +113°F
LED & Optics
CCT (5-CCTselect)2700K · 3000K · 3500K · 4000K · 5000K · set by switch · ships at 5000K
CRICRI > 90
Beam100° · UGR < 19
Rated Life50,000 hr
Driver & Electrical
Voltage120 V
PF · THD≥ 0.9 · ≤ 15%
DimmingTRIAC, 100–5% · listed dimmers on page 3
Compliance
Warranty5-year / 50,000-hour limited
Spec Footnotes · Lumens are the datasheet's nominal figures. Orbit has no IES file of its own yet. Utility programs: archipelagolighting.com/support/rebate-center/
archipelagolighting.com · LDGR · Orbit submittal · Specifications subject to change without notice
Rev. 2026-10 · Page 2 of 4
ARCHIPELAGO
Lighting Group · LDGR
Catalog Number
LDGR615-S5/O1/W

Dimensions & Mounting

—
Tilted

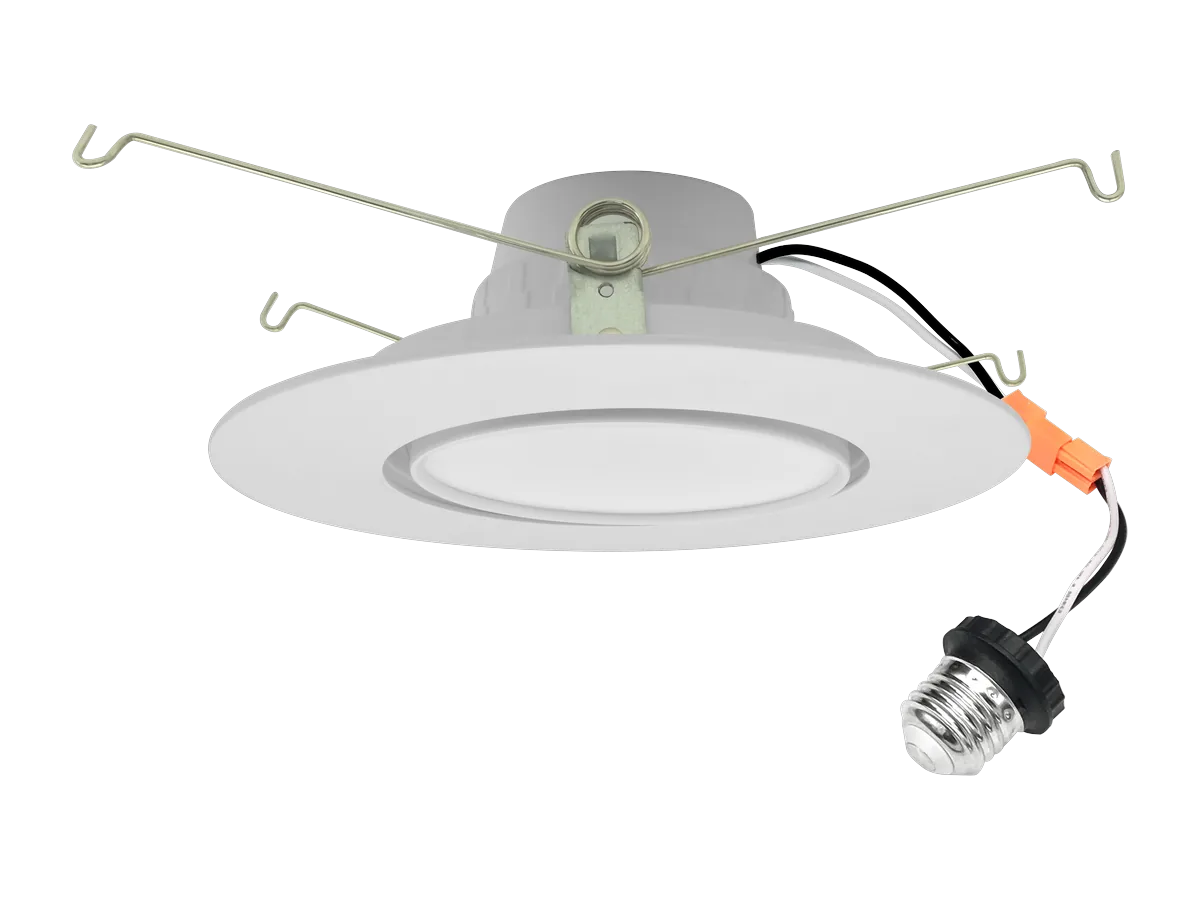

Orbit tilted
Back

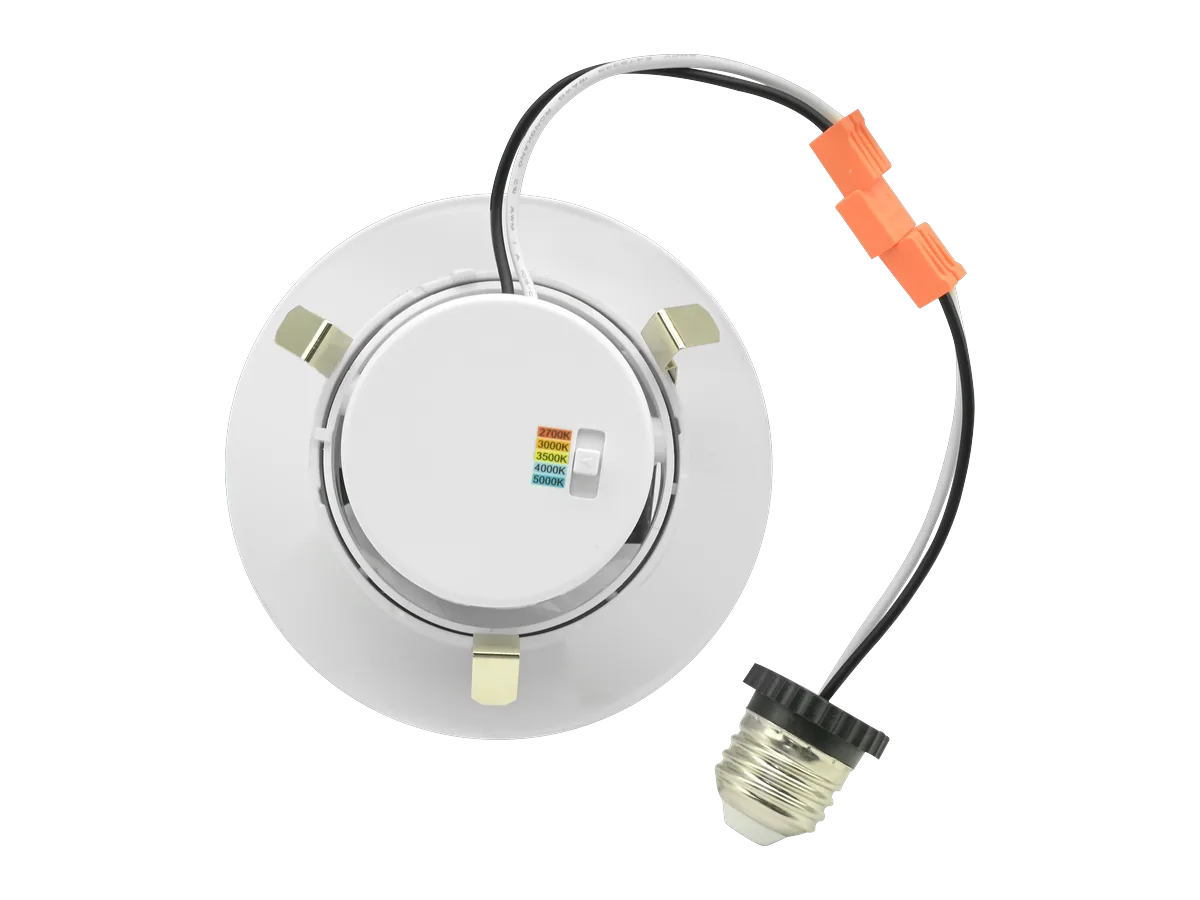

The back of Orbit with its color switch
Dimensions (selected size)
Diameter—
Housing—
Line items (each its own line)
HousingsCRC4-SB/E26 · /T24 · CRC6-SB/E26 · /T24 · Gehry IC-rated can
Listed dimmers (datasheet)
Leviton6672 · 6674 · DSL06 · RNL06 · IPL06
LutronTG-600PR · S-600PR · CTCL-153PDH · TGCL-153PH · SLV-600P · DV-600PR · SCL-153PH · GT600P · DVCL-153P · MSCL-OP153M · MACL-153M · PD-6WCL
archipelagolighting.com · LDGR · Orbit submittal · Specifications subject to change without notice
Rev. 2026-10 · Page 3 of 4
ARCHIPELAGO
Lighting Group · LDGR
Catalog Number
LDGR615-S5/O1/W

Ordering Information

2 sizes · white or black
Family · Size · Watts
LDGR615
CCT · Series
S5/O1
Finish
W
SegmentCodes
LDGR{N}{W}LDGR410 (4 in housing, 10 W) · LDGR615 (6 in housing, 15 W)
S5/O15-CCTselect 2700K–5000K by switch · Orbit series
/W · /BWhite or black
DAMP LOCATION 5 yr · 50K hr LIMITED WARRANTY
archipelagolighting.com · LDGR · Orbit submittal · Specifications subject to change without notice
Rev. 2026-10 · Page 4 of 4
ARCHIPELAGO
Lighting Group · LDGR
Catalog Number
LDGR615-S5/O1/W

Accessory Bill of Materials

0 line items

These are separate line items ordered alongside the Orbit — they are not part of its catalog number. Order each line independently. This list holds only the options picked in the configurator on the product page.

Order CodeCategoryDescription
