Catalog Number
LDGR410-S5/O1/B/W
LDGR · Orbit
Multi-fⒶMILY ECO-tier E26 retrofit · 5-CCTselect 2700/3000/3500/4000/5000K · 100° wide-flood (60° tilt + 360° rotation gimbal) ·
JA8 / Title-24 / ENERGY STAR / cETLus / Damp-rated · TRIAC dim 5-100% · 24-pack contractor carton
CCT (selectable)
2700-5000K
Beam · Voltage
100° · 120V
Field-Selectable
5-CCTselect back-of-fixture switch · 2700/3000/3500/4000/5000K ·
quickⒶDAPT E26 screw-base retrofit, snap-on retention ·
truⒶCOLOR CRI ≥ 90, R9 ≥ 50 (JA8-2022 high-efficacy)
Pair-With · Separate Line Items
ARCHIPELAGO
Lighting Group
Catalog Number
LDGR410-S5/O1/B/W
Specifications

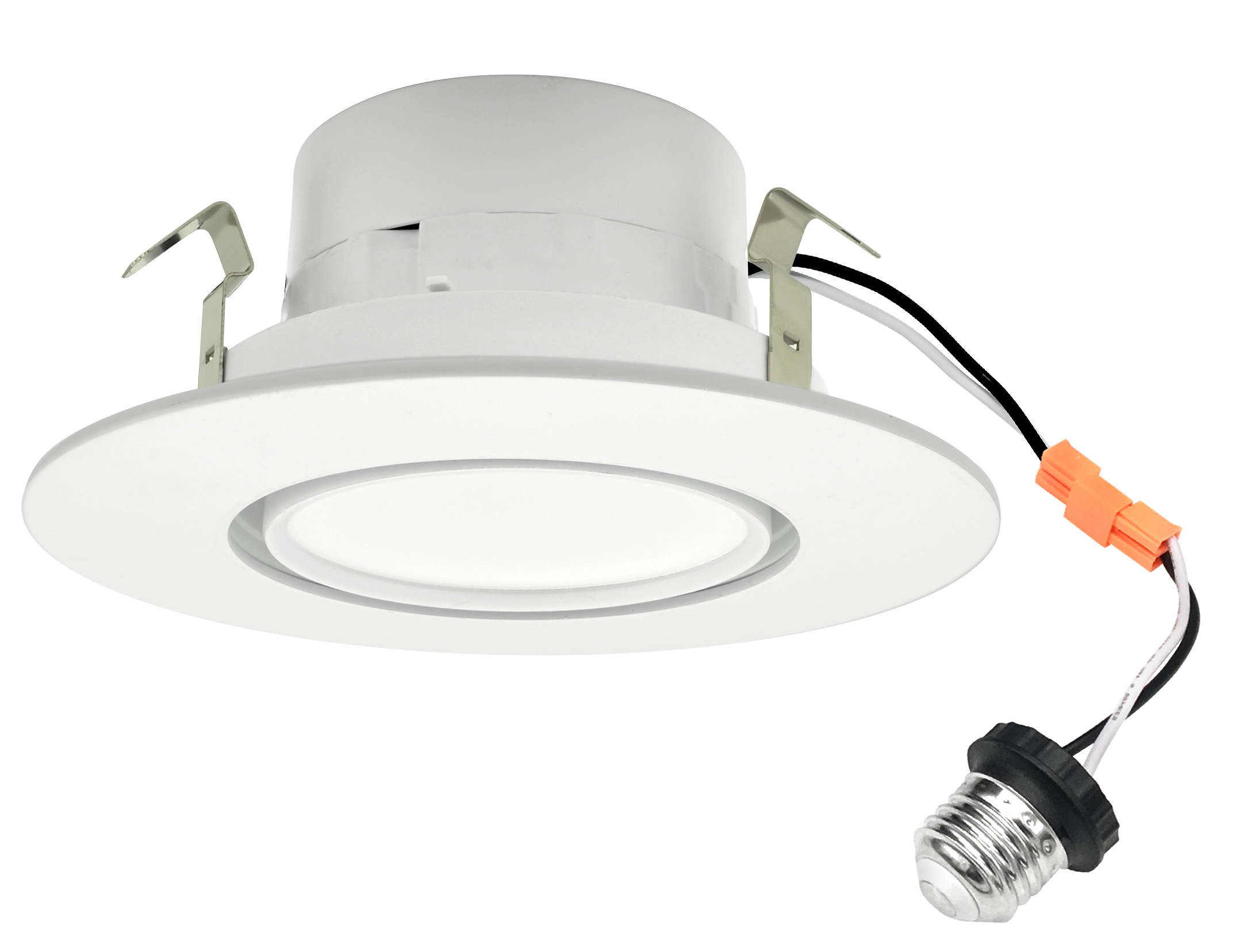

LDGR Orbit-I · 4″ / 6″ E26 Retrofit Downlight
| Construction |
| Housing | Die-cast aluminum heat-sink with white-painted polycarbonate trim cup · snap-on retention via 4 stainless tension clips |
| Lens | Frosted polycarbonate diffuser · 100° wide-flood (60° tilt + 360° rotation gimbal) distribution · UV-stabilized |
| Trim | Self-edge polycarbonate · Baffled (B) for glare control or Smooth (S) · field-swappable in < 30 s tool-less |
| Finish | White (W, default) · Black (BK) · Bronze (BZ) — powder-coat over PC, color-matched to LDGR{4|6}-SE/{BK|BZ|W} replacement trim ladder |
| Ingress / Location | Damp-location rated (covered ceiling) · IC-compatible when paired with CRC{4|6}-SB/T24 housing |
| Operating Temp | −4°F to +113°F (−20°C to +45°C) ambient · 95% RH non-condensing |
| LED & Optics |
| LED Source | High-flux mid-power packaged LEDs · 50,000-hr L70 lumen maintenance |
| CCT (5-CCTselect) | Field-selectable via back-of-fixture switch: 2700K / 3000K / 3500K / 4000K / 5000K — no SKU change required |
| CRI / R9 | ≥ 90 CRI · ≥ 50 R9 · meets CA Title-24 JA8-2022 high-efficacy threshold |
| SDCM | ≤ 3-step MacAdam color stability across all CCT settings |
| Beam Distribution | 100° wide-flood (60° tilt + 360° rotation gimbal) — single beam, no field-replaceable optic |
| Lumen Output (4000K) | LDGR410: 856 lm @ 10 W (85.6 lm/W) · LDGR615: 1,150 lm @ 15 W (76.7 lm/W) — see Page 4 for full CCT table |
| Driver & Electrical |
| Voltage | 120V AC · 50/60 Hz |
| Driver | DOB (Driver-on-Board) · integral · sealed |
| Power Factor | ≥ 0.90 at full load (JA8 minimum) |
| THD | ≤ 20% at full load |
| Dimming | TRIAC (forward-phase) dim 5–100% · compatible with most residential leading-edge dimmers (Lutron Diva/Maestro tested) |
| Inrush | < 30 A @ 120V — supports 20+ fixtures per 15A circuit |
| Controls & Sensors (optional) |
| ⒶCS by ALG App | BLE 5.0 mesh — scenes, schedules, group dimming via mobile app (paired with SD/ⒶCS or HD/ⒶCS sensor accessory) |
| Sensor Add-On | SD/ACS — single-element PIR · 12-ft cone · or HD/ACS — dual-tech PIR + microwave + photo cell · 24-ft cone with daylight harvest |
| Emergency | EM23 — 90-min battery brick (UL 924) · CEC Title-24 §1006/§1007 egress compliant |
| Mounting |
| Standard | E26 screw-base retrofit — installs into existing residential housings (J-box or pre-wired CRC) |
| New Construction | Pair with Gehry CRC: CRC4-SB/E26 (4″ standard) · CRC4-SB/T24 (4″ IC/AT) · CRC6-SB/E26 (6″ standard) · CRC6-SB/T24 (6″ IC/AT) |
| Cut-Out | LDGR410: 4-1/8″ Ø · LDGR615: 6-1/4″ Ø · adjustable spring clips accommodate ½″–1″ ceiling thickness |
| Compliance & Certifications |
| Standards | cETLus listed (UL 1598) · ENERGY STAR · JA8-2022 high-efficacy · CEC Title-20 (MAEDbS) · CEC Title-24 Part 6 compliant · Damp-location rated · RoHS · FCC Title 47 Part 15B |
| Rebate-Ready | Qualifies for utility rebates under CalEnergyWise, ComEd, NYSERDA, and most national QPLs (verify current QPL listing at archipelagolighting.com/qpl) |
| Warranty | 5-year limited (luminaire) · 1-year limited (controls accessories) |
ARCHIPELAGO
Lighting Group
Catalog Number
LDGR410-S5/O1/B/W
Dimensions & Mounting
Top + Side views · Cut-out specs · CRC pairing
Top + Side views (in)
| Dimensions (in) |
| Outer Diameter | 4.50″ (LDGR410) |
| Aperture | 4.13″ (LDGR410) |
| Cut-Out | 4-1/8″ Ø (LDGR410) |
| Recess Depth | 2.20″ |
| Total Depth | 2.40″ (with trim) |
| Ceiling Range | ½″ – 1″ thickness · adjustable spring clips |
| Weight + Carton |
| Single Unit | 0.6 lbs (LDGR410) · 0.9 lbs (LDGR615) |
| 12-Pack Carton | 8.5 lbs (LDGR410 / 12) · 12.0 lbs (LDGR615 / 12) |
| Mount Path |
| Retrofit | E26 screw-base direct into existing housing |
| New (Std) | CRC4-SB/E26 (4″ standard build) |
| New (T24) | CRC4-SB/T24 (4″ IC/AT for CA Title-24) |
ARCHIPELAGO
Lighting Group
Catalog Number
LDGR410-S5/O1/B/W
Ordering Information
Configure your catalog number
| Segment | Available Codes |
| LDGR | Multi-fⒶMILY downlight family prefix |
| 410 / 615 | Aperture & wattage — 410 (4″ · 10 W) · 615 (6″ · 15 W) |
| S5 | 5-CCTselect — fixed family designator (CCT switched at install on the back of the fixture) |
| N2 | Orbit-I generation — fixed family designator |
| B / S | Trim style — Baffled (default) · Smooth |
| W / BK / BZ | Finish — White (default ★) · Black · Bronze |
| /12PK | Pack — append /12PK for 12-pack carton (omit for single unit) |
Photometric Data
100° wide-flood (60° tilt + 360° rotation gimbal) · LDGR410 · 4000K
| Peak Intensity | 382 cd |
| Total Lumen Output | 856 lm |
| Beam Angle | 100° |
| Field Angle | 120° |
| Spacing Criterion | 1.20 |
| Test Standard | IESNA LM-79 |
| L70 Lumen Maint. | 50,000 hr |
| IES File | LDGR410-N2-4000K.IES |
JA8-2022 Title-24 Title-20 cETLus UL 1598 ENERGY STAR Damp RoHS FCC 47 / 15B
