ARCHIPELAGO
Lighting Group · LDRR
Catalog Number
LDRR615-S5-N2/B/W
Click to relabel for project
Project
Type
Catalog #
LDRR615-S5-N2/B/W
Prepared By
Notes
Date
LDRR · Nebula
Retrofit Downlight · multi-fⒶMILY ECO · for 4 and 6 in housings · E26 adapter · baffle or smooth · white, black or bronze · 10 and 15 W
ECO
Size
6IN
Input watts
15W
Lumens
—
Efficacy
—
Trim
Baffle
CCT
5000K
Field-Set
5-CCTselect 2700K–5000K by switch, ships at 5000K · 120 V · TRIAC dimming, 100–5% · Damp location
LDRR Nebula is the multi-fⒶMILY ECO retrofit downlight for 4 and 6 in housings. An E26 adapter connects it to the existing socket, and it holds with spring clips (4 in) or torsion springs (6 in). Baffle or smooth trim in white, black or bronze. Color temperature is a switch and is not in the catalog number.
Approved by
Date
archipelagolighting.com · LDRR · Nebula submittal · Specifications subject to change without notice
E26 adapter · torsion springs (6 in) or spring clips (4 in)
Location
Damp location
Operating Temp
−4°F to +113°F
LED & Optics
CCT (5-CCTselect)
2700K · 3000K · 3500K · 4000K · 5000K · set by switch · ships at 5000K
CRI
CRI > 90
Beam
100°
Rated Life
50,000 hr
Driver & Electrical
Voltage
120 V
PF · THD
> 0.9 · < 20%
Dimming
TRIAC, 100–5% · listed dimmers on page 3
Compliance
Warranty
5-year / 50,000-hour limited
Spec Footnotes · Nominal lumens are the datasheet's; measured figures come from the IES file for the configured size and CCT, rounded down. Utility programs: archipelagolighting.com/support/rebate-center/
archipelagolighting.com · LDRR · Nebula submittal · Specifications subject to change without notice
Rev. 2026-10 · Page 2 of 4
ARCHIPELAGO
Lighting Group · LDRR
Catalog Number
LDRR615-S5-N2/B/W
Dimensions & Mounting
—

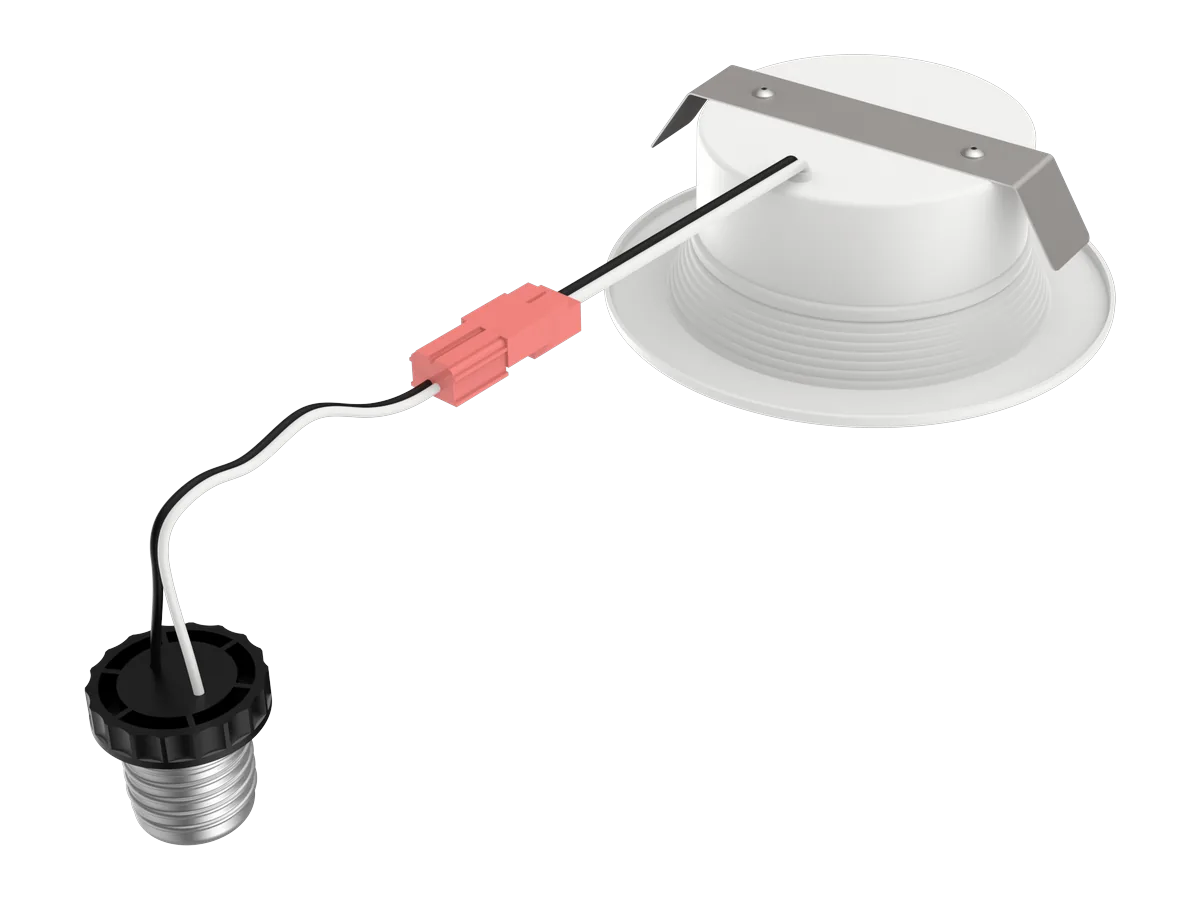

With its E26 adapter

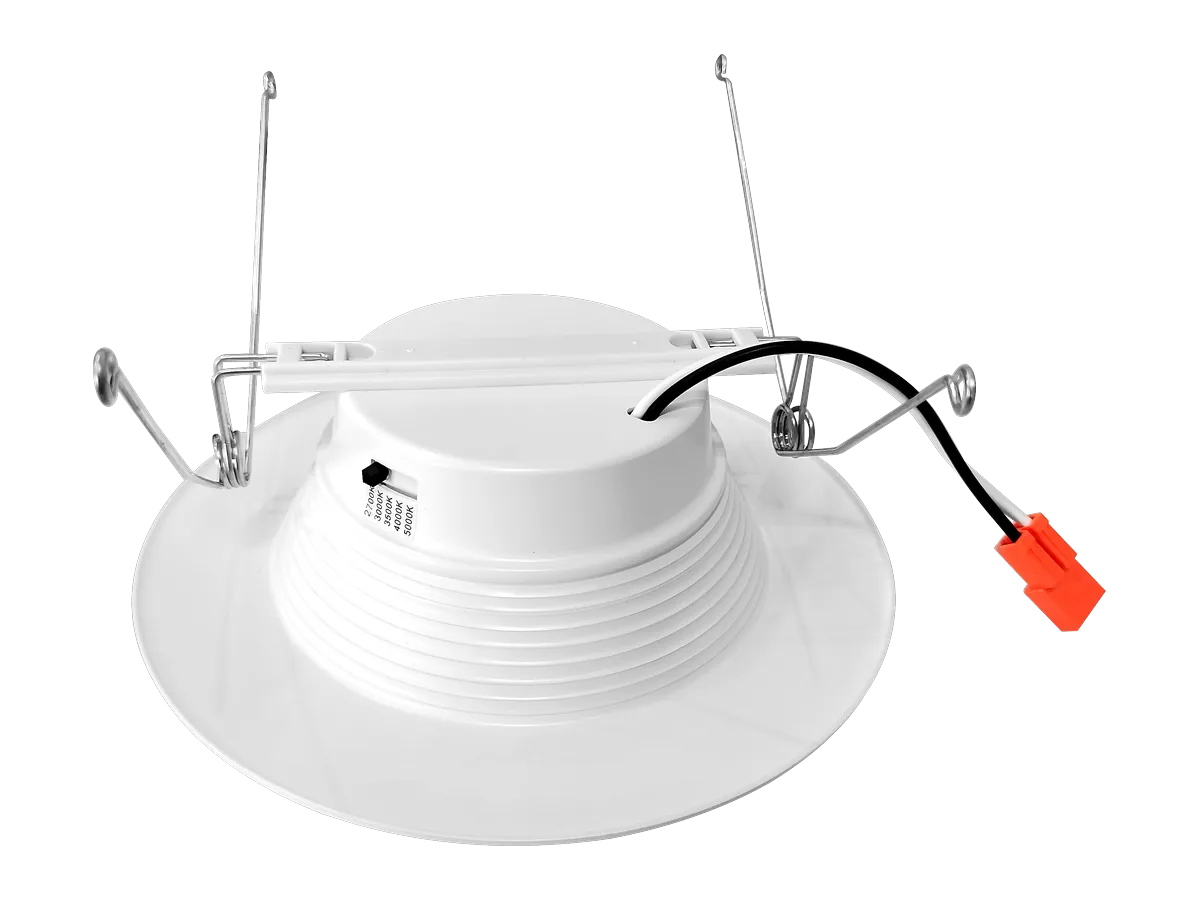

Torsion springs
Dimensions (selected size)
Diameter
—
Height
—
Housing
—
Line items (each its own line)
Trim rings
LDRR-4N2/6N2-B or -S /TBK · /TBN · /TBZ · matched to size and trim
archipelagolighting.com · LDRR · Nebula submittal · Specifications subject to change without notice
Rev. 2026-10 · Page 3 of 4
ARCHIPELAGO
Lighting Group · LDRR
Catalog Number
LDRR615-S5-N2/B/W
Ordering Information
2 sizes · baffle or smooth · 3 finishes · single or 12-pack
Family · Size · Watts
LDRR615
CCT · Series
S5-N2
Trim
B
Finish
W
Carton
—
Segment
Codes
LDRR{N}{W}
LDRR410 (4 in housing, 10 W) · LDRR615 (6 in housing, 15 W)
S5-N2
5-CCTselect 2700K–5000K by switch · Nebula series
/B · /S
Baffle or smooth trim
/W · /BK · /BZ
White, black or bronze
12PK
Optional: twelve fixtures to the carton
Photometric Data
—
No IES file for this build.
Total Lumens
—
Input Watts
—
Efficacy
—
Peak Candela
—
Beam Angle
—
Plot
4000K
Test Standard
IESNA LM-79 / LM-63
IES File
—
archipelagolighting.com · LDRR · Nebula submittal · Specifications subject to change without notice
Rev. 2026-10 · Page 4 of 4
ARCHIPELAGO
Lighting Group · LDRR
Catalog Number
LDRR615-S5-N2/B/W
Accessory Bill of Materials
0 line items
These are separate line items ordered alongside the Nebula — they are not part of its catalog
number. Order each line independently. This list holds only the options picked in the configurator on the
product page.
Order Code
Category
Description
