Configured SKU
LDLL0715-LE1S5/B
Generated
—
Browser will open the print dialog · choose Save as PDF as the destination · Letter portrait · Margins: Default · Background graphics: ON
ARCHIPELAGO
Lighting Group · LDLL
Catalog Number
LDLL0715-LE1S5/B
Click to relabel for project
Project
Type
Catalog #
LDLL0715-LE1S5/B
Prepared By
Notes
Date

LDLL · Lunar Eclipse

Trimless Surface Puck · multi-fⒶMILY ECO · black · wet location (IP65) · 5, 7 and 9 in · 10–18 W
ECO
Lunar Eclipse trimless surface puck
Size
7IN
Input watts
15W
Lumens (datasheet)
—
Efficacy (datasheet)
—
Finish
Black
CCT
4000K
Field-Set
5-CCTselect 2700K–5000K by switch · 120 V · TRIAC dimming, 100–10% · Wet location, IP65
LDLL Lunar Eclipse is the multi-fⒶMILY ECO trimless surface puck: black, die-cast aluminum, 0.98 to 1.1 in deep, on a standard 2.75 or 3.5 in junction box with the quick-mount backplate in the carton. Color temperature is a switch on the side and is not in the catalog number.
Approved by
Date
archipelagolighting.com · LDLL · Lunar Eclipse submittal · Specifications subject to change without notice
Rev. 2026-10 · Page 1 of 4
ARCHIPELAGO
Lighting Group · LDLL
Catalog Number
LDLL0715-LE1S5/B

Specifications

LDLL Lunar Eclipse · multi-fⒶMILY ECO · trimless surface puck
Configured Selections (this submittal)
Size—
Finish/B · black
CCTselect—
Construction
Housing · LensDie-cast aluminum · frosted lens · trimless
MountingSurface, on a 2.75 or 3.5 in junction box or the ceiling · backplate, wire nuts and screws in the carton
LocationWet, damp and dry locations (IP65) · closets per the NEC
Operating Temp−4°F to +113°F
LED & Optics
CCT (5-CCTselect)2700K · 3000K · 3500K · 4000K · 5000K · set by switch
CRICRI 90+
Beam120°
Rated Life50,000 hr
Driver & Electrical
Voltage120 V
PF · THD> 0.9 · < 20%
DimmingTRIAC, 100–10% · listed dimmers on page 3
Compliance
Warranty5-year / 50,000-hour limited
Spec Footnotes · Lumens are the datasheet's nominal figures. Utility programs: archipelagolighting.com/support/rebate-center/
archipelagolighting.com · LDLL · Lunar Eclipse submittal · Specifications subject to change without notice
Rev. 2026-10 · Page 2 of 4
ARCHIPELAGO
Lighting Group · LDLL
Catalog Number
LDLL0715-LE1S5/B

Dimensions & Mounting

—
Side, with the switch
Lunar Eclipse from the side
Backplate

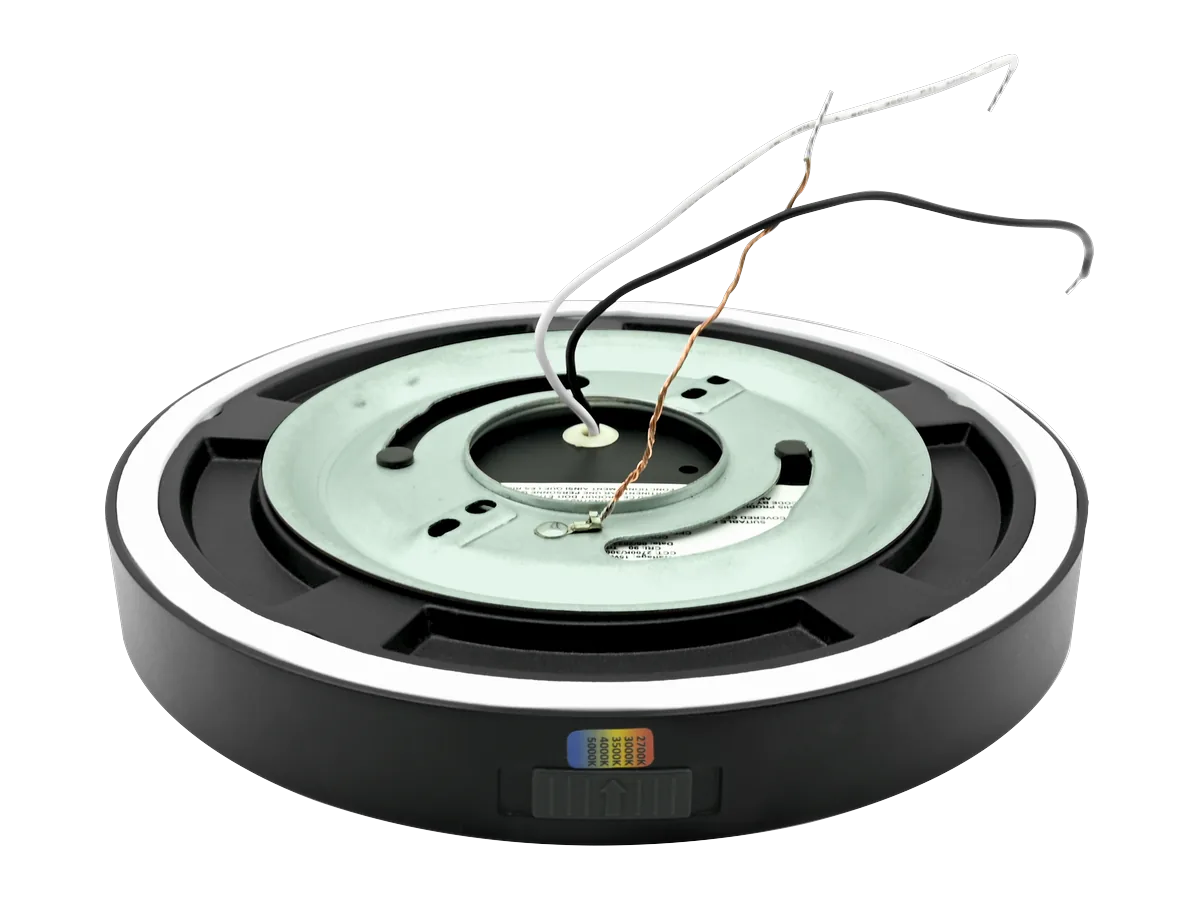

Lunar Eclipse with its backplate
Dimensions (selected size)
Diameter—
Depth—
In the carton
ContentsFixture · quick-mount backplate · wire nuts · mounting screws
Listed dimmers (datasheet)
Leviton6672 · 6674 · DSL06 · RNL06 · IPL06
LutronTG-600PR · S-600PR · CTCL-153PDH · TGCL-153PH · SLV-600P · DV-600PR · SCL-153PH · GT600P · DVCL-153P · MSCL-OP153M · MACL-153M · PD-6WCL
archipelagolighting.com · LDLL · Lunar Eclipse submittal · Specifications subject to change without notice
Rev. 2026-10 · Page 3 of 4
ARCHIPELAGO
Lighting Group · LDLL
Catalog Number
LDLL0715-LE1S5/B

Ordering Information

3 sizes · black
Family · Size · Watts
LDLL0715
Series · CCT
LE1S5
Finish
B
SegmentCodes
LDLL{N}{W}0510 (5 in, 10 W) · 0715 (7 in, 15 W) · 0918 (9 in, 18 W)
LE1S5Lunar Eclipse series · 5-CCTselect 2700K–5000K by switch
/BBlack, the only finish
WET LOCATION · IP65 5 yr · 50K hr LIMITED WARRANTY
archipelagolighting.com · LDLL · Lunar Eclipse submittal · Specifications subject to change without notice
Rev. 2026-10 · Page 4 of 4
ARCHIPELAGO
Lighting Group · LDLL
Catalog Number
LDLL0715-LE1S5/B

Accessory Bill of Materials

0 line items

These are separate line items ordered alongside the Lunar Eclipse — they are not part of its catalog number. Order each line independently. This list holds only the options picked in the configurator on the product page.

Order CodeCategoryDescription
