Configured SKU
LSBX100-3CS-ULB/UA/OT5
Generated
—
Archipelago
Lighting Group
Catalog Number
LSBX100-3CS-ULB/UA/OT5
Project
Type
Catalog #
Prepared By
Notes
Date

LSBX · Heritage

LED Area Light · Type II / III / IV / V · 45,000 lm · 3000K / 4000K / 5000K

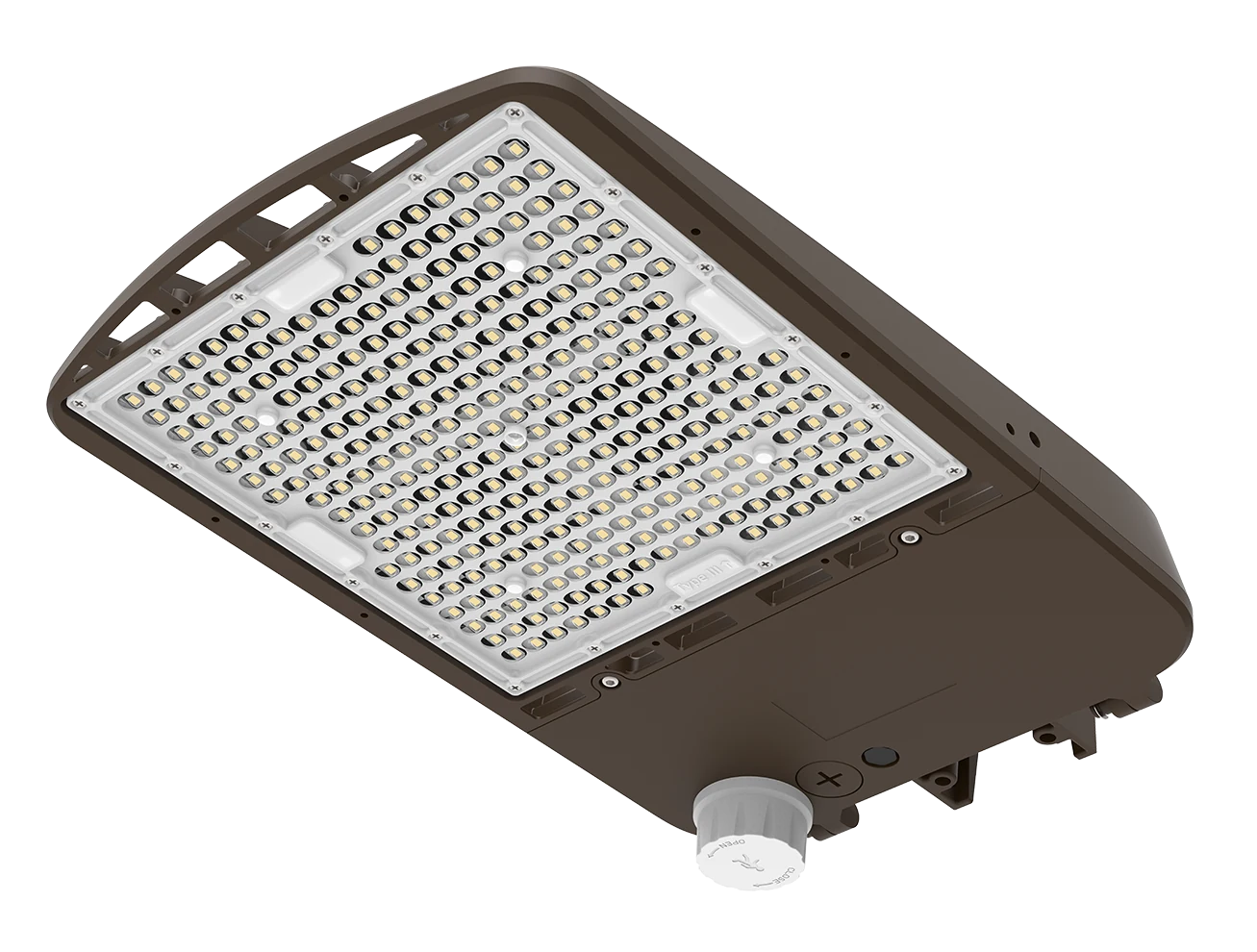

LSBX Heritage luminaire
Lumens
45,000lm
Wattage
300W
Voltage
120-277VV
CCT
4000K
CRI
>80
IP Rating
IP65
ALG Certified
3WATTselect field-selectable, CCTselect field-selectable, Dark Sky conforming optics
Approved by
Date
archipelagolighting.com · LSBX Heritage submittal · Specifications subject to change
Rev. 2026-06 · Page 1 of 4
Archipelago
Lighting Group
Catalog Number
LSBX100-3CS-ULB/UA/OT5
Model Specifications
70W (small)10,500 lm · 150 lm/W
100W (small)15,000 lm · 150 lm/W
150W (small)22,500 lm · 150 lm/W
200W (large)30,000 lm · 150 lm/W
240W (large)36,000 lm · 150 lm/W
300W (large)45,000 lm · 150 lm/W
Optical
CCT Options3000K / 4000K / 5000K
CRI>80 typical
Optic DistributionType II / III / IV / V
Electrical
Input Voltage120-277V
Power Factor≥ 0.95 at full load
THD≤ 20% at full load
Surge Protection10kV standard
Dimming0-10V standard · contrⒶLS-Ready
Construction & Environment
Ingress ProtectionIP65 wet-location rated
Operating Temp-40Cto+45C
LED SourceLUMILEDS LED · L70 lumen maintenance
Mounting
Mount OptionsSlip Fitter / Trunnion / Wall Mount
Compliance & Warranty
StandardsUL 1598 · cUL · DLC Premium QPL Listed · FCC Title 47 Part 15B · RoHS
Warranty5-year limited · 50000-hr L70 lumen maintenance
archipelagolighting.com · LSBX Heritage submittal · Specifications subject to change
Rev. 2026-06 · Page 2 of 4
Archipelago
Lighting Group
Catalog Number
LSBX100-3CS-ULB/UA/OT5
Ordering Guide — LSBX Heritage
Wattage / Housing
70W (small)10,500 lm · 150 lm/W
100W (small)15,000 lm · 150 lm/W
150W (small)22,500 lm · 150 lm/W
200W (large)30,000 lm · 150 lm/W
240W (large)36,000 lm · 150 lm/W
300W (large)45,000 lm · 150 lm/W
CCT
303000K Warm White
404000K Neutral White
505000K Cool White
Voltage
UUniversal 120-277V
HHigh Voltage 277-480V
Finish
BBlack
DDark Bronze
SSilver
WWhite
Mount
WMWall Mount
UAUniversal Arm
SFSlip Fitter
TRTrunnion
archipelagolighting.com · LSBX Heritage submittal · Specifications subject to change
Rev. 2026-06 · Page 3 of 4
Archipelago
Lighting Group
Catalog Number
LSBX100-3CS-ULB/UA/OT5
Default optic · 300W · 4000K

Dimensions & Mounting

LSBX Heritage — Dimension drawing
Dimension drawing (in)
LSBX Heritage dimension drawing

Refer to dimension drawing for exact housing dimensions, mounting hole patterns, and clearance requirements.

Contact ALG for DWG/DXF CAD files.

Polar plot
Lumens45,000 lm
Peak Candela—
Distribution—
IES FileLSBX300-4000K.IES
archipelagolighting.com · LSBX Heritage submittal · Specifications subject to change
Rev. 2026-06 · Page 4 of 4
