Configured SKU
LFLD50-3CS-U-KN
Generated
—
Archipelago
Lighting Group
Catalog Number
LFLD50-3CS-U-KN
Project
Type
Catalog #
Prepared By
Notes
Date

LFLD · Everest

LED Flood Light · Glass Lens · 21,000 lm · 3000K / 4000K / 5000K

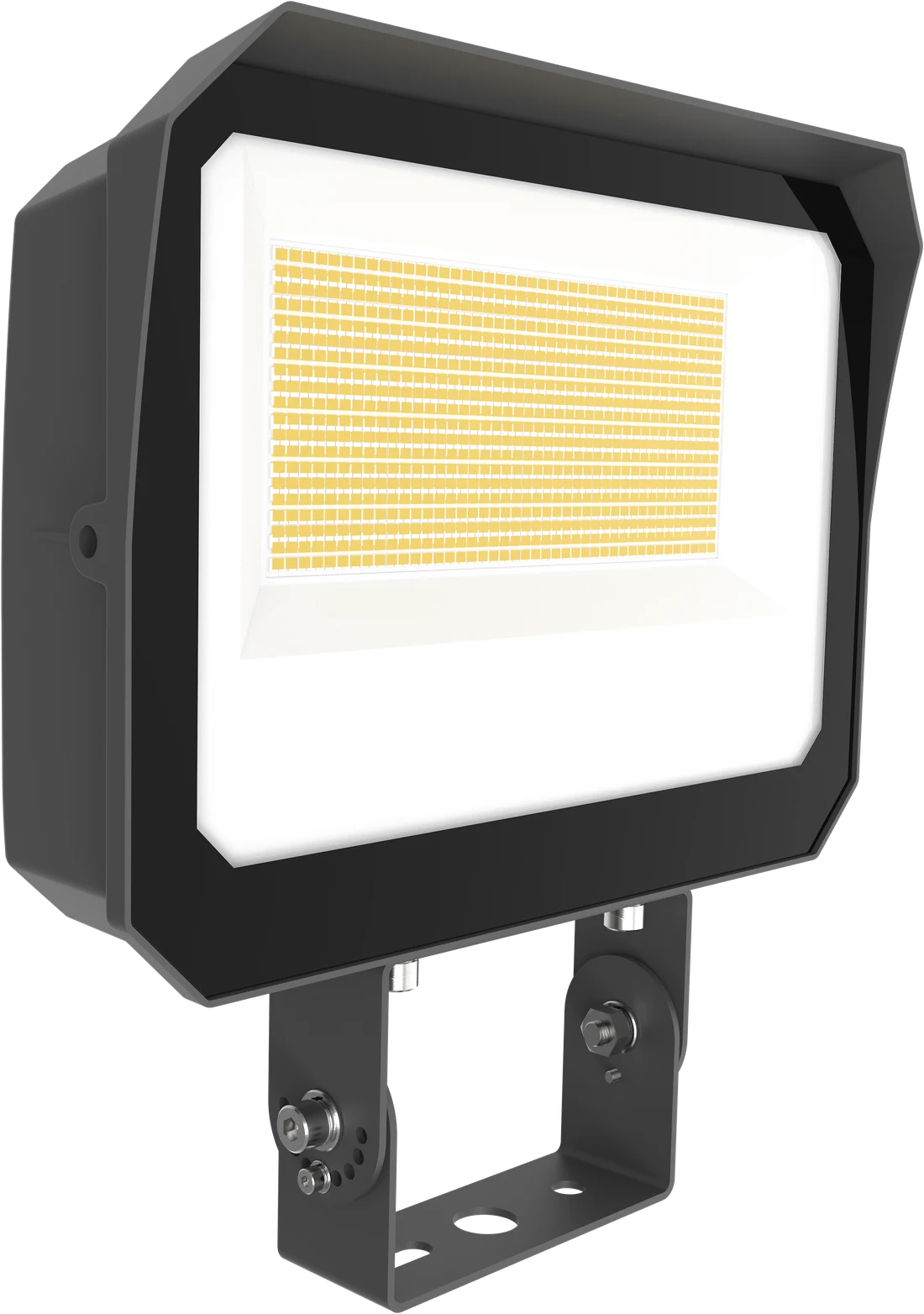

LFLD Everest luminaire
Lumens
21,000lm
Wattage
150W
Voltage
120-277VV
CCT
4000K
CRI
>80
IP Rating
UL Wet Location Listed
ALG Certified
3-WATTselect / 3-CCTselect / thermalⒶRMOR / surgeⒶRMOR
Approved by
Date
archipelagolighting.com · LFLD Everest submittal · Specifications subject to change
Rev. 2026-06 · Page 1 of 4
Archipelago
Lighting Group
Catalog Number
LFLD50-3CS-U-KN
Model Specifications
15W2,100 lm · 140 lm/W
20W2,800 lm · 140 lm/W
35W4,900 lm · 140 lm/W
35W4,900 lm · 140 lm/W
60W8,400 lm · 140 lm/W
80W11,200 lm · 140 lm/W
100W14,000 lm · 140 lm/W
120W16,800 lm · 140 lm/W
150W21,000 lm · 140 lm/W
Optical
CCT Options3000K / 4000K / 5000K
CRI>80 typical
Optic DistributionGlass Lens
Electrical
Input Voltage120-277V
Power Factor≥ 0.95 at full load
THD≤ 20% at full load
Surge Protection6kV standard
Dimming0-10V standard · contrⒶLS-Ready
Construction & Environment
Ingress ProtectionUL Wet Location Listed wet-location rated
Operating Temp-40°C to 45°C
LED SourceLUMILEDS LED High Luminous Efficiency · L70 lumen maintenance
Mounting
Mount OptionsKnuckle / Slip-Fitter / Trunnion / Yoke
Compliance & Warranty
StandardsUL 1598 · cUL · DLC Premium QPL Listed · FCC Title 47 Part 15B · RoHS
Warranty5-year limited · 50000-hr L70 lumen maintenance
archipelagolighting.com · LFLD Everest submittal · Specifications subject to change
Rev. 2026-06 · Page 2 of 4
Archipelago
Lighting Group
Catalog Number
LFLD50-3CS-U-KN
Ordering Guide — LFLD Everest
Wattage / Housing
15W2,100 lm · 140 lm/W
20W2,800 lm · 140 lm/W
35W4,900 lm · 140 lm/W
35W4,900 lm · 140 lm/W
60W8,400 lm · 140 lm/W
80W11,200 lm · 140 lm/W
100W14,000 lm · 140 lm/W
120W16,800 lm · 140 lm/W
150W21,000 lm · 140 lm/W
CCT
303000K Warm White
404000K Neutral White
505000K Cool White
Voltage
UUniversal 120-277V
HHigh Voltage 277-480V
Finish
BBlack
DDark Bronze
SSilver
WWhite
Mount
WMWall Mount
UAUniversal Arm
SFSlip Fitter
TRTrunnion
archipelagolighting.com · LFLD Everest submittal · Specifications subject to change
Rev. 2026-06 · Page 3 of 4
Archipelago
Lighting Group
Catalog Number
LFLD50-3CS-U-KN
Default optic · 150W · 4000K

Dimensions & Mounting

LSBX Everest — Dimension drawing
Dimension drawing (in)
LSBX Everest dimension drawing

Refer to dimension drawing for exact housing dimensions, mounting hole patterns, and clearance requirements.

Contact ALG for DWG/DXF CAD files.

Polar plot
Lumens21,000 lm
Peak Candela—
Distribution—
IES FileLFLD150-4000K.IES
archipelagolighting.com · LFLD Everest submittal · Specifications subject to change
Rev. 2026-06 · Page 4 of 4
