Configured SKU
LCWS36-3CS-U-DWN
Generated
—
Archipelago
Lighting Group
Catalog Number
LCWS36-3CS-U-DWN
Project
Type
Catalog #
Prepared By
Notes
Date

LCWS · Aura

LED Cylinder Wall Sconce · UP / FULL / DOWN (Direct / Direct & Indirect / Indirect), Beam angle adjustable: 50° / 60° / 70° · 5,850 lm · 3000K / 4000K / 5000K

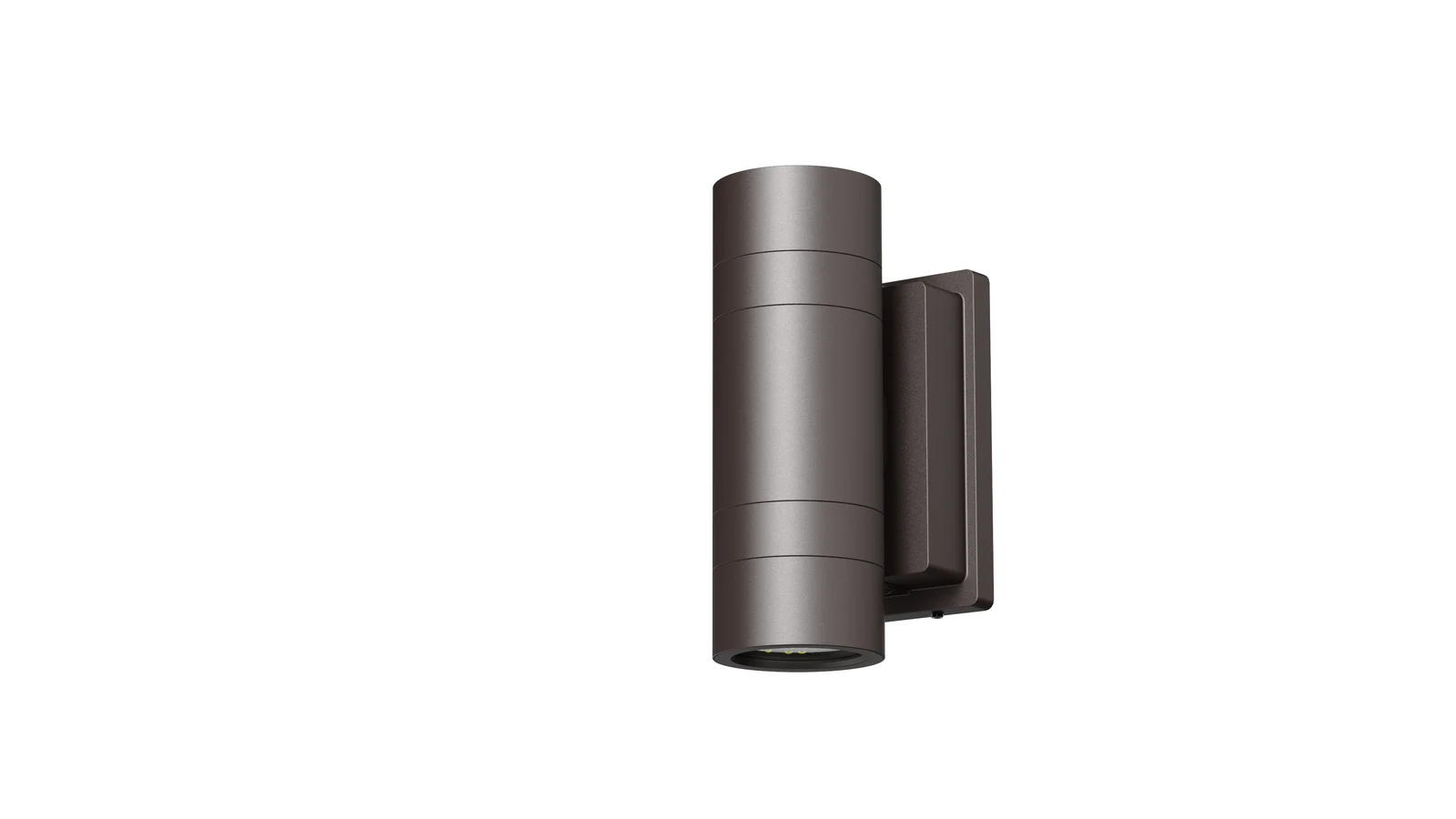

LCWS Aura luminaire
Lumens
5,850lm
Wattage
45W
Voltage
120-277VV
CCT
4000K
CRI
80
IP Rating
Wet-location listed
ALG Certified
4-WATTselect field-selectable wattage, 3-CCTselect field-selectable CCT, beamADJUST field-adjustable beam angle, DualCast field-selectable distribution modes, Photocell-Ready, wetGUARD wet-location listed construction
Approved by
Date
archipelagolighting.com · LCWS Aura submittal · Specifications subject to change
Rev. 2026-06 · Page 1 of 4
Archipelago
Lighting Group
Catalog Number
LCWS36-3CS-U-DWN
Model Specifications
36W (6in)4,050 lm · 113 lm/W
24W (3in)2,900 lm · 121 lm/W
30W (4in)3,660 lm · 122 lm/W
45W (6in)5,850 lm · 130 lm/W
Optical
CCT Options3000K / 4000K / 5000K
CRI80 typical
Optic DistributionUP / FULL / DOWN (Direct / Direct & Indirect / Indirect), Beam angle adjustable: 50° / 60° / 70°
Electrical
Input Voltage120-277V
Power Factor≥ 0.95 at full load
THD≤ 20% at full load
Surge ProtectionNot specified standard
Dimming0-10V standard · contrⒶLS-Ready
Construction & Environment
Ingress ProtectionWet-location listed wet-location rated
Operating Temp-40°F to 122°F
LED SourceNot specified · L70 lumen maintenance
Mounting
Mount OptionsWall mount to standard junction box
Compliance & Warranty
StandardsUL 1598 · cUL · DLC Premium QPL Listed · FCC Title 47 Part 15B · RoHS
Warranty7-year limited · 75000-hr L70 lumen maintenance
archipelagolighting.com · LCWS Aura submittal · Specifications subject to change
Rev. 2026-06 · Page 2 of 4
Archipelago
Lighting Group
Catalog Number
LCWS36-3CS-U-DWN
Ordering Guide — LCWS Aura
Wattage / Housing
36W (6in)4,050 lm · 113 lm/W
24W (3in)2,900 lm · 121 lm/W
30W (4in)3,660 lm · 122 lm/W
45W (6in)5,850 lm · 130 lm/W
CCT
303000K Warm White
404000K Neutral White
505000K Cool White
Voltage
UUniversal 120-277V
HHigh Voltage 277-480V
Finish
BBlack
DDark Bronze
SSilver
WWhite
Mount
WMWall Mount
UAUniversal Arm
SFSlip Fitter
TRTrunnion
archipelagolighting.com · LCWS Aura submittal · Specifications subject to change
Rev. 2026-06 · Page 3 of 4
Archipelago
Lighting Group
Catalog Number
LCWS36-3CS-U-DWN
Default optic · 45W · 4000K

Dimensions & Mounting

LWPA Aura — Dimension drawing
Dimension drawing (in)
LWPA Aura dimension drawing

Refer to dimension drawing for exact housing dimensions, mounting hole patterns, and clearance requirements.

Contact ALG for DWG/DXF CAD files.

Polar plot
Lumens5,850 lm
Peak Candela—
Distribution—
IES FileLCWS45-4000K.IES
archipelagolighting.com · LCWS Aura submittal · Specifications subject to change
Rev. 2026-06 · Page 4 of 4
