Configured SKU
LWPA60-3CS-U-WM
Generated
—
Archipelago
Lighting Group
Catalog Number
LWPA60-3CS-U-WM
Project
Type
Catalog #
Prepared By
Notes
Date

LWPA · Atlanta

LED Wall Pack · Adjustable Vertical Beam / darkARCH / Integrated Photocell · 15,600 lm · 3000K / 4000K / 5000K

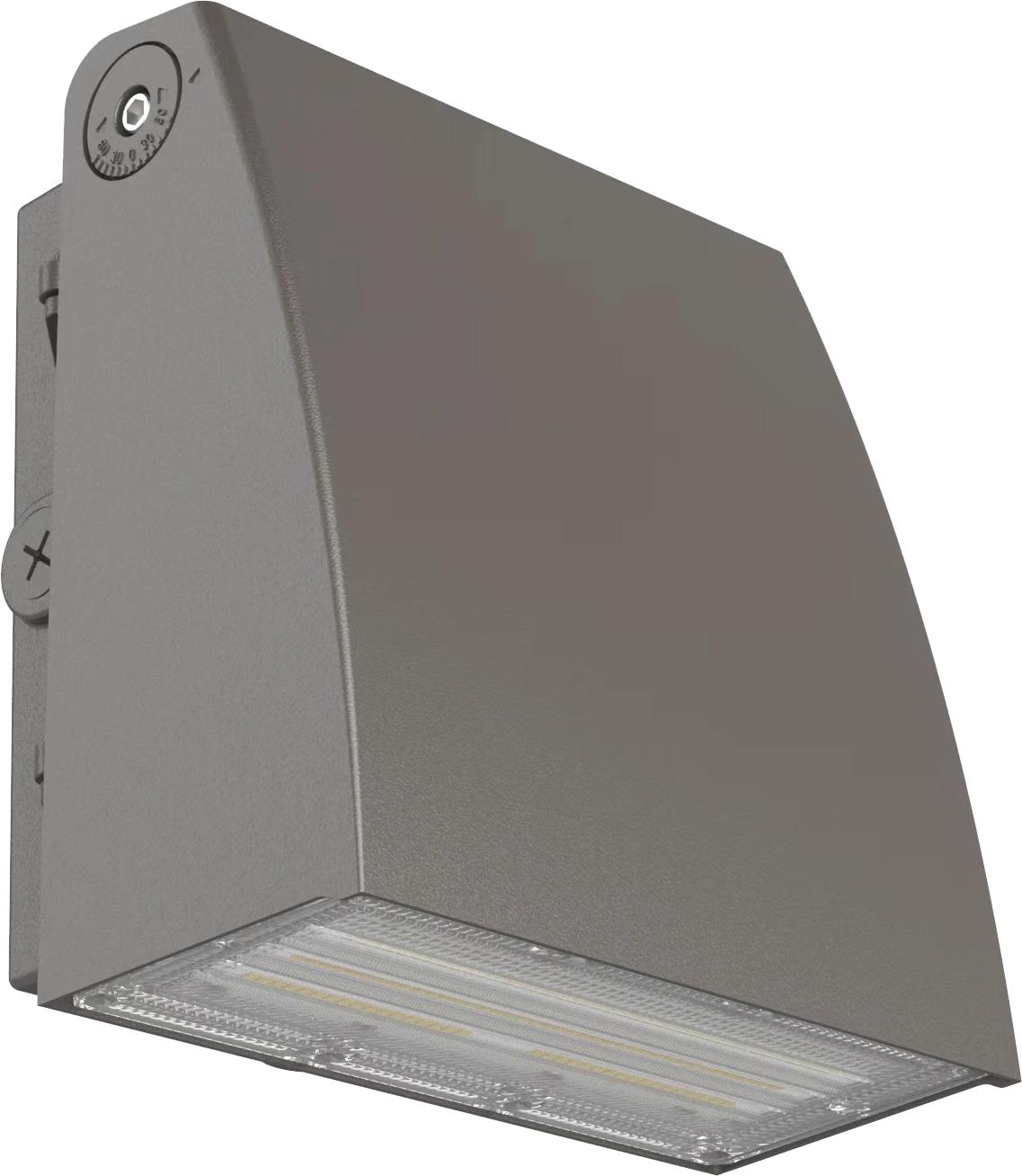

LWPA Atlanta luminaire
Lumens
15,600lm
Wattage
120W
Voltage
120-277VV
CCT
4000K
CRI
>70
IP Rating
Wet Location rated
ALG Certified
3-WATTselect Field-selectable wattage to tune light output and energy use to the application. / 3-CCTselect Field-selectable CCT (3000K/4000K/5000K) for on-site control. / darkARCH Dark-sky-conscious design approach to reduce uplight and help minimize sky glow in exterior applications.
Approved by
Date
archipelagolighting.com · LWPA Atlanta submittal · Specifications subject to change
Rev. 2026-06 · Page 1 of 4
Archipelago
Lighting Group
Catalog Number
LWPA60-3CS-U-WM
Model Specifications
40W (LWPA80)5,200 lm · 130 lm/W
60W (LWPA80)7,800 lm · 130 lm/W
80W (LWPA80)10,400 lm · 130 lm/W
80W (LWPA120)10,400 lm · 130 lm/W
100W (LWPA120)13,000 lm · 130 lm/W
120W (LWPA120)15,600 lm · 130 lm/W
Optical
CCT Options3000K / 4000K / 5000K
CRI>70 typical
Optic DistributionAdjustable Vertical Beam / darkARCH / Integrated Photocell
Electrical
Input Voltage120-277V
Power Factor≥ 0.95 at full load
THD≤ 20% at full load
Surge Protection standard
Dimming0-10V standard · contrⒶLS-Ready
Construction & Environment
Ingress ProtectionWet Location rated wet-location rated
Operating Temp-40C to +45C
LED Source · L70 lumen maintenance
Mounting
Mount OptionsWall Mount
Compliance & Warranty
StandardsUL 1598 · cUL · DLC Premium QPL Listed · FCC Title 47 Part 15B · RoHS
Warranty5-year limited · 50000-hr L70 lumen maintenance
archipelagolighting.com · LWPA Atlanta submittal · Specifications subject to change
Rev. 2026-06 · Page 2 of 4
Archipelago
Lighting Group
Catalog Number
LWPA60-3CS-U-WM
Ordering Guide — LWPA Atlanta
Wattage / Housing
40W (LWPA80)5,200 lm · 130 lm/W
60W (LWPA80)7,800 lm · 130 lm/W
80W (LWPA80)10,400 lm · 130 lm/W
80W (LWPA120)10,400 lm · 130 lm/W
100W (LWPA120)13,000 lm · 130 lm/W
120W (LWPA120)15,600 lm · 130 lm/W
CCT
303000K Warm White
404000K Neutral White
505000K Cool White
Voltage
UUniversal 120-277V
HHigh Voltage 277-480V
Finish
BBlack
DDark Bronze
SSilver
WWhite
Mount
WMWall Mount
UAUniversal Arm
SFSlip Fitter
TRTrunnion
archipelagolighting.com · LWPA Atlanta submittal · Specifications subject to change
Rev. 2026-06 · Page 3 of 4
Archipelago
Lighting Group
Catalog Number
LWPA60-3CS-U-WM
Default optic · 120W · 4000K

Dimensions & Mounting

LWPA Atlanta — Dimension drawing
Dimension drawing (in)
LWPA Atlanta dimension drawing

Refer to dimension drawing for exact housing dimensions, mounting hole patterns, and clearance requirements.

Contact ALG for DWG/DXF CAD files.

Polar plot
Lumens15,600 lm
Peak Candela—
Distribution—
IES FileLWPA120-4000K.IES
